4-port 100/1000BASE-T1 automotive Ethernet card with Gen2 x4 PCIe interface

PCIe-AE304bp

4-port 100/1000BASE-T1 automotive Ethernet card with Gen2 x4 PCIe interface

Angebot anfragen

Hersteller Neousys Technology
Kategorie: Vision & Video

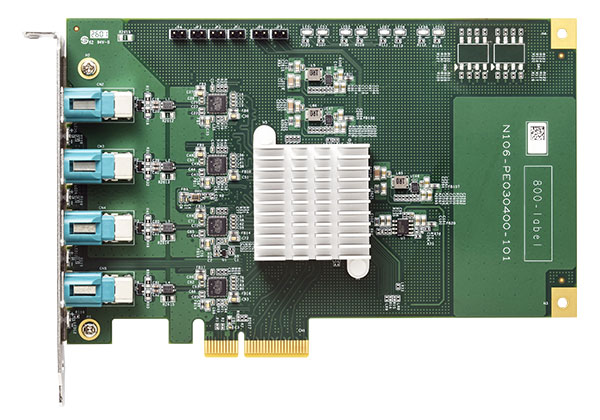

Die PCIe-AE304bp ist eine lüfterlose Automotive-Ethernet-Karte für Fahrzeugtests, Validierung und Edge-Computing. Vier H-MTD-Ports stellen direkte IEEE-802.3bw/bp-Verbindungen mit 100 oder 1000 Mbit/s zu Sensoren wie LiDAR und Radar bereit. Vier Marvell-88Q2221M-Transceiver ermöglichen eine softwarekonfigurierbare Master-/Slave-Umschaltung. Hardware-Zeitstempel nach IEEE 1588 V1/V2 und IEEE 802.1AS unterstützen eine Synchronisation mit Submikrosekunden-Genauigkeit. Die PCIe-Gen2-x4-Karte arbeitet lüfterlos von -25 bis 70 °C und unterstützt Ubuntu Linux.

Wide-temperature, fanless PCIe card with four IEEE 802.3bw/bp 100/1000BASE-T1 H-MTD ports. It uses four Marvell 88Q2221M transceivers, supports software-configurable master/slave operation, and provides hardware PTP timestamping for IEEE 1588 V1/V2 and IEEE 802.1AS. The card requires a PCIe Gen2 x4 interface and supports up to 15 m UTP cabling. Dimensions are 167.7 x 111 mm; fanless operating temperature is -25°C to 70°C.

Bus Interface PCI Express Gen2 x4
Automotive Ethernet Ports 4 ports
Ethernet Standards IEEE 802.3bw and IEEE 802.3bp
Supported Link Speeds 100 and 1000 Mbps
PHY Transceivers 4x Marvell 88Q2221M
Master/Slave Configuration Software-configurable
PTP Timestamping Hardware timestamping
Time Synchronization Standards IEEE 1588 V1/V2 and IEEE 802.1AS
Synchronization Accuracy Sub-microsecond
Connector H-MTD, Z-code
Maximum Cable Length 15 m
Cable Type Unshielded twisted pair (UTP)
Form Factor Single-slot, half-length PCIe card
Width 167.7 mm
Height 111 mm
Connector 4x H-MTD, Z-code
Dimensions 167.7 mm (W) x 111 mm (H)
Operating Temperature -25 to 70 °C
Storage Temperature -40 to 85 °C
Operating Mode Fanless
Relative Humidity 10 to 90, non-condensing %
Operating Temperature -25°C to 70°C, fanless
EMC Compliance CE; FCC Class A; EN 55032; EN 55035
Supported Operating System Linux Ubuntu
Key Features 4x IEEE 802.3bw/bp 100/1000BASE-T1 ports; Software-configurable master/slave mode; Hardware PTP timestamping; IEEE 1588 V1/V2 and IEEE 802.1AS support; PCIe Gen2 x4 interface; Single-slot half-length design; Fanless wide-temperature operation; Ubuntu Linux support
