Fanless 4-port GMSL2 PCIe frame grabber for automotive cameras
Fanless 4-port GMSL2 PCIe frame grabber for automotive cameras Fanless 4-port GMSL2 PCIe frame grabber for automotive cameras

PCIe-NPL54

Fanless 4-port GMSL2 PCIe frame grabber for automotive cameras
Request a quote
  • Manufacturer Neousys Technology
  • Category: Vision & Video

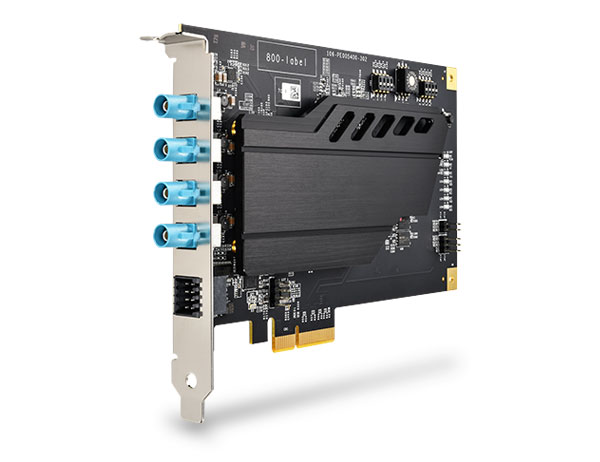

  • The PCIe-NPL54 is a fanless four-channel GMSL2 frame grabber card for integrating selected automotive cameras into x86-based edge AI systems. Four FAKRA Z connectors support 8MP, 5MP, 3MP or 2MP cameras and multiple configurations, including four 5MP cameras at 30 FPS or four 2MP cameras at 60 FPS. An isolated GPS PPS input and mirrored output provide frame synchronization and signal daisy-chaining. The compact PCIe Gen2 x4 card operates fanlessly from -40°C to 70°C, draws power directly from the PCIe connector and requires no external power cable.
Fanless, single-slot, half-length frame grabber with PCIe Gen2 x4 interface and four GMSL2 FAKRA Z camera inputs. Supports selected 8MP, 5MP, 3MP and 2MP automotive cameras, including up to four 5MP cameras at 30 FPS or four 2MP cameras at 60 FPS. Includes one isolated GPS PPS input, one mirrored GPS PPS output for daisy-chaining and one RS-232 port. Operates from -40°C to 70°C and draws power directly from the PCIe connector.
  • Bus Interface PCI Express Gen2 x4
  • Bus Interface PCIe Gen2 x4
  • Form Factor Single-slot, half-length PCIe card
  • Dimensions 167.7 x 111 mm
  • Weight 183 g
  • Connector 4x GMSL2 FAKRA Z; PCIe edge connector
  • Dimensions 167.7 mm (W) x 111 mm (H)
  • GMSL2 Camera Ports 4 ports
  • Camera Connector FAKRA Z
  • Supported Camera Resolutions 8MP; 5MP; 3MP; 2MP
  • Camera Configuration A 2x 8MP + 1x 3MP at 30 FPS
  • Camera Configuration B 4x 5MP at 30 FPS
  • Camera Configuration C 4x 3MP at 30 FPS
  • Camera Configuration D 4x 2MP at 60 FPS
  • Camera Configuration E 4x 2MP at 30 FPS
  • GPS PPS Input 1 isolated input
  • GPS PPS Output 1 output following PPS input
  • Serial Port 1x RS-232 connected to onboard MCU
  • Power Consumption Under 20 W
  • Buffering Design Minimal buffering for reduced latency
  • Resolution Supports selected 8MP, 5MP, 3MP and 2MP GMSL2 cameras
  • Sampling Rate Up to 60 FPS, configuration-dependent
  • Power Source Directly powered through PCIe connector
  • Camera Stream Auto Recovery Supported
  • Cooling Method Fanless
  • FIFO Minimal buffering; capacity not specified
  • Key Features 4 GMSL2 camera ports; FAKRA Z connectors; PCIe Gen2 x4; selected 8MP/5MP/3MP/2MP camera support; GPS PPS synchronization; PPS daisy-chaining; fanless wide-temperature operation; PCIe-powered; camera stream auto recovery; Linux compatibility
  • Operating Temperature -40 to 70 °C
  • Storage Temperature -40 to 85 °C
  • Relative Humidity 10 to 90, non-condensing %
  • Operating Temperature -40°C to 70°C, fanless
  • EMC Compliance CE; FCC Class A; EN 55032; EN 55035
  • Host Operating System Linux
  • Verified Ubuntu Versions Ubuntu 20.04; Ubuntu 22.04; Ubuntu 24.04
  • Verified Host Models Nuvo-10208GC; Nuvo-8034
  • Optional Cable Cbl-FAKRA-ZFM-ZFM-12M
  • Optional Cable Description Waterproof female-to-female FAKRA Z-code cable, 12 m
  • Digital I/O 1x isolated GPS PPS input; 1x GPS PPS output; 1x RS-232
  • Accessories Cbl-FAKRA-ZFM-ZFM-12M
