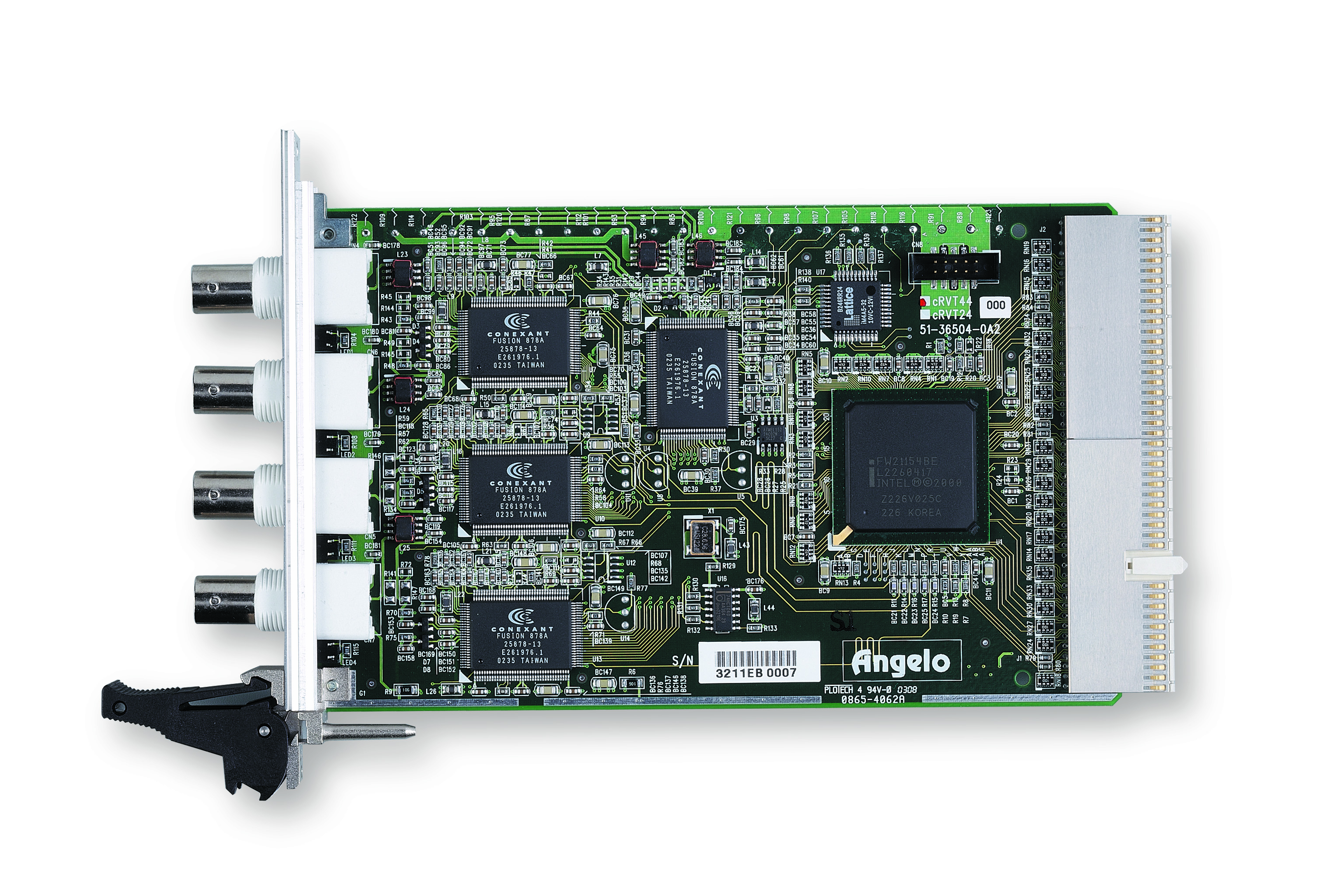

PCI-RTV-24
LOOKING FOR THE RIGHT
INDUSTRIAL SOLUTION?
Discover embedded, communication and automation solutions tailored to your application.
- Quad‑Channel Real‑Time Video Capture:
Simultaneous acquisition of four independent analog video inputs using four Connexant 878A digitizers.
- Multi‑Format Compatibility:
Supports NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM, CCIR, and EIA (RS‑170) standards.
- Programmable Resolution and Scaling:
Supports full, CIF, and QCIF resolutions with programmable region‑of‑interest (ROI) cropping and down‑scaling up to 1:16 ratio.
- Color and Image Adjustments:
Adjustable hue (NTSC only), brightness, contrast, and saturation (0–200% range). Automatic chrominance gain control ensures consistent color balance.
- TTL‑Compatible General‑Purpose I/O:
Four digital inputs, four digital outputs, and four software‑trigger lines. Each line is individually configurable and protected against overload and ESD.
- Watchdog Timer:
Hardware watchdog monitors system activity and can automatically reset the host PC after a programmable timeout, ensuring fault‑tolerant operation.
- EEPROM Support:
1 Kbit user‑programmable EEPROM for storing configuration or user data.
- Channel Extension Capability:
Expandable up to eight video channels via 10‑pin ribbon cable headers.
- Software Support:
WDM drivers for Windows 98/NT/2000/XP with APIs for VC++, VB, Borland C++ Builder, and Delphi. Includes ViewCreator utility for configuration, testing, and image capture.
- Form Factor:
32/64‑bit, 33/66 MHz CompactPCI 6U board, suitable for industrial and embedded systems.
Simultaneous acquisition of four independent analog video inputs using four Connexant 878A digitizers.
- Multi‑Format Compatibility:
Supports NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM, CCIR, and EIA (RS‑170) standards.
- Programmable Resolution and Scaling:
Supports full, CIF, and QCIF resolutions with programmable region‑of‑interest (ROI) cropping and down‑scaling up to 1:16 ratio.
- Color and Image Adjustments:
Adjustable hue (NTSC only), brightness, contrast, and saturation (0–200% range). Automatic chrominance gain control ensures consistent color balance.
- TTL‑Compatible General‑Purpose I/O:
Four digital inputs, four digital outputs, and four software‑trigger lines. Each line is individually configurable and protected against overload and ESD.
- Watchdog Timer:
Hardware watchdog monitors system activity and can automatically reset the host PC after a programmable timeout, ensuring fault‑tolerant operation.
- EEPROM Support:
1 Kbit user‑programmable EEPROM for storing configuration or user data.
- Channel Extension Capability:
Expandable up to eight video channels via 10‑pin ribbon cable headers.
- Software Support:
WDM drivers for Windows 98/NT/2000/XP with APIs for VC++, VB, Borland C++ Builder, and Delphi. Includes ViewCreator utility for configuration, testing, and image capture.
- Form Factor:
32/64‑bit, 33/66 MHz CompactPCI 6U board, suitable for industrial and embedded systems.
Comprehensive Product Summary: ADLINK cRTV‑44 Quad Simultan 878A cPCI 6U Image Acquisition Card
### 1. Product Overview

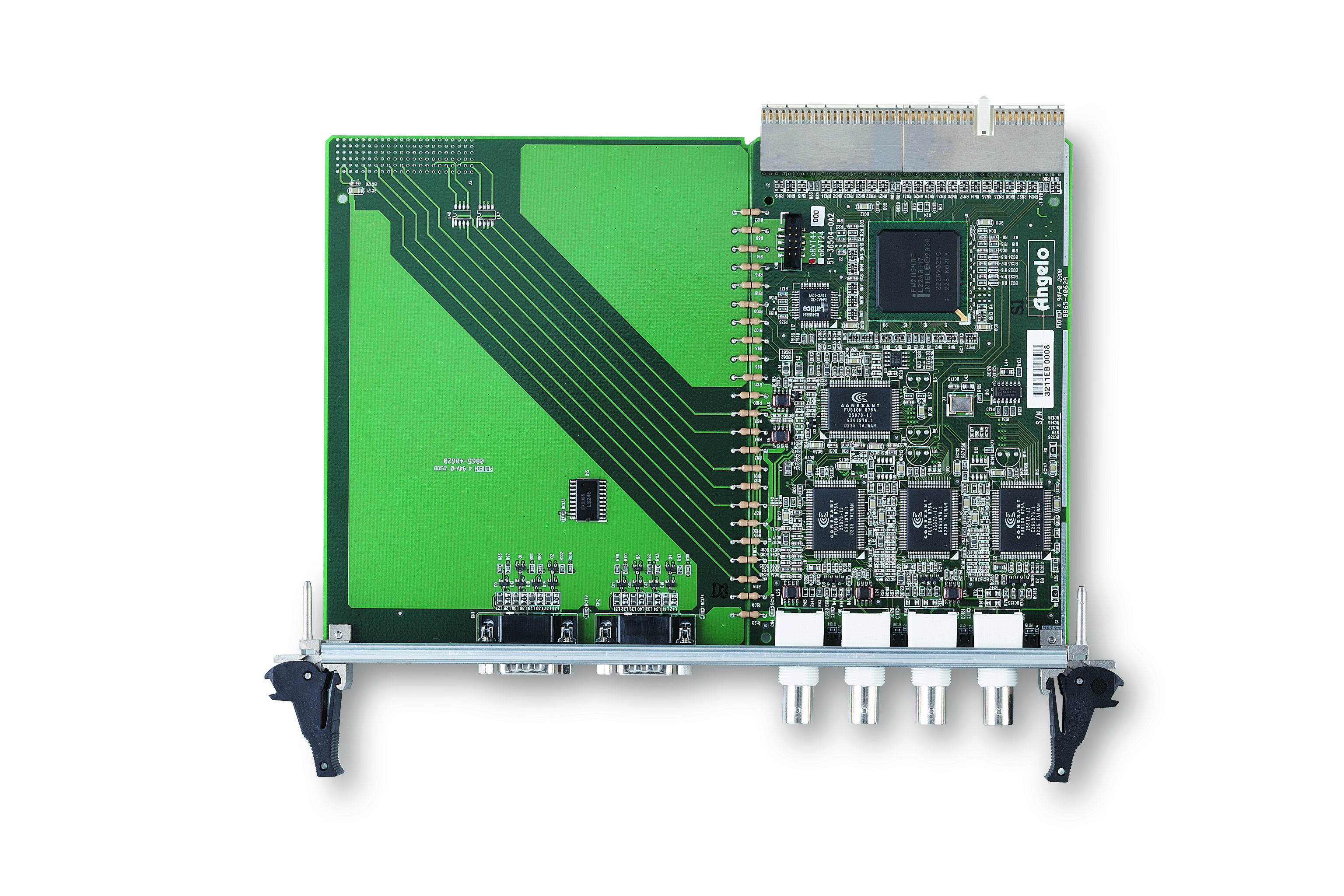

Product Name: cRTV‑44 Quad Simultan 878A cPCI 6U Image Acquisition Card
Model: cRTV‑44
Series: Angelo Frame Grabber Series (cRTV Series)
Article Number: cRTV‑44 / Part No. 50‑12419‑001
Manufacturer: ADLINK Technology Inc.
Revision: Manual Rev. 1.00, March 31, 2003
The ADLINK cRTV‑44 is a high‑performance CompactPCI (cPCI) 6U frame grabber card designed for real‑time, multi‑channel video acquisition. It integrates four Connexant 878A video digitizers to capture up to four simultaneous analog video streams in real time. The card supports both color and monochrome composite video formats (NTSC, PAL, SECAM, CCIR, EIA) and is optimized for industrial, scientific, and surveillance applications requiring reliable, synchronized multi‑channel video capture.
### 2. Key Features
- Quad‑Channel Real‑Time Video Capture:
Simultaneous acquisition of four independent analog video inputs using four Connexant 878A digitizers.
- Multi‑Format Compatibility:
Supports NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM, CCIR, and EIA (RS‑170) standards.
- Programmable Resolution and Scaling:
Supports full, CIF, and QCIF resolutions with programmable region‑of‑interest (ROI) cropping and down‑scaling up to 1:16 ratio.
- Color and Image Adjustments:
Adjustable hue (NTSC only), brightness, contrast, and saturation (0–200% range). Automatic chrominance gain control ensures consistent color balance.
- TTL‑Compatible General‑Purpose I/O:
Four digital inputs, four digital outputs, and four software‑trigger lines. Each line is individually configurable and protected against overload and ESD.
- Watchdog Timer:
Hardware watchdog monitors system activity and can automatically reset the host PC after a programmable timeout, ensuring fault‑tolerant operation.
- EEPROM Support:
1 Kbit user‑programmable EEPROM for storing configuration or user data.
- Channel Extension Capability:
Expandable up to eight video channels via 10‑pin ribbon cable headers.
- Software Support:
WDM drivers for Windows 98/NT/2000/XP with APIs for VC++, VB, Borland C++ Builder, and Delphi. Includes ViewCreator utility for configuration, testing, and image capture.
- Form Factor:
32/64‑bit, 33/66 MHz CompactPCI 6U board, suitable for industrial and embedded systems.
### 3. Technical Specifications
Video Input:
- Four composite video color digitizers (Connexant 878A).
- Interface: Four BNC connectors (CH0–CH3).
- LED indicators for channel status.
- Coaxial cable recommended for optimal signal integrity.
Video Standards Supported:
- Color: NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM.
- Monochrome: CCIR, EIA (RS‑170).
Acquisition Speed:
- NTSC:
- 1 camera: 30 fps (60 fields/s)
- 4 cameras: 120 fps (240 fields/s total)
- PAL:
- 1 camera: 25 fps (50 fields/s)
- 4 cameras: 100 fps (200 fields/s total)
Resolution Options:
- Full: 640 × 480 (NTSC/EIA), 768 × 576 (PAL/CCIR)
- CIF: 320 × 240 (NTSC/EIA), 384 × 288 (PAL/CCIR)
- QCIF: 160 × 120 (NTSC/EIA), 192 × 144 (PAL/CCIR)
Color Formats:
RGB16, RGB15, RGB24, RGB32, RGB8, GRAY, RAW8X, YUY2 (4:2:2), BtYUV (4:1:1).
Electrical Characteristics (GPIO):
- Input high voltage: 2.0 V min @ 20 µA, 5.25 V max
- Input low voltage: 0.0 V min @ –0.2 mA, 0.8 V max
- Output high voltage: 5.0 V @ –1.0 mA
- Output low voltage: –0.5 V @ 100 mA
EEPROM:
- 1 Kbit non‑volatile memory (128 bytes, 0–127 offset range).
Form Factor:
- 32/64‑bit, 33/66 MHz CompactPCI 6U board.
Environmental:
- Operating system support: Windows 98/NT/2000/XP.
- Recommended screen resolution for ViewCreator: ≥ 800 × 600.
### 4. Functionality
The cRTV‑44 operates as a multi‑channel frame grabber for real‑time video digitization. Each of the four Connexant 878A chips independently digitizes an analog composite video signal and transfers the data to system memory via the CompactPCI bus. The card supports simultaneous capture from all four channels without frame loss, making it ideal for synchronized multi‑camera systems.
Use Cases and Applications:
- PC‑based digital video recorders (DVRs)
- Security and surveillance systems
- Industrial and factory monitoring
- Machine vision inspection
- Scientific and medical imaging
- Research instrumentation requiring synchronized video capture
Compatibility:
- Compatible with CompactPCI backplanes (32/64‑bit, 33/66 MHz).
- Software APIs compatible with VC++, VB, Delphi, and Borland C++ Builder.
- Supports standard composite video sources via BNC connectors.
### 5. Components & Accessories
Included Components:
- cRTV‑44 CompactPCI 6U frame grabber card
- User’s Manual (Rev 1.00)
- Driver and software package (WDM driver, ViewCreator utility)
Connectors:
- Video Inputs: 4 × BNC connectors (CH0–CH3) with status LEDs.
- Channel Extension Header (CN8): 10‑pin ribbon header for CH4–CH7 expansion.
- GPIO 0 Header: 9‑pin header for CH0/CH1 I/O.
- GPIO 1 Header: 9‑pin header for CH2/CH3 I/O.
Optional Accessories:
- Channel extension cables (10‑pin ribbon).
- Coaxial video cables (BNC).
- CompactPCI chassis or CPU board with available 6U slot.
### 6. Installation & Setup
Requirements:
- Available CompactPCI 6U slot (32/64‑bit, 33/66 MHz).
- Compatible host system running Windows 98/NT/2000/XP.
- Video sources with composite output (NTSC/PAL/SECAM).
Installation Steps:
1. Power off the system and remove the chassis cover.
2. Identify an empty CompactPCI slot.
3. Remove the blank front panel and retain the mounting screw.
4. Carefully insert the cRTV‑44 along the guide rails until fully seated in the backplane connector.
5. Secure the board using the retained screw and engage the locking lever.
6. Connect video sources to the BNC inputs (CH0–CH3).
7. Power on the system; Windows Plug‑and‑Play will detect the card (four video and four audio devices).
8. Install the ADLINK WDM driver when prompted.
9. Use the ViewCreator utility to verify operation and configure video parameters.
### 7. Performance & Capabilities
Acquisition Performance:
- Real‑time capture of four simultaneous video streams.
- Frame rates up to 30 fps (NTSC) or 25 fps (PAL) per channel.
- Total throughput up to 120 fps (NTSC) or 100 fps (PAL) across four channels.
Image Processing:
- Programmable scaling (down to 1/16).
- Region‑of‑interest cropping.
- Adjustable hue, brightness, contrast, and saturation.
- Automatic chrominance gain control.
Triggering & Synchronization:
- Four software‑trigger outputs (programmable pulse width 60 µs – 16 ms).
- TTL‑compatible GPIO for external event triggering or alarm signaling.
Watchdog Timer:
- Programmable timeout intervals (8 s, 16 s, 32 s).
- Automatic system reset on timeout for unattended operation.
Data Handling:
- Frame buffer access via API functions for copying, retrieving, and saving frames.
- Supported image formats: BMP, TIF.
- Typical frame memory size: 900 KB for full NTSC RGB24 frame (640 × 480 × 3).
Limitations:
- Designed for composite analog video only (no digital or S‑Video input).
- Windows‑only driver support (no Linux or macOS).
- Requires CompactPCI backplane; not compatible with standard PCI slots.
### 8. Standards & Compliance
Bus Interface:
- CompactPCI (PICMG 2.0 Rev 2.1) compliant.
- 32/64‑bit, 33/66 MHz signaling.
Video Standards:
- NTSC, PAL, SECAM, CCIR, EIA (RS‑170).
Electrical & Safety:
- TTL‑compatible I/O with ESD protection.
- Designed for industrial environments.
Software Standards:
- WDM driver architecture for Windows 98/NT/2000/XP.
- API libraries for C/C++/VB/Delphi conforming to Windows DLL conventions.
Environmental Compliance:
- Manufactured using RoHS‑compliant processes (typical for ADLINK industrial boards).
### 9. Additional Information
Warranty:
- Two‑year limited warranty from date of shipment.
- Covers manufacturing defects and normal operation failures.
- Excludes damage from misuse, improper installation, environmental factors, or unauthorized repair.
Support & Service:
- Technical support via ADLINK regional offices and email:
- General Service: service@adlink.com.tw
- NuDAQ: nudaq@adlink.com.tw
- NuDAM: nudam@adlink.com.tw
- NuIPC: nuipc@adlink.com.tw
- NuPRO: nupro@adlink.com.tw
- Software: sw@adlink.com.tw
- Telephone: +886‑2‑82265877
- Fax: +886‑2‑82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan.
Maintenance:
- Periodic inspection of connectors and cables recommended.
- Keep board free from dust and moisture.
- Use ESD protection when handling.
Software Updates:
- Driver and utility updates available from ADLINK’s website:
[www.adlinktech.com](http://www.adlinktech.com) or [www.adlinktechnology.com](http://www.adlinktechnology.com).
Documentation:
- User’s Manual (Rev 1.00)
- API Reference (AngeloRTV Function Library)
- ViewCreator Utility Guide
### Summary
The ADLINK cRTV‑44 Quad Simultan 878A cPCI 6U Image Acquisition Card is a robust, industrial‑grade frame grabber engineered for multi‑channel real‑time video capture. With four independent Connexant 878A digitizers, it delivers synchronized acquisition across multiple analog sources, supporting a wide range of video standards and resolutions. Its CompactPCI 6U form factor, TTL‑compatible I/O, watchdog timer, and comprehensive software suite make it ideal for mission‑critical applications such as surveillance, machine vision, and scientific imaging.
The card’s combination of hardware reliability, flexible software APIs, and real‑time performance ensures seamless integration into embedded and industrial PC systems requiring high‑quality, multi‑channel video acquisition.
### 1. Product Overview
Product Name: cRTV‑44 Quad Simultan 878A cPCI 6U Image Acquisition Card
Model: cRTV‑44
Series: Angelo Frame Grabber Series (cRTV Series)
Article Number: cRTV‑44 / Part No. 50‑12419‑001
Manufacturer: ADLINK Technology Inc.
Revision: Manual Rev. 1.00, March 31, 2003
The ADLINK cRTV‑44 is a high‑performance CompactPCI (cPCI) 6U frame grabber card designed for real‑time, multi‑channel video acquisition. It integrates four Connexant 878A video digitizers to capture up to four simultaneous analog video streams in real time. The card supports both color and monochrome composite video formats (NTSC, PAL, SECAM, CCIR, EIA) and is optimized for industrial, scientific, and surveillance applications requiring reliable, synchronized multi‑channel video capture.
### 2. Key Features
- Quad‑Channel Real‑Time Video Capture:
Simultaneous acquisition of four independent analog video inputs using four Connexant 878A digitizers.
- Multi‑Format Compatibility:
Supports NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM, CCIR, and EIA (RS‑170) standards.
- Programmable Resolution and Scaling:
Supports full, CIF, and QCIF resolutions with programmable region‑of‑interest (ROI) cropping and down‑scaling up to 1:16 ratio.
- Color and Image Adjustments:
Adjustable hue (NTSC only), brightness, contrast, and saturation (0–200% range). Automatic chrominance gain control ensures consistent color balance.
- TTL‑Compatible General‑Purpose I/O:
Four digital inputs, four digital outputs, and four software‑trigger lines. Each line is individually configurable and protected against overload and ESD.
- Watchdog Timer:
Hardware watchdog monitors system activity and can automatically reset the host PC after a programmable timeout, ensuring fault‑tolerant operation.
- EEPROM Support:
1 Kbit user‑programmable EEPROM for storing configuration or user data.
- Channel Extension Capability:
Expandable up to eight video channels via 10‑pin ribbon cable headers.
- Software Support:
WDM drivers for Windows 98/NT/2000/XP with APIs for VC++, VB, Borland C++ Builder, and Delphi. Includes ViewCreator utility for configuration, testing, and image capture.
- Form Factor:
32/64‑bit, 33/66 MHz CompactPCI 6U board, suitable for industrial and embedded systems.
### 3. Technical Specifications
Video Input:
- Four composite video color digitizers (Connexant 878A).
- Interface: Four BNC connectors (CH0–CH3).
- LED indicators for channel status.
- Coaxial cable recommended for optimal signal integrity.
Video Standards Supported:
- Color: NTSC‑M, NTSC‑Japan, PAL‑B/D/G/H/I/M/N, SECAM.
- Monochrome: CCIR, EIA (RS‑170).
Acquisition Speed:
- NTSC:
- 1 camera: 30 fps (60 fields/s)
- 4 cameras: 120 fps (240 fields/s total)
- PAL:
- 1 camera: 25 fps (50 fields/s)
- 4 cameras: 100 fps (200 fields/s total)
Resolution Options:
- Full: 640 × 480 (NTSC/EIA), 768 × 576 (PAL/CCIR)
- CIF: 320 × 240 (NTSC/EIA), 384 × 288 (PAL/CCIR)
- QCIF: 160 × 120 (NTSC/EIA), 192 × 144 (PAL/CCIR)
Color Formats:
RGB16, RGB15, RGB24, RGB32, RGB8, GRAY, RAW8X, YUY2 (4:2:2), BtYUV (4:1:1).
Electrical Characteristics (GPIO):
- Input high voltage: 2.0 V min @ 20 µA, 5.25 V max
- Input low voltage: 0.0 V min @ –0.2 mA, 0.8 V max
- Output high voltage: 5.0 V @ –1.0 mA
- Output low voltage: –0.5 V @ 100 mA
EEPROM:
- 1 Kbit non‑volatile memory (128 bytes, 0–127 offset range).
Form Factor:
- 32/64‑bit, 33/66 MHz CompactPCI 6U board.
Environmental:
- Operating system support: Windows 98/NT/2000/XP.
- Recommended screen resolution for ViewCreator: ≥ 800 × 600.
### 4. Functionality
The cRTV‑44 operates as a multi‑channel frame grabber for real‑time video digitization. Each of the four Connexant 878A chips independently digitizes an analog composite video signal and transfers the data to system memory via the CompactPCI bus. The card supports simultaneous capture from all four channels without frame loss, making it ideal for synchronized multi‑camera systems.
Use Cases and Applications:
- PC‑based digital video recorders (DVRs)
- Security and surveillance systems
- Industrial and factory monitoring
- Machine vision inspection
- Scientific and medical imaging
- Research instrumentation requiring synchronized video capture
Compatibility:
- Compatible with CompactPCI backplanes (32/64‑bit, 33/66 MHz).
- Software APIs compatible with VC++, VB, Delphi, and Borland C++ Builder.
- Supports standard composite video sources via BNC connectors.
### 5. Components & Accessories
Included Components:
- cRTV‑44 CompactPCI 6U frame grabber card
- User’s Manual (Rev 1.00)
- Driver and software package (WDM driver, ViewCreator utility)
Connectors:
- Video Inputs: 4 × BNC connectors (CH0–CH3) with status LEDs.
- Channel Extension Header (CN8): 10‑pin ribbon header for CH4–CH7 expansion.
- GPIO 0 Header: 9‑pin header for CH0/CH1 I/O.
- GPIO 1 Header: 9‑pin header for CH2/CH3 I/O.
Optional Accessories:
- Channel extension cables (10‑pin ribbon).
- Coaxial video cables (BNC).
- CompactPCI chassis or CPU board with available 6U slot.
### 6. Installation & Setup
Requirements:
- Available CompactPCI 6U slot (32/64‑bit, 33/66 MHz).
- Compatible host system running Windows 98/NT/2000/XP.
- Video sources with composite output (NTSC/PAL/SECAM).
Installation Steps:
1. Power off the system and remove the chassis cover.
2. Identify an empty CompactPCI slot.
3. Remove the blank front panel and retain the mounting screw.
4. Carefully insert the cRTV‑44 along the guide rails until fully seated in the backplane connector.
5. Secure the board using the retained screw and engage the locking lever.
6. Connect video sources to the BNC inputs (CH0–CH3).
7. Power on the system; Windows Plug‑and‑Play will detect the card (four video and four audio devices).
8. Install the ADLINK WDM driver when prompted.
9. Use the ViewCreator utility to verify operation and configure video parameters.
### 7. Performance & Capabilities
Acquisition Performance:
- Real‑time capture of four simultaneous video streams.
- Frame rates up to 30 fps (NTSC) or 25 fps (PAL) per channel.
- Total throughput up to 120 fps (NTSC) or 100 fps (PAL) across four channels.
Image Processing:
- Programmable scaling (down to 1/16).
- Region‑of‑interest cropping.
- Adjustable hue, brightness, contrast, and saturation.
- Automatic chrominance gain control.
Triggering & Synchronization:
- Four software‑trigger outputs (programmable pulse width 60 µs – 16 ms).
- TTL‑compatible GPIO for external event triggering or alarm signaling.
Watchdog Timer:
- Programmable timeout intervals (8 s, 16 s, 32 s).
- Automatic system reset on timeout for unattended operation.
Data Handling:
- Frame buffer access via API functions for copying, retrieving, and saving frames.
- Supported image formats: BMP, TIF.
- Typical frame memory size: 900 KB for full NTSC RGB24 frame (640 × 480 × 3).
Limitations:
- Designed for composite analog video only (no digital or S‑Video input).
- Windows‑only driver support (no Linux or macOS).
- Requires CompactPCI backplane; not compatible with standard PCI slots.
### 8. Standards & Compliance
Bus Interface:
- CompactPCI (PICMG 2.0 Rev 2.1) compliant.
- 32/64‑bit, 33/66 MHz signaling.
Video Standards:
- NTSC, PAL, SECAM, CCIR, EIA (RS‑170).
Electrical & Safety:
- TTL‑compatible I/O with ESD protection.
- Designed for industrial environments.
Software Standards:
- WDM driver architecture for Windows 98/NT/2000/XP.
- API libraries for C/C++/VB/Delphi conforming to Windows DLL conventions.
Environmental Compliance:
- Manufactured using RoHS‑compliant processes (typical for ADLINK industrial boards).
### 9. Additional Information
Warranty:
- Two‑year limited warranty from date of shipment.
- Covers manufacturing defects and normal operation failures.
- Excludes damage from misuse, improper installation, environmental factors, or unauthorized repair.
Support & Service:
- Technical support via ADLINK regional offices and email:
- General Service: service@adlink.com.tw
- NuDAQ: nudaq@adlink.com.tw
- NuDAM: nudam@adlink.com.tw
- NuIPC: nuipc@adlink.com.tw
- NuPRO: nupro@adlink.com.tw
- Software: sw@adlink.com.tw
- Telephone: +886‑2‑82265877
- Fax: +886‑2‑82265717
- Address: 9F, No. 166, Jian Yi Road, Chungho City, Taipei 235, Taiwan.
Maintenance:
- Periodic inspection of connectors and cables recommended.
- Keep board free from dust and moisture.
- Use ESD protection when handling.
Software Updates:
- Driver and utility updates available from ADLINK’s website:
[www.adlinktech.com](http://www.adlinktech.com) or [www.adlinktechnology.com](http://www.adlinktechnology.com).
Documentation:
- User’s Manual (Rev 1.00)
- API Reference (AngeloRTV Function Library)
- ViewCreator Utility Guide
### Summary
The ADLINK cRTV‑44 Quad Simultan 878A cPCI 6U Image Acquisition Card is a robust, industrial‑grade frame grabber engineered for multi‑channel real‑time video capture. With four independent Connexant 878A digitizers, it delivers synchronized acquisition across multiple analog sources, supporting a wide range of video standards and resolutions. Its CompactPCI 6U form factor, TTL‑compatible I/O, watchdog timer, and comprehensive software suite make it ideal for mission‑critical applications such as surveillance, machine vision, and scientific imaging.
The card’s combination of hardware reliability, flexible software APIs, and real‑time performance ensures seamless integration into embedded and industrial PC systems requiring high‑quality, multi‑channel video acquisition.
-
Angelo_RTV.pdf
Manual
- PCI-RTV-24 - Quad Simultan 878A PCI Image Acquisition Card
- cRTV-24 - Quad Simultan 878A cPCI 3U Image Acquisition Card
- PMC-RTV-21 - Double simultan 878A PMC image acquisition
