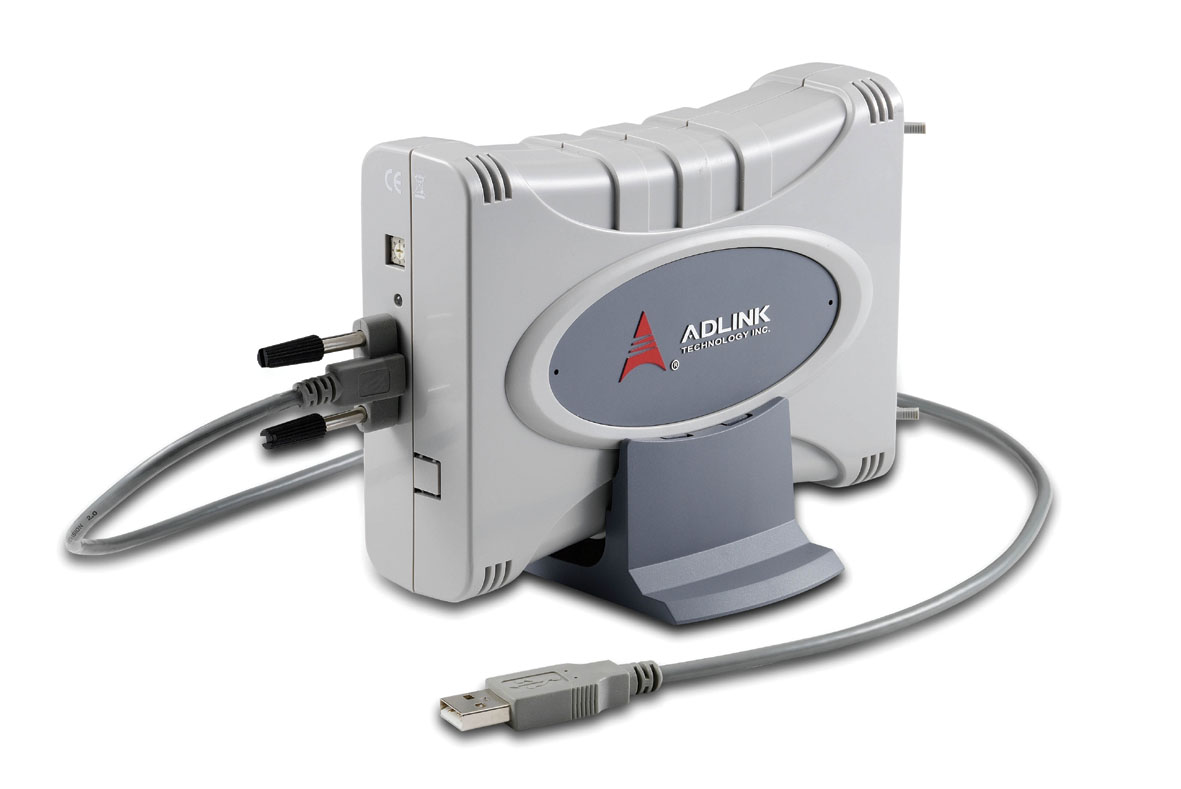

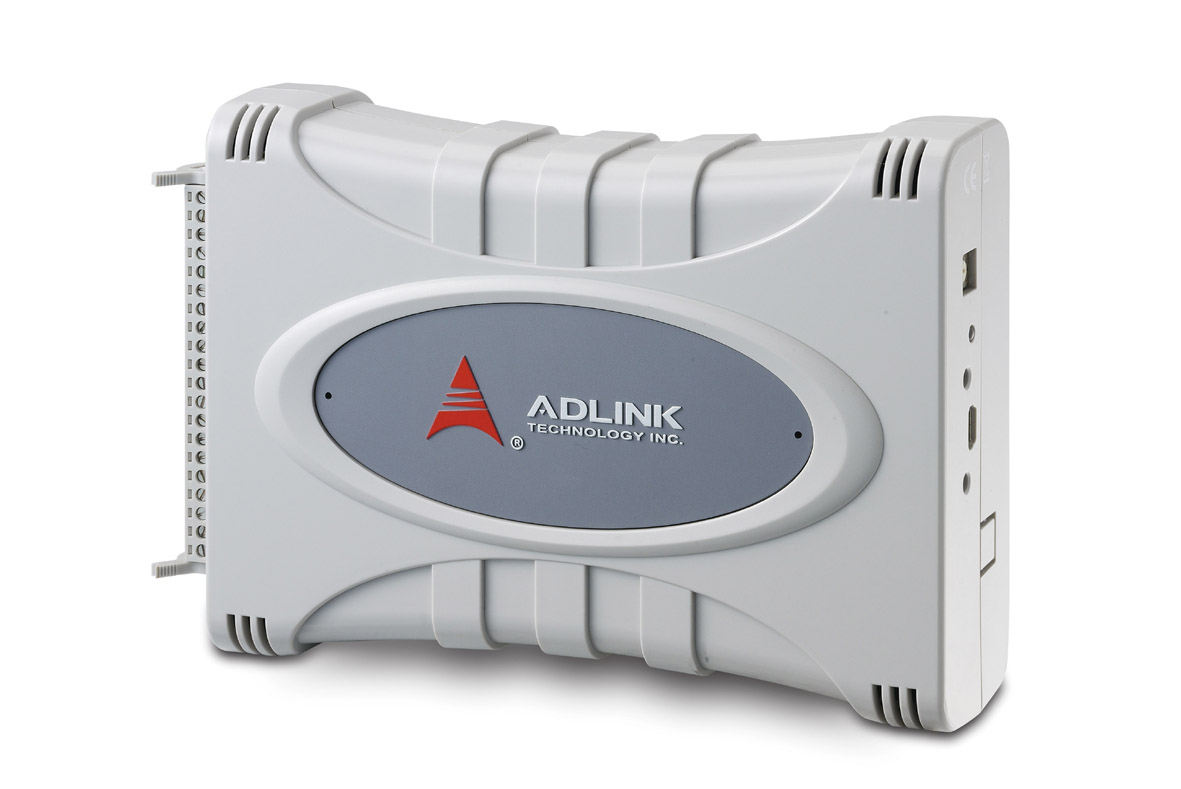

USB-1902 - Adlink Technology Inc.
USB Bus Powered 16*Chan 250kS/s Multi Function Module
Network systems are used to connect remote IO devices and USB data acquisition devices for data collection and analysis. This enables the user to access, monitor and control the data from any location. It is an efficient way to collect and process data from multiple sources..
1.077,00 €
incl. VAT 1.281,63 €
incl. VAT 1.281,63 €
Description
- USB bus powered 16 chan 250kS/s module
- 4 voltage input levels
- 2 chan analog output
- removable 2*20pin screw down terminal
- lockable USB cable for secure connect
- 8*DI/4*DO TTL level
- 5VDC@400mA USB bus powered
- 115*150*45mm (w/o connector or stand)
- Adlink
Details
- Width: 115 mm
- Height: 150 mm
- Depth: 40 mm
- Weight: 1.75kg
- Manufacturer: Adlink Technology Inc.
- Part number: 91-19010-0050
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Data Sheets
Manuals
Downloads
- download: ud-dask_v18-07.zip
