- **Wide Input Voltage Range:** Operates from 100 V AC to 240 V AC, 50/60 Hz, supporting global use within EU‑compatible regions. - **Stable 12 V DC Output:** Provides a regulated 12 V DC output with a maximum continuous current of 1 A (12 W total power). - **EU Plug Type:** Integrated Europlug (Type C or Type F, depending on variant) for direct use in European power outlets. - **Compact and Lightweight Design:** Optimized for minimal space usage and easy portability. - **High Efficiency Conversion:** Designed with switch‑mode power supply (SMPS) technology for efficient AC‑DC conversion and reduced heat generation. - **Overload and Short‑Circuit Protection:** Built‑in safety mechanisms protect both the adapter and connected devices. - **Over‑Voltage and Over‑Current Protection:** Ensures stable output and prevents damage to sensitive electronics. - **Low Ripple and Noise:** Provides clean DC output suitable for sensitive electronic circuits. - **Energy‑Efficient Operation:** Meets or exceeds typical energy efficiency standards for external power supplies. - **Universal Application:** Suitable for routers, LED lighting, CCTV cameras, small appliances, and other 12 V DC devices.

Hersteller: Artila

Kategorie: Accessories

- **Optimized for 4G/LTE Networks:** Designed to operate across standard LTE frequency bands, ensuring compatibility with global cellular networks. - **High-Gain External Antenna:** Provides improved signal strength and stability, particularly in areas with weak cellular coverage. - **Industrial-Grade Construction:** Built with durable materials suitable for harsh environments, including outdoor and industrial installations. - **Flexible Mounting Options:** Supports magnetic, adhesive, or screw-mount configurations for versatile deployment. - **Extended Cable Assembly:** Includes a pre-terminated coaxial cable for easy connection to Artila devices or other compatible modems. - **Plug-and-Play Integration:** Fully compatible with Artila’s embedded systems and communication modules, requiring minimal configuration. - **Low VSWR (Voltage Standing Wave Ratio):** Ensures efficient power transfer and minimal signal loss. - **Weather-Resistant Design:** Suitable for both indoor and outdoor use, with protection against moisture, dust, and UV exposure. - **Compact Form Factor:** Streamlined design allows installation in constrained spaces without compromising performance. - **Enhanced Data Throughput:** Supports high-speed LTE data transmission for bandwidth-intensive applications such as video streaming, telemetry, and remote diagnostics.

Hersteller: Artila

Kategorie: Accessories

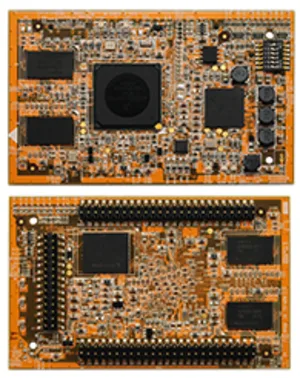

- **Processor:** Freescale i.MX537 ARM Cortex-A8, 800 MHz - **Memory:** 1 GB DDR3 SDRAM (expandable to 2 GB optional) - **Storage:** 4 GB eMMC Flash onboard, SD card slot (up to 32 GB) - **Graphics:** Integrated GPU supporting OpenGL ES 1.1/2.0 and OpenVG 1.1 - **Display Interfaces:** - Dual 24-bit LVDS channels (up to 1600 × 1200 pixels) - Analog VGA output (synchronized with LVDS port 0) - Full HD 1080p video decode capability - **Networking:** 1 × 10/100 Mbps Ethernet (SMSC LAN8720AI PHY) - **Serial Interfaces:** - 4 × UART (COM1–COM4) supporting RS‑232/RS‑485 - 2 × CAN 2.0 channels - I²C, I²S, SPI, and 1‑Wire interfaces - **USB Connectivity:** - 1 × USB 2.0 Host (480 Mbps) - 1 × USB OTG (Mini‑AB) - **Audio:** I²S digital audio interface, Line‑Out and Mic‑In connectors - **Touchscreen:** 4‑wire resistive touch interface - **Storage Expansion:** SATA II interface for external drives - **GPIO:** 9 programmable general‑purpose I/O lines - **Power Input:** 3.3 V DC (module), 5 V DC and 9–48 V DC (starter kit) - **Form Factor:** 3.5‑inch embedded module (80 × 50 mm) - **Operating Systems:** Linux (Ubuntu 10.4 preinstalled), Android, Windows Compact 7 - **Additional Features:** Real‑time clock (RTC), watchdog timer, external battery backup

Hersteller: Artila

Kategorie: SBC Modules

- **Processor:** Freescale i.MX537 ARM Cortex-A8, 800 MHz core frequency - **Memory:** 1 GB DDR3 RAM (expandable to 2 GB optional) - **Storage:** 4 GB eMMC Flash onboard - **Graphics:** Integrated GPU supporting OpenGL ES 2.0, OpenVG 1.1, and full HD 1080p video decode - **Display Interfaces:** Dual 24-bit LVDS channels and analog VGA output (up to 1920×1080 @ 60 Hz) - **Touchscreen Support:** 4-wire resistive touchscreen interface - **Networking:** 10/100 Mbps Ethernet (SMSC LAN8720AI PHY) - **Serial Interfaces:** - 2 × RS-232 (one full, one 4-wire) - 1 × RS-485 - 2 × CAN 2.0 channels - **USB Connectivity:** - 4 × USB 2.0 Host ports - 1 × USB OTG (Mini-AB) - **Expansion Interfaces:** SATA, SD, SPI, I²C, I²S, 1-Wire, GPIO - **Power Input:** 9–48 VDC wide-range input (5V and 3.3V internal rails) - **Operating Temperature:** 0°C to +70°C - **Form Factor:** 146 mm × 102 mm (3.5-inch board) - **Operating Systems Supported:** Ubuntu Linux 10.4 (preinstalled), Android, Windows Compact 7.0 - **Fanless Design:** Passive cooling for industrial reliability

Hersteller: Artila

Kategorie: SBC Modules

- **Embedded ARM9 Processor:** Atmel AT91SAM9G20, 400 MHz ARM926EJ‑S core with MMU, 32 KB instruction and 32 KB data cache. - **Pre‑installed Linux System:** Linux kernel 2.6.29 with U‑Boot 1.1.2 bootloader and full root file system. - **Memory Architecture:** 128 MB SDRAM and 128 MB NAND Flash; includes 2 MB DataFlash® for system backup. - **Storage Expansion:** Internal microSD socket supporting up to 16 GB SDHC cards. - **Networking:** One 10/100 Base‑T Ethernet port (RJ45) with 1.5 kV magnetic isolation. - **Serial Communication:** Four software‑configurable serial ports (1 × RS‑232/422/485, 3 × RS‑232/485) supporting up to 921.6 kbps. - **USB Connectivity:** Two USB 2.0 full‑speed (12 Mbps) host ports and one reserved client port. - **Digital I/O:** Five programmable GPIO channels (TTL compatible). - **Low Power Design:** Operates from 9–48 V DC, consuming less than 3 W (≈ 250 mA @ 12 V). - **Compact, Fanless Construction:** Metal enclosure, DIN‑rail mountable, dimensions 78 × 108 × 24 mm. - **Wide Operating Range:** Standard 0 – 70 °C; optional Matrix‑504T version supports −20 – 80 °C. - **Software Development Support:** GNU C/C++ cross‑toolchain for Linux and Windows (via Cygwin), Java accelerator, and pre‑installed utilities. - **Security & Networking Services:** SSH 1.0/2.0, SSL, FTP, Telnet, HTTP (Apache2 or lighttpd), and iptables firewall. - **Maintenance & Recovery:** Built‑in DataFlash recovery system, watchdog timer, and system recovery console.

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor & Architecture:** ARM926EJ-S (ARM9) core, 400 MHz with MMU, 32 KB instruction cache and 32 KB data cache. - **Operating System:** Pre-installed Linux kernel 2.6.29 with U-Boot 1.1.2 bootloader. - **Memory:** 64 MB SDRAM and 256 MB NAND Flash (some configurations 128 MB/128 MB). - **Storage Expansion:** microSD socket supporting up to 32 GB SDHC cards. - **Networking:** 1 × 10/100 Mbps Ethernet (RJ45) with 1.5 kV magnetic isolation. - **Serial Communication:** 4 × software-configurable TTY ports (RS‑232/422/485), up to 921.6 kbps. - **USB Connectivity:** 2 × USB 2.0 full-speed (12 Mbps) host ports; 1 × USB client port (reserved). - **GPIO:** 5 × programmable digital I/O channels (CMOS level, 100 kΩ pull-up). - **Power Input:** 9 – 48 V DC, 250 mA @ 12 V DC (≈ 3 W). - **Form Factor:** Ultra-compact fanless metal enclosure, 78 × 108 × 24 mm. - **Operating Temperature:** 0 – 70 °C (standard), optional ‑20 – 80 °C (Matrix‑504T). - **Software Tools:** GNU C/C++ cross-compilation toolchain for Linux and Windows (Cygwin). - **Security & Networking:** SSH 1.0/2.0, SSL, FTP, Telnet, Web server (Apache2 or Lighttpd). - **Low Power Design:**

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** ARM926EJ-S (Atmel AT91SAM9G20) running at 400 MHz with integrated MMU. - **Memory:** 64 MB SDRAM and 256 MB NAND Flash; 2 MB DataFlash for system backup. - **Storage Expansion:** Internal microSD socket supporting up to 32 GB. - **Operating System:** Pre-installed Linux kernel 2.6.29 with U-Boot 1.1.2 bootloader. - **Networking:** 1 × 10/100 Mbps Ethernet port (RJ45) with 1.5 kV magnetic isolation. - **Serial Communication:** - 1 × software-configurable RS‑232/422/485 port. - 3 × RS‑232/485 ports. - All ports via RJ45 connectors, up to 921.6 kbps. - **USB Connectivity:** 2 × USB 2.0 full-speed (12 Mbps) host ports; 1 × reserved client port. - **GPIO:** 5 × programmable digital I/O lines (CMOS level, 100 kΩ pull-up). - **Power Input:** 9–48 V DC, 250 mA @ 12 V DC (≈ 3 W). - **Form Factor:** Ultra-compact metal enclosure, 78 × 108 × 24 mm. - **Mounting:** DIN rail mountable (optional DK‑35A kit). - **Environmental:** Operating temperature 0–70 °C (standard) or –20–80 °C (Matrix‑504T). - **Certifications:** CE Class A, FCC Class A. - **Software Tools:** GNU C/C++ cross-compilation toolchain for Linux and Windows (Cygwin). - **Security:** Supports SSH 1.0/2.0, SSL, and secure remote management. - **Web Services:** Built-in web server (lighttpd) and FTP server (vsftpd). - **Low Power Design:** Fanless, flash-based architecture with

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor & Architecture:** ARM926EJ-S (ARM9) 400 MHz CPU with Memory Management Unit (MMU), 32 KB instruction cache, and 32 KB data cache. - **Memory:** 64 MB SDRAM and 256 MB NAND Flash; 2 MB DataFlash® for system backup. - **Storage Expansion:** Internal microSD socket supporting up to 32 GB SDHC cards. - **Operating System:** Pre-installed Linux kernel 2.6.29 with U-Boot 1.1.2 bootloader. - **Networking:** 1 × 10/100 Mbps Ethernet port (RJ45) with 1.5 kV magnetic isolation. - **Serial Communication:** - 1 × software-configurable RS-232/422/485 port. - 3 × RS-232/485 ports. - All ports use RJ45 connectors; baud rates up to 921.6 kbps. - **USB Connectivity:** - 2 × USB 2.0 full-speed (12 Mbps) host ports. - 1 × reserved USB client port. - **Digital I/O:** 5 × programmable GPIO channels (CMOS I/O, configurable as input/output). - **Indicators:** Power, Ready, Ethernet Link/Activity, and per-port serial TX/RX LEDs. - **Power Supply:** 9–48 V DC input, 250 mA @ 12 V DC (≈ 3 W). - **Form Factor:** Compact metal enclosure, fanless, DIN-rail mountable. - **Software Tools:** GNU C/C++ cross-compilation toolchain for Linux and Windows; supports Java accelerator. - **Security & Networking:** SSH 1.0/2.0, SSL, FTP, Telnet, and Web server (Apache2 or lighttpd). - **Low Power Design:**

Hersteller: Artila

Kategorie: IoT Gateway

- **ARM9 Processor Core:** Powered by the Atmel AT91SAM9G20 ARM926EJ-S CPU running at 400 MHz with integrated MMU, 32 KB instruction cache, and 32 KB data cache. - **Linux-Ready Platform:** Pre-installed Linux kernel 2.6.29 with U-Boot 1.1.2 bootloader and full file system support (UBI, JFFS2, EXT2/3, VFAT, NFS). - **Memory Architecture:** 64 MB SDRAM, 256 MB NAND Flash, and 2 MB DataFlash® for system backup. - **Expandable Storage:** Internal microSD socket supporting up to 32 GB SD memory (SD spec 1.0). - **Networking:** Dual 10/100 Mbps Ethernet ports (RJ45) with 1.5 kV magnetic isolation for reliable industrial networking. - **Serial Communication:** Eight software-selectable RS-232/422/485 ports with RJ45 connectors, supporting baud rates up to 921.6 kbps. - **USB Connectivity:** Two USB 2.0 full-speed (12 Mbps) host ports and one reserved USB client port. - **Digital I/O:** 21 programmable GPIO channels (TTL/CMOS compatible), configurable as input or output. - **Audio Output:** Supports MP3 and WAV playback with integrated audio output interface. - **Low Power Design:** Typical consumption under 3 W (190 mA @ 12 VDC). - **Wide Power Input Range:** 9 – 40 VDC input for flexible industrial power environments. - **Fanless Metal Enclosure:** Compact, rugged metal housing suitable for DIN-rail or wall mounting. - **Operating Temperature:** 0 °C – 70 °C for industrial environments. - **Software Ecosystem:** Includes GNU C/C++ toolchain, ipkg package management, SSH, FTP, web server (lighttpd), and Artila utilities. - **Upward Compatibility:** Fully compatible with Matrix-500 series software and accessories.

Hersteller: Artila

Kategorie: IoT Gateway

- **Embedded ARM9 Platform:** Powered by the Atmel AT91SAM9G20 (ARM926EJ-S core) running at 400 MHz with integrated MMU, 32 KB instruction cache, and 32 KB data cache. - **Pre-installed Linux System:** Ships with Linux kernel 2.6.29, U-Boot 1.1.2 bootloader, and a preconfigured root file system supporting UBI, JFFS2, EXT2/3, VFAT, and NFS. - **Memory Architecture:** 64 MB SDRAM, 256 MB NAND Flash, and 2 MB DataFlash for system backup. Includes a microSD slot supporting up to 32 GB SDHC cards. - **Networking:** One 10/100 Base‑T Ethernet port (RJ45) with 1.5 kV magnetic isolation. - **Serial Communication:** Four high-speed serial ports (up to 921.6 kbps). Port 1 configurable as RS‑232/422/485; Ports 2–4 configurable as RS‑232/485. - **USB Connectivity:** Two USB 2.0 full-speed (12 Mbps) host ports and one reserved USB client port. Supports USB storage, Wi‑Fi (Ralink RT73), serial adapters (PL‑2303, FTDI), modems (CDC), and USB cameras. - **Digital I/O:** Five programmable GPIO channels accessible via the console RJ45 port, configurable as input or output (default input with 100 kΩ pull‑up). - **Low Power Consumption:** Typical 250 mA @ 12 V DC (≈ 3 W). - **Compact, Fanless Design:** Rugged metal enclosure, 78 × 108 × 24 mm, DIN‑rail mountable. - **Wide Power Input Range:** 9–48 V DC input with reverse polarity protection. - **Operating Temperature:** Standard 0 – 70 °C; Matrix‑504T variant supports –20 – 80 °C. - **Software Development Support:** Includes GNU C/C++ cross‑compiler toolchain for Linux and Windows (Cygwin), plus example programs and utilities. - **Integrated Web and Network Services:** Pre‑installed Apache2 and Lighttpd web servers, SSH, FTP, Telnet, and broadcast discovery daemon (amgrd). - **System Recovery and Maintenance:** Built‑in DataFlash recovery system, loader menu for firmware updates, and USB‑based recovery utilities.

Hersteller: Artila

Kategorie: IoT Gateway

- **ARM9 400 MHz Processor:** Based on the Atmel AT91SAM9G20 ARM926EJ‑S core with MMU, 32 KB instruction and 32 KB data cache. - **Pre‑installed Linux OS:** Linux kernel 2.6.29 with U‑Boot 1.1.2 bootloader and full file system support (UBI, JFFS2, EXT2/3, VFAT, NFS). - **Memory Architecture:** 64 MB SDRAM, 256 MB NAND Flash, and 2 MB DataFlash for system backup. - **Storage Expansion:** Internal microSD socket supporting up to 32 GB SDHC cards. - **Networking:** One 10/100 Base‑T Ethernet port with 1.5 kV magnetic isolation. - **Serial Connectivity:** Four high‑speed TTY ports (up to 921.6 kbps) configurable as RS‑232/422/485; one port supports all three modes, others support RS‑232/485. - **USB Interfaces:** Two USB 2.0 full‑speed (12 Mbps) host ports and one reserved USB client port. - **GPIO:** Five programmable CMOS digital I/O channels accessible via the console RJ45 connector. - **Compact, Fanless Design:** 78 × 108 × 24 mm aluminum enclosure, DIN‑rail mountable. - **Wide Power Range:** 9 – 48 V DC input, typical consumption ≈ 3 W (250 mA @ 12 V). - **Extended Temperature Operation:** ‑20 °C to +80 °C for Matrix‑504T. - **Software Development Support:** GNU C/C++ cross‑toolchain for Linux and Windows (Cygwin), Java accelerator, and WinCE support. - **Security & Networking:** Built‑in SSH 1.0/2.0, SSL, FTP, Telnet, and web server (lighttpd). - **Low Power Consumption:**

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** ARM926EJ-S ARM Thumb processor with MMU, operating at 400 MHz. - **Memory:** 64 MB SDRAM and 256 MB NAND Flash; includes 2 MB DataFlash for system backup. - **Operating System:** Pre-installed Linux kernel 2.6.29; supports WinCE and Java accelerator. - **Networking:** Two 10/100 Mbps Ethernet ports for redundant or segmented network configurations. - **CAN Bus:** Two fully isolated CAN 2.0A/2.0B ports (2500 Vrms isolation) with optional 120 Ω termination. - **Serial Communication:** Two 3-in-1 software-configurable RS-232/422/485 ports. - **USB Connectivity:** Two USB 2.0 full-speed (12 Mbps) host ports and one USB device port. - **Digital I/O:** 21 programmable GPIO channels accessible via DB25 connector. - **Storage Expansion:** MicroSD card slot for additional storage or data logging. - **Power Input:** Wide-range 9–40 V DC input with low power consumption (~2.3 W typical). - **Security:** Supports SSL, SSH 1.0/2.0, and secure remote access. - **Software Tools:** Includes BusyBox utilities, Artila-specific management tools, and ipkg package management. - **Compatibility:** Upward compatible with Matrix-500 series; supports SocketCAN and CANopen libraries. - **Mounting Options:** Wall mount bracket included; optional DIN-rail mounting kit (DK-35A). - **Development Support:** GNU C/C++ toolchain for Linux and Windows (Cygwin), cross-compilation support, and example source code.

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** ARM926EJ‑S (ARM9 core) running at 400 MHz with integrated MMU, 32 KB instruction cache, and 32 KB data cache. - **Memory:** 64 MB SDRAM, 256 MB NAND Flash, and 2 MB DataFlash for system backup. - **Networking:** Two independent 10/100 Mbps Ethernet ports for redundant or segmented network configurations. - **Serial Communication:** Eight isolated RS‑485 ports (2500 Vrms isolation) for robust industrial communication. - **Digital I/O:** 21 programmable GPIO channels accessible via DB‑25 female connector. - **USB Connectivity:** Two USB 2.0 full‑speed (12 Mbps) host ports and one USB device port. - **Storage Expansion:** microSD card slot via MMC interface for additional storage or data logging. - **Operating System:** Pre‑installed Linux 2.6.29 with BusyBox utilities and Lighttpd web server. - **Security:** Supports SSH 1.0/2.0, SSL, and SFTP for secure remote access. - **Development Environment:** GNU C/C++ toolchain for Linux and Windows (Cygwin), Java accelerator support. - **Power Input:** 9 – 48 V DC wide‑range input, 190 mA @ 12 V DC (≈ 2.3 W typical). - **Mechanical Design:** Fanless, metal enclosure, DIN‑rail or wall‑mountable. - **Operating Temperature:** 0 °C – 70 °C industrial range. - **Dimensions:** 160 mm × 104 mm × 32 mm (W × D × H). These features make the Matrix‑516B a versatile platform for embedded control, protocol conversion, and remote monitoring in industrial environments.

Hersteller: Artila

Kategorie: IoT Gateway

- **High-Performance ARM9 Processor:** Powered by the **ATMEL AT91SAM9G45** running at **400 MHz**, providing efficient processing for industrial control and automation tasks. - **Pre-installed Embedded Linux:** Ships with **Linux kernel 2.6.29**, including a pre-built web server (lighttpd), SSH, and SSL support for secure remote management. - **Comprehensive Connectivity:** - **1× 10/100 Mbps Ethernet port** with 1.5 kV magnetic isolation. - **4× USB 2.0 host ports** (12 Mbps each). - **4× RS-232/485 serial ports**, one of which supports **RS-422**. - **16× programmable GPIO channels** (3.3 V logic). - **Display and User Interface:** Supports **VGA output** and **LCD touch screens** up to **1280×860 resolution**, enabling direct human–machine interface (HMI) integration. - **Memory Architecture:** - **128 MB SDRAM** - **128 MB NAND Flash** - **2 MB DataFlash** for system backup and bootloader storage. - **Storage Expansion:** SD memory card interface compliant with **SD Specification 1.0**. - **Fanless, Compact Design:** Operates silently and reliably in harsh environments with a **-10 °C to +60 °C** temperature range. - **Low Power Consumption:** Operates from **3.0–3.6 V DC (nominal 3.3 V)** with a typical power draw of **2 W**. - **Industrial-Grade Reliability:** Flash-based architecture eliminates moving parts; includes watchdog timers and RTC for system stability. - **Software Development Support:** Includes **GNU C/C++ toolchain** for Linux and Windows, **WinCE** support, and **Java accelerator**.

Hersteller: Artila

Kategorie: IoT Gateway

- **High-Performance ARM9 Processor:** Powered by the Atmel AT91SAM9G45 400 MHz ARM926EJ-S core with integrated memory management unit (MMU), optimized for embedded Linux applications. - **Industrial Linux Platform:** Pre-installed Linux 2.6.29 kernel with BusyBox utilities, lighttpd web server, and SSH/SSL support for secure remote management. - **Comprehensive Connectivity:** - 1 × 10/100 Mbps Ethernet port (DAVICOM DM9161 PHY with 1.5 kV isolation) - 4 × USB 2.0 host ports (480 Mbps) - 3 × RS-232 and 1 × RS-422/485 high-speed serial ports - 4 × programmable GPIO channels - LCD interface supporting LVDS/TTL displays up to 1280 × 860 resolution - **Integrated Storage:** 128 MB SDRAM and 256 MB NAND Flash memory, with microSD expansion slot. - **Robust Industrial Design:** Operates from 12 – 40 V DC input, with low power consumption (200 mA @ 12 V DC) and an operating temperature range of 0 °C – 70 °C. - **Software Development Support:** Includes GNU C/C++ toolchain for Linux and Windows, Java accelerator, and full driver support for peripherals. - **Reliability Features:** Hardware watchdog timer, real-time clock (RTC) with backup battery, and flash-based architecture for non-volatile operation. - **Compact Form Factor:** 146 × 102 mm (3.5″ form factor), suitable for embedded integration.

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** ARM926EJ-S core (Atmel AT91SAM9G45) operating at 400 MHz with integrated MMU. - **Operating System:** Pre-installed Microsoft Windows CE 6.0 Professional with file system support. - **Memory:** 128 MB SDRAM, 256 MB NAND Flash, and 2 MB DataFlash for system recovery. - **Display Support:** - Supports TFT LCD panels up to 1280 × 860 resolution. - Dual interface: 24-bit TTL/CMOS and LVDS. - Integrated 4-wire resistive touch screen controller. - **Networking:** 10/100 Mbps Ethernet interface with 1.5 kV magnetic isolation. - **Serial Communication:** - 3 × RS-232 ports. - 1 × RS-422/485 port (software configurable). - Baud rate up to 921.6 Kbps. - **USB Connectivity:** - 4 × USB 2.0 high-speed (480 Mbps) host ports. - 1 × USB 2.0 client port for ActiveSync and data transfer. - **GPIO:** 4 programmable digital I/O channels (TTL/CMOS compatible). - **Storage Expansion:** microSD card slot for additional storage. - **Power Input:** 12–40 VDC wide-range input (200 mA @ 12 VDC). - **Environmental:** Operating temperature range 0°C to 70°C. - **Software Development:** SDK available for Microsoft Visual Studio 2005 (C/C++). - **Network Services:** Built-in web server (ASP), FTP, and Telnet servers. - **Security:** Supports SSL and SSH 1.0/2.0 protocols. - **Additional Hardware:** Watchdog timer, real-time clock with backup battery, buzzer, and Java accelerator.

Hersteller: Artila

Kategorie: IoT Gateway

- **High-Performance ARM9 Processor:** Powered by the Atmel AT91SAM9G20 SoC featuring a 400 MHz ARM926EJ-S core with integrated Memory Management Unit (MMU), 32 KB instruction cache, and 32 KB data cache. - **Pre-Installed Embedded Linux:** Ships with Linux kernel 2.6.29, U-Boot bootloader, and a suite of preconfigured utilities including BusyBox, lighttpd web server, SSH, FTP, and package management via ipkg. - **Comprehensive Connectivity:** Includes one 10/100 Mbps Ethernet port (DAVICOM DM9161 PHY with 1.5 kV isolation), four UARTs (RS-232/422/485 selectable), two USB 2.0 host ports, one USB 2.0 device port, and an SD memory card interface. - **Extensive I/O Options:** 32 programmable 3.3 V general-purpose digital I/O lines, configurable as input or output, with interrupt support. - **Integrated Real-Time Clock (RTC):** ST M41T81 RTC with 48 mAh lithium backup battery ensures timekeeping during power loss. - **Compact and Robust Design:** Measures only 80 mm × 50 mm, consumes approximately 2 W, and operates reliably in extended temperature ranges from −20 °C to +80 °C. - **Software Development Ready:** Includes GNU C/C++ cross-compilation toolchain for Linux and Windows, POSIX-compliant GLIBC libraries, and SDK with example programs. - **Industrial-Grade Reliability:** Fanless, flash-based architecture with watchdog timers, hardware flow control, and secure communication protocols (SSL, SSH 1.0/2.0).

Hersteller: Artila

Kategorie: IoT Gateway

- **High-Performance ARM9 Core:** Powered by the Atmel AT91SAM9G20 SoC featuring a 400 MHz ARM926EJ-S ARM Thumb processor with integrated Memory Management Unit (MMU), 32 KB instruction cache, and 32 KB data cache. - **Compact, Industrial Design:** Credit-card-sized (80 mm × 50 mm) module with fanless operation and low power consumption (2 W typical). - **Pre-Installed Embedded Linux:** Linux kernel 2.6.29 with U-Boot bootloader, BusyBox utilities, and lighttpd web server preconfigured for immediate use. - **Comprehensive Connectivity:** - 4 × UART ports (RS-232/422/485 software-selectable) - 1 × 10/100 Mbps Ethernet port with 1.5 kV isolation - 2 × USB 2.0 full-speed (12 Mbps) host ports - 1 × USB 2.0 device (client) port - 32 × programmable GPIO lines (3.3 V CMOS compatible) - SD/MMC interface, SPI, I²C, I²S, and 8-bit local bus - **Integrated Real-Time Clock (RTC):** ST M41T81 RTC with 48 mAh lithium backup battery for timekeeping during power loss. - **Flexible Software Environment:** Supports Linux and WinCE; includes GNU C/C++ cross-compilation toolchain for Linux/Windows hosts. - **Security and Networking:** Built-in support for SSL, SSH 1.0/2.0, SNMP v1/v3, and standard TCP/IP protocols. - **Industrial Reliability:** Operating temperature range 0 °C – 70 °C, solid-state storage (NAND Flash + DataFlash), and fanless design ensure durability in harsh environments.

Hersteller: Artila

Kategorie: IoT Gateway

- **Processor:** ARM926EJ-S (ARM9 core) running at 400 MHz with MMU, 32 KB instruction cache, and 32 KB data cache. - **Operating System:** Pre-installed Linux 2.6.29; supports WinCE and Java acceleration. - **Memory:** 64 MB SDRAM and 128 MB NAND Flash (Matrix-522T variant) or 256 MB NAND Flash (Matrix-522 base model). Includes 2 MB DataFlash for system backup. - **Networking:** Two 10/100 Mbps Ethernet ports with independent MAC addresses. - **Serial Communication:** Two software-configurable 3-in-1 RS-232/422/485 ports. - **CAN Bus:** Two fully isolated CAN 2.0A/2.0B ports (2500 Vrms isolation). - **USB:** Two USB 2.0 full-speed (12 Mbps) host ports and one USB device port. - **Digital I/O:** 21 programmable GPIO channels accessible via DB25 connector. - **Storage:** NAND Flash-based architecture; supports external USB and microSD (on Matrix-522). - **Power Supply:** 9–40 V DC input, 190 mA @ 12 V DC (≈ 2.3 W). - **Temperature Range:** –20 °C to +80 °C extended operating range. - **Form Factor:** Compact fanless metal enclosure, DIN-rail or wall mountable. - **Security:** Supports SSL, SSH 1.0/2.0, and secure remote access. - **Software Tools:** GNU C/C++ toolchain, ipkg package manager, SocketCAN, CANopen, and Artila utilities (update, setuart, setconsole, gpioctl). - **Compatibility:** Upward compatible with Matrix-500 series.

Hersteller: Artila

Kategorie: IoT Gateway

- **High‑Performance ARM9 Core:** Equipped with an ARM926EJ‑S processor running at 400 MHz, featuring 32 KB instruction and 32 KB data cache, and a memory management unit (MMU) for multitasking Linux operation. - **Embedded Linux Platform:** Pre‑installed Linux kernel 2.6.x with full GNU C/C++ toolchain support for both Linux and Windows development environments. Includes BusyBox utilities and Artila’s custom management tools. - **Comprehensive I/O Suite:** - 4 × 16‑bit isolated analog input channels (configurable voltage/current ranges) - 4 × isolated digital inputs (2.5 kV isolation) - 4 × isolated digital outputs (Darlington transistor drivers, 500 mA max per channel) - **Networking & Communication:** - Dual 10/100 Base‑T Ethernet ports - 2 × USB 2.0 full‑speed host ports and 1 × USB device port - 4 × serial ports (2 × RS‑232, 2 × software‑selectable RS‑232/RS‑485 isolated) - **Storage & Expansion:** - 64 MB SDRAM and 128 MB NAND Flash (expandable via microSD slot) - 1 × SD/MMC interface for removable storage - USB flash disk and external storage mounting supported - **Industrial‑Grade Design:** - Fanless, solid‑state architecture - 9 – 40 V DC power input with surge and polarity protection - Operating temperature: 0 °C – 70 °C - DIN‑rail mountable aluminum enclosure - **Integrated Web & Network Services:** Built‑in Apache web server, SSH/SFTP, FTP, Telnet, and syslog services for remote management and data access. - **Security & Remote Access:** Supports SSL, SSH 1.0/2.0, and user authentication for secure remote operation.

Hersteller: Artila

Kategorie: Automation Controller

- **Processor:** ARM926EJ-S ARM Thumb Processor (Atmel AT91SAM9G20) operating at 400 MHz with integrated MMU. - **Memory:** 64 MB SDRAM and 128 MB NAND Flash (expandable via SD card). - **Storage:** Onboard NAND Flash stores bootloader, Linux kernel, root filesystem, and user data. - **Networking:** Two independent 10/100 Mbps Ethernet ports (LAN1 and LAN2) with Link/Activity LEDs. - **Serial Communication:** - 4 serial ports total: - Ports 1–2: Software-selectable RS-232 or isolated RS-485. - Ports 3–4: RS-232 with hardware flow control. - Port 2 supports full modem control (DSR, DCD, DTR). - **USB Connectivity:** - Two USB 2.0 full-speed (12 Mbps) host ports. - One USB device port. - **Expansion:** MicroSD card slot for additional storage. - **Operating System:** Pre-installed Linux kernel 2.6.x with BusyBox utilities and Artila’s software suite. - **Power Input:** 9 – 40 V DC with surge and polarity protection. - **Mounting:** DIN-rail mountable design for industrial environments. - **Security:** Supports SSL and SSH (v1.0/2.0) for secure remote access. - **Web Server:** Integrated Apache2 or Lighttpd web server for remote management and web-based applications. - **Software Development:** - GNU toolchain for Linux and Windows (gcc 4.3.3, glibc 2.8/2.9, binutils 2.18/2.19). - Supports cross-compilation and remote deployment. - **Utility Software:** Includes Artila utilities (update, setuart, setconsole, gpioctl, version) and package management via `ipkg`. - **Recovery System:** Built-in DataFlash recovery mode for system restoration and firmware updates.

Hersteller: Artila

Kategorie: Automation Controller

- **Processor:** ARM926EJ‑S ARM Thumb Processor, 400 MHz with Memory Management Unit (MMU) - **Memory:** 64 MB SDRAM and 128 MB NAND Flash (expandable via SD card) - **Operating System:** Pre‑installed Linux Kernel 2.6.x with full GNU C/C++ toolchain support - **Networking:** Dual 10/100 Mbps Ethernet ports (LAN 1 and LAN 2) - **USB Connectivity:** Two USB 2.0 full‑speed (12 Mbps) host ports and one USB device port - **Serial Communication:** Four serial ports (2 × RS‑232/RS‑485 software‑selectable, 2 × RS‑232 with hardware flow control) - **Digital I/O:** - 8 × isolated digital inputs (2500 Vrms isolation, bipolar, 5–24 V logic high) - 8 × isolated Darlington digital outputs (2500 Vrms isolation, 5–50 V source, 500 mA max per channel) - **Storage Expansion:** Micro SD/MMC card interface - **Power Input:** 9 – 40 V DC with surge and polarity protection - **Mounting:** DIN‑rail ready with included bracket - **Security & Networking:** Supports SSL, SSH 1.0/2.0, FTP, Telnet, and web server (Apache2 or Lighttpd) - **Software Utilities:** BusyBox, ipkg package manager, Artila utilities (setuart, setconsole, gpioctl, update, version) - **Toolchain Support:** Cross‑compilation toolchains for Linux and Windows (GNU gcc 4.3.3, glibc 2.8/2.9, binutils 2.18/2.19) - **Maintenance & Recovery:** Built‑in DataFlash recovery system, bootloader (uBoot), and system recovery console

Hersteller: Artila

Kategorie: Automation Controller

- **Processor:** ARM926EJ‑S ARM Thumb Processor (Atmel AT91SAM9G20) running at 400 MHz with integrated MMU. - **Memory:** 64 MB SDRAM and 128 MB NAND Flash (expandable via SD card). - **Storage:** Onboard NAND Flash for OS and user data; SD/MMC slot for removable storage. - **Networking:** Two independent 10/100 Mbps Ethernet ports (LAN 1 and LAN 2). - **Serial Communication:** - 4 serial ports total: - Port 1–2: software‑selectable RS‑232 or isolated RS‑485. - Port 3–4: RS‑232 with hardware flow control. - Full modem control (DSR, DCD, DTR) supported on Port 2. - **USB Connectivity:** - Two USB 2.0 full‑speed (12 Mbps) host ports. - One USB device port for PC connection or firmware update. - **Digital I/O:** - 8 isolated digital inputs (photo‑coupler, 2500 Vrms isolation). - 8 isolated digital outputs (Darlington transistor drivers, 2500 Vrms isolation, 500 mA max per channel). - **Power Supply:** 9 – 40 V DC input with surge and polarity protection. - **Operating System:** Pre‑installed Linux 2.6 with BusyBox utilities and Artila software suite. - **Mounting:** DIN‑rail ready, compact form factor for control cabinets. - **Security:** Supports SSL, SSH 1.0/2.0, and secure remote access. - **Development Environment:** GNU C/C++ toolchain for Linux and Windows (cross‑compilation supported). - **Wide Temperature Range:** ‑20 °C to +80 °C for industrial environments. - **Fanless Design:** Ensures silent operation and long‑term reliability.

Hersteller: Artila

Kategorie: Automation Controller

- **Processor & Architecture:** ARM920T core (Atmel AT91RM9200) running at 180 MHz, delivering approximately 200 MIPS performance with integrated Memory Management Unit (MMU), 16 KB instruction cache, and 16 KB data cache. - **Operating System:** Pre‑installed Linux kernel 2.6.14 with JFFS2, EXT2/EXT3, VFAT/FAT, and NFS file system support. Includes U‑Boot 1.1.2 bootloader. - **Memory:** 64 MB SDRAM and 16 MB NOR Flash memory, expandable via SD card slot (SD 1.0 compliant). - **Networking:** Dual 10/100 Base‑T Ethernet ports (RJ‑45) with independent MAC addresses, supporting IPv4, DHCP, NTP, SNMP, SSL, SSH, and other standard protocols. - **I/O Interfaces:** - 4 × 16‑bit high‑precision isolated analog inputs (±150 mV … ±10 V, 0–20 mA) - 8 × optically isolated digital inputs (2.5 kVrms isolation) - 8 × high‑drive digital outputs (500 mA max per channel, 5–50 VDC source) - 1 × RS‑232 port (full modem control) - 1 × RS‑485 port (data + / data –) - 1 × RS‑232 console port (10‑pin header) - 2 × USB 2.0 host ports (12 Mbps full‑speed) - **Storage & Expansion:** SD memory card slot for data logging or program storage; USB host ports support flash disks, Wi‑Fi adapters, and RS‑232 adapters. - **Power Supply:** Wide input range 9 – 40 VDC with surge and polarity protection; typical consumption 800 mA @ 12 VDC. - **Environmental:** Operating temperature 0 – 70 °C; fanless design for industrial reliability. - **Software Development:** Includes GNU C/C++ cross‑compiler toolchain for Linux and Windows (Cygwin), with POSIX‑compliant GLIBC library. - **Security & Connectivity:** Supports SSL, SSH 1.0/2.0, firewall (iptables), and remote management via Telnet, FTP, HTTP, and SNMP. - **Mounting:** Ready for DIN‑rail installation; compact PCB form factor for control cabinets.

Hersteller: Artila

Kategorie: Automation Controller

- **ARM9 Industrial Computing Platform:** Powered by an Atmel AT91RM9200 ARM920T processor running at 180 MHz (200 MIPS) with integrated MMU, 16 KB instruction cache, and 16 KB data cache. - **Pre-installed Linux OS:** Ships with Linux kernel 2.6.x, U-Boot 1.1.2 bootloader, and a full file system supporting JFFS2, EXT2/EXT3, VFAT/FAT, and NFS. - **Rich I/O Interfaces:** Includes 16 opto-isolated digital inputs (2.5 kV isolation) and 8 Darlington-pair digital outputs (500 mA max per channel, 5–50 VDC source voltage). - **Networking and Connectivity:** Dual 10/100 Mbps Ethernet ports (RJ-45), one RS-232 port with full modem control, one RS-485 port with hardware direction control, and two USB 2.0 host ports (12 Mbps). - **Expandable Storage:** One internal SD 1.0-compliant socket supporting up to 4 GB SD cards for data logging and application storage. - **Web and Network Services:** Integrated web server (Boa), FTP, Telnet, SSH, SNMP, and firewall (iptables) for remote monitoring and control. - **Open Development Environment:** Includes GNU C/C++ cross-compilation toolchain for Linux and Windows (CygWin), POSIX libraries, and BusyBox utilities. - **Industrial Design:** Fanless, DIN-rail mountable, wide 9–40 VDC power input, 0–70 °C operating temperature, CE/FCC Class A compliance. - **Security and Management:** Supports SSL, SSH 1.0/2.0, and user-level access control. Includes watchdog timer, real-time clock, and buzzer for system monitoring.

Hersteller: Artila

Kategorie: Automation Controller
