- **Three‑Axis Independent Control:** Supports simultaneous control of up to three stepper or servo motors via pulse‑train output. - **High‑Speed Pulse Output:** Adjustable pulse rate from **92 pps to 6 Mpps**, suitable for high‑precision motion systems. - **Multiple Output Modes:** Supports **2‑pulse (CW/CCW)** and **common‑pulse (Pulse/Direction)** output formats, selectable via software. - **Opto‑Isolated I/O:** All limit switch, general input, and output channels are optically isolated (12–24 V DC) to protect against electrical noise and ground loops. - **Dedicated Limit and Slowdown Inputs:** Each axis includes **four limit‑related inputs** (ORG, +LIM, −LIM, and Slowdown) for safe and accurate positioning. - **Emergency Stop and MPG Support:** Two opto‑isolated emergency stop inputs per axis; supports **MPG1020 pulse generator chips** for manual pulse generation. - **Independent Interrupt Channels:** Four interrupt request channels (IRQ3–7, 9–12, 14, or 15) can be assigned for pulse completion or error events. - **High‑Reliability Open‑Collector Outputs:** Two opto‑isolated open‑collector outputs per axis rated at **35 V DC, 200 mA** maximum. - **Compact ISA Form Factor:** Standard AT‑bus card size **163.0 mm (L) × 122.0 mm (H)** for easy integration into industrial PCs. - **Software Support:** Includes **API‑PAC(W32)** driver library for Windows, providing Win32 API‑compatible motion control functions. - **Industrial‑Grade Design:** Designed for continuous operation in factory automation, robotics, and precision positioning systems.

Hersteller: Contec

Kategorie: Motion Control / EtherCAT ISA

- **High-Speed 12-Bit A/D Conversion:** Equipped with a 12-bit analog-to-digital converter (AD774), the card achieves sampling rates up to 100,000 samples per second (100 kS/s), ensuring accurate and fast signal acquisition. - **Flexible Channel Configuration:** Supports 16 single-ended (SE) or 8 differential (DI) analog input channels. With the optional ATCH-16(PC) expansion module, the channel count can be doubled to 32 SE or 16 DI channels. - **Wide Input Voltage Range:** Configurable input ranges of ±10 V or 0–10 V, allowing compatibility with a variety of analog sensors and signal sources. - **Integrated FIFO Buffer:** Features a 256 k-word FIFO (First-In-First-Out) memory buffer or ring buffer for continuous, high-speed data streaming without data loss, even during intensive system operations. - **Intelligent Sampling ASIC:** Incorporates a dedicated ASIC for intelligent sampling control, optimizing timing accuracy and reducing CPU load during acquisition. - **Onboard D/A Conversion:** Includes one 12-bit digital-to-analog (D/A) output channel with selectable output ranges of ±10 V, 0–10 V, or ±5 V, and a conversion time of 6 µs, enabling precise analog output or waveform generation. - **DMA and Interrupt Support:** Compatible with DMA channels 5, 6, and 7, and interrupt request (IRQ) lines 5, 7, 9–12, and 15, providing flexible system integration and efficient data transfer. - **Digital I/O Capability:** Provides 4 TTL-level digital input and 4 TTL-level digital output lines for control and synchronization with external devices. - **Compact Form Factor:** Standard AT-bus card dimensions of 160 mm × 122 mm, suitable for installation in legacy or industrial PC systems. - **Robust Connectivity:** Equipped with a 37-pin female D-Sub connector and a 16-pin connector for analog and digital I/O interfacing.

Hersteller: Contec

Kategorie: A/D High Speed ISA

- **High-Resolution Analog-to-Digital Conversion:** Equipped with a **16-bit A/D converter (AD669)**, the card delivers precise analog signal digitization with a maximum sampling rate of **100 kS/s** (100,000 samples per second). - **Flexible Input Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels. With the optional **ATCH-16(PC)** expansion module, the configuration can be extended to **32 SE / 16 DI** channels. - **Wide Input Voltage Range:** Configurable input ranges of **±10 V**, **±5 V**, **0–10 V**, and **0–5 V**, allowing compatibility with a broad range of sensors and signal sources. - **Integrated FIFO / Ring Buffer:** Features a **256K-word FIFO (First-In-First-Out) or ring buffer**, enabling continuous high-speed data acquisition without data loss, even under heavy system load. - **Intelligent Sampling Control:** Incorporates a dedicated **ASIC (Application-Specific Integrated Circuit)** for intelligent sampling management, ensuring stable and accurate timing control during high-speed data acquisition. - **Analog Output (D/A Conversion):** Includes **one 16-bit D/A output channel** with output ranges of **±10 V** or **0–10 V**, and a **conversion time of 13 µs**, suitable for waveform generation, control signals, or analog feedback applications. - **Digital I/O Capability:** Provides **4 digital input** and **4 digital output** lines (TTL level), enabling control and monitoring of external devices such as relays, switches, or indicators. - **DMA and Interrupt Support:** Compatible with **DMA channels 5, 6, and 7**, and **IRQ lines 5, 7, 9–12, and 15**, allowing flexible system integration and efficient data transfer with minimal CPU overhead. - **Standard Connector Interface:** Equipped with a **D-Sub 37-pin female connector**, providing a robust and standardized interface for analog and digital signal connections. - **Compact Form Factor:** Physical dimensions of **160 mm × 122 mm**, designed for installation in standard PC/AT expansion slots. - **Manufacturer Reliability:** Developed and produced by **Contec**, a recognized manufacturer of industrial I/O and measurement hardware, ensuring long-term reliability and support.

Hersteller: Contec

Kategorie: A/D High Resolution ISA

- **High Channel Density:** 32 single‑ended isolated analog input channels for simultaneous multi‑point measurement. - **High Voltage Isolation:** Each channel is isolated up to **2500 VDC**, protecting the host PC and peripherals from high‑voltage transients. - **12‑bit Resolution:** Successive approximation A/D converter (Burr‑Brown AD574 or equivalent) provides precise digital representation of analog signals. - **Programmable Input Range:** Bipolar and unipolar ranges selectable via jumpers and software: - Bipolar: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, ±0.3125 V - Unipolar: 0–10 V, 0–5 V, 0–2.5 V, 0–1.25 V, 0–0.625 V - **Software‑Programmable Gain:** Selectable gains of ×1, ×2, ×4, ×8, ×16 for flexible scaling. - **On‑Board Signal Conditioning:** RC filter networks per channel for attenuation or current‑to‑voltage conversion. - **Integrated DC‑to‑DC Converters:** Provide isolated power for analog circuitry, ensuring stable operation and noise immunity. - **Compact Design:** Half‑size ISA card (160 mm × 122 mm) with 4‑layer PCB and dedicated ground plane. - **Over‑Voltage Protection:** Continuous protection up to ±35 V on all analog inputs. - **Software Triggered Conversion:** A/D conversion initiated by software control for flexible timing. - **Comprehensive Software Support:** Includes DOS C/C++ libraries, Windows DLLs (ACLS‑DLL2), and LabVIEW drivers (ACLS‑LVIEW). - **Industrial‑Grade Reliability:** Designed for 0 °C – 55 °C operation, 5–95 % RH non‑condensing.

Hersteller: Contec

Kategorie: A/D Isolated ISA

- **High-Speed Sampling:** Equipped with an **AD1671 12-bit A/D converter**, the card achieves a maximum sampling rate of **1 MS/s**, enabling accurate capture of fast analog signals. - **Large FIFO Buffer:** Integrated **128 k-word FIFO (First-In-First-Out)** memory supports continuous high-speed data acquisition without CPU overload. The buffer can also operate as a **ring buffer** for continuous streaming applications. - **Intelligent Sampling Control:** Features a dedicated **ASIC** for intelligent sampling management, ensuring stable and efficient data throughput even under high system load. - **Flexible Input Configuration:** Supports **16 single-ended (SE)** or **8 differential (DI)** analog input channels. Expandable to **32 SE / 16 DI** channels using the optional **ATUH-16(PC)** extension unit. - **Multiple Input Voltage Ranges:** Selectable analog input ranges include **±2.5 V**, **±5 V**, **0–10 V**, and **0–5 V**, allowing compatibility with a wide variety of sensors and signal sources. - **Integrated D/A Output:** Includes **1 channel of 12-bit D/A output** with selectable output ranges of **±10 V**, **0–10 V**, or **±5 V**, and a conversion time of **6 µs**. - **Digital I/O Support:** Provides **4 TTL-level digital inputs** and **4 TTL-level digital outputs**, enabling control and synchronization with external devices. - **ISA Bus Interface:** Designed for **ISA bus** systems, supporting **DMA channels 5, 6, and 7** and **IRQ lines 5, 7, 9–12, and 15** for flexible system integration. - **Compact Form Factor:** Standard ISA card dimensions of **174 mm × 122 mm**, suitable for installation in industrial PCs and legacy systems. - **Robust Connectivity:** Equipped with a **37-pin female D-Sub connector** for analog and digital signal interfacing.

Hersteller: Contec

Kategorie: A/D High Speed ISA

- **High-Speed Analog-to-Digital Conversion:** Capable of sampling at up to **1 mega-sample per second (1 MS/s)** with **16-bit resolution**, ensuring precise and rapid data acquisition for dynamic signal measurement. - **Versatile Channel Configuration:** Provides **16 single-ended (SE)** or **8 differential (DI)** analog input channels. With the optional **ATUH-16(PC)** expansion module, the configuration can be extended to **32 SE / 16 DI** channels, offering scalability for larger measurement systems. - **Wide Input Voltage Range:** Supports multiple input ranges including **±10 V**, **±5 V**, **±2.5 V**, **0–10 V**, and **0–5 V**, allowing compatibility with a broad spectrum of analog sensors and signal sources. - **Integrated Digital-to-Analog Output:** Includes **one 16-bit D/A output channel** with selectable output ranges of **±10 V** or **0–10 V**, capable of delivering up to **±5 mA** output current with a maximum conversion time of **13 µs**. - **Intelligent Sampling Control:** Incorporates an **ASIC-based intelligent sampling controller** for efficient data handling and timing precision, minimizing CPU load during high-speed acquisition. - **Large Onboard FIFO / Ring Buffer:** Equipped with a **256 K-word FIFO (First-In-First-Out) or ring buffer**, enabling continuous high-speed data streaming without data loss. - **Flexible Bus and Interrupt Configuration:** Supports **DMA channels 5, 6, and 7** and **IRQ lines 5, 7, 9–12, and 15**, providing flexible integration into various PC architectures and minimizing latency. - **Digital I/O Capability:** Offers **4 TTL-compatible digital input** and **4 TTL-compatible digital output** lines, each rated for **5 VDC** operation and a total current capacity of **2 A**, suitable for control and status signaling. - **Robust Connectivity:** Features a **37-pin D-Sub female connector** for secure and standardized signal interfacing. - **Industrial-Grade Design:** Built for reliability and precision in laboratory, industrial automation, and embedded control systems.

Hersteller: Contec

Kategorie: A/D High Resolution ISA

- **8 Isolated Analog Input Channels:** Each input channel is galvanically isolated, providing enhanced noise immunity and protection against ground loops and voltage surges. - **12-bit Resolution:** Delivers precise analog-to-digital conversion suitable for measurement and monitoring applications requiring moderate accuracy. - **Sampling Rate:** Supports up to **800 samples per second (800 S/s)**, enabling real-time data acquisition for slow to medium-speed analog signals. - **Multiple Input Ranges:** Configurable gain settings for various signal types, including: - 0–5 V - 1–5 V - 0–20 mA - 4–20 mA This flexibility allows direct connection to a wide range of sensors and transducers. - **High Isolation Voltage:** - Channel-to-channel isolation: **750 V RMS** - Input/output isolation: **750 V RMS** - TTL opto-isolation: up to **5 kV** These isolation ratings ensure safe operation in electrically noisy or high-voltage environments. - **Digital I/O Support:** Provides **2 or 4 TTL-level digital I/O lines**, optically isolated for reliable signal interfacing. - **Interrupt Request (IRQ) Configurability:** Supports multiple IRQ lines (**3–7, 9–12, 14, 15**) for flexible system integration and interrupt-driven data acquisition. - **Compact Form Factor:** Designed for AT-bus (ISA) PC slots, with a physical size of **160 mm × 122 mm**, suitable for standard industrial PCs. - **Connector Type:** Equipped with a **37-pin female D-type connector** for secure and standardized signal interfacing.

Hersteller: Contec

Kategorie: A/D Isolated ISA

- **IEEE‑488.1 / IEEE‑488.2 Compliance:** Fully conforms to the IEEE‑488 standards, ensuring interoperability with a wide range of laboratory and industrial instruments. - **DMA‑Based High‑Speed Transfer:** Supports Direct Memory Access (DMA) data transfer mode with a maximum throughput of **400 Kbyte/sec**, minimizing CPU load and improving data exchange efficiency. - **CONTEC Original FPGA Controller:** Incorporates a CONTEC‑developed FPGA controller compatible with the NEC µPD7210C GPIB controller, providing stable operation and long‑term component availability. - **Flexible Interrupt and DMA Channel Selection:** Software‑selectable interrupt request (INTA) and DMA channels (CH1–CH3) allow flexible system configuration and resource allocation. - **Comprehensive Bus Compatibility:** Designed for AT‑bus (ISA) architecture, suitable for integration into industrial PCs and legacy control systems. - **Robust Electrical Interface:** Implements negative logic signaling ( 2.0 V high) across 8 parallel data lines and 3 handshake lines, ensuring reliable communication even in electrically noisy environments. - **Multiple Device Connectivity:** Supports up to **15 GPIB devices** on a single bus, with a total cable length of up to **20 m** (4 m maximum between controller and first device). - **Compact Form Factor:** Board dimensions of **163.0 mm (L) × 107.0 mm (H)** allow installation in standard AT‑bus slots. - **Low Power Consumption:** Operates at **5 V DC / 350 mA**, minimizing system power requirements. - **Comprehensive Software Support:** Compatible with CONTEC’s **API‑PAC(W32)** driver package for Windows, providing Win32 API‑based DLL functions for application development. - **Optional Accessories:** Compatible with CONTEC’s double‑shielded GPIB cables (PCN‑T02, PCN‑T04) and CN‑GP/C connector adapter for noise‑resistant installations. - **CE Marking:** Conforms to European safety and EMC standards for industrial electronic equipment.

Hersteller: Contec

Kategorie: IEEE (GPIB) Cards

- **IEEE‑488.1 / IEEE‑488.2 Compliance:** Fully conforms to both IEEE‑488.1 hardware and IEEE‑488.2 protocol standards, ensuring compatibility with a broad range of GPIB instruments and controllers. - **High‑Speed Data Transfer:** Supports up to **1 MB/s receive** and **700 kB/s send** rates (maximum), enabling rapid data exchange between PC and connected devices. - **Large FIFO Buffers:** Equipped with dual **256 kB FIFO buffers** (2 × 256 kB) for efficient data handling and reduced CPU overhead during high‑speed transfers. - **DMA and Interrupt Support:** Utilizes **DMA channels 1–3** and **IRQ3–7/9–12/14/15**, allowing flexible configuration and optimized system performance. - **Bus Master Transfer (F‑Series Feature):** Transfers large data blocks directly between the board and system memory without CPU intervention, minimizing host load. - **GPIB Bus Analyzer Function:** Provides real‑time monitoring and analysis of GPIB bus signals, enabling debugging and performance evaluation of connected instruments. - **High‑Precision Timer:** Integrated timer for accurate time measurement and synchronization in Windows environments. - **NEC µPD7210 Controller Chip:** Employs the industry‑standard NEC GPIB controller for stable operation and long‑term component availability. - **Comprehensive Software Support:** Compatible with CONTEC’s API‑TOOL drivers for Windows and Linux, as well as MATLAB and National Instruments LabVIEW environments. - **Diagnostic and Line Monitoring Tools:** Built‑in diagnostic program for hardware and communication verification; supports reading of control and data line states (IFC, ATN, SRQ, REN, EOI, DAV, NRFD, NDAC, DIO1–DIO8). - **Industrial‑Grade Reliability:** Designed for continuous operation in industrial and laboratory environments, with robust electrical characteristics and long‑term product support.

Hersteller: Contec

Kategorie: IEEE (GPIB) Cards

- **AT/ISA Bus to PCMCIA Interface:** Provides a direct hardware-level interface between an ISA bus system and PCMCIA cards, enabling legacy systems to utilize modern PCMCIA peripherals. - **PCMCIA 2.0 and Later Compatibility:** Fully compliant with PCMCIA 2.0 specifications, ensuring support for a wide range of PCMCIA cards, including memory, I/O, and communication cards. - **Multi-Type Card Support:** Compatible with **Type I, Type II, and Type III** PCMCIA cards, allowing flexible use of various card thicknesses and functionalities. - **Compact Half-Size ISA Form Factor:** Designed as a **half-size ISA bus card**, measuring **160 mm x 107 mm**, suitable for installation in compact industrial PCs or embedded systems. - **Low Power Consumption:** Operates on **5 VDC at 150 mA**, minimizing power draw and heat generation, ideal for systems with limited power budgets. - **Dual I/O Port Addressing:** Utilizes **I/O addresses 0x3E0 and 0x3E1**, providing a simple and conflict-free addressing scheme for system integration. - **High Reliability and Industrial Durability:** Engineered for continuous operation in industrial environments, with robust electrical design and stable signal integrity. - **Plug-and-Play Expansion Capability:** Enables seamless addition of PCMCIA functionality to existing ISA-based systems without extensive hardware modification. - **Manufacturer Support and Documentation:** Backed by Contec’s industrial-grade quality assurance, technical documentation, and long-term product support.

Hersteller: Contec

Kategorie: Bus Extensions

- **Multiple Input Ranges:** Accepts differential DC input signals of ±30 mV, ±100 mV, or 1–6 V DC, allowing compatibility with a wide range of sensors and transducers. - **Galvanic Isolation:** Complete electrical isolation between input, output, and power supply circuits to prevent ground loops and interference. - **High Common-Mode Rejection:** 100 dB CMR ensures accurate signal measurement even in environments with significant electrical noise. - **Precision Excitation Supply:** Provides selectable excitation voltages of 5 V, 8 V, or 10 V DC with a maximum current output of 60 mA, suitable for powering bridge sensors. - **High Accuracy:** Typical gain accuracy of ±0.05 % of full scale (FS), ensuring precise signal amplification and conversion. - **Low Thermal Drift:** Input drift of ±1 µV/°C minimizes measurement error due to temperature variations. - **High Resolution:** 15-bit internal resolution for fine signal quantization and accurate digital representation. - **Digital Output:** ASCII-formatted RS232 serial output for direct connection to PCs, PLCs, or data acquisition systems. - **Compact and Robust Design:** Engineered for industrial environments, offering stable performance and long-term reliability.

Hersteller: Contec

Kategorie: RS232 Measure And Control Modules

- **Isolated Bridge Input:** Accepts differential bridge signals with selectable input ranges of ±30 mV, ±100 mV, or 1–6 V DC, ensuring compatibility with a wide range of transducers. - **Excitation Supply:** Provides regulated excitation voltages of 5 V, 8 V, or 10 V DC with a maximum current output of 60 mA, suitable for powering strain gauge bridges and similar sensors. - **High Accuracy:** Typical gain accuracy of ±0.05 % of full scale (FS), ensuring precise signal measurement and minimal calibration drift. - **Low Thermal Drift:** Input drift of ±1 µV/°C, maintaining measurement stability across varying ambient temperatures. - **High Common-Mode Rejection Ratio (CMRR):** 100 dB CMR ensures excellent noise immunity and reliable operation in electrically noisy environments. - **High Resolution:** 15-bit resolution for fine signal quantization and accurate digital representation of analog inputs. - **Digital Communication:** RS485 serial interface with ASCII output format for easy integration into distributed measurement networks and industrial control systems. - **Galvanic Isolation:** Complete electrical isolation between input, output, and power circuits to prevent ground loops and enhance system safety. - **Compact and Robust Design:** Engineered for industrial environments, offering reliable long-term operation and ease of integration into control panels or DIN-rail systems.

Hersteller: Contec

Kategorie: RS485 DIN Rail IO Modules

- **Conversion Functionality:** Converts a 50-pin miniature ribbon connector (board side) to a 37-pin D-SUB connector (device side). - **Cable Length:** 0.5 meters (nominal). - **Shielded Construction:** Double-shielded design minimizes electromagnetic interference (EMI) and ensures signal integrity in industrial environments. - **Molded Connectors:** Factory-molded terminations provide strain relief and mechanical durability. - **Industrial-Grade Materials:** Designed for long-term reliability in automation, measurement, and control systems. - **Compatibility:** Specifically designed for CONTEC’s Low Profile PCI digital I/O boards such as PIO-16/16B(LPCI)H, PIO-16/16L(LPCI)H, and PIO-16/16T(LPCI)H. - **Plug-and-Play Integration:** Enables direct connection between digital I/O boards and terminal units (e.g., EPD-37, DTP-3(PC), DTP-4(PC)). - **Signal Integrity:** Maintains accurate digital signal transmission across all channels with minimal crosstalk. - **Compact Form Factor:** Ideal for confined installation spaces within control cabinets or PC enclosures. - **Compliance:** Manufactured to meet industrial electrical and mechanical standards for PCI-based I/O systems.

Hersteller: Contec

Kategorie: Cables and Accessories

- **Shielded Construction:** The cable is fully shielded to minimize electromagnetic interference (EMI) and crosstalk, ensuring stable signal integrity in electrically noisy environments. - **Dual 37-pin D-type Male Connectors:** Equipped with precision-molded 37-pin D-sub male connectors on both ends, compatible with CONTEC’s D-type interface boards and terminal units. - **High Signal Integrity:** Designed for accurate digital and analog signal transmission between PCI boards and external devices or terminal panels. - **Industrial-Grade Durability:** Built for continuous operation in industrial automation systems, test benches, and control panels. - **Short-Length Option (0.5m):** Ideal for compact installations where minimal cable length reduces signal delay and clutter. - **Compatibility:** Fully compatible with CONTEC’s 37-pin D-type interface boards, including digital I/O, analog I/O, counter, and communication boards. - **Plug-and-Play Integration:** Designed for direct connection between CONTEC boards and terminal units such as EPD-37, DTP-3(PC), and DTP-4(PC). - **Standardized Pin Configuration:** Maintains consistent pin mapping across CONTEC’s accessory ecosystem for simplified wiring and maintenance. - **RoHS Compliant:** Manufactured in accordance with environmental and safety standards for industrial electronics.

Hersteller: Contec

Kategorie: Cables and Accessories

- **High-Density 68-Pin HD Connector:** Utilizes a 0.8 mm pitch connector for compact, high-channel-count signal interfacing. - **Shielded Construction:** The cable is fully shielded to minimize electromagnetic interference (EMI) and crosstalk, ensuring signal integrity in electrically noisy industrial environments. - **Optimized for Analog and Digital I/O Boards:** Designed for use with CONTEC’s **ADA16-32/2(PCI)F**, **ADA16-32/2(CB)F**, and other 68-pin interface boards. - **Industrial-Grade Durability:** Built with robust materials suitable for continuous operation in automation, measurement, and control systems. - **Short-Length Configuration (0.5 m):** Ideal for compact installations where minimal signal delay and reduced cable clutter are required. - **Molded Connector Ends:** Provides mechanical stability and strain relief, preventing connector damage during repeated use. - **Compatibility with Multiple Interface Standards:** Supports analog, digital, and mixed-signal transmission for PCI, PC Card, and CompactPCI systems. - **Plug-and-Play Integration:** Designed for direct connection between CONTEC boards and terminal units without additional adapters.

Hersteller: Contec

Kategorie: Cables and Accessories

- **High-Density 96-Pin Half Pitch Connectors:** Equipped with precision 96-pin half-pitch male connectors on both ends, compatible with CONTEC’s PCI and CompactPCI I/O boards and terminal units. - **Shielded Construction:** The cable is fully shielded to minimize electromagnetic interference (EMI) and crosstalk, ensuring signal integrity in electrically noisy industrial environments. - **Short-Length Configuration (0.5 m):** Optimized for compact installations where minimal cable length reduces signal delay and clutter inside control panels or test setups. - **Industrial-Grade Durability:** Designed for continuous operation in industrial automation systems, offering robust mechanical and electrical performance. - **Compatibility with CONTEC Accessories:** Fully compatible with CONTEC terminal units such as EPD-96, DTP-64(PC), and connector converters like CCB-96. It can also be used with digital I/O boards (e.g., PIO-32/32L(PCI), PI-64L(PCI), PO-64L(PCI)) and analog I/O boards (e.g., AD12-64(PCI)). - **Plug-and-Play Integration:** The cable’s molded connectors ensure secure mating and easy installation without additional assembly. - **Noise Immunity:** Shielding and twisted-pair internal wiring reduce susceptibility to external noise, critical for high-speed digital or analog signal transmission.

Hersteller: Contec

Kategorie: Cables and Accessories

- **Shielded Construction:** The cable is fully shielded to minimize electromagnetic interference (EMI) and crosstalk, ensuring stable signal integrity in electrically noisy industrial environments. - **Dual 37‑pin D‑type Male Connectors:** Equipped with precision‑molded 37‑pin D‑sub male connectors on both ends, compatible with CONTEC’s D‑type interface boards and terminal units. - **Standard Length:** 1.5 meters (approx. 59 inches), providing a balance between flexibility and signal integrity for typical rack‑to‑panel or board‑to‑terminal connections. - **Industrial‑Grade Durability:** Designed for continuous operation in automation systems, test benches, and data acquisition setups. - **Compatibility:** Fully compatible with CONTEC’s PCI, CompactPCI, and PC Card digital I/O boards featuring 37‑pin D‑type connectors, including models such as PIO‑16/16L(PCI), PIO‑32/32L(PCI), PI‑32B(PCI), PO‑32L(PCI), and others. - **Plug‑and‑Play Integration:** The cable connects directly between the board and terminal units such as EPD‑37, DTP‑3(PC), DTP‑4(PC), or CM‑32(PC)E without additional adapters. - **Noise‑Resistant Signal Transmission:** The shielded design and high‑quality conductor materials ensure low signal attenuation and high‑speed digital signal fidelity. - **Molded Connector Housings:** Each connector is molded for strain relief and mechanical protection, preventing pin damage and ensuring long‑term reliability. - **RoHS‑Compliant Materials:** Constructed using environmentally safe materials compliant with modern electronic manufacturing standards.

Hersteller: Contec

Kategorie: Cables and Accessories

- **High‑Density 68‑Pin Interface:** Equipped with a 68‑pin half‑pitch (0.8 mm) high‑density connector, ensuring compact yet high‑capacity signal routing suitable for multi‑channel analog or digital I/O systems. - **Shielded Construction:** Full‑coverage shielding minimizes electromagnetic interference (EMI) and crosstalk, maintaining signal integrity in electrically noisy industrial environments. - **Optimized Length (1.5 m):** Provides an ideal balance between flexibility and signal quality for rack‑mounted or panel‑mounted systems. - **Industrial‑Grade Durability:** Designed for continuous operation in automation, measurement, and control systems. The cable jacket and internal conductors are rated for mechanical resilience and electrical stability. - **Compatibility with CONTEC Boards:** Specifically designed for use with CONTEC analog and digital I/O boards, including models such as ADA16‑32/2(PCI)F, ADA16‑32/2(CB)F, and other 68‑pin interface products. - **Plug‑and‑Play Integration:** Factory‑terminated connectors ensure reliable mating with CONTEC boards and terminal units without additional assembly. - **Noise‑Resistant Signal Transmission:** Shielded twisted‑pair wiring and precision impedance control reduce signal degradation over the 1.5 m length. - **Compliance with PCI Bus Accessory Standards:** Fully compatible with CONTEC’s PCI Bus Series accessories, ensuring seamless integration with analog, digital, and communication modules.

Hersteller: Contec

Kategorie: Cables and Accessories

- **High‑Density 96‑Pin Half‑Pitch Connectors:** Equipped with precision 96‑pin half‑pitch connectors on both ends, ensuring secure mating with CONTEC boards and terminal units such as EPD‑96 or DTP‑64(PC). - **Shielded Construction:** The cable is fully shielded to minimize electromagnetic interference (EMI) and crosstalk, maintaining signal integrity in electrically noisy industrial environments. - **Optimized Length (1.5 m):** Provides a balance between flexibility and signal quality, suitable for rack‑mounted or panel‑mounted configurations. - **Industrial‑Grade Durability:** Designed for continuous operation in automation systems, with robust insulation and strain‑relief features to withstand mechanical stress. - **Plug‑and‑Play Compatibility:** Directly connects CONTEC PCI/PCIe/CompactPCI digital I/O boards to terminal panels, converter boards, or monitoring tools without additional adapters. - **Standardized Interface:** Conforms to CONTEC’s 96‑pin half‑pitch connector standard, ensuring interoperability across multiple product families (Digital I/O, Analog I/O, Counter, and Motor Controller boards). - **Noise Immunity:** Shielded twisted‑pair wiring and grounded connector shells provide superior noise suppression, essential for high‑speed digital signal transmission. - **Flexible Application Range:** Supports both input and output signal routing for opto‑isolated, TTL‑level, or relay‑type I/O boards.

Hersteller: Contec

Kategorie: Cables and Accessories

- **High-Density Interface Conversion:** Converts a 96-pin half-pitch connector to two 37-pin D-sub male connectors, enabling flexible interfacing with external devices or terminal units. - **Shielded Construction:** Employs a 96-core shielded cable (UL2464) to minimize electromagnetic interference (EMI) and ensure signal integrity in industrial environments. - **Industrial-Grade Connectors:** - 96-pin half-pitch female connector: PCR-E96FA (HONDA Tsushin Kogyo) or equivalent. - 37-pin D-sub male connectors: 17JE-23370-02(D1) (DDK) or equivalent. - **Mechanical Reinforcement:** Molded plastic connector housings with thumb screws (UNC #4-40) for secure attachment and vibration resistance. - **Optimized for CONTEC Boards:** Designed for use with CONTEC’s 96-pin half-pitch digital I/O boards such as PIO-32/32L(PCI), PIO-64/64L(PCI), PI-64L(PCI), PO-64L(PCI), and CNT24-4D(PCI). - **High Signal Integrity:** Each conductor is individually shielded within the overall cable shield to reduce crosstalk and maintain signal fidelity. - **Flexible Length Options:** Available in 1.5 m (PCB96WS-1.5), 3.0 m (PCB96WS-3), and 5.0 m (PCB96WS-5) variants. - **Compatibility:** Fully compatible with CONTEC terminal units such as EPD-96, DTP-64(PC), and CCB-96 connector converter boards. - **Industrial Reliability:** Designed for continuous operation in automation systems, test benches, and data acquisition setups.

Hersteller: Contec

Kategorie: Cables and Accessories

- **High‑Density 96‑Pin Half‑Pitch Connector:** Equipped with a precision 96‑pin half‑pitch (Honda Tsushin Kogyo or equivalent) connector on one end, ensuring compatibility with CONTEC PCI and CompactPCI I/O boards. - **Open‑End Termination:** The opposite end is open, allowing direct wiring to custom terminal blocks, control panels, or external devices. - **Shielded Construction:** The cable features full shielding to minimize electromagnetic interference (EMI) and crosstalk, ensuring signal integrity in electrically noisy industrial environments. - **Optimized Length:** 1.5 m total length provides flexibility for rack or panel installations while maintaining signal quality. - **Industrial Durability:** Designed for continuous operation in factory automation, process control, and test systems. The cable jacket and conductors are rated for industrial temperature and mechanical stress. - **High Compatibility:** Fully compatible with CONTEC’s 96‑pin half‑pitch interface boards such as: - PI‑64L(PCI), PO‑64L(PCI), PIO‑32/32L(PCI), PIO‑64/64L(PCI) - PIO‑32/32F(PCI), PIO‑32/32B(PCI)H, PIO‑48D(PCI) - CNT24‑4D(PCI), CNT32‑8M(PCI) - SMC‑2P(PCI), SMC‑4P(PCI) - AD12‑64(PCI), AD12‑16(PCI)E, and other analog/digital boards using 96‑pin connectors. - **Noise‑Resistant Signal Transmission:** Shielded twisted‑pair internal wiring reduces susceptibility to external noise and ensures stable digital or analog signal transfer. - **Flexible Integration:** Can be used with optional terminal units such as EPD‑96, DTP‑64(PC), or connector converters like CCB‑96 for 37‑pin D‑type breakout.

Hersteller: Contec

Kategorie: Cables and Accessories

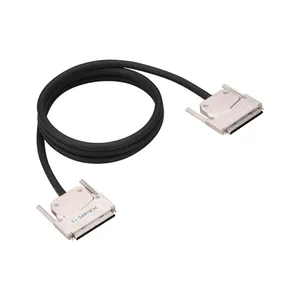

- **High-Density 100-Pin Connectivity:** Equipped with two 100-pin, 0.8mm-pitch male connectors, the cable supports high signal density for complex data and control interfaces. - **Shielded Construction:** The cable incorporates a full shielding layer to minimize electromagnetic interference (EMI) and crosstalk, ensuring stable signal transmission even in electrically noisy environments. - **Precision Connectors:** Uses HDRA-E100MA1 connectors (manufactured by HONDA or equivalent), known for their mechanical robustness and reliable contact performance. - **Multiple Length Options:** Available in four standard lengths—0.5m, 1.5m, 3m, and 5m—to accommodate various installation requirements. - **Durable Build:** Constructed with high-quality materials, including UL20276-rated conductors, ensuring long-term durability and compliance with safety standards. - **Compact Form Factor:** The 0.8mm pitch and 100-pin configuration allow for compact, space-efficient wiring in dense electronic assemblies. - **Secure Connection:** Each connector is equipped with M2 thumb screws for mechanical fastening, preventing accidental disconnection due to vibration or movement. - **Compatibility:** Designed specifically for CONTEC boards featuring 100-pin 0.8mm-pitch connectors, but also compatible with other devices using the same connector standard. - **Flexible Application:** Suitable for signal, control, and data transmission in industrial automation, measurement systems, and embedded control environments.

Hersteller: Contec

Kategorie: Cables and Accessories

- **Shielded Construction:** The cable is fully shielded to minimize electromagnetic interference (EMI) and crosstalk, ensuring stable signal integrity even in electrically noisy industrial environments. - **Dual 37-pin D-type Male Connectors:** Equipped with precision-molded 37-pin D-sub male connectors on both ends, compatible with CONTEC’s D-type interface boards and terminal units. - **High Compatibility:** Designed for use with CONTEC’s PCI Bus digital I/O boards, analog I/O boards, counter/motor controller boards, and communication boards that utilize 37-pin D-type connectors. - **Industrial-Grade Durability:** Built for continuous operation in automation systems, test benches, and control panels. - **Standardized Length:** 3.0 meters (model suffix “3P” denotes 3-meter shielded cable). - **Plug-and-Play Integration:** Directly connects between CONTEC boards and terminal units such as EPD-37, DTP-3(PC), DTP-4(PC), or CM-32(PC)E. - **Noise Immunity:** Shielding and grounding design prevent signal degradation due to external electrical noise. - **Flexible Application Range:** Suitable for digital signal transmission, analog signal routing, and control signal interfacing. - **Accessory Ecosystem:** Fully compatible with CONTEC’s accessory lineup including CN5-D37M connectors, DIN-ADP1 DIN-rail adapters, and terminal units.

Hersteller: Contec

Kategorie: Cables and Accessories

- **Shielded Construction:** Fully shielded to minimize electromagnetic interference (EMI) and crosstalk, ensuring stable signal integrity in electrically noisy environments. - **High‑Density 96‑Pin Half‑Pitch Connectors:** Equipped with precision‑molded connectors on both ends, compatible with CONTEC’s 96‑pin half‑pitch board interfaces (e.g., PCR‑E96LMD, HDRA‑E100W1L‑FDT1EC‑SL). - **3‑Meter Cable Length:** Provides extended reach for flexible installation between PCI boards and terminal units such as EPD‑96 or DTP‑64(PC). - **Industrial‑Grade Durability:** Designed for continuous operation in industrial automation, measurement, and control applications. - **Plug‑and‑Play Compatibility:** Directly connects CONTEC PCI/CompactPCI digital I/O, analog I/O, counter, and motor control boards to corresponding terminal panels or converter boards. - **Noise‑Resistant Signal Transmission:** Shielding and twisted‑pair internal wiring reduce signal degradation and maintain accurate data transfer. - **Standardized Accessory:** Listed as a standard optional cable for numerous CONTEC PCI Bus Series boards, ensuring guaranteed compatibility and performance.

Hersteller: Contec

Kategorie: Cables and Accessories

- **Purpose-built Conversion Cable:** Converts a 96-pin half-pitch connector into two 37-pin D-type male connectors, enabling flexible interfacing with peripheral devices, terminal blocks, or signal conditioning units. - **High-Density Shielded Design:** Employs a 96-core shielded cable (AWG #28) to ensure signal integrity and minimize electromagnetic interference (EMI) in industrial environments. - **Industrial-Grade Construction:** Designed for robust performance in automation, measurement, and control systems. - **Compatibility:** Fully compatible with CONTEC’s PCI Bus Series digital I/O boards such as PI-64L(PCI), PO-64L(PCI), PIO-32/32L(PCI), and other 96-pin half-pitch interface models. - **Plug-and-Play Integration:** Provides direct connection between CONTEC boards and terminal units like EPD-96, DTP-64(PC), or converter boards such as CCB-96. - **Shielded Molded Connectors:** Molded connector housings with integral strain relief and shielding for durability and noise suppression. - **Standardized Connector Hardware:** Equipped with UNC #4-40 thumb screws for secure mechanical fastening to mating connectors. - **Multiple Length Options:** Available in 1.5 m, 3.0 m, and 5.0 m variants to accommodate different installation requirements. - **RoHS-Compliant Materials:** Constructed using environmentally safe materials conforming to modern industrial standards.

Hersteller: Contec

Kategorie: Cables and Accessories
