- **Eight USB 3.0 Ports:** Provides eight SuperSpeed USB 3.0 ports, each capable of up to 5 Gbps data transfer rate, backward compatible with USB 2.0/1.1/1.0 devices. - **Four Independent Controllers:** Equipped with four NEC/Renesas μPD720202 host controllers, ensuring dedicated bandwidth per port and eliminating performance bottlenecks common in single-controller designs. - **High Bandwidth Performance:** Supports up to 2 GB/s total throughput across all ports, ideal for multi-camera or high-speed data streaming applications. - **PCI Express Gen2 x4 Interface:** Compliant with PCI Express Base Specification Revision 2.0, providing a stable, high-speed connection to the host system. - **Industrial Power Design:** On-board regulated 5VDC power supply with user-configurable per-port current limits (900 mA or 1500 mA). - **Software-Programmable Power Control:** Each port can be individually powered on or off via software, enabling fault recovery and power management. - **No External Power Required:** Draws power directly from the PCI Express bus, simplifying installation and reducing cabling complexity. - **Robust Mechanical Design:** Features panel-accessible Type-A connectors with M2 screw threads and on-board connectors with cable tie points for secure connections in vibration-prone environments. - **Wide OS Compatibility:** Supports Windows XP, Windows 7/8 (32-bit and 64-bit), and Linux operating systems. - **Industrial Temperature Range:** Operates reliably from 0°C to 60°C with adequate airflow. - **Machine Vision Ready:** Optimized for industrial imaging systems, frame grabbers, and high-speed cameras.

Manufacturer: Neousys Technology

Category: General Purpose Cards

PCI 32bit 1 parallel card, bidirectional, ECP, EPP, plug and play, 83byte buffer, Sunix

Manufacturer: No category

Category: General Purpose Cards

PCI 32bit 2 parallel card, bidirectional, plug and play, 83byte buffer, Sunix

Manufacturer: No category

Category: General Purpose Cards

- **Single-Port RS-232 Interface:** Provides one standard RS-232 serial communication port for connecting serial devices such as modems, sensors, controllers, and terminals. - **Advanced UART Controller:** Equipped with a 16650 UART featuring a 32-byte FIFO buffer, enabling smooth data flow and minimizing CPU load during high-speed data transfers. - **High Data Rate Support:** Supports baud rates up to 460.8 kbps, ensuring compatibility with both standard and high-speed serial communication requirements. - **Flexible Resource Configuration:** Supports COM1–COM8 port addressing and selectable IRQ lines (IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, IRQ12, IRQ15) for flexible system integration. - **ISA Bus Interface:** Designed for systems utilizing the ISA (Industry Standard Architecture) bus, ensuring compatibility with legacy industrial PCs and embedded systems. - **Compact Form Factor:** With dimensions of 157 mm × 58 mm, the card fits easily into standard ISA slots without obstructing adjacent components. - **Industrial Reliability:** Built with high-quality components for long-term operation in industrial environments, offering stable performance under continuous use. - **Plug-and-Play Configuration:** Simplified setup through jumper or DIP switch configuration for port and IRQ selection. - **Broad Compatibility:** Works with a wide range of operating systems and legacy software that support standard COM port communication.

Manufacturer: No category

Category: General Purpose Cards

PCI 32bit 1 RS232 card, 1*16650 FIFO UART, max 921600bd

Manufacturer: No category

Category: General Purpose Cards

UPCI 32bit 1 RS232 card, 1*16650 FIFO UART, max 921600bd

Manufacturer: No category

Category: General Purpose Cards

- **Dual RS-232 Ports:** Provides two independent serial communication channels for connecting multiple RS-232 devices simultaneously. - **16650 FIFO UARTs:** Each port is equipped with a 16650 UART featuring a **32-byte FIFO buffer**, enabling efficient data transmission and reception with minimal CPU intervention. - **High-Speed Data Transfer:** Supports baud rates up to **921,600 bits per second**, allowing for high-throughput serial communication. - **PCI 32-bit Interface:** Fully compliant with the **PCI Local Bus Specification**, ensuring broad compatibility with standard PCI slots in desktop and industrial PCs. - **Plug-and-Play Configuration:** Automatic resource allocation (IRQ and I/O address) through PCI Plug-and-Play, simplifying installation and configuration. - **Full RS-232 Signal Support:** Provides standard RS-232 signal lines including TXD, RXD, RTS, CTS, DTR, DSR, DCD, and RI for complete modem control and data communication. - **Industrial Reliability:** Designed for continuous operation in industrial environments, offering stable performance under extended temperature and vibration conditions. - **Driver Support:** Compatible with major operating systems such as Windows, Linux, and potentially DOS, depending on driver availability. - **Compact Form Factor:** Fits standard PCI slots, suitable for both desktop and rack-mounted industrial systems.

Manufacturer: No category

Category: General Purpose Cards

PCI 32bit 2 RS232 card, 16 Byte FIFO, Sunix

Manufacturer: No category

Category: General Purpose Cards

- **Dual RS-232 Serial Ports:** Provides two independent, fully functional RS-232 interfaces for connecting serial devices such as modems, barcode scanners, industrial controllers, and instrumentation. - **PCI 32-bit Interface:** Compliant with the PCI Local Bus Specification, supporting 32-bit data transfer for high-speed communication and broad system compatibility. - **DOS Address Mapping:** Supports configurable DOS address mapping at standard COM port addresses (3F8h, 3E8h, 2F8h, 2E8h), ensuring compatibility with legacy DOS-based applications and systems. - **Plug-and-Play Configuration:** Automatically detected by modern operating systems, simplifying installation and resource allocation. - **High Reliability:** Designed for continuous operation in industrial environments, with robust signal integrity and stable communication performance. - **Flexible COM Port Assignment:** Allows manual or automatic assignment of COM port numbers to avoid conflicts with existing serial devices. - **Universal PCI Compatibility:** Works with both 3.3V and 5V PCI slots, ensuring compatibility with a wide range of motherboards and industrial PCs. - **Full RS-232 Signal Support:** Supports all standard RS-232 control signals (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI) for complete hardware handshaking and modem control. - **Driver Support:** Compatible with multiple operating systems including DOS, Windows, and Linux, providing broad deployment flexibility. - **Industrial-Grade Design:** Built with high-quality components for long-term reliability and stable operation under demanding conditions.

Manufacturer: No category

Category: General Purpose Cards

- **Dual RS-232 Serial Ports:** Provides two independent RS-232 interfaces for connecting serial devices such as modems, barcode scanners, industrial controllers, and instrumentation. - **Single Parallel Port:** Includes one standard parallel (LPT) port for printers, CNC controllers, or other parallel-based peripherals. - **High-Speed UARTs:** Equipped with two 16650 FIFO UART chips, each featuring a 32-byte transmit and receive buffer for stable high-speed communication. - **Maximum Baud Rate:** Supports data rates up to 921,600 bps (921.6 Kbps), ensuring compatibility with high-speed serial applications. - **PCI 32-bit Interface:** Fully compliant with the PCI Local Bus Specification, supporting 32-bit data transfer at 33 MHz for broad compatibility with standard PCI slots. - **Plug-and-Play Configuration:** Automatic IRQ and I/O address assignment through PCI Plug-and-Play architecture, eliminating manual jumper settings. - **Wide Compatibility:** Compatible with major operating systems including Windows, Linux, and other OSs supporting standard PCI serial/parallel drivers. - **Industrial Reliability:** Designed for continuous operation in industrial and commercial environments, offering stable performance and long-term durability. - **Flexible Connectivity:** Ideal for systems requiring both serial and parallel communication interfaces on a single expansion card.

Manufacturer: No category

Category: General Purpose Cards

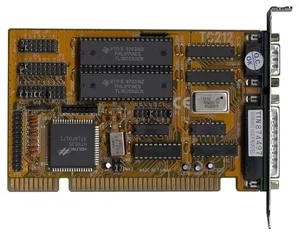

- **Dual RS-232 Serial Ports:** Provides two independent RS-232 communication channels for connecting serial devices such as modems, sensors, controllers, and terminals. - **16550 UART Integration:** Each serial port is equipped with a 16550 Universal Asynchronous Receiver/Transmitter (UART) featuring a 16-byte FIFO buffer for improved data throughput and reduced CPU overhead. - **ECP Parallel Port:** Includes one Enhanced Capability Port (ECP) parallel interface supporting bidirectional data transfer, ideal for printers, scanners, and parallel-based instrumentation. - **Flexible Port Addressing:** Supports COM1 through COM6 address mapping, allowing flexible configuration in multi-port systems. - **Selectable Interrupts (IRQ):** Configurable interrupt request lines (IRQ3–5, 9–12, 15) for each serial port and IRQ5/7 for the parallel port, ensuring compatibility with various system configurations. - **ISA Bus Interface:** Designed for standard 8/16-bit ISA slots, ensuring compatibility with legacy industrial PCs and embedded systems. - **Industrial Reliability:** Built with high-quality components for stable operation in demanding environments. - **Cost-Effective Connectivity:** Combines multiple communication interfaces on a single card, reducing the need for multiple expansion modules.

Manufacturer: Titan

Category: General Purpose Cards

- **Single EPP/ECP Parallel Port:** Provides one fully functional parallel interface supporting both EPP (Enhanced Parallel Port) and ECP (Extended Capabilities Port) modes for high-speed bidirectional data transfer. - **ISA Bus Interface:** Designed for standard 16-bit ISA bus systems, ensuring compatibility with legacy industrial PCs and embedded controllers. - **16-Byte FIFO Buffer:** Incorporates a 16-byte First-In-First-Out (FIFO) buffer to optimize data throughput and minimize CPU load during high-speed transfers. - **DMA and IRQ Support:** Configurable for DMA channels 1 or 3 and interrupt requests (IRQ) 3, 4, 5, 7, 9, 10, 11, 12, or 15, allowing flexible system integration and conflict-free operation. - **Selectable Base Addresses:** Supports multiple base I/O addresses including 0x3BC, 0x378, 0x278, 0x268, 0x27C, and 0x26C, enabling compatibility with various system configurations and legacy software. - **Compact Form Factor:** Physical dimensions of 130 mm x 65 mm make it suitable for compact enclosures and embedded systems. - **High Compatibility:** Works with a wide range of operating systems and hardware platforms that support ISA bus architecture. - **Industrial-Grade Reliability:** Built with high-quality components and robust PCB design for long-term stability in industrial and embedded environments.

Manufacturer: Titan

Category: General Purpose Cards

- **Independent USB 3.0 Controllers:** Each group of ports is managed by its own NEC/Renesas μPD720202 USB 3.0 host controller, ensuring no bandwidth sharing and maintaining full 5 Gbps throughput per port. - **High‑Bandwidth PCI Express Interface:** Utilizes a 4‑lane PCI Express Gen2 interface compliant with PCI Express Base Specification Revision 2.0, providing up to 20 Gbps total bandwidth to the host system. - **Industrial‑Grade Power Design:** On‑board regulated 5 V DC power supply with user‑configurable per‑port current limits (900 mA or 1500 mA). This ensures stable power delivery to connected USB devices, even under heavy load. - **Software‑Programmable Power Control:** Each port supports software‑controlled power on/off switching, enabling fault recovery and remote device reset without physical intervention. - **Mechanical Reliability:** Panel‑accessible USB 3.0 Type‑A connectors feature M2 screw threads for secure cable retention. On‑board connectors include fixing points for cable ties, preventing accidental disconnection in vibration‑prone environments. - **Backward Compatibility:** Fully compatible with USB 2.0, USB 1.1, and USB 1.0 devices, ensuring seamless integration with legacy peripherals. - **Operating System Support:** Compatible with Windows XP, Windows 7, Windows 8 (32‑bit and 64‑bit), and Linux distributions supporting xHCI (Extensible Host Controller Interface). - **Optional Accessory:** The USB3‑Cable‑3M provides a robust, latched connection between the host adapter and USB 3.0 devices, ideal for machine vision cameras and industrial sensors.

Manufacturer: Neousys Technology

Category: General Purpose Cards

PCI 8-port serial card, up to 1,5MByte/s asynchron, up to 60MByte /s isochronous, 16 byte FIFO UART 16c550 comp., 2*DB37f slot bracket with 2*cable to 4*BD9m, Win driver CD, 163*98mm

Manufacturer: No category

Category: General Purpose Cards

- **Four Independent Serial Ports:** Provides four fully functional RS-232 serial interfaces via a single PCI slot, allowing simultaneous communication with multiple serial devices. - **High-Speed Data Transfer:** Supports data rates up to **15 MByte/s in asynchronous mode** and up to **60 MByte/s in isochronous mode**, ensuring compatibility with high-throughput serial applications. - **128-Byte FIFO UART:** Each port features a 128-byte transmit and receive FIFO buffer, significantly reducing CPU overhead and improving data integrity during high-speed communication. - **PCI Bus Interface:** Compliant with standard PCI bus architecture, enabling plug-and-play installation in most desktop and industrial PCs. - **DB37 Female Connector:** The card provides a single DB37 female connector on the bracket, which connects via an included breakout cable to four DB9 male connectors for individual serial ports. - **Windows Driver Support:** Includes a driver CD compatible with Windows operating systems, simplifying installation and configuration. - **Robust Construction:** Designed for continuous operation in demanding environments, with stable signal integrity and durable connectors. - **Versatile Application Range:** Suitable for industrial automation, POS systems, instrumentation, serial device networking, and embedded control systems.

Manufacturer: No category

Category: General Purpose Cards
