- **Multi-Interface Serial Support:** One DB9 male port configurable for **RS-232, RS-422, or RS-485 (2-wire/4-wire)** operation via DIP switch. - **Fiber Connectivity:** One **SC-type multi-mode fiber port**, supporting up to **5 km transmission distance** at **850 nm wavelength**. - **Ring Mode Functionality:** Enables **redundant fiber ring topology** for enhanced network reliability. - Up to **32 nodes at 115.2 kbps** - **24 nodes at 230.4 kbps** - **11 nodes at 460.8 kbps** - **6 nodes at 921.6 kbps** - **Auto/Manual Baud Rate Selection:** Supports baud rates from **50 bps to 921.6 kbps** with automatic or manual configuration. - **Dual Power Inputs:** Redundant **12–48 VDC** inputs on a 4-pin terminal block for uninterrupted operation. - **Industrial-Grade Design:** - **IP30-rated metal housing** for mechanical protection. - **Extended temperature range (-40°C to +75°C)** for outdoor or factory-floor environments. - **Shock, vibration, and free-fall resistance** per IEC60068 standards. - **LED Indicators:** Provide real-time status for power, serial TX/RX activity, auto baud rate, and ring mode operation. - **Compact Form Factor:** Slim design (26.1 × 70 × 95 mm) for space-constrained installations. - **Low Power Consumption:** Typical consumption of **1.6 W**. - **Compliance:** Meets **FCC Part 15B**, **EN55032 Class B**, and **EN61000-4-x** EMC/EMS standards. - **Warranty:** Backed by a **5-year manufacturer warranty**.

Manufacturer: Oring

Category: Industrial Device Server

- **Multi-Interface Serial Support:** One serial port configurable for **RS-232, RS-422, or RS-485 (2-wire/4-wire)** operation via DIP switch. - **Fiber Connectivity:** One **multi-mode fiber port** with **ST connector**, supporting up to **5 km transmission distance** at **850 nm** wavelength. - **Ring Mode Functionality:** Supports **fiber ring topology** for redundant communication paths. - Up to **32 nodes @ 115.2 kbps** - **24 nodes @ 230.4 kbps** - **11 nodes @ 460.8 kbps** - **6 nodes @ 921.6 kbps** - **Auto/Manual Baud Rate Switching:** Configurable baud rate from **50 bps to 921.6 kbps**, with automatic detection or manual setting. - **Dual Power Inputs:** Accepts **+12 to +48 VDC** on a **4-pin terminal block**, providing redundancy and protection against power failure. - **Industrial-Grade Design:** - **IP30-rated metal enclosure** - **DIN-rail and wall-mount options** - **Extended operating temperature range**: **-40°C to +75°C** - **LED Indicators:** Multiple LEDs for **power**, **serial TX/RX activity**, **auto baud rate**, and **ring mode status**. - **Low Power Consumption:** Typical consumption of **1.6 W**, with **2 A overload current protection**. - **High Reliability:** Designed for **shock, vibration, and free-fall resistance** per **IEC60068** standards. - **Modbus Conversion Support:** Compatible with **Modbus protocol conversion**, enabling integration into industrial automation systems.

Manufacturer: Oring

Category: Industrial Device Server

- **Multi-Protocol Serial Support:** Supports **RS-232, RS-422, and RS-485 (2-wire/4-wire)** interfaces, selectable via DIP switch configuration. - **Fiber Ring Mode:** Enables **redundant ring topology** for enhanced network reliability. In ring mode, the converter can automatically recover communication paths in case of fiber link failure. - **High-Speed Serial Communication:** Operates at baud rates from **50 bps up to 921.6 Kbps**, with both **auto and manual baud rate selection**. - **Extended Distance via Fiber:** Converts serial data to optical signals for transmission up to **40 km** over single-mode fiber at **1310 nm** wavelength. - **Dual Power Inputs:** Accepts **+12 to +48 VDC** dual redundant power inputs via a 4-pin terminal block, ensuring continuous operation even if one power source fails. - **Industrial-Grade Design:** - **IP30-rated metal enclosure** for mechanical protection. - **Wide operating temperature range** from **-40°C to +75°C**. - **DIN-rail and wall-mount options** for flexible installation. - **LED Indicators:** Multiple LEDs provide real-time status for power, serial TX/RX activity, auto baud rate detection, and ring mode operation. - **Compact and Lightweight:** Slim form factor (26.1 × 70 × 95 mm) and weight of approximately 205 g for easy integration into control cabinets or panels. - **Compliance and Reliability:** Certified for **FCC Part 15B**, **EN55032 Class B**, and **IEC60068** mechanical tests for shock, vibration, and free fall.

Manufacturer: Oring

Category: Industrial Device Server

- **Multi-Interface Serial Support:** One serial port configurable for **RS-232, RS-422, or RS-485 (2-wire or 4-wire)** operation via DIP switches. - **Fiber Connectivity:** One **single-mode fiber port** with **ST connector**, operating at **1310 nm** wavelength, supporting transmission distances up to **40 km**. - **Ring Mode Functionality:** Supports **fiber ring topology** for network redundancy. - Up to **32 nodes @ 115.2 kbps** - Up to **24 nodes @ 230.4 kbps** - Up to **11 nodes @ 460.8 kbps** - Up to **6 nodes @ 921.6 kbps** - **Wide Baud Rate Range:** Auto or manual baud rate selection from **50 bps to 921.6 kbps**. - **Industrial-Grade Design:** - **IP-30-rated metal housing** for mechanical protection. - **Extended temperature range** (-40°C to +75°C). - **Shock, vibration, and free-fall tested** per IEC60068 standards. - **Dual Power Inputs:** Redundant **12–48 VDC** power supply with **overload current protection (2 A)**. - **LED Indicators:** Multiple status LEDs for **power, serial TX/RX activity, auto baud rate, and ring mode** operation. - **Compact Form Factor:** Slim design (26.1 × 70 × 95 mm) suitable for space-constrained control cabinets. - **Ease of Configuration:** DIP switches for mode selection, ring enablement, and termination resistor settings. - **High Reliability:** Designed for continuous operation in industrial automation, transportation, and energy systems.

Manufacturer: Oring

Category: Industrial Device Server

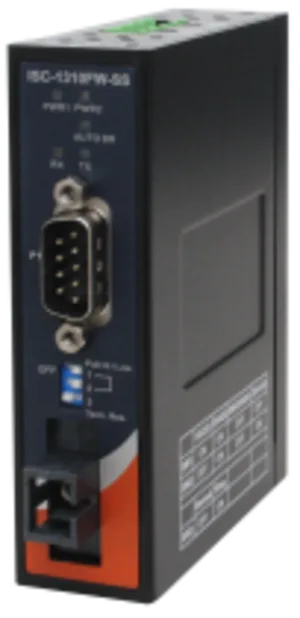

- **Multi-Protocol Serial Support:** Compatible with RS-232, RS-422, and RS-485 (2-wire or 4-wire) serial communication standards. - **Automatic Baud Rate Detection:** Supports baud rates from **50 bps to 921.6 Kbps**, with automatic switching for flexible integration. - **WDM Bi-Directional Fiber Transmission:** Utilizes **TX1310/RX1550 nm** wavelengths for single-fiber communication, reducing cabling requirements and installation costs. - **Extended Communication Distance:** Supports up to **40 km** transmission distance over single-mode fiber. - **Industrial-Grade Design:** IP30-rated metal enclosure with **-40°C to +75°C** operating temperature range for harsh environments. - **Dual Power Inputs:** Redundant **12–48 VDC** power supply inputs on a 4-pin terminal block for high reliability. - **Compact Form Factor:** Slim housing (26.1 × 70 × 95 mm) suitable for space-constrained control cabinets. - **Flexible Mounting Options:** Supports both **DIN-rail** and **wall-mount** installation. - **Comprehensive LED Indicators:** Provides visual status for power, data transmission (TX/RX), and auto baud rate detection. - **High EMC Immunity:** Complies with EN61000-4 series standards for ESD, surge, EFT, and conducted immunity. - **Low Power Consumption:** Typical power usage of **1.6 W**, ensuring energy efficiency. - **Long-Term Reliability:** Backed by a **5-year warranty** and designed for continuous industrial operation.

Manufacturer: Oring

Category: Industrial Device Server

- **Multi-Protocol Serial Support:** Compatible with RS-232, RS-422, and RS-485 (2-wire and 4-wire) interfaces, selectable via DIP switch. - **Auto Baud Rate Detection:** Automatically adjusts baud rate from **50 bps to 921.6 Kbps**, supporting multiple data formats and communication speeds. - **WDM Bi-Directional Fiber Transmission:** Utilizes **TX 1550 nm / RX 1310 nm** wavelength configuration for the “R” model, enabling full-duplex data transmission over a single fiber strand up to **40 km**. - **Industrial-Grade Design:** Rugged **IP-30 metal housing** ensures durability in harsh environments. - **Wide Operating Temperature:** Functions reliably from **-40°C to +75°C**, suitable for outdoor and factory-floor applications. - **Flexible Power Input:** Dual redundant **12–48 VDC** power inputs on a 4-pin terminal block with overload protection (2 A). - **Low Power Consumption:** Typical consumption of **1.6 W**, optimizing energy efficiency. - **DIN-Rail and Wall Mounting:** Includes both mounting kits for flexible installation. - **LED Indicators:** Provides clear visual feedback for power, data transmission, and auto baud rate status. - **EMC and Environmental Compliance:** Meets multiple EN61000 and IEC60068 standards for electromagnetic immunity, vibration, and shock resistance. - **Extended Communication Distance:** Supports up to **40 km** over single-mode fiber, ideal for remote serial device connectivity. - **Long-Term Reliability:** Backed by a **5-year warranty** and designed for continuous industrial operation.

Manufacturer: Oring

Category: Industrial Device Server

- **Multi‑Protocol Serial‑to‑Ethernet Conversion:** Supports RS‑232, RS‑422, and RS‑485 interfaces on eight RJ‑48 connectors, allowing integration of legacy serial equipment into modern IP networks. - **Versatile Operation Modes:** Virtual COM, Serial Tunnel, TCP Server, TCP Client, UDP, and Modbus Gateway (Modbus TCP ↔ Modbus RTU/ASCII) for flexible communication architectures. - **High‑Speed Networking:** Four Gigabit Ethernet ports (10/100/1000Base‑T(X)) with auto MDI/MDIX and two Gigabit SFP slots (100/1000Base‑X) for fiber connectivity. - **Secure Data Transmission:** SSL data encryption with HTTPS and SSH management ensures secure remote access and protection of critical data. - **Redundant Host Support:** Simultaneous data transfer to up to **five redundant host PCs** to prevent communication loss during network or host failures. - **Advanced Event Notification:** Event warnings via **Syslog, Email, SNMP Trap, Relay Output, and Beeper** for proactive fault management. - **Industrial‑Grade Design:** Rugged metal enclosure, 15 kV ESD protection on all serial signals, and wide temperature tolerance (‑40 °C ~ 70 °C). - **Comprehensive Management Tools:** Configurable through **Web‑based GUI** and **Windows DS‑Tool utility** supporting device discovery, configuration, firmware upgrade, and monitoring. - **Linux Compatibility:** Includes fixed TTY driver for Linux systems. - **Ethernet Redundancy:** Network recovery time

Manufacturer: Oring

Category: Industrial Device Server

- **High‑Density Serial Connectivity:** 16 independent serial ports supporting RS‑232, RS‑422, and RS‑485 standards via 10‑pin RJ‑48 connectors. - **Gigabit Network Interfaces:** 4×10/100/1000Base‑T(X) RJ‑45 ports with auto MDI/MDI‑X and 2×100/1000Base‑X SFP slots for fiber uplinks, enabling flexible copper or fiber backbone integration. - **Versatile Operation Modes:** Supports Virtual COM, Serial Tunnel, TCP Server, TCP Client, UDP, and Modbus Gateway (Modbus TCP ↔ Modbus RTU/ASCII) modes for diverse communication architectures. - **Advanced Security:** SSL data encryption, HTTPS and SSH management, and secure authentication mechanisms ensure data integrity and confidentiality in critical networks. - **Redundant Host Support:** Up to 5 simultaneous host connections in Virtual COM/TCP modes and 4 IP ranges in UDP mode for redundancy and failover protection. - **Industrial‑Grade Reliability:** Wide operating temperature range (‑40 °C to 70 °C), 15 kV ESD protection on all serial signals, and metal rackmount chassis designed for harsh environments. - **Network Management & Configuration:** Web‑based GUI and Windows utility (DS‑Tool) for device discovery, configuration, firmware upgrade, and group management. - **Event Notification System:** Supports Syslog, SNMP trap, relay output, and audible beeper alerts for fault and event reporting. - **High‑Performance Data Handling:** Jumbo frame support up to 9.6 KB, throughput/latency optimization modes, and configurable data packing and delimiter settings. - **Flexible Mounting:** Standard 1U rackmount form factor with optional DIN‑rail or wall‑mount installation kits.

Manufacturer: Oring

Category: Industrial Device Server

- **Multi-Protocol Serial Connectivity:** Supports RS-232, RS-422, and RS-485 interfaces across four independent ports. - **Flexible Operation Modes:** Real COM Mode, TCP Server Mode, TCP Client Mode, and UDP Mode for diverse networking environments. - **High-Performance 32-bit CPU:** 170 MHz processor with MMU, 32 MB SDRAM, and 8 MB Flash memory for stable and efficient operation. - **Wide Power Input Range:** Accepts DC +10V to +30V, suitable for industrial power systems. - **Auto-MDIX Ethernet Port:** Automatically detects and corrects crossover or straight-through cable connections. - **High Data Rate:** Supports serial data rates from 75 bps up to 921.6 Kbps. - **Multi-Host Access:** Each serial port supports up to four simultaneous host connections in TCP Server Mode. - **Expandable Architecture:** Three external USB ports (P1, P2, P3) allow connection to Trycom expansion modules (TRP-C08S, C08U, C08H, C08X, C29U) for up to 16 serial ports or 24 digital I/O channels. - **Robust Protection:** ±15 kV ESD protection on serial interfaces; surge, over-current, and over-voltage protection on RS-422/485 lines. - **Hardware RS-485 Flow Control:** Automatic direction control ensures reliable half-duplex communication. - **Comprehensive Configuration Options:** Supports configuration via Windows Utility, Web Console, or Telnet Console. - **Security Features:** Accessible IP list for authorized host control and password protection. - **Auto IP Reporting:** Periodically reports its IP address to a designated host for network management. - **LED Indicators:** Power, Link, and TX/RX LEDs for each serial port provide real-time status monitoring. - **Mounting Flexibility:** Supports DIN rail and panel mounting. - **Factory Restore Function:** Push-button reset to restore default settings. - **Operating Temperature:** 0°C to 65°C, suitable for industrial environments. - **Compact and Durable Design:** Metal enclosure with dimensions of 145 × 118 × 26 mm and weight of approximately 728 g.

Manufacturer: Trycom

Category: Industrial Device Server

- **Multi-Protocol Serial-to-Ethernet Conversion:** Supports RS232, RS422, and RS485 interfaces with automatic direction control for RS485. - **3KV Optical Isolation:** Built-in 3KV optical isolation between serial and Ethernet interfaces to protect against ground loops and electrical surges. - **Surge, Overcurrent, and Overvoltage Protection:** Enhanced protection on RS422/485 data lines for industrial reliability. - **Multiple Operation Modes:** - **Real COM Mode** (RFC 2217 compliant) - **TCP Server Mode** - **TCP Client Mode** - **UDP Mode** - **High Performance 32-bit CPU:** 170 MHz processor with MMU, 32 MB SDRAM, and 8 MB Flash memory for stable operation. - **Wide Power Input Range:** Accepts DC +10V to +30V via screw terminal or DC jack (5.5 × 2.1 mm). - **Auto-MDIX Ethernet Port:** 10/100 Mbps auto-detecting LAN interface with automatic crossover detection and correction. - **Multi-Host Connectivity:** Supports up to 4 simultaneous host connections per port in TCP Server or TCP Client mode. - **Web, Telnet, and Windows Configuration:** Configurable via Web Console, Telnet Console, or Windows-based Serial Server Admin Utility. - **Virtual COM Port Drivers:** Compatible with Windows XP, Vista, 2000, 2003/2008 Server, and Windows 7 (32-bit and 64-bit). - **Security and Management Features:** - Accessible IP list for authorized host control - Auto IP Address Reporting - Auto Warning via Email or SNMP Trap - Password protection and factory reset button - **LED Indicators:** Power, Link, and dual TX/RX indicators for RS232 and RS422/485 ports. - **Mounting Options:** DIN rail or panel mounting supported. - **Standalone Operation:** No external host required for operation once configured.

Manufacturer: Trycom

Category: Industrial Device Server

- **Triple Serial Interface Support:** One serial port configurable as RS‑232, RS‑422, or RS‑485, enabling compatibility with a wide range of legacy and modern serial devices. - **Multiple Operating Modes:** Supports *Direct IP Mode*, *Virtual COM Mode*, and *Paired Mode* for flexible communication architectures. - **Watchdog Timer:** Built‑in hardware watchdog automatically resets the system in case of software or power failure, ensuring continuous operation. - **Wide Power Input Range:** Accepts DC +10 V to +30 V input via screw terminal or DC jack, suitable for industrial power systems. - **Auto‑MDIX Ethernet Port:** Automatically detects and corrects cable crossover, supporting both straight‑through and crossover RJ‑45 cables. - **High‑Speed Data Transmission:** Baud rates from 1200 bps up to 921.6 Kbps, supporting 5–8 data bits, 1–2 stop bits, and parity options (none, even, odd). - **Surge and ESD Protection:** ±15 kV ESD protection on serial interfaces; surge, over‑current, and over‑voltage protection on RS‑422/485 lines. - **Multi‑Client Connectivity:** Supports up to 16 simultaneous TCP client connections in server mode. - **Heart Beat Function:** Periodic connection check (TCP port 5300) ensures link reliability and automatic reconnection. - **Auto Fast Bi‑directional RS‑485 Hardware:** Hardware‑based direction control ensures loss‑free, low‑latency RS‑485 communication. - **Configuration Flexibility:** Configurable via DSM utility, web browser, or serial console. - **Firmware Upgradeable:** Supports firmware updates over LAN. - **Dual Power Input Options:** Power via screw terminal block or 5.5 × 2.1 mm DC jack. - **LED Indicators:** Power, Link, TX, and RX LEDs provide real‑time status feedback. - **Factory Reset Switch:** External DIP switch allows quick restoration of factory defaults. - **Virtual COM Driver Support:** Compatible with Windows 98, 2000, XP, Vista, 2003, 7, and 8 operating systems. - **Protocol Compatibility:** Fully compliant with Ethernet and TCP/IP protocols including TCP, UDP, IP, ARP, DHCP, Telnet, HTTP, and ICMP.

Manufacturer: Trycom

Category: Industrial Device Server

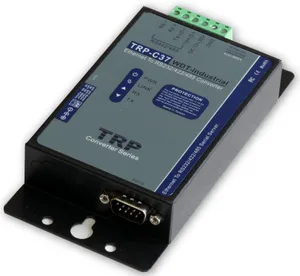

- **Multi‑Protocol Serial Interface:** Supports RS‑232, RS‑422, and RS‑485 communication standards with automatic interface switching. - **Remote Monitoring Functionality:** Enables automatic or manual monitoring of connected serial devices. - *Automatic Mode:* Device must send a pulse every 30 seconds; if not received, the relay activates automatically. - *Manual Mode:* Relay can be triggered remotely via the web interface to restart the device. - **Relay Control and Digital I/O:** Two independent relays (NC/COM/NO) and digital input monitoring with adjustable latch time (1–255 ms/unit). - **Network Connectivity:** 10/100 Mbps Ethernet with Auto‑MDIX and Auto‑Correction for crossover detection. - **High Connection Capacity:** Supports up to 16 simultaneous TCP client connections in server mode. - **Security Control:** Allows configuration of up to 8 authorized host IP addresses to restrict network access. - **Surge and ESD Protection:** ±15 kV ESD protection on serial interfaces; surge, over‑current, and over‑voltage protection on RS‑422/485 lines. - **Wide Power Input Range:** Operates from DC +10 V to +30 V with dual input options (screw terminal or DC jack). - **External Watchdog and Power Detection:** Prevents system lockup or power failure by automatic reset. - **Heartbeat Function:** Periodic TCP heartbeat (port 5300) every 5 seconds ensures communication reliability. - **Firmware and Configuration Management:** Supports LAN‑based firmware updates, serial console configuration, and factory reset via external switch. - **Virtual COM Support:** Provides Windows virtual COM drivers for multiple OS versions (Windows 98 through Windows 10). - **Flexible Operation Modes:** Direct IP, Virtual COM, and Paired Mode for versatile deployment. - **LED Indicators:** Power, Link, RX/TX, DI, and DO LEDs for real‑time status monitoring. - **Compact Industrial Design:** Rugged metal enclosure suitable for harsh environments.

Manufacturer: Trycom

Category: Industrial Device Server

- **Dual Serial Interface:** Supports two independent serial channels, each configurable as RS-232 or RS-485, allowing simultaneous communication with multiple serial devices. - **Remote Monitoring Capability:** Integrated remote monitoring functions enable real-time supervision of serial data traffic, connection status, and device health through a web-based interface or network management software. - **Ethernet Connectivity:** Provides a standard 10/100 Mbps Ethernet interface for seamless integration into LAN or WAN environments. - **Protocol Conversion:** Converts serial data to TCP/IP packets, supporting multiple communication modes such as TCP Server, TCP Client, UDP, and Virtual COM port operation. - **Industrial-Grade Design:** Built for continuous operation in demanding environments, featuring a rugged metal enclosure and stable power circuitry. - **Compact Form Factor:** Space-efficient design (115 × 75 × 26 mm) suitable for DIN-rail or wall mounting in control cabinets or network enclosures. - **High Reliability:** Hardware watchdog and surge protection ensure stable operation and data integrity under harsh conditions. - **Flexible Configuration:** Supports configuration via web browser, Telnet, or serial console, simplifying deployment and maintenance. - **LED Indicators:** Front-panel LEDs display power, Ethernet link/activity, and serial port status for quick diagnostics. - **Wide Application Range:** Ideal for industrial automation, SCADA systems, building management, energy monitoring, and remote equipment control.

Manufacturer: Trycom

Category: Industrial Device Server

- **Multi-Interface Conversion:** Automatically detects and switches between RS-232, RS-422, and RS-485 serial communication standards without manual configuration. - **Optical Fiber Extension:** Converts serial signals to optical fiber, extending communication distance up to 2 km using multi-mode fiber (62.5/125 µm). - **High Electrical Isolation:** Provides 3000 VDC isolation between serial and fiber interfaces, protecting connected equipment from ground loops and electrical surges. - **Surge and Overcurrent Protection:** Integrated protection circuits safeguard RS-422/485 lines against transient voltage spikes and overcurrent conditions. - **Auto Baud Rate and Direction Control:** Automatically detects baud rates from 300 bps to 115.2 kbps and manages data direction flow for RS-485 communication. - **Wide Power Input Range:** Operates from a DC supply of +10 V to +30 V, suitable for industrial power systems. - **LED Indicators:** Front-panel LEDs display power, transmit (TX), and receive (RX) activity for quick status monitoring. - **Industrial Mounting Options:** Supports both DIN-rail and panel mounting for flexible installation in control cabinets or equipment racks. - **Cross-Platform Compatibility:** Works with Windows, Linux, Unix, and macOS operating systems. - **Compact and Rugged Design:** Built for industrial environments with robust housing and wide operating temperature range.

Manufacturer: Trycom

Category: Industrial Device Server

- **Multi-Protocol Serial Support:** Automatically detects and switches between RS-232, RS-422, and RS-485 interfaces without manual configuration. - **Long-Distance Fiber Transmission:** Supports single-mode fiber communication up to 40 km using SC connectors and 9/125 µm fiber cable. - **High Electrical Isolation:** Provides 3000 V DC isolation between serial and fiber interfaces, ensuring protection against ground loops and electrical surges. - **Surge Protection:** Integrated surge protection on RS-422/485 data lines to safeguard connected equipment. - **Auto Configuration:** Automatically detects data format, baud rate (300 bps to 115.2 kbps), and RS-485 data direction flow control. - **Wide Power Input Range:** Operates from a DC power supply of +10 V to +30 V, suitable for industrial power systems. - **LED Indicators:** Power, TX (Transmit), and RX (Receive) LEDs provide clear visual status of device operation and data activity. - **Industrial Mounting Options:** Supports both DIN rail and panel mounting for flexible installation in control cabinets or equipment racks. - **Compact and Rugged Design:** Metal enclosure with compact dimensions and robust construction for industrial reliability. - **Stable and Error-Free Transmission:** Fiber optic communication eliminates electromagnetic interference (EMI) and ground potential differences, ensuring reliable data integrity.

Manufacturer: Trycom

Category: Industrial Device Server

- **Bluetooth V1.2 Class 1 Compliance:** Operates at 2.5 mW (4 dBm) output power, ensuring stable long‑range communication. - **Wireless Range:** - Standard open‑field range: **100 m** - Extended range with optional directional antenna: **up to 1 km** - **Multi‑Interface Support:** - RS‑232 (TXD, RXD, GND, RTS, CTS) - RS‑422 (TX+, TX‑, RX+, RX‑) full‑duplex - RS‑485 (Data+, Data‑) half‑duplex - **Automatic Interface Switching:** The converter automatically detects and switches between RS‑232, RS‑422, and RS‑485 modes without manual reconfiguration. - **Flexible Communication Modes:** - **Direct Link Mode:** Connects directly to a Bluetooth‑enabled PC or PDA. - **Paired Mode:** Two TRP‑C51B units automatically form a transparent wireless serial bridge. - **Wide Baud Rate Support:** Configurable from **1.2 Kbps to 921.6 Kbps** (depending on firmware version). - **Comprehensive Configuration Utility:** Bundled **TRP‑BT Windows software** allows configuration of baud rate, parity, stop bits, flow control, and Bluetooth parameters. - **Industrial‑Grade Protection:** - ±15 kV ESD protection on RS‑232/422/485 lines - Surge protection on RS‑422/485 lines - **Power Flexibility:** Accepts **+10 V DC to +30 V DC** input via screw terminal or external DC adapter (5.5 × 2.1 × 12 mm plug, 500 mA). - **Mounting Options:** Supports **DIN‑rail** and **panel mounting** for industrial enclosures. - **Status Indicators:** Four LEDs for **Power**, **Link**, **TX**, and **RX** provide real‑time operational feedback. - **Compact and Durable Design:** Rugged metal enclosure, compact footprint (151 × 75 × 26 mm), and lightweight (≈ 400 g).

Manufacturer: Trycom

Category: Industrial Device Server
