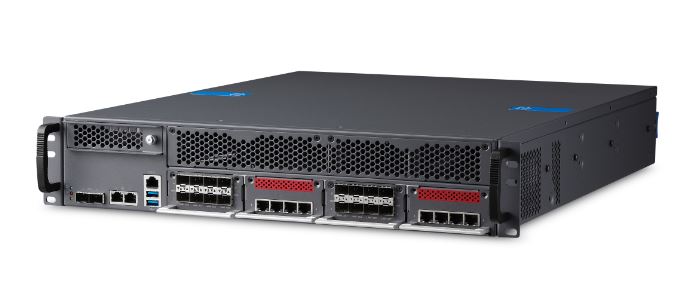

Comprehensive Product Summary – ADLINK CSA‑7210 2U 19" Network Appliance

---

### 1. Product Overview

Product Name: CSA‑7210
Model: CSA‑7210
Series: ADLINK Network Appliance Series
Article Number: CSA‑7210
Manufacturer: ADLINK Technology, Inc.

The ADLINK CSA‑7210 is a high‑performance 2U 19‑inch rackmount network appliance designed for communications and computing infrastructure deployment. It integrates dual Intel® Xeon® Scalable Silver, Gold, or Platinum processors and the Intel® C622/C627 chipset, providing exceptional scalability, throughput, and reliability for data‑intensive network applications. The system supports up to 512 GB of DDR4 ECC registered memory, multiple network interface module (NIM) slots for flexible I/O expansion, and built‑in Intel® QuickAssist Technology (QAT) acceleration.

---

### 2. Key Features

- Processor Support: Up to two Intel® Xeon® Scalable Gen 1 or Gen 2 processors (Silver, Gold, or Platinum series) with TDP up to 165 W.
- Memory Capacity: 16 × DDR4‑2666 ECC REG DIMM sockets supporting up to 512 GB total system memory.
- Network Expansion: Up to eight proprietary ADLINK Network Interface Module (NIM) slots for flexible network configuration.
- Storage Options: Up to four 3.5‑inch SATA 6 Gb/s drives (one hot‑swappable) and one onboard CFast socket.
- PCIe Expansion: Up to two PCIe x16 Gen 3 slots or one PCIe x8 Gen 3 slot (SKU dependent).
- Security: Integrated TPM 1.2/2.0 module for hardware‑based security.
- System Management: IPMI v2.0 with iKVM and Serial‑over‑LAN (SOL) support for remote management.
- Hardware Acceleration: Built‑in Intel® QuickAssist Technology (QAT) up to 100 Gb/s throughput.
- Form Factor: 2U 19‑inch rackmount chassis with adaptive cooling fans.
- Reliability: MTBF of 90,000 hours, FCC Class A and CE certified, RoHS compliant.

---

### 3. Technical Specifications

Processor Options:
Supports up to two Intel® Xeon® Scalable processors, including:
- Xeon® Silver 4110 (8C/16T, 2.10 GHz, 85 W)
- Xeon® Silver 4114 (10C/20T, 2.20 GHz, 85 W)
- Xeon® Silver 4216 (16C/32T, 2.10 GHz, 100 W)
- Xeon® Gold 5120T (14C/28T, 2.20 GHz, 105 W)
- Xeon® Gold 6130 (16C/32T, 2.10 GHz, 125 W)
- Xeon® Gold 6140 (18C/36T, 2.30 GHz, 140 W)
- Xeon® Gold 6150 (18C/36T, 2.70 GHz, 165 W)
- Xeon® Platinum 8260 (24C/48T, 2.40 GHz, 165 W)

Chipset: Intel® C622/C627 (SKU dependent)
Memory: 16 × DDR4‑2133/2400/2666 ECC REG DIMM sockets, up to 512 GB
BIOS: AMI BIOS on SPI flash memory
Operating Systems: Windows 7 64‑bit, Windows 10 64‑bit, Windows Server 2016, Linux Kernel 2.6 and above

Dimensions: 438 mm (W) × 88 mm (H) × 560 mm (D)
Weight: (varies by configuration; typical 2U chassis weight ≈ 12–15 kg)
Power Supply: 800 W or 1200 W AC/DC/HVDC redundant PSU options

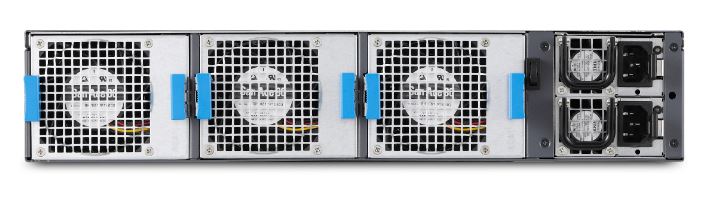

Cooling: Three adaptive‑speed fans
Acoustic Level: < 75 dBA @ 1 m (maximum fan speed)

Environmental Conditions:
- Operating Temperature: 0 °C to +40 °C
- Storage Temperature: –40 °C to +70 °C
- Operating Humidity: 10 %–85 % RH @ 40 °C (non‑condensing)
- Storage Humidity: 5 %–90 % RH (non‑condensing)
- Shock (Operating): Half‑sine 2 G, 11 ms pulse, 100 pulses per axis
- Shock (Non‑operating): Trapezoidal 25 G, 170 in/s ΔV, three drops per axis
- Vibration (Non‑operating): 2.2 Grms, 10 min per axis

---

### 4. Functionality

The CSA‑7210 serves as a modular, high‑throughput network appliance optimized for packet processing, routing, and security applications. It is designed for deployment in data centers, telecommunications infrastructure, and enterprise network environments.

Operation:
The system integrates dual Xeon® processors and high‑speed DDR4 memory to handle intensive network workloads. Network Interface Modules (NIMs) provide flexible port configurations (GbE, 10 GbE, 40 GbE) and optional LAN bypass functionality for fail‑safe operation.

Use Cases:
- Network security appliances (firewalls, IDS/IPS)
- Unified threat management (UTM) systems
- Software‑defined networking (SDN) and NFV platforms
- Edge computing and telecom infrastructure nodes
- High‑performance packet inspection and routing

Compatibility:
Compatible with major operating systems and validated with Intel® DPDK, Open vSwitch, and nDPI for high‑throughput data plane processing.

---

### 5. Components & Accessories

Included Components:
- CSA‑7210 2U chassis with installed motherboard
- Power supply (800 W or 1200 W)
- Three adaptive cooling fans
- RJ‑45 to DB‑9 console adapter cable
- Mounting rails (rackmount kit)
- User documentation and quick start guide

Network Interface Modules (NIMs):
ADLINK proprietary modules for flexible network expansion:
- CSA‑Z4X01: 4‑port GbE copper with LAN bypass
- CSA‑Z5C4F: 4‑port GbE SFP without bypass
- CSA‑Z8X10: 8‑port GbE copper with LAN bypass
- CSA‑Z5C2F: 2‑port 10 GbE SFP+ without bypass
- CSA‑Z5C8F: 8‑port GbE SFP without bypass
- CSA‑Z5C8F+: 8‑port 10 GbE SFP+ without bypass
- CSA‑Z5C4F+: 4‑port 10 GbE SFP+ without bypass
- CSA‑Z5CQF+: 1‑port 40 GbE QSFP+ without bypass

Optional Accessories:
- TPM 2.0 module (if not pre‑installed)
- Additional NIMs for port expansion
- CFast storage card
- PCIe expansion cards (FHHL form factor)

---

### 6. Installation & Setup

Rack Installation:
The CSA‑7210 is a 2U 19‑inch rackmount system. It should be installed in a standard server rack with adequate ventilation. Ensure clearance for front and rear airflow.

Power Requirements:
Supports AC, DC, or HVDC input depending on PSU configuration. Always connect to a grounded outlet.

Memory Installation:
Populate blue DIMM slots first (outer slots per CPU). Black slots must only be filled after blue slots are fully populated; otherwise, the system will not boot.

BIOS & Firmware Updates:
BIOS can be updated via network using the BMC tool or locally via host using the BIOS utility. BMC firmware updates follow a similar procedure.

BMC Access:
Default BMC login: username “sysadmin”, password “superuser”.
Supports serial console access (115200 baud) and IPMI over LAN.

Network Configuration:
BMC eth0 defaults to DHCP; static IP can be configured via ipmitool commands.

---

### 7. Performance & Capabilities

Processing Power:
Dual Xeon® Scalable CPUs provide up to 48 cores (96 threads) and 165 W TDP per CPU, enabling multi‑threaded packet processing and virtualization workloads.

Memory Bandwidth:
DDR4‑2666 ECC REG memory ensures high throughput and data integrity for network applications.

Networking Throughput:
With up to 8 NIM slots, the system can support configurations up to 64 × 1 GbE or 8 × 10 GbE ports, depending on installed modules.

Intel® QuickAssist Technology:
Provides hardware acceleration for cryptographic and compression workloads up to 100 Gb/s, enhancing VPN, SSL, and IPsec performance.

LAN Bypass Functionality:
Ensures continuous network connectivity during power loss or system failure. Each NIM supports independent bypass control via BIOS or IPMI.

Reliability:
MTBF of 90,000 hours and redundant power options ensure high availability for mission‑critical deployments.

Limitations:
Operating temperature limited to 0–40 °C; requires controlled data center environment.

---

### 8. Standards & Compliance

Certifications:
- FCC Class A (EMI compliance)
- CE (EMC and safety)
- UL and CB certified
- CCC (China Compulsory Certification)
- RoHS compliant (Restriction of Hazardous Substances)

Industry Standards:
- IPMI v2.0 for remote management
- PCI Express Gen 3 compliance
- SATA 6 Gb/s interface standard
- DPDK validation for high‑speed packet processing
- TPM 1.2/2.0 security standards

Environmental Compliance:
Meets EU RoHS and WEEE directives for environmental responsibility.

---

### 9. Additional Information

Warranty:
Standard ADLINK limited warranty (typically 2 years; region dependent).

Support & Maintenance:
- Technical support via [Ask an Expert](http://askanexpert.adlinktech.com)
- Firmware and BIOS updates available through ADLINK support portal
- Global service centers in Taiwan, USA, China, and Germany

Maintenance Guidelines:
- Keep ventilation paths clear and fans operational.
- Disconnect power before servicing.
- Replace battery only with approved type to avoid explosion risk.
- Dispose of electronic components according to local WEEE regulations.

Safety Notes:
- Operate only in restricted access IT rooms with qualified personnel.
- Disconnect all power inputs before servicing to avoid shock hazard.
- Maintain ambient temperature ≤ 40 °C for optimal operation.

Manufacturer Contact:
ADLINK Technology, Inc.
9F, No. 166 Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: +886‑2‑8226‑5877    Email: service@adlinktech.com
Regional offices in San Jose (USA), Shanghai (China), and Mannheim (Germany).

---

### Summary

The ADLINK CSA‑7210 is a robust, modular, and high‑performance network appliance engineered for demanding communication and computing infrastructures. Its dual Intel® Xeon® Scalable architecture, extensive I/O expandability, and Intel® QAT acceleration make it ideal for network security, virtualization, and edge computing applications. With comprehensive management features, redundant power options, and industry certifications, the CSA‑7210 delivers enterprise‑grade reliability and scalability for next‑generation network deployments.
