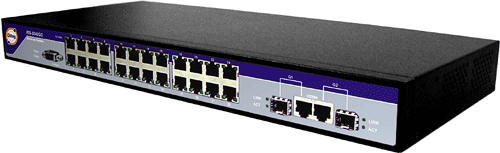

Comprehensive Product Summary – ORing IES‑3242GC‑E Industrial Managed Ethernet Switch
### 1. Product Overview
Product Name: IES‑3242GC‑E
Model: IES‑3242GC‑E
Series: IES‑3000 Series (Enhanced Model)
Article Number: IES‑3242GC‑E
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Managed 26‑Port Ethernet Switch (24×10/100TX + 2×1000TX/SFP Combo Ports)
Form Factor: 19‑inch rack‑mountable, enhanced industrial design
Country of Origin: Taiwan, R.O.C.
The ORing IES‑3242GC‑E is a high‑performance, industrial‑grade managed Ethernet switch designed for mission‑critical network infrastructures requiring high reliability, redundancy, and extended environmental tolerance. It belongs to ORing’s IES‑3000 series of managed industrial switches and integrates advanced redundancy technologies such as O‑Ring and MSTP/RSTP/STP, ensuring network recovery times of less than 10 ms across up to 250 interconnected units.
### 2. Key Features
- High‑Speed Redundant Ethernet Ring (O‑Ring):
Proprietary ORing redundancy technology with recovery time < 10 ms over 250 units, ensuring uninterrupted communication in industrial automation and control networks.
- Comprehensive Redundancy Support:
Supports O‑Ring, Open‑Ring, O‑RSTP, STP, RSTP, and MSTP (IEEE 802.1D/w/s) for flexible network topologies and interoperability with third‑party devices.
- Advanced Network Security:
Includes Access Control Lists (ACL), 802.1X port‑based authentication, MAC‑based port security, RADIUS centralized password management, and SNMPv3 encrypted authentication.
- Flexible Power Inputs:
Dual DC inputs (+12 ~ +48 VDC or –12 ~ –48 VDC) and full‑range 100 ~ 240 VAC input for redundant power configurations.
- Extended Operating Temperature:
Designed for harsh environments with an operating range of –40 °C to +70 °C.
- Comprehensive Management Interfaces:
Managed via Web browser, Telnet, RS‑232 console, CLI, or ORing’s Open‑Vision Windows utility for centralized configuration and monitoring.
- Event Notification and Diagnostics:
Supports Syslog, Email, SNMP traps, and relay output for system alarms and fault notifications.
- VLAN and QoS Support:
IEEE 802.1Q VLAN tagging, GVRP, port‑based VLANs, and 802.1p QoS for traffic prioritization and deterministic performance.
- Port Trunking and Bandwidth Management:
IEEE 802.3ad LACP and static trunking for bandwidth aggregation and redundancy.
- IGMP Snooping:
Efficient multicast traffic filtering for optimized bandwidth utilization.
- Rugged Industrial Design:
ESD protection (4 kV DC on Ethernet ports), surge protection (2000 V DC on power), and IP‑30‑grade metal enclosure.
- Alarm and Status Indicators:
Multi‑color LED indicators for power, system status, ring master, O‑Ring activity, fault, and per‑port link/activity.
### 3. Technical Specifications
Physical Ports:
- 24 × 10/100Base‑T(X) RJ‑45 ports (Auto MDI/MDI‑X)
- 2 × 1000Base‑T/SFP combo ports
- 1 × RS‑232 console port (9600 bps, 8‑N‑1)
Standards Compliance:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3x (Flow Control), 802.3ad (LACP), 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP), 802.1p (CoS), 802.1Q (VLAN Tagging), 802.1X (Authentication), 802.1AB (LLDP).
Switching Capacity: Store‑and‑forward architecture
MAC Address Table: 8192 entries
Priority Queues: 4
VLANs Supported: Up to 256
IGMP Groups: 256
Processing: Store‑and‑forward with wire‑speed switching
Dimensions: 440 (W) × 200 (D) × 44 (H) mm
Weight: Approx. 2480 g
Power Consumption: Typical 18 W
Power Inputs: 100 ~ 240 VAC and dual +12 ~ +48 VDC or –12 ~ –48 VDC
Protection: Overload current protection, reverse polarity protection
Environmental: Operating –40 ~ 70 °C; Humidity 5 ~ 95 % non‑condensing
EMC/EMI: FCC Part 15 Class A, EN55022 Class A, EN61000‑4‑2/3/4/5/6/8/11
Enclosure: Metal, IP‑30 protection, 19‑inch rack‑mountable
### 4. Functionality
The IES‑3242GC‑E functions as a fully managed Layer 2 Ethernet switch optimized for industrial automation, transportation, and utility networks. It provides deterministic communication through redundant ring topologies and supports multiple management interfaces for configuration and monitoring.
Operation Modes and Use Cases:
- Industrial Automation: PLC and SCADA network backbones requiring deterministic Ethernet.
- Transportation Systems: Traffic control, railway signaling, and surveillance networks.
- Energy and Utilities: Substation automation, renewable energy monitoring.
- Factory Networking: Machine‑to‑machine communication and production line integration.
Management Interfaces:
- Web‑based GUI: Accessible via standard browsers for configuration and monitoring.
- Telnet/CLI: Command‑line interface for advanced configuration.
- RS‑232 Console: Local serial management.
- SNMP v1/v2c/v3: Integration with network management systems.
- Open‑Vision Utility: Windows‑based centralized management software for topology visualization, configuration, and event monitoring.
Compatibility:
Supports 10/100/1000 Mbps Ethernet devices, SFP fiber modules (1000 Base‑X), and interoperates with standard Ethernet protocols and third‑party switches.
### 5. Components & Accessories
Included Items:
- IES‑3242GC‑E switch unit
- Power cord (for AC input)
- 6‑pin terminal block for DC inputs
- RS‑232 console cable (DB‑9 to RJ‑45)
- Rack‑mount brackets and screws
- Quick installation guide and documentation
Optional Accessories:
- SFP transceivers (multi‑mode or single‑mode, 850 nm / 1310 nm)
- DIN‑rail mounting kit (for alternate installation)
- Replacement terminal blocks and power cords
Connectors:
- RJ‑45 Ethernet ports (Auto MDI/MDI‑X)
- SFP slots for 1000 Base‑X fiber modules
- RS‑232 console port (RJ‑45)
- 6‑pin terminal block for dual DC inputs and relay output
### 6. Installation & Setup
Mounting Options:
- Standard 19‑inch rack mount (1U height)
- Optional DIN‑rail mounting kit for industrial cabinets
- Wall‑mount installation supported via bracket kit
Power Connection:
- Connect AC power (100 ~ 240 VAC) via included cord.
- For redundant operation, connect dual DC inputs (+12 ~ +48 VDC or –12 ~ –48 VDC) to the terminal block.
- Relay output (1 A @ 24 VDC) available for system alarm signaling.
Configuration:
- Default IP Address: 192.168.10.1
- Subnet Mask: 255.255.255.0
- Default Gateway: 192.168.10.254
- Default Login: admin / admin
Setup Interfaces:
- Web Management: Access via browser for initial configuration.
- Console Management: Connect RS‑232 cable to PC (9600 bps, 8‑N‑1).
- Telnet or SNMP: For remote management and monitoring.
- Open‑Vision Utility: Provides topology view, device discovery, and batch configuration.
### 7. Performance & Capabilities
Switching Performance:
- Store‑and‑forward architecture ensures error‑free packet transmission.
- 8192 MAC address table supports large industrial networks.
- 4 hardware priority queues for QoS traffic management.
- VLAN segmentation (256 VLANs) for network isolation and security.
Redundancy & Recovery:
- O‑Ring Technology: < 10 ms recovery time over 250 units.
- Dual Homing and Coupling Ring: Provides multi‑ring topologies and redundant uplinks.
- RSTP/MSTP: IEEE 802.1w/s compliant for standard redundant networks.
Quality of Service (QoS):
- IEEE 802.1p priority tagging and TOS/DiffServ support.
- Weighted Fair Queue (8:4:2:1) or Strict Priority scheduling modes.
Security and Access Control:
- 802.1X authentication with RADIUS server integration.
- MAC filtering and blacklist management.
- IP security for restricted management access.
- SNMPv3 encryption for secure remote monitoring.
Diagnostics and Monitoring:
- Port statistics, MAC address tables, and event logs accessible via Web or CLI.
- Syslog and SMTP email alerts for system events.
- Fault relay output for hardware alarm integration.
Limitations:
- Layer 2 switching only (no Layer 3 routing).
- SFP modules sold separately.
### 8. Standards & Compliance
Ethernet Protocols:
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3ad, 802.1D, 802.1p, 802.1Q, 802.1w, 802.1s, 802.1X, 802.1AB
Environmental & EMC Compliance:
- EMI: FCC Part 15 Class A, EN55022 Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock & Vibration: IEC 60068‑2‑27/‑2‑6/‑2‑32
- Safety: EN60950 (Information Technology Equipment Safety)
Industrial Certifications:
Compliant with CE and FCC industrial standards for electromagnetic compatibility and safety.
### 9. Additional Information
Warranty: 2 Years (standard for enhanced model)
Support & Maintenance:
- Firmware updates available via TFTP or Web interface.
- Configuration backup and restore supported through TFTP server.
- Technical support via email and phone from ORing Industrial Networking Corp.
Manufacturer Contact:
ORing Industrial Networking Corp.
4F., No. 3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Tel: +886‑2‑2918‑3036 Fax: +886‑2‑2918‑3084
Website: [www.oring-networking.com](http://www.oring-networking.com)
Email: support@oring-networking.com
Maintenance Recommendations:
- Periodically inspect power connections and ventilation.
- Keep firmware updated for security and performance enhancements.
- Use industrial‑grade SFP modules and shielded Ethernet cables for optimal reliability.
Ordering Information:
- Model: IES‑3242GC‑E
- Description: Industrial 26‑Port Managed Ethernet Switch with 24×10/100TX & 2×1000 COMBO Ports (Enhanced)
- Operating Temperature: –40 ~ 70 °C
- Power Inputs: Dual DC (+12 ~ +48 VDC or –12 ~ –48 VDC) and 100 ~ 240 VAC
### Summary
The ORing IES‑3242GC‑E is a robust, feature‑rich industrial Ethernet switch engineered for high‑availability networks in demanding environments. Its combination of 26 ports, redundant power inputs, O‑Ring < 10 ms recovery, and extended temperature operation makes it ideal for mission‑critical applications such as transportation, energy, and factory automation. With comprehensive management options, advanced security, and compliance with major IEEE standards, the IES‑3242GC‑E delivers reliable, secure, and scalable network performance for industrial infrastructures.
### 1. Product Overview
Product Name: IES‑3242GC‑E
Model: IES‑3242GC‑E
Series: IES‑3000 Series (Enhanced Model)
Article Number: IES‑3242GC‑E
Manufacturer: ORing Industrial Networking Corp.
Product Type: Industrial Managed 26‑Port Ethernet Switch (24×10/100TX + 2×1000TX/SFP Combo Ports)
Form Factor: 19‑inch rack‑mountable, enhanced industrial design
Country of Origin: Taiwan, R.O.C.
The ORing IES‑3242GC‑E is a high‑performance, industrial‑grade managed Ethernet switch designed for mission‑critical network infrastructures requiring high reliability, redundancy, and extended environmental tolerance. It belongs to ORing’s IES‑3000 series of managed industrial switches and integrates advanced redundancy technologies such as O‑Ring and MSTP/RSTP/STP, ensuring network recovery times of less than 10 ms across up to 250 interconnected units.
### 2. Key Features
- High‑Speed Redundant Ethernet Ring (O‑Ring):
Proprietary ORing redundancy technology with recovery time < 10 ms over 250 units, ensuring uninterrupted communication in industrial automation and control networks.
- Comprehensive Redundancy Support:
Supports O‑Ring, Open‑Ring, O‑RSTP, STP, RSTP, and MSTP (IEEE 802.1D/w/s) for flexible network topologies and interoperability with third‑party devices.
- Advanced Network Security:
Includes Access Control Lists (ACL), 802.1X port‑based authentication, MAC‑based port security, RADIUS centralized password management, and SNMPv3 encrypted authentication.
- Flexible Power Inputs:
Dual DC inputs (+12 ~ +48 VDC or –12 ~ –48 VDC) and full‑range 100 ~ 240 VAC input for redundant power configurations.
- Extended Operating Temperature:
Designed for harsh environments with an operating range of –40 °C to +70 °C.
- Comprehensive Management Interfaces:
Managed via Web browser, Telnet, RS‑232 console, CLI, or ORing’s Open‑Vision Windows utility for centralized configuration and monitoring.
- Event Notification and Diagnostics:
Supports Syslog, Email, SNMP traps, and relay output for system alarms and fault notifications.
- VLAN and QoS Support:
IEEE 802.1Q VLAN tagging, GVRP, port‑based VLANs, and 802.1p QoS for traffic prioritization and deterministic performance.
- Port Trunking and Bandwidth Management:
IEEE 802.3ad LACP and static trunking for bandwidth aggregation and redundancy.
- IGMP Snooping:
Efficient multicast traffic filtering for optimized bandwidth utilization.
- Rugged Industrial Design:
ESD protection (4 kV DC on Ethernet ports), surge protection (2000 V DC on power), and IP‑30‑grade metal enclosure.
- Alarm and Status Indicators:
Multi‑color LED indicators for power, system status, ring master, O‑Ring activity, fault, and per‑port link/activity.
### 3. Technical Specifications
Physical Ports:
- 24 × 10/100Base‑T(X) RJ‑45 ports (Auto MDI/MDI‑X)
- 2 × 1000Base‑T/SFP combo ports
- 1 × RS‑232 console port (9600 bps, 8‑N‑1)
Standards Compliance:
IEEE 802.3 (10Base‑T), 802.3u (100Base‑TX), 802.3ab (1000Base‑T), 802.3x (Flow Control), 802.3ad (LACP), 802.1D (STP), 802.1w (RSTP), 802.1s (MSTP), 802.1p (CoS), 802.1Q (VLAN Tagging), 802.1X (Authentication), 802.1AB (LLDP).
Switching Capacity: Store‑and‑forward architecture
MAC Address Table: 8192 entries
Priority Queues: 4
VLANs Supported: Up to 256
IGMP Groups: 256
Processing: Store‑and‑forward with wire‑speed switching
Dimensions: 440 (W) × 200 (D) × 44 (H) mm
Weight: Approx. 2480 g
Power Consumption: Typical 18 W
Power Inputs: 100 ~ 240 VAC and dual +12 ~ +48 VDC or –12 ~ –48 VDC
Protection: Overload current protection, reverse polarity protection
Environmental: Operating –40 ~ 70 °C; Humidity 5 ~ 95 % non‑condensing
EMC/EMI: FCC Part 15 Class A, EN55022 Class A, EN61000‑4‑2/3/4/5/6/8/11
Enclosure: Metal, IP‑30 protection, 19‑inch rack‑mountable
### 4. Functionality
The IES‑3242GC‑E functions as a fully managed Layer 2 Ethernet switch optimized for industrial automation, transportation, and utility networks. It provides deterministic communication through redundant ring topologies and supports multiple management interfaces for configuration and monitoring.
Operation Modes and Use Cases:
- Industrial Automation: PLC and SCADA network backbones requiring deterministic Ethernet.
- Transportation Systems: Traffic control, railway signaling, and surveillance networks.
- Energy and Utilities: Substation automation, renewable energy monitoring.
- Factory Networking: Machine‑to‑machine communication and production line integration.
Management Interfaces:
- Web‑based GUI: Accessible via standard browsers for configuration and monitoring.
- Telnet/CLI: Command‑line interface for advanced configuration.
- RS‑232 Console: Local serial management.
- SNMP v1/v2c/v3: Integration with network management systems.
- Open‑Vision Utility: Windows‑based centralized management software for topology visualization, configuration, and event monitoring.
Compatibility:
Supports 10/100/1000 Mbps Ethernet devices, SFP fiber modules (1000 Base‑X), and interoperates with standard Ethernet protocols and third‑party switches.
### 5. Components & Accessories
Included Items:
- IES‑3242GC‑E switch unit
- Power cord (for AC input)
- 6‑pin terminal block for DC inputs
- RS‑232 console cable (DB‑9 to RJ‑45)
- Rack‑mount brackets and screws
- Quick installation guide and documentation
Optional Accessories:
- SFP transceivers (multi‑mode or single‑mode, 850 nm / 1310 nm)
- DIN‑rail mounting kit (for alternate installation)
- Replacement terminal blocks and power cords
Connectors:
- RJ‑45 Ethernet ports (Auto MDI/MDI‑X)
- SFP slots for 1000 Base‑X fiber modules
- RS‑232 console port (RJ‑45)
- 6‑pin terminal block for dual DC inputs and relay output
### 6. Installation & Setup
Mounting Options:
- Standard 19‑inch rack mount (1U height)
- Optional DIN‑rail mounting kit for industrial cabinets
- Wall‑mount installation supported via bracket kit
Power Connection:
- Connect AC power (100 ~ 240 VAC) via included cord.
- For redundant operation, connect dual DC inputs (+12 ~ +48 VDC or –12 ~ –48 VDC) to the terminal block.
- Relay output (1 A @ 24 VDC) available for system alarm signaling.
Configuration:
- Default IP Address: 192.168.10.1
- Subnet Mask: 255.255.255.0
- Default Gateway: 192.168.10.254
- Default Login: admin / admin
Setup Interfaces:
- Web Management: Access via browser for initial configuration.
- Console Management: Connect RS‑232 cable to PC (9600 bps, 8‑N‑1).
- Telnet or SNMP: For remote management and monitoring.
- Open‑Vision Utility: Provides topology view, device discovery, and batch configuration.
### 7. Performance & Capabilities
Switching Performance:
- Store‑and‑forward architecture ensures error‑free packet transmission.
- 8192 MAC address table supports large industrial networks.
- 4 hardware priority queues for QoS traffic management.
- VLAN segmentation (256 VLANs) for network isolation and security.
Redundancy & Recovery:
- O‑Ring Technology: < 10 ms recovery time over 250 units.
- Dual Homing and Coupling Ring: Provides multi‑ring topologies and redundant uplinks.
- RSTP/MSTP: IEEE 802.1w/s compliant for standard redundant networks.
Quality of Service (QoS):
- IEEE 802.1p priority tagging and TOS/DiffServ support.
- Weighted Fair Queue (8:4:2:1) or Strict Priority scheduling modes.
Security and Access Control:
- 802.1X authentication with RADIUS server integration.
- MAC filtering and blacklist management.
- IP security for restricted management access.
- SNMPv3 encryption for secure remote monitoring.
Diagnostics and Monitoring:
- Port statistics, MAC address tables, and event logs accessible via Web or CLI.
- Syslog and SMTP email alerts for system events.
- Fault relay output for hardware alarm integration.
Limitations:
- Layer 2 switching only (no Layer 3 routing).
- SFP modules sold separately.
### 8. Standards & Compliance
Ethernet Protocols:
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3ad, 802.1D, 802.1p, 802.1Q, 802.1w, 802.1s, 802.1X, 802.1AB
Environmental & EMC Compliance:
- EMI: FCC Part 15 Class A, EN55022 Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS), EN61000‑4‑8, EN61000‑4‑11
- Shock & Vibration: IEC 60068‑2‑27/‑2‑6/‑2‑32
- Safety: EN60950 (Information Technology Equipment Safety)
Industrial Certifications:
Compliant with CE and FCC industrial standards for electromagnetic compatibility and safety.
### 9. Additional Information
Warranty: 2 Years (standard for enhanced model)
Support & Maintenance:
- Firmware updates available via TFTP or Web interface.
- Configuration backup and restore supported through TFTP server.
- Technical support via email and phone from ORing Industrial Networking Corp.
Manufacturer Contact:
ORing Industrial Networking Corp.
4F., No. 3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Tel: +886‑2‑2918‑3036 Fax: +886‑2‑2918‑3084
Website: [www.oring-networking.com](http://www.oring-networking.com)
Email: support@oring-networking.com
Maintenance Recommendations:
- Periodically inspect power connections and ventilation.
- Keep firmware updated for security and performance enhancements.
- Use industrial‑grade SFP modules and shielded Ethernet cables for optimal reliability.
Ordering Information:
- Model: IES‑3242GC‑E
- Description: Industrial 26‑Port Managed Ethernet Switch with 24×10/100TX & 2×1000 COMBO Ports (Enhanced)
- Operating Temperature: –40 ~ 70 °C
- Power Inputs: Dual DC (+12 ~ +48 VDC or –12 ~ –48 VDC) and 100 ~ 240 VAC
### Summary
The ORing IES‑3242GC‑E is a robust, feature‑rich industrial Ethernet switch engineered for high‑availability networks in demanding environments. Its combination of 26 ports, redundant power inputs, O‑Ring < 10 ms recovery, and extended temperature operation makes it ideal for mission‑critical applications such as transportation, energy, and factory automation. With comprehensive management options, advanced security, and compliance with major IEEE standards, the IES‑3242GC‑E delivers reliable, secure, and scalable network performance for industrial infrastructures.
-
IES-3242GC-E.pdf
PDF Catalog
-
Oring-3000-series_manual.pdf
Manual
-
Selection_Guide.pdf
Manual
Kein Zubehör vorhanden.
