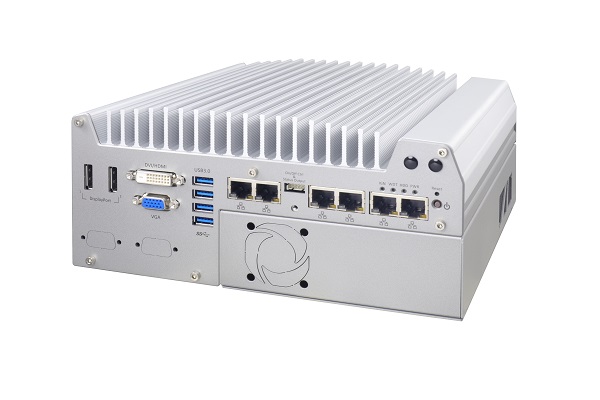

Nuvo-5026E - Neousys
6th-Gen Core i7/i5/i3 Fanless Controller 6*GbE 2*PCIe
Unsere Nuvo-5000-Serie bietet leistungsstarke Industrial Computers und Embedded Systems, die mit den neuesten Intel Core i7/i5/i3 Embedded Prozessoren ausgestattet sind..
Beschreibung
- Intel 6th-Gen Skylake Core i7/i5/i3 fanless bare bone system
- 2* PCIe x8 (Gen3 / 4-lanes) expansion cassette
- Q170 platform control hub
- 6x GbE by Intel I219 and I210
- Supports AMT 11.0 and TPM 2.0
- 4x USB3.0 and 4x USB2.0
- 2x s/w-programmable RS-232/422/485 & 1x RS232
- 1x VGA + 1x DVI-D and 2x Display Port
- 2x SO-DIMM supporting up to 32GB DDR4
- 2 x Mini PCIe (2x USIM slot)
- 1x MezIO expansion interface
- 2x 2.5" SATA for HDD/SSD supporting RAID 0/1
- 1x full-size mSATA port
- Patent-pending thermal design to allow -25°C to 70°C wide- temperature system operation
- 240*225*111mm
- 3.7kg
- Neousys
Details
- Breite: 240 mm
- Höhe: 225 mm
- Tiefe: 111 mm
- Nettogewicht: 3.7 kg
- Gewicht: 4.2kg
- Hersteller: Neousys
- Herkunftsland: Taiwan R.O.C.
- Zollcode: 8471 5000 000
Datenblätter
Handbücher
Zubehör
-
Nuvo-PA-160W
160W AC/DC Power Adapter for Nuvo-1300af/3005 PoE models -
Nuvo-PA-120W
120W AC/DC Power Adapter for Nuvo-3000 series -
MezIO
Interchangeable Mezzanine I/O Boards
