Comprehensive Product Summary – Nuvo‑5026E Fanless Industrial Controller
### 1. Product Overview

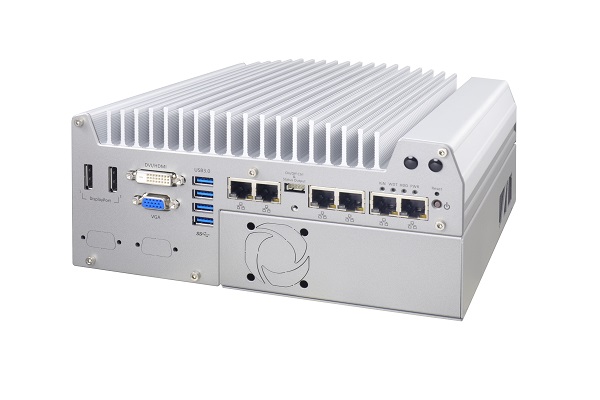

Product Name: Nuvo‑5026E
Model / Article Number: Nuvo‑5026E
Series: Nuvo‑5000 Series (Rugged Embedded Controllers)
Manufacturer: Neousys Technology Inc.
Product Type: Intel® 6th‑Generation Core™ i7/i5/i3 Fanless Embedded Controller with Dual PCIe Expansion Cassette
Category: Rugged, fanless industrial computer / embedded controller
The Nuvo‑5026E is a high‑performance, fanless embedded controller designed for industrial automation, machine vision, transportation, and edge computing applications. It belongs to Neousys’ Nuvo‑5000 family and integrates Intel® 6th‑Generation “Skylake” Core™ processors with a Q170 chipset, offering dual PCIe expansion slots, six Gigabit Ethernet ports, and a wide operating temperature range.
### 2. Key Features
- Intel® 6th‑Gen Skylake CPU Support:
Supports socket‑type LGA1151 processors ranging from Core™ i7‑6700/i5‑6500/i3‑6100 to Pentium® G4400 and Celeron® G3900, including 35 W “TE” embedded variants for extended temperature operation.
- Dual PCIe Expansion Cassette:
Two PCIe x8 (Gen3, 4‑lane) slots in a patented, easily accessible expansion cassette for flexible add‑on card installation without disassembling the chassis.
- Fanless, Rugged Design:
Patent‑pending thermal architecture enables true fanless operation from –25 °C to 70 °C (with 35 W CPUs) and –25 °C to 50 °C (with 65 W CPUs).
- Rich I/O Connectivity:
Six Intel® Gigabit Ethernet ports (I219 + 5× I210), four USB 3.0, four USB 2.0, three COM ports (two software‑selectable RS‑232/422/485 + one RS‑232), audio I/O, and triple independent display outputs (VGA, DVI‑D, 2× DisplayPort).
- Storage Flexibility:
Two internal 2.5″ SATA III bays supporting RAID 0/1, plus one full‑size mSATA slot (shared with mini‑PCIe).
- Expansion Interfaces:
Two mini‑PCIe sockets (each with SIM support) and one proprietary MezIO™ expansion port for modular I/O extension.
- Industrial‑Grade Reliability:
Wide DC input range (8 – 35 V DC), vibration tolerance 5 Grms, shock resistance 50 Grms, and compliance with CE/FCC Class A EMC standards.
- Optional IEEE 802.3at PoE+:
Power‑over‑Ethernet PSE capability on GbE ports 3–6 with an 80 W total power budget.
- Remote Management & Security:
Supports Intel® AMT 11.0 for remote management and TPM 2.0 for hardware‑level security.
### 3. Technical Specifications
Processor Options (LGA1151):
- Core™ i7‑6700 (8 MB cache, 3.4/4.0 GHz, 65 W TDP)
- Core™ i5‑6500 (6 MB cache, 3.2/3.6 GHz, 65 W TDP)
- Core™ i3‑6100 (3 MB cache, 3.7 GHz, 51 W TDP)
- Pentium® G4400 (3 MB cache, 3.3 GHz, 54 W TDP)
- Celeron® G3900 (2 MB cache, 2.8 GHz, 51 W TDP)
- Embedded “TE” versions (35 W TDP): i7‑6700TE, i5‑6500TE, i3‑6100TE, G4400TE, G3900TE
Chipset: Intel® Q170 Platform Controller Hub
Graphics: Integrated Intel® HD Graphics 530/510 (CPU‑dependent)
Memory: 2 × DDR4‑2133 SO‑DIMM, up to 32 GB
Storage:
- 2 × 2.5″ SATA III (6 Gb/s) ports, RAID 0/1 support
- 1 × full‑size mSATA (shared with mini‑PCIe)

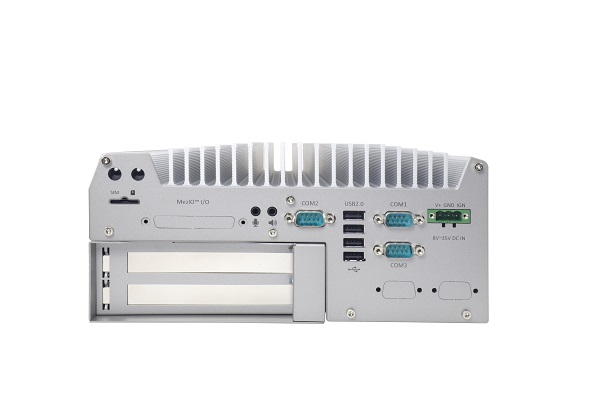

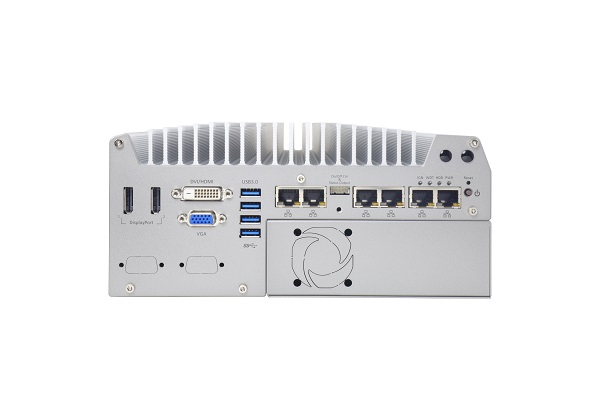

I/O Interfaces:
- Ethernet: 6 × GbE (Intel I219 + 5 × I210)
- USB: 4 × USB 3.0 + 4 × USB 2.0
- Serial: 2 × RS‑232/422/485 (software‑selectable) + 1 × RS‑232
- Video: 1 × VGA + 1 × DVI‑D + 2 × DisplayPort (4K support)
- Audio: Mic‑in + Speaker‑out
- Expansion: 2 × PCIe x8 (Gen3 4‑lane), 2 × mini‑PCIe (with SIM), 1 × MezIO™ port
Power Input: 8 – 35 V DC via 3‑pin terminal block
Remote Control: 10‑pin (2 × 5) header for on/off and status LED output
Mechanical:
- Dimensions: 240 (W) × 225 (D) × 111 (H) mm
- Weight: 3.7 kg (including CPU, RAM, HDD)
- Mounting: Wall‑mount (standard) / DIN‑rail (optional)
Environmental:
- Operating Temperature: –25 °C to 70 °C (35 W CPU) / –25 °C to 50 °C (65 W CPU)
- Storage Temperature: –40 °C to 85 °C
- Humidity: 10 – 90 % non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (11 ms half‑sine, SSD installed)
- EMC: CE/FCC Class A (EN 55022/55024/55032)
### 4. Functionality
The Nuvo‑5026E operates as a rugged, fanless embedded controller for industrial and field‑deployed systems. Its modular design allows flexible configuration:
- Processing: CPU installed in LGA1151 socket; BIOS allows power‑limit configuration to balance performance and thermal envelope.
- Display: Triple independent outputs (VGA + DVI‑D + DP) enable multi‑monitor setups for control rooms or machine‑vision systems.
- Networking: Six GbE ports support high‑bandwidth data acquisition, camera connectivity, or network redundancy; optional PoE+ powers IP devices directly.
- Storage: Dual SATA drives with RAID 0/1 for speed or redundancy; mSATA for OS or cache drive.
- Expansion: Dual PCIe slots for frame grabbers, GPU cards, DAQ modules, or communication interfaces.
- MezIO™ Interface: Allows plug‑in modules for additional COM, DIO, PoE, USB, or ignition control functions.
- Remote Management: Intel AMT 11.0 enables out‑of‑band control and diagnostics; Wake‑on‑LAN supported.
- Security: TPM 2.0 hardware module for secure boot and encryption key storage.
Typical Applications: machine vision, industrial automation, transportation control, data logging, edge AI processing, and rugged IoT gateways.
### 5. Components & Accessories
Included Items:
- Nuvo‑5026E main unit
- CPU retaining bracket
- Wall‑mount brackets and foot pads
- 3‑pin DC terminal block
- HDD thermal pad (for 2.5″ drives)
- Screw pack
- 40 × 40 × 10 mm fan (for cassette cooling)
- Rubber spacers
- Neousys Drivers & Utilities DVD
Optional Accessories:
- PA‑160W‑OW: 160 W AC/DC adapter (20 V / 8 A, –30 °C to 70 °C operation)
- DINRAIL‑O: DIN‑rail mounting kit
- MezIO™ Modules:
- C180 – 4 × RS‑232/422/485 + 4 × RS‑232
- C181 – 4 × RS‑232/422/485 + 4 × RS‑422/485
- D220 – 8 × isolated DI + 8 × isolated DO
- D230 – 16 × isolated DI + 16 × isolated DO
- V20‑EP – Ignition power control (for in‑vehicle use)
- G4P – 4 × Gigabit PoE+ ports
- G4 – 4 × Gigabit Ethernet ports
- U4 – 4 × USB 3.0 ports
Cassette Modules (Examples):
- CSM‑R800 – 4‑drive RAID module
- CSM‑PoE354 – PCIe PoE+ card with heat‑spreader
- CSM‑USB380 – PCIe USB 3.0 expansion
- CSM‑NV750 – NVIDIA GTX‑750 GPU module with fan
### 6. Installation & Setup
Power Requirements: 8 – 35 V DC input via 3‑pin terminal block; observe polarity and voltage limits.
Mounting Options: Wall‑mount (brackets included) or DIN‑rail (optional kit). Orientation should allow vertical heat flow for optimal cooling.
Component Installation:
- CPU installed in LGA1151 socket with retaining bracket and thermal pads.
- Two DDR4 SO‑DIMMs inserted at 45° angle and latched.
- 2.5″ HDD/SSD mounted on bracket with thermal pad and connected to SATA ports.
- Mini‑PCIe modules and SIM cards installed for wireless connectivity.
- MezIO™ modules attached via board‑to‑board connector and secured with screws.
- Add‑on cards inserted into PCIe slots within cassette; fan installed if high power cards used.
System Configuration:
BIOS supports SATA AHCI/RAID modes, TPM enable, CPU power limit adjustment, Wake‑on‑LAN, and watchdog timer settings. Drivers for Windows 7/8/10 and Linux are provided on the Neousys DVD.
### 7. Performance & Capabilities
- Processing Power: Up to 4.0 GHz Core i7 quad‑core CPU; BIOS configurable TDP (35–65 W).
- Memory Bandwidth: DDR4‑2133 dual‑channel up to 32 GB.
- Graphics: Triple display support with 4K DisplayPort output.
- Networking: 6 × GbE ports with optional PoE+ (80 W budget).
- Storage Performance: SATA 6 Gb/s RAID 0/1 and mSATA SSD for fast boot.
- Reliability: Fanless design with thermal throttling protection; watchdog timer for system recovery.
- Limitations: 65 W CPUs limited to 50 °C ambient for continuous full‑load operation; use 35 W variants for extended temperature environments.
### 8. Standards & Compliance
- EMC: CE / FCC Class A (EN 55022, EN 55024, EN 55032)
- Safety & Reliability: IEC 60068‑2‑64 (vibration) and IEC 60068‑2‑27 (shock)
- Environmental: RoHS compliant
- Network: IEEE 802.3 Gigabit Ethernet; optional IEEE 802.3at PoE+
- Management: Intel® AMT 11.0 remote management standard
- Security: TPM 2.0 Trusted Platform Module
### 9. Additional Information
Warranty & Support: Standard Neousys limited warranty (typically 2 years); technical support and driver updates available via Neousys website.
Maintenance: Fanless design minimizes dust accumulation; periodic inspection of thermal interfaces and connectors recommended.
Software Support: Windows 7/8.1/10 (32/64‑bit), Ubuntu, Debian, Fedora, OpenSUSE; drivers for chipset, LAN, graphics, audio, ME, TPM, and WDT/PoE control included.
BIOS Features: UEFI and Legacy boot modes, RAID configuration, TPM enable, Wake‑on‑LAN, watchdog timer for boot protection, and CPU power configuration.
Watchdog & PoE Control API: Neousys WDT_DIO library provides software interfaces for watchdog timer and per‑port PoE on/off control under Windows.
### Summary
The Neousys Nuvo‑5026E is a robust, modular, and highly configurable fanless embedded controller engineered for demanding industrial environments. Combining Intel® Skylake processing, dual PCIe expansion, six Gigabit Ethernet ports, and wide‑temperature operation, it delivers a balanced platform for machine vision, automation, and edge computing applications. Its patented cassette design simplifies expansion and maintenance, while the MezIO™ interface and optional PoE+ extend its versatility. With compliance to industrial standards and comprehensive I/O capabilities, the Nuvo‑5026E serves as a reliable foundation for long‑life embedded deployments in harsh conditions.
