Comprehensive Product Summary – Neousys PCIe‑PoE2+

---

### 1. Product Overview

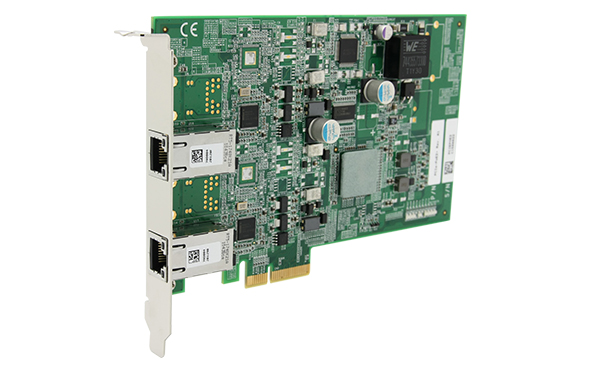

Product Name: PCIe‑PoE2+
Model: PCIe‑PoE2+
Series: PCIe‑PoE Series (includes PCIe‑PoE2+ and PCIe‑PoE4+)
Article Number: PCIe‑PoE2+
Manufacturer: Neousys Technology Inc.
Product Type: 2‑Port x4 PCI Express® Gigabit Power over Ethernet (PoE) Frame Grabber Card
Website: [www.neousys‑tech.com](https://www.neousys-tech.com)

The Neousys PCIe‑PoE2+ is a high‑performance PCI Express frame grabber card designed to provide dual Gigabit Ethernet ports with integrated Power over Ethernet (PoE) capability. It is optimized for machine vision, industrial automation, and imaging applications that require reliable high‑bandwidth data transfer and power delivery through a single Ethernet cable. The card is part of Neousys’ PCIe‑PoE series, which also includes the four‑port PCIe‑PoE4+ variant.

---

### 2. Key Features

- Dual Independent Gigabit Ethernet Ports:
Equipped with two Intel® 82574L Gigabit Ethernet controllers, each port supports full‑duplex 1000 Mb/s operation.

- Power over Ethernet (PoE) Support:
Fully compliant with IEEE 802.3af standard, each port can supply up to 15.4 W of power to connected PoE devices such as cameras or sensors.

- PCI Express x4 Interface:
Utilizes a PCIe x4 interface providing a total bandwidth of 1 GB/s, ensuring high‑speed data throughput for demanding imaging applications.

- 9 kB Jumbo Frame Support:
Enables efficient transmission of large image data packets, reducing CPU overhead and improving throughput.

- Link Aggregation (Teaming):
Supports IEEE 802.3ad link aggregation for increased bandwidth and redundancy.

- No External Power Required:
The PCIe‑PoE2+ draws both 3.3 V and 12 V power directly from the PCIe bus, eliminating the need for an external 12 V DC input.

- Compact and Robust Design:
Industrial‑grade construction with a compact form factor (167.7 mm × 111.2 mm) suitable for integration into standard PC chassis.

- Wide Operating Temperature Range:
Operates reliably from 0 °C to 60 °C with adequate airflow.

- Plug‑and‑Play Driver Support:
Includes Neousys Drivers & Utilities DVD with “One‑Click” automatic driver installation for Windows operating systems.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|------------------|
| Bus Interface | PCI Express x4 |
| Ethernet Controllers | 2 × Intel® 82574L GbE controllers |
| Ethernet Ports | 2 × RJ‑45 Gigabit Ethernet ports |
| PoE Standard | IEEE 802.3af compliant |
| PoE Power Output | Up to 15.4 W per port |
| Data Rate | 10/100/1000 Mb/s auto‑negotiation |
| Jumbo Frame Support | Up to 9 kB |
| Link Aggregation | Supported (IEEE 802.3ad teaming) |
| Cable Type | CAT‑5e or CAT‑6, up to 100 m length |
| Power Consumption | Max 1.6 A @ 3.3 V and 2.8 A @ 12 V (from PCIe bus) |
| External Power | Not required (draws 12 V from PCIe bus) |
| Operating Temperature | 0 °C to 60 °C (with airflow) |
| Dimensions (W × H) | 167.7 mm × 111.2 mm |
| Weight | Approx. (typical for PCIe card of this size ≈ 150–200 g) |
| Compliance | FCC Class A, CE marked |
| Manufacturer | Neousys Technology Inc. |

---

### 4. Functionality

The PCIe‑PoE2+ functions as a dual‑port Gigabit Ethernet interface card with integrated PoE power sourcing capability. It allows a host computer to connect directly to PoE‑enabled devices such as industrial cameras, sensors, or networked imaging systems without requiring separate power adapters.

Operational Principle:
- The card communicates with the host system via the PCIe x4 bus, providing high‑speed data transfer up to 1 GB/s.
- Each Ethernet port can automatically detect whether a connected device is PoE‑powered (PD) or a standard Ethernet device.
- When a PoE device is detected, the card supplies up to 15.4 W of DC power through the Ethernet cable while simultaneously transmitting data.
- The Intel® 82574L controllers manage data flow, link aggregation, and jumbo frame handling to optimize throughput and minimize latency.

Typical Use Cases:
- Machine Vision and Automated Optical Inspection (AOI):
Connects to GigE Vision cameras for high‑speed image acquisition in industrial inspection systems.
- Surveillance and Security:
Powers and connects IP cameras for monitoring and recording applications.
- Medical Imaging:
Provides reliable data transfer for diagnostic imaging devices.
- Traffic Enforcement and Intelligent Transportation Systems:
Supports high‑resolution cameras for automated license plate recognition and traffic monitoring.

Compatibility:
- Compatible with standard PCIe x4 and x16 slots (depending on motherboard configuration).
- Works with Windows XP, Vista, 7 (32‑bit and 64‑bit) operating systems.
- Supports both PoE and non‑PoE Ethernet devices.

---

### 5. Components & Accessories

Package Contents:
1. PCIe‑PoE2+ Frame Grabber Card × 1
2. Neousys Drivers & Utilities DVD × 1 (includes drivers, utilities, and documentation)

Optional Accessories:
- CAT‑6 Ethernet cables (up to 100 m)
- PoE‑compatible cameras or sensors
- PCIe slot bracket screws (for mounting)
- System chassis with adequate airflow for thermal management

Connectors:
- 2 × RJ‑45 Ethernet ports with PoE output
- PCIe goldfinger edge connector for x4 slot interface
- No external power connector required (for PCIe‑PoE2+)

---

### 6. Installation & Setup

System Requirements:
- Available PCIe x4 slot (or x16 slot configured as Root Port)
- Compatible Windows operating system (XP, Vista, 7)
- Adequate airflow within the chassis for cooling (0–60 °C operation)

Installation Steps:
1. Power off the host computer and open the chassis.
2. Locate an available PCIe x4 slot (or x16 slot if supported).
3. Insert the PCIe‑PoE2+ card firmly into the slot until fully seated.
4. Secure the card to the chassis using a mounting screw.
5. Close the chassis and power on the system.
6. Insert the Neousys Drivers & Utilities DVD and run the “Automatic Driver Installation” utility.
7. The installer detects the operating system and installs the appropriate driver automatically.
8. Reboot the system to complete installation.

Connecting Devices:
- Use CAT‑5e or CAT‑6 Ethernet cables (up to 100 m).
- The card automatically detects PoE devices and supplies power accordingly.
- Non‑PoE devices can also be connected without risk of damage.

Driver Configuration:
- Jumbo Frame: Enable and set to 9014 bytes for high‑data‑rate applications.
- Receive Buffer: Increase to 2048 bytes for improved data throughput.
- Transmit Buffer: Adjust to 2048 bytes for optimized transmission performance.

---

### 7. Performance & Capabilities

Data Throughput:
Each Gigabit port supports up to 1 Gb/s full‑duplex transfer rate. With link aggregation enabled, combined bandwidth can reach 2 Gb/s for the PCIe‑PoE2+.

Power Delivery:
Each port provides up to 15.4 W of PoE power (IEEE 802.3af standard), sufficient for most industrial GigE Vision cameras and network devices.

Efficiency and Reliability:
- Jumbo frames reduce CPU load and increase data efficiency.
- Independent Intel controllers ensure stable and isolated data channels.
- Direct power draw from PCIe bus simplifies system integration and reduces cabling.

Limitations:
- Total PoE power budget is limited by PCIe bus power delivery (approximately 30.8 W total).
- Operating temperature requires adequate airflow for continuous operation at upper limits.
- Designed for industrial and commercial environments (Class A device); not intended for residential use without interference mitigation.

---

### 8. Standards & Compliance

Electrical and Network Standards:
- IEEE 802.3 (10BASE‑T)
- IEEE 802.3u (100BASE‑TX)
- IEEE 802.3ab (1000BASE‑T)
- IEEE 802.3af (Power over Ethernet)
- IEEE 802.3ad (Link Aggregation)

Regulatory Compliance:
- FCC Class A: Complies with Part 15 of FCC Rules for commercial digital devices.
Designed to minimize radio frequency interference in industrial environments.
- CE Marking: Conforms to European Union directives for EMC and safety.
CE compliance requires use of CE‑certified components and proper cabling techniques.

Environmental Conditions:
- Operating Temperature: 0 °C to 60 °C (with airflow)
- Storage Temperature: typical industrial range (–20 °C to 85 °C)
- Humidity: 5 % to 95 % non‑condensing

Safety and Reliability:
- Over‑current and short‑circuit protection on PoE ports.
- Automatic detection and classification of PoE Powered Devices (PDs).
- Isolation between data and power lines per IEEE 802.3af requirements.

---

### 9. Additional Information

Warranty:
Standard Neousys limited hardware warranty (typically 1 year from date of purchase; subject to regional terms).

Technical Support:
- Online resources and documentation available at [www.neousys‑tech.com](https://www.neousys-tech.com).
- Email and phone support provided by Neousys Technology Inc. and authorized distributors.

Maintenance:
- No routine maintenance required beyond periodic dust removal and ensuring adequate airflow.
- Firmware and driver updates available via Neousys support portal.
- Use only Neousys‑approved drivers to maintain system stability and compliance.

Software and Driver Updates:
- Drivers provided on Neousys Drivers & Utilities DVD and online download portal.
- “One‑Click” installation utility automatically detects OS version and installs correct driver.
- Manual installation supported for Windows XP, Vista, and 7 (32/64‑bit).
- Advanced driver settings allow fine‑tuning of jumbo frames, receive buffers, and transmit buffers for optimized performance.

Product Lifecycle and Updates:
- PCIe‑PoE2+ is a mature industrial product with long‑term availability for OEM and system integrators.
- Successor models may offer enhanced PoE+ (IEEE 802.3at) support or higher port density while maintaining backward compatibility.

---

### Summary

The Neousys PCIe‑PoE2+ is a robust, industrial‑grade dual‑port Gigabit Ethernet frame grabber card with integrated Power over Ethernet functionality. Designed for high‑performance imaging and automation systems, it combines data and power transmission over a single cable, simplifying system architecture and reducing installation costs. With Intel® 82574L controllers, PCIe x4 bandwidth, jumbo frame support, and link aggregation, it delivers exceptional throughput and reliability for machine vision, surveillance, and industrial networking applications. Its compliance with IEEE 802.3af, FCC Class A, and CE standards ensures safe and reliable operation in demanding environments. The card’s plug‑and‑play installation, driver utilities, and maintenance‑free design make it an ideal choice for system integrators seeking a compact, efficient, and standards‑compliant PoE solution.
