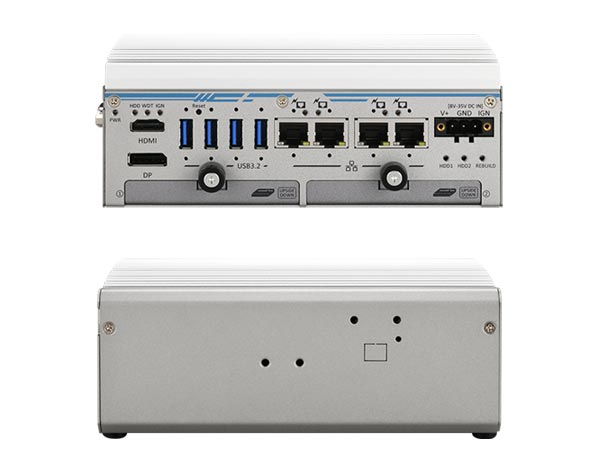

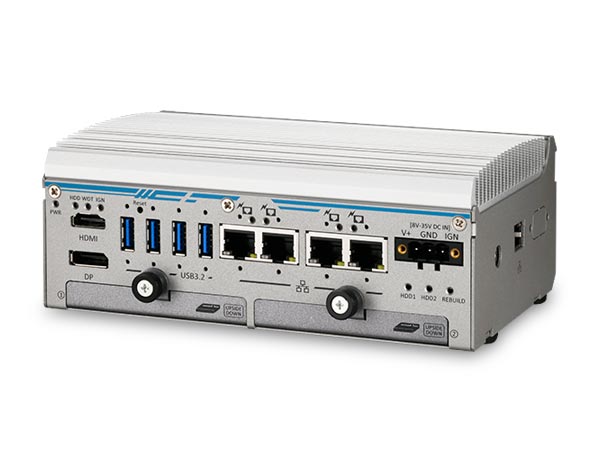

Compact Core i3 surveillance system with four PoE+ ports and dual-drive hardware RAID.
Compact Core i3 surveillance system with four PoE+ ports and dual-drive hardware RAID. Compact Core i3 surveillance system with four PoE+ ports and dual-drive hardware RAID. Compact Core i3 surveillance system with four PoE+ ports and dual-drive hardware RAID.

POC-764VR

Compact Core i3 surveillance system with four PoE+ ports and dual-drive hardware RAID.
Angebot anfragen
  • Hersteller Neousys Technology Inc.
  • Kategorie: Industrial Computer
  • Der POC-764VR ist ein kompakter, lüfterloser Überwachungscomputer mit Intel Core i3-N305, acht Kernen und integrierter UHD-Grafik. Vier Gigabit-PoE+-Ports ermöglichen den direkten Anschluss von bis zu vier IP-Kameras; ein zusätzlicher 2,5-GbE-Port bindet das System an die Netzwerkinfrastruktur an. Zwei interne 2,5-Zoll-Laufwerke unterstützen Hardware-RAID 0/1 und JBOD, ergänzt durch einen M.2-Steckplatz. USB 3.2 Gen2, isolierte digitale Ein- und Ausgänge, serielle Schnittstellen und zwei Mini-PCIe-Sockel bieten flexible Erweiterungsmöglichkeiten. Der 8–35-V-DC-Eingang mit Zündungssteuerung eignet sich auch für mobile Anwendungen.
Ultra-compact fanless surveillance computer with Intel Alder Lake Core i3-N305 8-core/8-thread processor, Intel UHD Graphics with 32 EUs and up to 16 GB DDR5-4800 memory. It provides four Gigabit PoE+ camera ports, one 2.5GbE port, four USB 3.2 Gen2 ports, isolated 4-channel DI and 4-channel DO, four serial ports and dual full-size mini-PCIe sockets. Storage comprises an M.2 2280 socket and two 2.5-inch SATA bays with hardware RAID 0/1/JBOD. The system accepts 8–35 VDC and includes ignition power control.
  • Processor Intel Alder Lake Core i3-N305, 8 cores/8 threads, 1.8/3.8 GHz, 15 W TDP
  • Graphics Integrated Intel UHD Graphics with 32 EUs
  • Maximum Memory 16 GB
  • Memory Type DDR5-4800 SDRAM, one SODIMM socket
  • Trusted Platform Module Supports dTPM 2.0
  • Gigabit Ethernet Ports 4 ports
  • PoE Standard IEEE 802.3at PoE+ on ports 1–4
  • 2.5 Gigabit Ethernet Ports 1 port
  • Supported IP Cameras Up to 4 cameras
  • DisplayPort Output 1x DP++, up to 4096 x 2160 pixels
  • HDMI Output 1x HDMI 1.4b, up to 3840 x 2160 at 30 Hz
  • Isolated Digital Inputs 4 channels
  • Isolated Digital Outputs 4 channels
  • Digital I/O 4-channel isolated DI and 4-channel isolated DO
  • USB Ports 4x USB 3.2 Gen2 with screw-lock
  • Serial Ports 1x software-programmable RS-232/422/485; 3x 3-wire RS-232 or 1x RS-422/485
  • Mini-PCIe Sockets 2x full-size mini PCI Express with internal micro SIM socket
  • M.2 Storage Socket 1x M.2 2280 M key, PCIe Gen3 x1, supports NVMe and M.2 SATA
  • 2.5-inch Drive Bays 2 bays
  • RAID Modes Hardware RAID 0, RAID 1 and JBOD
  • Hot-Swap Support Supported in RAID 1 mode only
  • DC Input Voltage 8–35 VDC
  • Ignition Power Control Built-in
  • Power Connector 3-pin pluggable terminal block
  • Dimensions 175.8 x 115.5 x 67.9 mm
  • Weight 1.45 kg
  • Mounting DIN-rail standard; wall mount optional
  • Form Factor Ultra-compact fanless embedded system; DIN-rail or optional wall mounting
  • Connector 4x PoE+ RJ45, 1x 2.5GbE RJ45, 4x screw-lock USB 3.2 Gen2, DP++, HDMI, serial, DIO, 3-pin DC terminal block
  • Dimensions 175.8 x 115.5 x 67.9 mm (W x D x H)
  • Operating Temperature With Fan Kit -10 to 70 °C
  • Operating Temperature Without Fan Kit -10 to 55 °C
  • Storage Temperature -40 to 85 °C
  • Relative Humidity 10 to 90, non-condensing %
  • Vibration Compliance MIL-STD-810H, Method 514.8, Category 4
  • Shock Compliance MIL-STD-810H, Method 516.8, Procedure I
  • Operating Temperature -10°C to 70°C with fan kit; -10°C to 55°C without fan kit
  • EMC Compliance CE/FCC Class A according to EN 55032 and EN 55035
  • AI Inference Support Intel OpenVINO
  • Application Areas Surveillance, security, smart city, public safety monitoring and asset management
  • Key Features Intel Core i3-N305 with 8 cores; Up to 16 GB DDR5-4800; 4x Gigabit PoE+; 1x 2.5GbE; Dual 2.5-inch SATA hardware RAID 0/1/JBOD; M.2 2280 storage; 2x full-size mini-PCIe; Isolated 4-DI/4-DO; 8–35 VDC ignition input; MIL-STD-810H vibration and shock
  • Optional Power Adapters PA-120W-OW; PA-160W-OW
  • Optional Mounting Kits Wmkit-H-POC764VR; Wmkit-V-POC500
  • Optional Fan Kit AccsyBx-FAN-POC-700
  • Bus Interface 4x Gigabit Ethernet with PoE+; 1x 2.5GbE; 2x full-size mini-PCIe
  • Resolution DP++ up to 4096 x 2160; HDMI 1.4b up to 3840 x 2160 at 30 Hz
  • Accessories PA-120W-OW, PA-160W-OW, Wmkit-H-POC764VR, Wmkit-V-POC500, AccsyBx-FAN-POC-700
