Development version of the Core i3-N305 POC-766AWP platform with accessible rear I/O.
Development version of the Core i3-N305 POC-766AWP platform with accessible rear I/O. Development version of the Core i3-N305 POC-766AWP platform with accessible rear I/O. Development version of the Core i3-N305 POC-766AWP platform with accessible rear I/O. Development version of the Core i3-N305 POC-766AWP platform with accessible rear I/O.

POC-766AWP-DEV

Development version of the Core i3-N305 POC-766AWP platform with accessible rear I/O.
Angebot anfragen
  • Hersteller Neousys Technology
  • Kategorie: Industrial Computer
  • Das POC-766AWP-DEV ist die Entwicklungsausführung der robusten POC-766AWP-Plattform. Es basiert auf dem Intel Core i3-N305 mit acht E-Cores und unterstützt DDR5-Speicher. Für industrielle Kommunikation stehen zwei 2,5-GbE-Ports sowie isolierte RS-232- und RS-422/485-Schnittstellen zur Verfügung. CAN 2.0B und isolierte digitale Ein- und Ausgänge ergänzen die Ausstattung. Im Unterschied zur wasserdichten Produktionsversion bietet die DEV-Ausführung direkt zugängliche HDMI- und USB-3.2-Anschlüsse sowie drei Antennenöffnungen und erleichtert damit Entwicklung, Konfiguration und Integration.

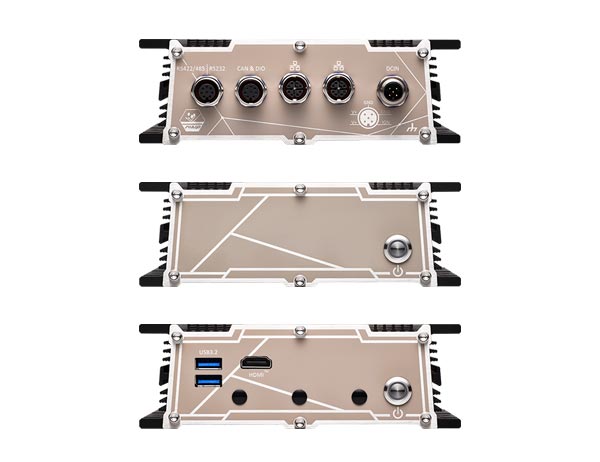

Development kit for the POC-766AWP platform with Intel Core i3-N305, dual 2.5GbE and isolated COM ports. The appearance diagram identifies accessible HDMI, two USB 3.2 ports and three antenna holes on the development version. It is based on the platform offering DDR5 memory, M.2 storage, Mini-PCIe expansion, CAN 2.0B and isolated digital I/O.
  • Version Type Development version
  • Processor Intel Core i3-N305 with 8 E-cores
  • Ethernet Ports 2x 2.5GbE
  • Serial Interfaces Isolated COM ports including RS-232 and RS-422/485
  • USB Ports 2x USB 3.2 Type-A
  • Video Interface 1x HDMI
  • Antenna Openings 3 holes
  • Mini-PCIe Slots 1 full-size Mini-PCIe socket with internal micro-SIM
  • Digital I/O Channels 1 isolated DI and 2 isolated DO
  • Digital I/O 1-channel isolated DI; 2-channel isolated DO
  • CAN Interface 1 isolated CAN 2.0B
  • Bus Interface 1x full-size Mini-PCIe; 1x M.2 2280 M-key PCIe Gen3 x4
  • Form Factor Development version of compact fanless embedded computer

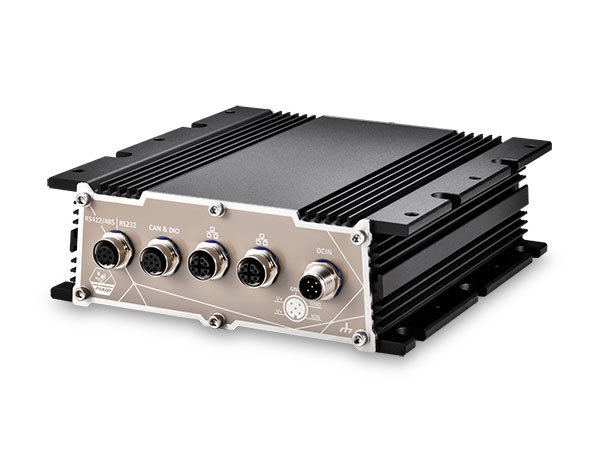

  • Connector 2x M12 X-coded Ethernet; M12 A-coded serial and CAN/DIO; accessible HDMI and 2x USB Type-A
  • Dimensions 161.5 x 169 x 52.7 mm platform dimensions
  • Resolution HDMI output up to 3840 x 2160 at 30 Hz
  • Operating Temperature -25°C to 70°C platform specification
  • Key Features Intel Core i3-N305 with 8 E-cores; development version; accessible HDMI and USB 3.2; 3 antenna holes; 2x 2.5GbE; isolated COM ports; CAN 2.0B; isolated digital I/O; DDR5 support
