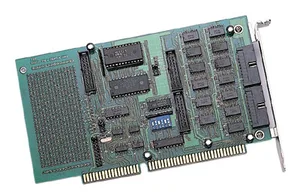

- **24‑Channel Digital I/O:** Provides 24 TTL/DTL‑compatible digital input/output lines organized as three 8‑bit ports (Port A, Port B, Port C). - **8255 Mode 0 Emulation:** Fully emulates one Intel 8255 Programmable Peripheral Interface (PPI) in Mode 0, offering flexible digital I/O control. - **Buffered Circuit Design:** Incorporates buffering for higher current drive capability and improved signal integrity. - **Interrupt Support:** Programmable interrupt handling via PC0 and PC4 lines of Port C, with selectable IRQ levels (IRQ2–IRQ7) and edge‑trigger configuration (rising/falling). - **Output Status Readback:** Allows reading back the output latch status for verification and diagnostics. - **OPTO‑22 Compatibility:** Directly interfaces with OPTO‑22 compatible I/O modules and racks (8, 16, or 24 channels). - **Software Compatibility:** Supports simple 8‑bit I/O port programming (inport/outport) and ADLINK’s ACLS‑DLL1 driver for high‑level C or Windows applications. - **Hardware Compatibility:** Drop‑in replacement for Advantech PCL‑724, ensuring seamless integration in legacy systems. - **Compact Form Factor:** 108 mm × 107 mm PCB suitable for standard ISA slots. - **Industrial Reliability:** Designed for industrial monitoring, control, and data acquisition applications.

Hersteller: Adlink Technology Inc.

Kategorie: DIO Non-Isolated ISA

27-inch open-frame industrial touch monitor with 1920 x 1080 resolution, LED backlight rated up to 40,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1 and VGA x1 inputs, USB Type-B for touch, front IP65 protection, DC 12V input, and operating temperature 0°C to 50°C.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

- **High-Quality Construction:** Built with premium-grade materials to ensure long-term durability and consistent signal integrity. - **Heavy-Duty Design:** Reinforced cable jacket and double-sided metal connectors provide mechanical strength and resistance to wear, bending, and environmental stress. - **IEEE-488 / GPIB Compatibility:** Fully compliant with IEEE-488.1 and IEEE-488.2 standards, ensuring interoperability with a wide range of test and measurement instruments. - **Double-Sided Metal Connectors:** Each end features a rugged, shielded metal connector housing that minimizes electromagnetic interference (EMI) and ensures secure mating with instrument ports. - **Optimized Signal Transmission:** Low-resistance conductors and high-quality shielding reduce noise and crosstalk, maintaining data integrity even in electrically noisy environments. - **Stackable Connectors:** The IEEE-488 standard connector design allows daisy-chaining multiple instruments on the same bus without additional adapters. - **2-Meter Length:** Ideal for bench setups and rack-mounted instrumentation where moderate cable length is required for flexible routing. - **Industrial-Grade Reliability:** Designed for continuous operation in demanding laboratory and production environments.

Hersteller: Adlink Technology Inc.

Kategorie: IEEE (GPIB) Cards

- **High-Quality Construction:** Engineered for professional instrumentation and test setups requiring stable, low-noise signal transmission. - **Micro-D IEEE-488 Interface:** Compact Micro-D connector format compliant with IEEE-488 (GPIB) standards, offering space-saving connectivity without compromising performance. - **Heavy-Duty Design:** Double-sided metal connectors provide superior shielding, mechanical strength, and long-term reliability under frequent connection cycles. - **Optimized Cable Length:** 2-meter (approximately 6.56 ft) cable length balances flexibility and signal integrity, suitable for bench-top and rack-mounted equipment configurations. - **Enhanced Shielding:** Full metal connector shells and shielded cable construction minimize electromagnetic interference (EMI) and crosstalk. - **Precision Signal Transmission:** Designed to maintain consistent impedance and low signal attenuation across the full cable length. - **Industrial-Grade Durability:** Resistant to mechanical stress, vibration, and environmental factors typical in laboratory and production environments. - **Plug-and-Play Compatibility:** Fully compatible with IEEE-488/GPIB instruments, controllers, and interface cards from major manufacturers. - **Reliable Grounding:** Metal connector housings ensure continuous ground connection and improved noise immunity. - **Versatile Application Range:** Suitable for use in automated test equipment (ATE), data acquisition systems, and scientific instrumentation networks.

Hersteller: Adlink Technology Inc.

Kategorie: IEEE (GPIB) Cards

- **Processor Support:** Up to two Intel® Xeon® Scalable Gen 1 or Gen 2 processors (Silver, Gold, or Platinum series) with TDP up to 165 W. - **Memory Capacity:** 16 × DDR4‑2666 ECC REG DIMM sockets supporting up to 512 GB total system memory. - **Network Expansion:** Up to eight proprietary ADLINK Network Interface Module (NIM) slots for flexible network configuration. - **Storage Options:** Up to four 3.5‑inch SATA 6 Gb/s drives (one hot‑swappable) and one onboard CFast socket. - **PCIe Expansion:** Up to two PCIe x16 Gen 3 slots or one PCIe x8 Gen 3 slot (SKU dependent). - **Security:** Integrated TPM 1.2/2.0 module for hardware‑based security. - **System Management:** IPMI v2.0 with iKVM and Serial‑over‑LAN (SOL) support for remote management. - **Hardware Acceleration:** Built‑in Intel® QuickAssist Technology (QAT) up to 100 Gb/s throughput. - **Form Factor:** 2U 19‑inch rackmount chassis with adaptive cooling fans. - **Reliability:** MTBF of 90,000 hours, FCC Class A and CE certified, RoHS compliant.

Hersteller: Adlink Technology Inc.

Kategorie: Rack GbE Switches

- **32 Discrete Input Channels:** Supports 32 independent NPN sinking or dry contact input points, enabling high-density digital input acquisition. - **HSL System Compatibility:** Fully compatible with ADLINK’s HSL High Speed Link architecture, ensuring fast, deterministic communication for industrial automation. - **Flexible Power Input:** Operates with an external DC power supply ranging from **+10V to +30V DC**, accommodating various industrial power environments. - **Compact and Modular Design:** The daughter board form factor allows easy integration into modular HSL systems, minimizing panel space requirements. - **LED Indicators:** - **Power (Red):** Indicates active DC power. - **Link (Green):** Displays communication link status. - **Input (Green):** Shows individual channel activity for quick diagnostics. - **High-Speed Response:** Input response time of **2 ms (max)** for both ON and OFF transitions, suitable for real-time control applications. - **Selectable Addressing:** DIP switch configuration allows flexible address assignment within the HSL network. - **Low Power Consumption:** Typical power consumption of **1.8 W**, ensuring energy-efficient operation. - **Lightweight Construction:** Weighs only **72 g**, facilitating easy installation and maintenance. - **Industrial-Grade Reliability:** Designed for robust operation in industrial environments with high electrical noise immunity.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **32 Discrete Output Channels:** Provides 32 independent NPN sinking outputs for controlling external loads. - **High-Speed Communication:** Designed for ADLINK’s HSL system, ensuring fast and deterministic data exchange between controllers and field I/O modules. - **Flexible Power Input:** Operates with an external DC power supply ranging from **+10V to +30V DC**, accommodating various industrial power environments. - **Compact and Modular Design:** The daughter board form factor allows easy integration into distributed I/O architectures. - **LED Indicators:** - **Red LED:** Active DC power indication - **Green LED:** Link status indication - **Yellow LEDs:** Individual discrete output channel status indicators - **Fast Response Time:** Maximum ON/OFF switching response of **2 ms**, suitable for time-critical control applications. - **High Output Capacity:** Each channel supports up to **300 mA at 24V DC** (with TB32-DO terminal base). - **Address Configuration via DIP Switch:** Supports flexible address assignment within the HSL network, occupying two consecutive address allocations starting from an odd address. - **Compatibility with Multiple Terminal Bases:** Works with **HSL-TB32-DO-DIN**, **HSL-TB32-U-DIN**, and **HSL-TB64-DIN** terminal bases for different installation scales. - **Lightweight Construction:** Weighs only **72 g**, minimizing load on DIN rail installations. - **Industrial-Grade Reliability:** Designed for robust operation in industrial automation environments.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **32 Discrete Input Channels:** Supports 32 independent PNP sourcing input points for digital signal acquisition. - **PNP (Sourcing) Input Type:** Designed for wet contact or sourcing input devices, compatible with +10V to +30V DC field signals. - **High-Speed Communication:** Operates within the HSL (High Speed Link) system architecture, ensuring rapid data transfer and deterministic response for industrial automation. - **Flexible Terminal Base Options:** Compatible with **HSL-TB32-U-DIN** (32-channel) and **HSL-TB64-DIN** (64-channel) terminal bases for scalable I/O configurations. - **LED Indicators:** - **Power (Red):** Indicates active DC power supply. - **Link (Green):** Displays communication link status. - **Input (Green):** Shows individual channel activation status. - **Compact and Lightweight Design:** 72 g board weight, optimized for DIN-rail mounting and space-constrained control cabinets. - **Wide Power Supply Range:** Operates from +10V to +30V DC external power, ensuring compatibility with standard industrial power systems. - **Fast Response Time:** Input response time of **2 ms (ON/OFF)** for real-time control applications. - **Address Configuration via DIP Switch:** Supports address allocation through DIP switch settings, occupying two consecutive address spaces starting from an odd address. - **Robust Electrical Design:** 4.7 kΩ input impedance ensures stable signal detection and noise immunity. - **Industrial-Grade Reliability:** Designed for continuous operation in harsh industrial environments with high electrical noise immunity.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

- **32 Discrete Output Channels:** Provides 32 independent PNP sourcing output channels for flexible control of field devices. - **PNP Sourcing Type:** Each output channel sources current to the load, suitable for connecting to devices requiring a positive voltage output. - **High-Speed Communication:** Designed for ADLINK’s **HSL (High Speed Link)** system, ensuring fast, deterministic data transfer between modules and controllers. - **Compact Daughter Board Design:** Modular form factor allows easy integration into HSL terminal bases such as HSL-TB32-U-DIN and HSL-TB64-DIN. - **LED Indicators:** - **Red LED:** Active DC power indication - **Green LED:** Link status indication - **Yellow LEDs:** Individual discrete output channel status indicators - **Flexible Power Input:** Operates with external DC power supply ranging from **+10V to +30V DC**. - **Low Power Consumption:** Typical consumption of **1.8 W**, ensuring energy-efficient operation. - **Fast Response Time:** Maximum ON/OFF switching response of **2 ms**, suitable for high-speed control tasks. - **DIN-Rail Mountable Terminal Bases:** Compatible with multiple DIN socket terminal bases for easy installation and wiring. - **Address Configuration via DIP Switch:** Supports flexible address allocation through onboard DIP switch settings. - **Lightweight Construction:** Compact and lightweight (72 g), ideal for distributed I/O installations. - **Industrial-Grade Reliability:** Designed for robust operation in industrial automation environments with high electrical noise immunity.

Hersteller: Adlink Technology Inc.

Kategorie: HSL RT IO System

32-inch open-frame industrial touch monitor with 1920 x 1080 resolution, 800 nits brightness, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x1, VGA x1, DVI x1, DP x1, USB Type-B for touch, front IP65 protection, DC 24V input, and operating temperature -10°C to 60°C.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

- **Digital I/O Capability:** - 32 TTL digital input channels. - 32 TTL digital output channels. - TTL/DTL compatible logic levels. - High output drive and low input loading. - **Counter/Timer System:** - Six independent 16‑bit programmable counters (Intel/NEC 8254 architecture). - Three independent programmable 16‑bit down counters. - One 32‑bit timer (two 16‑bit counters cascaded). - One 16‑bit counter with 4 MHz time base. - On‑board crystal‑based frequency sources (10 kHz, 100 kHz, 1 MHz). - Frequency scaling via jumpers (×2, ×½, ×¼). - Supports timer pacer and event counting interrupts. - **Bus Interface:** - PC‑AT (ISA) bus compatible. - Fully hardware and software compatible with Advantech PCL‑720. - **Interrupt Support:** - Selectable IRQ levels (IRQ3–IRQ15). - Configurable interrupt trigger sources: timer pacer, event, or external. - **Connectivity:** - Four 20‑pin IDC connectors for digital I/O (CN1–CN4). - One 20‑pin connector (CN5) for counter/timer signals. - Breadboard area for custom circuitry. - **Software Support:** - DOS library and utilities included. - Optional Windows support via ACLS‑DLL1 (for VB, VC++, Delphi). - Optional LabVIEW integration via ACLS‑LVIEW. - **Environmental & Reliability:** - Operating temperature: 0 °C – 60 °C. - Humidity: 0 – 90 % non‑condensing.

Hersteller: Adlink Technology Inc.

Kategorie: DIO Non-Isolated ISA

- **Digital I/O Channels:** - 32 TTL digital input channels - 32 TTL digital output channels - TTL/DTL compatible logic levels - High output drive capability and low input loading - **Counter/Timer Capabilities:** - Six independent 16‑bit programmable counters (Intel/NEC 8254 architecture) - One 32‑bit timer (two cascaded 16‑bit counters) with a 4 MHz time base - One additional 16‑bit counter with a 4 MHz time base - On‑board crystal‑based frequency sources: 10 kHz, 100 kHz, and 1 MHz - Frequency scaling via jumpers: ×2, ÷2, ÷4 - Supports six programmable counter modes (Mode 0–5) - **Interrupt and Event Handling:** - Supports IRQ3–IRQ15 (AT bus interrupt levels) - Selectable interrupt trigger sources: Timer Pacer, Event Counter, or External Source - Event counting and periodic interrupt generation supported - **Hardware Compatibility:** - Register‑level compatibility with Advantech PCL‑720 - Breadboard area for user‑defined circuitry and prototyping - Five 20‑pin IDC connectors for I/O and counter interfacing - **Software Support:** - DOS library and utilities included - Optional Windows libraries: **ACLS‑DLL1** (for VB, VC/C++, Delphi) and **ACLS‑LVIEW** (for LabVIEW integration) - Supports programming in BASIC, C, Pascal, and Assembly - **Environmental and Mechanical:** - Operating temperature: 0 °C – 60 °C - Humidity: 0 – 90 % non‑condensing - Compact AT‑bus form factor

Hersteller: Adlink Technology Inc.

Kategorie: DIO Non-Isolated ISA

- **37-pin D-type Interface:** Standard D-sub 37-pin female connector for compatibility with a wide range of DAQ and control devices. - **DIN Rail Mountable:** Integrated DIN rail mounting bracket for quick installation in control cabinets or industrial enclosures. - **2-Meter Cable Assembly:** Pre-assembled 2m shielded cable for flexible connection between the termination board and host device. - **Compact Form Factor:** Dimensions of 112 mm (L) × 77 mm (W) × 52 mm (H) allow efficient use of panel space. - **High Signal Integrity:** Designed to minimize noise and crosstalk in analog and digital signal transmission. - **Rugged Construction:** Industrial-grade materials ensure durability and long-term reliability in harsh environments. - **Ease of Wiring:** Clearly labeled terminal blocks simplify signal identification and reduce wiring errors. - **Compatibility:** Designed to interface with ADLINK ACL-10137-2 and other 37-pin D-sub compatible I/O cards. - **No External Power Required:** Passive termination board design eliminates the need for additional power supplies. - **Maintenance-Friendly:** Modular design allows easy replacement or reconfiguration without rewiring the entire system.

Hersteller: Adlink Technology Inc.

Kategorie: DIN Rail Panels

- **37-pin D-type Interface:** Standard female D-sub connector supporting 37 signal lines for analog, digital, or mixed-signal I/O applications. - **DIN Rail Mounting:** Integrated DIN rail clip for quick installation on standard 35 mm DIN rails, ensuring secure and organized panel integration. - **Compact Design:** Space-efficient form factor (112 × 77 × 52 mm) suitable for dense control cabinets and instrumentation racks. - **Screw Terminal Connectivity:** Each pin of the D-sub connector is mapped to a corresponding screw terminal, simplifying field wiring and signal distribution. - **Cable-Free Configuration:** Delivered without cable, providing flexibility for users to select appropriate cable lengths, shielding, and connector types. - **Industrial-Grade Construction:** Durable materials and robust mechanical design ensure long-term reliability in industrial environments. - **Universal Compatibility:** Compatible with ADLINK DAQ cards, motion controllers, and other devices using a 37-pin D-sub interface. - **Ease of Maintenance:** Clearly labeled terminals and accessible layout facilitate troubleshooting and reconfiguration. - **Signal Integrity:** Short internal traces and high-quality connectors minimize signal degradation and crosstalk. - **Versatile Application Range:** Suitable for laboratory testing, automation control panels, signal conditioning, and prototyping setups.

Hersteller: Adlink Technology Inc.

Kategorie: DIN Rail Panels

- **PXI Specification Rev. 2.2 Compliance:** Ensures full interoperability with PXI and CompactPCI modules. - **19‑Slot Architecture:** One system slot and eighteen peripheral slots for large‑scale instrumentation setups. - **Intelligent Chassis Management:** Built‑in control board monitors temperature, fan speed, and DC voltages; supports automatic fan speed control and remote power management. - **Remote Monitoring and Control:** RS‑232 interface allows remote system monitoring, logging, and power on/off control. - **Advanced Cooling Mechanism:** Three 185.9 CFM fans provide uniform airflow across all slots; per‑slot cooling capacity up to 25 W verified at 55 °C. - **Industrial‑Grade 600 W AC Power Supply:** Universal input (85–264 V AC, 47–63 Hz) with multiple regulated DC outputs. - **Extended Operating Temperature Range:** 0 °C – 55 °C operation, −20 °C – 70 °C storage. - **External 10 MHz Reference Clock Input:** BNC connector for synchronization with external timing sources. - **Front‑Panel LED Indicators:** Power (blue), Fan (green), and Temperature (amber) LEDs for real‑time status. - **Rack‑Mountable Design:** Optional rack‑mount kit allows flexible installation and adjustable recess depth. - **Compact and Lightweight:** 3U form factor, 444 × 178 × 455 mm, approximately 13.4 – 14.5 kg. - **High Reliability:** Functional shock tolerance up to 30 G and vibration resistance per EN 61326‑1.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **High-Performance Intel® Core™ Processor:** Equipped with a quad-core Intel® Core™ i7-4700EQ (6M Cache, up to 3.40 GHz, 47/37W cTDP) or optional dual-core Intel® Core™ i5-4402E (3M Cache, up to 2.70 GHz, 25W). Supports Intel® Hyper-Threading, Turbo Boost, VT-x, VT-d, and vPro™ technologies. - **Advanced Chipset and Memory:** Utilizes the Intel® QM87 PCH chipset with soldered 4GB or 8GB DDR3L-1600 ECC SDRAM for high reliability and data integrity. - **CompactPCI® Compliance:** Fully compliant with PICMG 2.0 R3.0, PICMG 2.1 Hot Swap R2.0, PICMG 2.9 System Management R1.0, and PICMG 2.30 CompactPCI PlusIO standards. - **Rich I/O and Connectivity:** Provides multiple Gigabit Ethernet ports, USB 3.0/2.0 interfaces, serial ports, DisplayPort and DVI-I video outputs, PS/2 keyboard/mouse support, and SATA/CFast storage options. - **Triple Independent Display Support:** Integrated Intel® HD Graphics engine supports up to three independent displays via DVI-I and dual DisplayPort outputs, with resolutions up to 2560×1440 @60Hz. - **Flexible Storage Options:** Includes onboard SATA 6 Gb/s connector for 2.5” HDD/SSD, CFast socket, and optional onboard 32GB SSD (via adapter board replacement). - **Rugged Industrial Design:** Designed for extended temperature operation (-20°C to +70°C standard, -40°C to +85°C with cTDP adjustment), high shock/vibration tolerance, and 95% non-condensing humidity. - **System Management and Security:** Features hardware monitoring via IPMI, programmable watchdog timer, and optional TPM (Atmel AT97SC3204) for enhanced security.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High-Performance Intel® Core™ Processor:** Equipped with a quad-core Intel® Core™ i7-4700EQ processor (6MB cache, up to 3.4GHz, 47/37W cTDP), offering advanced computing performance with Intel® Hyper-Threading, Turbo Boost, VT-x, VT-d, and vPro technologies. - **Robust Chipset Integration:** Utilizes the Intel® QM87 Platform Controller Hub (PCH), ensuring stable operation, extended I/O support, and compatibility with industrial-grade peripherals. - **ECC Memory Support:** Onboard 4GB DDR3L-1600 ECC soldered SDRAM ensures data integrity and system stability in mission-critical applications. - **Comprehensive I/O Connectivity:** Includes dual Gigabit Ethernet ports, one USB 3.0 port, two USB 2.0 ports, one RS-232/422/485 serial port, DVI-I video output, PS/2 keyboard/mouse interface, and audio line-in/line-out ports. - **Flexible Storage Options:** Supports onboard SATA 6Gb/s connector for 2.5” HDD/SSD, CFast socket, and optional onboard 32GB SSD (via adapter board replacement). - **Advanced Graphics Capability:** Integrated Intel® HD Graphics engine supports DVI-I output up to 2048×1536 @75Hz and analog output up to 1920×1200 @60Hz. - **CompactPCI® Compliance:** Fully compliant with PICMG 2.0 R3.0, PICMG 2.1 Hot Swap R2.0, PICMG 2.9 System Management R1.0, and PICMG 2.30 CompactPCI PlusIO standards. - **System Management & Monitoring:** Features hardware monitoring via IPMI, watchdog timer, and optional TPM security module. - **Ruggedized Design:** Designed for extended temperature operation (-20°C to +70°C standard, -40°C to +85°C with cTDP adjustment), high shock and vibration tolerance, and 95% non-condensing humidity resistance.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High-Performance Intel® Core™ Processor:** Equipped with a quad-core Intel® Core™ i7-4700EQ processor (6 MB cache, up to 3.4 GHz, 47/37W cTDP), delivering exceptional computational performance for demanding embedded and industrial workloads. - **Intel® QM87 Chipset:** Provides advanced I/O capabilities, integrated graphics, and support for Intel® vPro™, VT-x, and VT-d virtualization technologies. - **ECC Memory Support:** Onboard 4 GB DDR3L-1600 ECC soldered memory ensures data integrity and system stability in mission-critical environments. - **Comprehensive I/O Connectivity:** Includes four Gigabit Ethernet ports (4×GbE), one USB 3.0, one USB 2.0, one serial COM port, and DVI-I video output. - **Flexible Storage Options:** Supports onboard SATA 6 Gb/s interface for 2.5” HDD/SSD, CFast socket, and optional onboard 32 GB SSD (by replacing CFast adapter). - **CompactPCI® Compliance:** Fully compliant with PICMG 2.0 R3.0, PICMG 2.1 Hot Swap R2.0, PICMG 2.9 System Management, and PICMG 2.30 CompactPCI PlusIO standards. - **Rugged Design:** Designed for extended temperature operation (-20°C to +70°C standard, -40°C to +85°C with cTDP adjustment), high shock and vibration resistance, and 95% non-condensing humidity tolerance. - **Graphics and Display Support:** Integrated Intel® HD Graphics engine supports DVI-I output up to 2048×1536 @75Hz and analog output up to 1920×1200 @60Hz. - **System Management and Monitoring:** Includes hardware monitoring via IPMI, watchdog timer, and optional TPM security module. - **Operating System Compatibility:** Supports Windows 7/8 (32/64-bit), Red Hat Enterprise Linux 6.4, Fedora 18, and Wind River VxWorks 6.9.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High-Performance Intel® Core™ Processor:** Equipped with a quad-core Intel® Core™ i7-4700EQ processor (6MB cache, up to 3.4GHz, 47W/37W configurable TDP), providing robust computational performance for demanding embedded applications. - **Intel® QM87 Chipset:** Offers advanced I/O capabilities, integrated graphics, and support for Intel® vPro™, VT-x, and VT-d technologies for virtualization and remote management. - **ECC Memory Support:** Onboard 4GB DDR3L-1600 ECC soldered memory ensures data integrity and system reliability in mission-critical operations. - **Comprehensive I/O Connectivity:** Includes dual Gigabit Ethernet ports, one USB 3.0 port, two USB 2.0 ports, two serial COM ports (RS-232/422/485), PS/2 keyboard/mouse interface, and audio line-in/line-out. - **Advanced Graphics Support:** Integrated Intel® HD Graphics engine with support for up to three independent displays via DVI-I and DVI-D outputs, supporting resolutions up to 2048×1536 @75Hz. - **Flexible Storage Options:** Features a SATA 6Gb/s connector for 2.5” HDD/SSD, a CFast socket, and optional onboard 32GB SSD (by replacing the CFast adapter board). - **CompactPCI® Compliance:** Fully compliant with PICMG 2.0 R3.0, PICMG 2.1 Hot Swap R2.0, PICMG 2.9 System Management, and PICMG 2.30 CompactPCI PlusIO standards. - **Rugged Design:** Designed for extended temperature operation (-20°C to +70°C standard, -40°C to +85°C with cTDP adjustment), high shock/vibration tolerance, and 95% non-condensing humidity. - **System Management and Security:** Integrated hardware monitoring, watchdog timer, and optional TPM (Atmel AT97SC3204) for enhanced system reliability and security.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **High-Performance Intel® Core™ Processor:** Equipped with a quad-core Intel® Core™ i7-4700EQ (up to 3.4 GHz, 6 MB cache, 47/37W cTDP) or dual-core Intel® Core™ i5-4402E (up to 2.7 GHz, 3 MB cache, 25W). Supports Intel® Hyper-Threading, Turbo Boost, VT-x, VT-d, and vPro™ technologies. - **Advanced Chipset and Memory:** Utilizes Intel® QM87 PCH chipset with soldered DDR3L-1600 ECC SDRAM up to 8 GB, ensuring high reliability and data integrity for industrial and embedded applications. - **Flexible CompactPCI® Bus Interface:** 32-bit, 33/66 MHz PCI bus supporting both 3.3V and 5V signaling. Compatible with PICMG 2.0 R3.0, 2.1 Hot Swap R2.0, 2.9 System Management R1.0, and 2.30 CompactPCI PlusIO standards. - **Rich I/O Connectivity:** Up to four Gigabit Ethernet ports, multiple USB 3.0/2.0 ports, serial interfaces (RS-232/422/485), audio I/O, PS/2 keyboard/mouse, and DVI-I/DisplayPort video outputs. - **Graphics and Display Support:** Integrated Intel® HD Graphics engine supporting up to three independent displays. DVI-I output up to 2048×1536 @75Hz and DisplayPort outputs up to 2560×1440 @60Hz. - **Storage Flexibility:** Onboard SATA 6 Gb/s interface for 2.5” HDD/SSD, CFast socket, and optional onboard 32 GB SSD. Rear Transition Module (RTM) provides three SATA connectors supporting RAID 0/1/5/10. - **Rugged and Reliable Design:** Operating temperature range from -20°C to +70°C (standard) or -40°C to +85°C (extended). Designed for high shock (20g) and vibration (2g) resistance. - **Multiple Form Factors and Configurations:** Available in 4HP, 8HP, and 12HP front panel widths with various I/O and expansion options (PMC/XMC, additional GbE, audio, or display ports).

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **Intel® Celeron® 2000E 2.20 GHz Dual-Core Processor:** Provides efficient computing performance for entry-level PXI test systems, balancing cost and processing capability. - **PXI-1 Hardware Specification Rev. 2.2 Compliance:** Ensures full interoperability with PXI chassis and modules conforming to the PXI-1 standard. - **Dual Display Support:** DVI-I interface supports both digital (DVI) and analog (VGA) outputs, enabling simultaneous dual-display operation. - DVI output: up to 1920 × 1200 @ 60 Hz - VGA output: up to 2048 × 1152 @ 60 Hz - **Flexible I/O Connectivity:** - 2 × USB 3.0 ports for high-speed peripherals - 4 × USB 2.0 ports for standard devices - 2 × Gigabit Ethernet ports (Intel® I217 and I210 controllers) - 1 × Micro-D 25-pin GPIB (IEEE 488) connector - 1 × SMB Trigger I/O connector for PXI trigger bus routing - **Integrated GPIB Controller:** Fully IEEE 488 compliant, supporting up to 14 instruments with 1.5 MB/s transfer rate and 2 KB FIFO buffer. - **Programmable Watchdog Timer:** Hardware-based system recovery mechanism for fault tolerance and reliability. - **Dual BIOS Architecture:** Provides a backup BIOS for system recovery in case of primary BIOS corruption. - **Rugged and Serviceable Design:** Features easily replaceable CMOS battery, accessible SODIMM slots, and upgradable storage. - **Operating System Support:** Compatible with Windows 7 (32-bit and 64-bit) and Windows XP; other OS support available upon request.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

3U PXI Celeron 2000E 2,2GHz HM86 4GB DDR3 6*USB 2*GbE 500GB HDD, DVI out up to 1920*1200 bpp @60Hz, analog out up to 2048*1152 bpp @60Hz, 2*USB3.0 and 4*USB2.0, IEEE488 GPIB controller onboar, 60,5*128,7*213,2mmm, ~0,91kg, Adlink

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **Processor Options:** - PXI-3930: Intel® Celeron® 2000E, dual-core, 2.20 GHz - PXIe-3987: Intel® Core™ i7-7820EQ, quad-core, 3.0 GHz (Turbo 3.7 GHz) - **Chipset:** Mobile Intel® HM86 Express Chipset - **Memory:** Dual-channel DDR3L SODIMM up to 16 GB (PXI-3930) or DDR4 up to 32 GB (PXIe-3987) - **Display Support:** Dual independent displays via DVI-I (digital/analog) and VGA outputs - **I/O Interfaces:** - 2 × USB 3.0, 4 × USB 2.0 - 2 × Gigabit Ethernet (Intel® I217 + I210 controllers) - 1 × Micro-D GPIB (IEEE 488) controller - 1 × SMB Trigger I/O connector - RS-232/422/485 via DB9 (PXIe-3987) - **Storage:** 2.5" SATA III (6 Gb/s) HDD or SSD (240 GB–512 GB options) - **PXI/PXIe Bus Throughput:** - PXI-3930: 132 MB/s (PXI-1 Rev. 2.2 compliant) - PXIe-3987: Up to 16 GB/s (PCIe Gen3 x16/x8 link capability) - **Built-in Watchdog Timer and Dual BIOS** for system reliability and recovery - **Trigger I/O Functionality:** Programmable routing between external SMB trigger and PXI backplane trigger bus - **Operating System Support:** Windows 7 x32/x64, Windows 10 x64 (factory preinstalled on PXIe-3987/M8G/512G SSD/Win10)

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **Intel® Celeron® 2000E 2.20 GHz Processor:** Dual‑core Haswell architecture with 5 GT/s DMI bandwidth for efficient multitasking and data throughput. - **PXI‑1 Hardware Specification Rev. 2.2 Compliance:** Ensures full compatibility with standard PXI chassis and backplanes. - **High System Throughput:** Up to 132 MB/s maximum PXI system data transfer rate. - **Dual‑Display Support:** DVI‑I interface supporting simultaneous digital (DVI) and analog (VGA) outputs. - **Flexible I/O Connectivity:** - 2 × USB 3.0 ports for high‑speed peripherals - 4 × USB 2.0 ports for standard devices and instrument control - 2 × Gigabit Ethernet ports (Intel® I217 + I210 controllers) - Integrated IEEE‑488 GPIB controller (Micro‑D 25‑pin) - Trigger I/O SMB connector for PXI trigger bus routing - **Rugged and Serviceable Design:** Easily replaceable CMOS battery, upgradable memory and storage modules. - **Dual BIOS Architecture:** Backup BIOS for recovery in case of primary BIOS corruption. - **Programmable Watchdog Timer:** Hardware‑based system monitoring and automatic reset on software failure. - **Environmental Robustness:** Operational temperature up to 55 °C (SSD configuration), shock and vibration tested. - **Software Support:** Windows 7 (32/64‑bit) and Windows XP; drivers for chipset, graphics, Ethernet, GPIB, PXI trigger, WDT, and USB 3.0.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U

- **Intel® Celeron® 2000E 2.20 GHz Dual‑Core Processor:** Delivers balanced computing performance for test automation and measurement applications. - **PXI‑1 Hardware Specification Rev. 2.2 Compliance:** Ensures full interoperability with PXI chassis and modules. - **High System Throughput:** Up to 132 MB/s maximum PXI bus bandwidth. - **Dual‑Display Support:** DVI‑I connector supports simultaneous DVI (digital) and VGA (analog) outputs. - **Flexible I/O Interfaces:** - 2 × USB 3.0 ports for high‑speed peripherals - 4 × USB 2.0 ports for legacy devices - 2 × Gigabit Ethernet ports (Intel® I217 + I210 controllers) - Integrated IEEE‑488 GPIB controller (Micro‑D 25‑pin) - Trigger I/O SMB connector for PXI trigger bus routing - **Programmable Watchdog Timer:** Hardware‑based system recovery mechanism. - **Dual BIOS Architecture:** Provides backup BIOS for system recovery in case of corruption. - **Rugged Design:** Shock‑resistant (30 G, 11 ms pulse) and vibration‑tolerant (0.21 Grms operating). - **Easy Maintenance:** Field‑replaceable battery, storage, and memory modules. - **Software Compatibility:** Supports Windows 7 (32/64‑bit) and Windows XP; drivers available for chipset, graphics, Ethernet, GPIB, PXI trigger, WDT, and USB 3.0. - **Environmental Reliability:** Operates from 0 °C to 50 °C (HDD) / 55 °C (SSD) with 5–95 % non‑condensing humidity.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe / PXI Controller 3U
