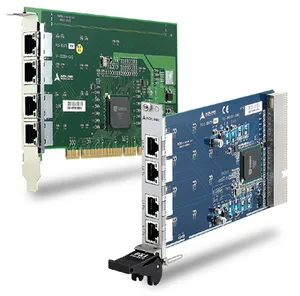

- **Transparent PCI‑to‑PXI and PXI‑to‑PXI Extension:** Functions as a fully transparent PCI‑to‑PCI bridge, allowing remote PXI chassis to appear as local devices to the host system. - **StarFabric High‑Speed Serial Link:** Employs StarFabric serial interconnect technology with 622 Mbps LVDS signaling per pair, achieving 2.5 Gbps full‑duplex bandwidth (5 Gbps total). - **Full PCI Bandwidth Support:** Supports 32‑bit/33 MHz (132 MB/s) and 64‑bit/66 MHz (528 MB/s) PCI data throughput. - **Multi‑Chassis Expansion:** One master module (PCI‑8570 or PXI‑8570) can connect up to two slave PXI‑8570 modules, enabling star or daisy‑chain configurations. - **Hardware and Software Transparency:** No additional drivers required; compatible with all PCI‑compliant operating systems and BIOS configurations. - **Extended Distance Capability:** Shielded copper cabling supports up to 10 m between host and extension chassis. - **Robust EMI Control:** Spread‑spectrum clock generator reduces electromagnetic interference for compliance with CE and FCC Class A standards. - **Flexible Bus Operation:** Supports 33 MHz and 66 MHz PCI bus frequencies; automatic down‑clocking when non‑66 MHz devices are detected. - **Industrial‑Grade Reliability:** Designed for continuous operation in industrial automation, test, and measurement environments.

Hersteller: Adlink Technology Inc.

Kategorie: Bus Extensions

- **High-Resolution Analog Output:** Four 16-bit DAC channels with simultaneous update capability and a maximum update rate of 1 MS/s per channel. - **Excellent Linearity and Accuracy:** Differential nonlinearity (DNL) < ±1 LSB, offset error ±0.3 mV, and gain error ±0.06 mV after calibration. - **Fast Response:** Settling time < 3 µs, slew rate 20 V/µs, rise time 0.67 µs, and fall time 0.705 µs. - **Wide Output Range:** ±10 V bipolar output range with ±5 mA drive capability. - **Comprehensive Digital I/O:** 16 isolated digital inputs and 16 isolated digital outputs (2500 Vrms isolation), plus 8 TTL DI and 8 TTL DO channels. - **Encoder and PWM Support:** Three isolated encoder inputs (CW/CCW, x1/x2/x4 AB phase) and four PWM outputs with programmable duty cycles (1–99%) and frequencies from 20 MHz to 0.005 Hz. - **General-Purpose Timer/Counter:** Two 32-bit counters with internal 80 MHz or external 10 MHz clock sources. - **Advanced Triggering:** Supports software and external digital triggers, post-trigger, delay-trigger, and retrigger modes. - **Hardware-Timed Waveform Generation:** Onboard FIFO (512 samples shared across channels) and DMA support for continuous waveform output. - **Universal PCI Interface:** Compatible with both 3.3 V and 5 V PCI slots. - **Comprehensive Software Support:** Includes DAQPilot SDK, DAQMaster device manager, and legacy PCIS-DASK drivers for Windows. - **Robust Isolation and Protection:** 2500 Vrms isolation for digital I/O and encoder channels, ensuring reliable operation in industrial environments.

Hersteller: Adlink Technology Inc.

Kategorie: D/A General Purpose PCI

- **Four Isolated GPIO Channels:** Provides four independent, optically isolated digital I/O channels for enhanced signal integrity and protection against electrical noise and surges. - **Seamless Integration with RTV‑24:** Designed as a plug‑in extension board for the ADLINK RTV‑24 frame grabber, extending its I/O functionality without additional interface hardware. - **TTL‑Compatible Logic Levels:** Supports standard 5 V TTL logic for compatibility with a wide range of industrial sensors, actuators, and control devices. - **Bidirectional Configuration:** Each GPIO line can be configured as input or output, allowing flexible control and monitoring setups. - **Electrostatic and Overload Protection:** Built‑in protection circuitry ensures reliable operation in electrically noisy environments. - **Software‑Configurable I/O:** Fully programmable through ADLINK’s ViewCreator utility and the AngeloRTV API library. - **Real‑Time Triggering Support:** Enables hardware and software triggers for synchronized image capture and external event control. - **Compact Form Factor:** Small, lightweight board designed for internal installation within PC‑based vision systems. - **Industrial Reliability:** Designed for continuous operation in surveillance, machine vision, and automation environments.

Hersteller: Adlink Technology Inc.

Kategorie: Frame Grabber

PCI DAQ card with 4 differential simultaneous-sampling analog inputs, 14-bit resolution, up to 2 MS/s, 2-channel 12-bit analog output, 24-bit 8255 programmable digital I/O, and 2-channel 16-bit timer/counter. Supports software, external digital/analog trigger, and SSI bus.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

PCI DAQ card with 4 differential simultaneous-sampling analog inputs, 16-bit resolution with no missing codes, up to 250 kS/s, 2-channel 12-bit analog output, 24-bit 8255 programmable digital I/O, and 2-channel 16-bit timer/counter. Supports software, external digital/analog trigger, and SSI bus.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

PCI DAQ card with 4 differential simultaneous-sampling analog inputs, 16-bit resolution with no missing codes, up to 500 kS/s, 2-channel 12-bit analog output, 24-bit 8255 programmable digital I/O, and 2-channel 16-bit timer/counter. Supports software, external digital/analog trigger, and SSI bus.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

- **Four‑Channel Real‑Time MPEG‑4 Hardware Encoding:** Supports simultaneous capture and compression of four analog video inputs at full D1 resolution (NTSC 640×480 @ 30 fps × 4 = 120 fps total; PAL 768×576 @ 25 fps × 4 = 100 fps total). - **Adjustable Video Quality and Bitrate Control:** Programmable GOP structures (I, IP, IBP, IBBP) with constant or variable bitrate (CBR/VBR) from 1 Kbps to 40 Mbps. Frame and bit rates can be tuned for bandwidth‑limited or remote streaming environments. - **Real‑Time Raw Data Preview:** Hardware‑assisted live preview in single‑channel full‑D1 or four‑channel quad‑display mode without CPU overhead. - **Integrated Video Decoder and Playback Support:** Software decoding for playback or remote monitoring without requiring the PCI‑MPG24 card installed on the client system. - **AVI File Recording:** Encoded streams can be saved directly to standard AVI containers for playback in Microsoft Media Player or other DirectShow‑compliant players. - **TTL‑Compatible Digital I/O:** Four TTL inputs and four outputs for event triggering, alarm signaling, or external device control. Over‑voltage and ESD protection included. - **Hardware Watchdog Timer:** Monitors host application activity and automatically resets the system after a programmable timeout—ideal for unattended or remote installations. - **On‑Board Memory:** 64 MB SDRAM buffer for frame storage and smooth streaming. - **User EEPROM:** 1 Kbit non‑volatile memory for integrator‑defined data or system identification. - **Software Support:** Microsoft DirectX 9.0, Visual Studio .NET, VC++, Borland C++ Builder; sample applications and the “ViewCreator” utility included. - **Operating System Compatibility:** Windows 2000 Professional (SP4) and Windows XP Professional (SP2).

Hersteller: Adlink Technology Inc.

Kategorie: Frame Grabber

- **4-Slot CompactPCI® Backplane:** Supports up to four 6U CompactPCI boards, enabling modular system configuration and expansion. - **6U Front I/O Design:** Optimized for front-accessible I/O connections, simplifying maintenance and integration in rack-mounted or benchtop systems. - **Compact and Lightweight Construction:** Weighing approximately **4.1 kg**, the chassis offers a balance between structural rigidity and portability. - **Optimized Dimensions:** With a footprint of **137 mm (H) × 330 mm (W) × 231 mm (D)**, the cPCIS-5040 provides a space-efficient enclosure suitable for confined installations. - **Power Supply Flexibility:** Delivered **without a power supply**, allowing users to select and integrate a power module that best fits their voltage and current requirements. - **Industrial-Grade Build Quality:** Designed for continuous operation in industrial environments, ensuring durability, vibration resistance, and thermal stability. - **Modular System Integration:** Compatible with ADLINK’s range of CompactPCI system controllers, peripheral boards, and backplanes, supporting scalable system architectures. - **Front I/O Accessibility:** Facilitates easy cable management and quick access to connectors, ideal for test, measurement, and control applications. - **Passive Cooling Support:** Designed to accommodate system-level cooling solutions, ensuring stable thermal performance for high-power CompactPCI boards.

Hersteller: Adlink Technology Inc.

Kategorie: PXIe PXI Chassis

- **Signal Conversion Interface:** Converts a 40-pin flat ribbon cable connection to a DB37 male connector, enabling easy integration with external devices and terminal boards. - **Compatibility:** Designed for use with ADLINK DAQ and digital I/O cards, including the ACL-7225 and PCI-7200, ensuring seamless electrical and mechanical compatibility. - **High-Quality Connector Design:** Features precision-machined DB37 male connector with gold-plated contacts for enhanced conductivity and corrosion resistance. - **Compact Form Factor:** Engineered for installation in limited-space environments such as PC chassis or test benches. - **Durable Construction:** Built with industrial-grade materials to withstand mechanical stress, vibration, and temperature variations typical in automation and test applications. - **Ease of Integration:** Provides a standardized interface for connecting external sensors, actuators, or control devices without custom wiring. - **Secure Mounting:** Includes mounting holes and slot alignment features for stable installation within system enclosures. - **Low Crosstalk and Signal Integrity:** Optimized PCB trace layout minimizes interference and maintains signal fidelity across all channels. - **Plug-and-Play Compatibility:** No additional configuration required; the adapter functions as a passive interface between the 40-pin header and DB37 connector.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

43-inch open-frame industrial touch monitor with 3840 x 2160 resolution, 400 nits brightness, LED backlight rated up to 50,000 hours, 10-point PCAP touchscreen with anti-fingerprint coating, HDMI x2, DP x1, USB x1, front IP65 protection, DC 24V input, and operating temperature -10°C to 60°C.

Hersteller: Adlink Technology Inc.

Kategorie: Keine Kategorie

- **48 Programmable Digital I/O Lines:** Configurable as input or output in two groups of 24 channels each. - **8255 Mode 0 Compatibility:** Emulates two Intel 8255 PPIs for flexible I/O configuration. - **High Output Drive Capability:** Up to 24 mA sink and 15 mA source per channel. - **Low Input Loading:** 0.2 mA at 0.4 V ensures minimal signal distortion. - **Integrated Event Counter:** One 16‑bit programmable counter for event counting up to 2 MHz. - **Programmable Timer Pacer:** One 32‑bit timer (two cascaded 16‑bit counters) with selectable 32.768 kHz or 2 MHz clock sources. - **Interrupt Support:** Selectable IRQ3–IRQ15 (9 levels) for event, timer, or input‑triggered interrupts. - **Opto‑22 Connector Compatibility:** Two 50‑pin connectors (CN1, CN2) with standard Opto‑22 pinout for easy integration with industrial I/O modules. - **Compact ISA Form Factor:** Occupies only two consecutive I/O addresses, allowing multiple cards per system. - **TTL Logic Compatibility:** All I/O lines are TTL‑level compatible using 74LS244 buffer/driver circuits. - **Software Support:** Includes DOS and Windows drivers, C/C++ libraries, and LabVIEW driver (ACLS‑LVIEW). - **Flexible Jumper Configuration:** Adjustable base address, pull‑up/pull‑down resistors, interrupt levels, and clock sources.

Hersteller: Adlink Technology Inc.

Kategorie: Counter/Timer ISA

- **Four-Channel Real-Time Video Capture:** Simultaneous acquisition of up to four analog video streams in real time via composite BNC inputs. - **MPEG4 Software Compression:** High-quality MPEG4 encoding and decoding with adjustable bitrate and frame rate for optimized storage and transmission. - **Flexible Video Format Support:** Compatible with NTSC, PAL, CCIR, and EIA standards; supports resolutions from QCIF (160×120) to 4CIF (640×480 NTSC / 768×576 PAL). - **Motion Detection:** Configurable up to four detection zones per frame with adjustable sensitivity and programmable actions. - **TCP/IP Streaming:** Real-time video transmission over IP networks with flow rate monitoring. - **Watchdog Timer:** Hardware watchdog for system reliability; automatically resets the host PC after inactivity timeout. - **General Purpose I/O (GPIO):** Four TTL-compatible inputs, four outputs, and four software trigger lines for external control and event signaling. - **Software Development Kit (SDK):** Includes WDM drivers and a comprehensive function library for C++, Visual Basic, Delphi, and Borland C++ Builder. - **ViewCreator Utility:** GUI-based configuration and testing tool for video capture, encoding, and I/O control. - **Scalable Architecture:** Expandable up to 16 channels using optional RTV-E4 extension boards. - **EEPROM Integration:** 1 Kbit user EEPROM for storing configuration or identification data. - **System Protection:** Unique hardware ID for software licensing and system integration security.

Hersteller: Adlink Technology Inc.

Kategorie: Frame Grabber

- **High-Quality IEEE-488 (GPIB) Cable:** Designed for use in instrumentation and automation systems requiring IEEE-488 standard connectivity. - **Length:** 4 meters (13.12 feet), providing flexibility in equipment layout without compromising signal quality. - **Heavy-Duty Construction:** Built with industrial-grade materials for durability in laboratory and production environments. - **Double-Sided Metal Connectors:** Precision-machined connectors with full metal shells for enhanced mechanical strength and EMI shielding. - **Reliable Signal Transmission:** Optimized impedance and shielding minimize crosstalk and signal degradation across the full cable length. - **Stackable Connector Design:** IEEE-488 standard connectors allow daisy-chaining of multiple instruments on the same bus. - **Secure Locking Mechanism:** Screw or latch-type retention ensures stable connections even under vibration or frequent handling. - **Backward Compatibility:** Fully compatible with legacy and modern GPIB instruments from major manufacturers such as Keysight, Tektronix, Rohde & Schwarz, and National Instruments. - **Plug-and-Play Operation:** No configuration required; supports automatic device recognition in compliant systems. - **Industrial and Laboratory Grade:** Suitable for precision measurement, automated test equipment (ATE), and data acquisition systems.

Hersteller: Adlink Technology Inc.

Kategorie: IEEE (GPIB) Cards

- **High‑Density Compute Platform:** Supports four dual‑socket Intel® Xeon® E5‑2600 v3/v4 or Xeon® Scalable processors, enabling up to 8 CPUs and 160 cores per system. - **Open Compute Carrier‑Grade Architecture:** Fully compliant with OCCERA standards for modular, carrier‑grade edge infrastructure. - **Flexible Networking Architecture:** Dual switch modules (MXN‑3610 or MXN‑4100SR) provide 2×50 Gb internal Ethernet links per compute node and up to 1.2 Tb/s total bandwidth. - **Scalable I/O Options:** Configurable via switch sleds and Network Interface Modules (NIMs): - MXN‑3610: 20×10 Gb SFP+ ports - MXN‑4100SR: 4×100 Gb QSFP28 ports - NIM‑1610: 16×10 Gb SFP+ ports - NIM‑0440: 4×40 Gb QSFP+ ports - **Advanced Chassis Management:** Integrated Chassis Management Module (CMM) with IPMI v2.0, CLI, and web interface for monitoring CPU nodes, fans, and PSUs. - **Redundant Power and Cooling:** 3+1 redundant 850 W AC/DC PSUs and variable‑speed fans ensure high availability. - **Hot‑Swappable Modules:** Compute and switch sleds are field‑replaceable and hot‑swappable for uninterrupted service. - **Software Integration:** Includes ADLINK PacketManager with Layer 2/3 switch stacks, ACLs, VLAN, and load‑balancing features. Validated with DPDK for high‑throughput packet processing.

Hersteller: Adlink Technology Inc.

Kategorie: Rack GbE Switches

- **50-Pin Header Interface:** Standard 50-pin male header connector compatible with flat ribbon cables and I/O modules using 50-pin connectors. - **DIN Rail Mountable:** Designed for direct installation on standard DIN rails, enabling quick integration into control cabinets and industrial enclosures. - **Compact Form Factor:** Space-efficient design with dimensions of **145 mm (L) × 77 mm (W) × 52 mm (H)**, suitable for dense control panel layouts. - **Passive Termination Board:** Provides direct signal termination without active components, ensuring signal integrity and minimal interference. - **High-Quality Construction:** Built with durable materials for industrial reliability and long service life. - **Ease of Wiring:** Clearly labeled terminal points for straightforward signal identification and wiring. - **Compatibility:** Designed to interface with ADLINK data acquisition (DAQ) cards and other I/O modules using 50-pin connectors. - **Cable Interface:** Compatible with **ACL-10150-1.5** cable (not included), allowing flexible connection between the termination board and host devices. - **Industrial Application Ready:** Suitable for automation, process control, and laboratory instrumentation setups.

Hersteller: Adlink Technology Inc.

Kategorie: DIN Rail Panels

- **Interface Conversion:** Converts a 50-pin internal header connection to a standard external SCSI-II connector mounted on a PC back panel. - **High Signal Integrity:** Designed to maintain signal quality and minimize crosstalk and interference across the 50-pin parallel interface. - **Industrial-Grade Construction:** Built with robust materials suitable for industrial and laboratory environments. - **Ease of Integration:** Provides a straightforward method to route internal signals to an external SCSI-II interface without custom cabling. - **Compatibility:** Fully compatible with ADLINK data acquisition (DAQ) cards and other industrial I/O boards that use a 50-pin header interface. - **Standardized Connector Type:** Uses a standard SCSI-II (Half-Pitch 50-pin, HPDB50) connector for external interfacing. - **Panel-Mount Design:** Designed for installation on a PC back panel, providing a secure and accessible external connection point. - **Reliable Electrical Performance:** Ensures consistent impedance and grounding for high-speed parallel data transmission. - **Plug-and-Play Integration:** No active components or configuration required; functions as a passive adapter. - **Durable Connector Interface:** Gold-plated contacts for enhanced conductivity and corrosion resistance.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **Interface Type:** SCSI-II (50-pin) - **Connector Type:** Male-to-Male, Centronics-style or Half-Pitch 50-pin (HPDB50) depending on configuration - **Cable Length:** 1 meter (approx. 3.28 feet) - **High-Speed Data Transfer:** Supports SCSI-II data rates up to 10 MB/s (Fast SCSI) - **Signal Integrity:** Twisted-pair construction and shielding minimize crosstalk and electromagnetic interference (EMI) - **Industrial-Grade Build:** Designed for reliable operation in laboratory, industrial automation, and embedded computing environments - **Plug-and-Play Compatibility:** Fully compatible with standard SCSI-II devices and host adapters - **Durable Construction:** Molded strain relief and reinforced connectors for extended service life - **Backward Compatibility:** Supports legacy SCSI-I devices and forward-compatible with certain SCSI-III interfaces (with appropriate adapters) - **Manufacturer Quality Assurance:** Produced by ADLINK, a recognized manufacturer of industrial computing and connectivity solutions

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **SCSI-II Compatibility:** Fully compliant with the SCSI-II (Small Computer System Interface, Revision 2) standard, supporting 50-pin connections for legacy and industrial devices. - **Male-to-Male Configuration:** Equipped with two 50-pin male connectors, enabling direct connection between SCSI-II host adapters, controllers, and peripheral devices. - **High Signal Integrity:** Designed with precision-twisted pair wiring and shielding to minimize crosstalk, electromagnetic interference (EMI), and signal degradation over the 2-meter length. - **Industrial-Grade Construction:** Manufactured with durable materials suitable for continuous operation in demanding environments, ensuring long-term reliability. - **Optimized Length (2m):** Provides sufficient reach for typical rack-mounted or benchtop setups while maintaining optimal signal quality and minimal latency. - **Secure Connection:** Features robust connector housings with strain relief to prevent cable fatigue and ensure stable mechanical coupling. - **Backward Compatibility:** Supports legacy SCSI-I and SCSI-II devices, making it ideal for maintaining or upgrading existing systems. - **Plug-and-Play Operation:** No additional configuration required; simply connect compatible devices to establish a data link. - **Adlink Quality Assurance:** Manufactured and tested under Adlink’s stringent quality control standards for industrial connectivity products.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **SCSI-II Compatibility:** Fully compliant with the SCSI-II (Small Computer System Interface, second generation) standard, supporting data transfer rates up to 10 MB/s (Fast SCSI). - **50-Pin Male-to-Male Connectors:** Equipped with two 50-pin male connectors, typically of the Centronics or Half-Pitch (HPDB50) type, ensuring compatibility with a wide range of SCSI-II devices and host adapters. - **Extended Length (4 meters):** Provides a 4-meter connection distance, ideal for setups requiring flexible equipment placement without signal degradation. - **High Signal Integrity:** Shielded cable construction minimizes electromagnetic interference (EMI) and crosstalk, ensuring stable and accurate data transmission. - **Durable Construction:** Industrial-grade materials and robust connector housings designed for long-term reliability in demanding environments. - **Plug-and-Play Operation:** No additional configuration required; simply connect between SCSI-II devices for immediate operation. - **Backward Compatibility:** Supports legacy SCSI-I devices and forward-compatible with certain SCSI-III interfaces when used with appropriate adapters. - **Optimized for ADLINK Systems:** Designed to integrate seamlessly with ADLINK DAQ, motion control, and industrial computing products that utilize SCSI-II interfaces.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **50-Pin SCSI-II Male Connector:** Conforms to the SCSI-II (Small Computer System Interface, Revision 2) standard, supporting parallel data transfer for peripheral devices. - **High-Density Connector Design:** Compact 50-pin configuration optimized for multi-device connectivity in limited space environments. - **AMP/Tyco Electronics Quality:** Utilizes AMP-manufactured connector components, ensuring high mechanical durability, precision contact alignment, and long-term reliability. - **Adlink Integration:** Designed by Adlink for compatibility with Adlink data acquisition cards, industrial controllers, and I/O modules. - **Assembly Kit Format:** Supplied as a complete assembly kit including connector housing, contacts, and strain relief components for custom cable fabrication. - **Shielded Construction:** Supports shielded cable termination to minimize electromagnetic interference (EMI) and maintain signal integrity. - **Secure Locking Mechanism:** Features a robust mechanical latch system for secure mating and unmating cycles. - **Wide Compatibility:** Suitable for legacy and modern SCSI-II applications, including instrumentation, data acquisition, and industrial automation systems. - **RoHS-Compliant Materials:** Manufactured using lead-free, environmentally compliant materials. - **Field-Serviceable Design:** Allows easy assembly, disassembly, and maintenance for field installations or custom cable configurations.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **SCSI-II 50-pin Interface:** Equipped with a standard 50-pin SCSI-II female connector, ensuring compatibility with a wide range of SCSI-II devices and cables. - **DIN Rail Mounting:** Designed for direct installation on DIN rails, simplifying integration into industrial control panels and rack systems. - **No Cable Configuration:** The termination board is supplied without a cable, allowing users to select or fabricate custom-length cables suited to their specific installation requirements. - **Compact Industrial Design:** With dimensions of 124 × 77 × 50 mm, the board offers a space-efficient solution for dense control environments. - **Reliable Signal Termination:** Provides proper electrical termination for SCSI-II buses, minimizing signal reflections and maintaining data integrity across the communication line. - **High-Quality Construction:** Built with durable materials and precision connectors to ensure long-term reliability in demanding industrial conditions. - **Ease of Integration:** The standardized form factor and connector layout facilitate quick installation and maintenance. - **Versatile Application Range:** Suitable for use in data acquisition systems, test and measurement setups, industrial automation networks, and embedded computing platforms requiring SCSI-II connectivity.

Hersteller: Adlink Technology Inc.

Kategorie: DIN Rail Panels

- **High-Density 50-Pin Interface:** Equipped with dual 50-pin connectors, the cable supports parallel signal transmission for multi-channel data acquisition and control systems. - **1-Meter Length:** Provides a balanced compromise between flexibility and signal integrity, suitable for bench setups and rack-mounted systems. - **Optimized for ADLINK DAQ Products:** Designed for seamless integration with ADLINK’s PCI, PXI, and USB DAQ cards and terminal boards. - **Durable Construction:** Features high-quality shielding and strain relief to minimize electromagnetic interference (EMI) and mechanical stress. - **Reliable Signal Integrity:** Ensures low crosstalk and consistent impedance across all channels, maintaining accurate analog and digital signal transmission. - **Plug-and-Play Compatibility:** Standardized pin configuration allows straightforward connection without custom wiring or adapters. - **Industrial-Grade Materials:** Built to withstand continuous operation in laboratory, manufacturing, and automation environments. - **Secure Locking Mechanism:** Connectors include retention clips or screws (depending on variant) to prevent accidental disconnection.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **50-Pin to 50-Pin Connectivity:** Designed for direct connection between devices equipped with standard 50-pin headers, such as ADLINK DAQ cards and terminal boards. - **High Signal Integrity:** Shielded cable construction minimizes electromagnetic interference (EMI) and crosstalk, ensuring accurate data transmission. - **Industrial-Grade Durability:** Built with robust materials suitable for continuous operation in industrial automation, testing, and measurement environments. - **Optimized Length (2 meters):** Provides sufficient reach for typical rack-mounted or benchtop setups without excessive signal loss. - **Secure Connector Design:** High-quality molded connectors with strain relief prevent mechanical stress and ensure long-term reliability. - **Plug-and-Play Compatibility:** Fully compatible with ADLINK’s range of DAQ and I/O products, simplifying integration and setup. - **Versatile Application Range:** Suitable for analog and digital signal transmission, control systems, and data acquisition setups. - **RoHS-Compliant Construction:** Manufactured using environmentally safe materials in compliance with global standards.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **50‑Pin to 50‑Pin Connectivity:** Provides a direct, one‑to‑one connection between two 50‑pin headers or connectors, ensuring full signal mapping without cross‑wiring. - **3‑Meter Cable Length:** Offers extended reach for flexible equipment placement within racks, test benches, or control cabinets. - **High Signal Integrity:** Designed to minimize crosstalk, noise, and signal degradation across all 50 channels, supporting both analog and digital signal transmission. - **Industrial‑Grade Construction:** Built with robust insulation and shielding materials suitable for demanding environments. - **Compatibility with ADLINK DAQ and I/O Cards:** Optimized for use with ADLINK PCI, PXI, and USB DAQ modules that utilize 50‑pin connectors (e.g., SCSI‑type or VHDCI interfaces). - **Secure Connector Design:** Equipped with locking or friction‑fit connectors to ensure stable mechanical connection and prevent accidental disconnection. - **Plug‑and‑Play Integration:** No additional configuration required; supports direct connection between compatible devices. - **RoHS‑Compliant Materials:** Manufactured using environmentally safe materials in compliance with global environmental directives.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories

- **50-pin to 50-pin Connectivity:** Designed for direct connection between two 50-pin interfaces, typically used in ADLINK DAQ cards, terminal boards, or breakout modules. - **Extended Cable Length (4 meters):** Provides ample reach for connecting devices within control cabinets, test benches, or distributed system setups. - **High Signal Integrity:** Shielded construction minimizes electromagnetic interference (EMI) and crosstalk, ensuring accurate data transmission even in electrically noisy industrial environments. - **Industrial-Grade Durability:** Built with robust materials and precision-molded connectors to withstand mechanical stress, vibration, and temperature variations. - **Plug-and-Play Compatibility:** Fully compatible with ADLINK’s range of 50-pin accessories, including terminal boards and DAQ modules, enabling quick and reliable setup. - **Secure Connector Locking:** Equipped with retention screws or latching mechanisms to prevent accidental disconnection during operation. - **Optimized for Data Acquisition Systems:** Designed to maintain signal fidelity for analog and digital I/O signals, timing, and control lines. - **Flexible Cable Jacket:** The outer sheath provides flexibility for routing in tight spaces while maintaining mechanical protection.

Hersteller: Adlink Technology Inc.

Kategorie: Cables and Accessories
