100Mb Switches
Network solutions are essential for industrial applications. Industrial Ethernet Managed Switches provide reliable and secure connections for a variety of industrial environments. These managed switches are available in a variety of speeds, from 10Mb to 100Mb, and are designed to ensure reliable performance in harsh industrial environments.
Products
IES-3062FX-MM-SC
- **High‑Performance Managed Switching:** Eight‑port managed switch with 6×10/100Base‑T(X) RJ‑45 ports and 2×100Base‑FX multimode SC fiber ports. - **Ultra‑Fast Redundant Ethernet Ring:** ORing’s proprietary O‑Ring technology provides recovery times under 10 ms across up to 250 connected units, ensuring near‑instantaneous network self‑healing. - **Comprehensive Redundancy Protocols:** Supports O‑Ring, Open‑Ring, O‑RSTP, RSTP (802.1w), MSTP (802.1s), and Dual Homing for flexible redundancy topologies. - **Advanced Network Management:** Managed via Web GUI, Telnet, Console (RS‑232), CLI, SNMP v1/v2c/v3, and ORing’s Open‑Vision software for centralized monitoring. - **Robust Industrial Design:** IP‑30 metal enclosure, DIN‑rail or wall‑mount installation, triple redundant 12–48 V DC power inputs, and extended ‑40 °C to +70 °C operating range. - **Enhanced Security:** 802.1X port‑based authentication, MAC‑based port security, IP access control, SNMPv3 encryption, and RADIUS centralized authentication. - **Comprehensive VLAN and QoS Support:** IEEE 802.1Q VLAN tagging, GVRP, QinQ, and 802.1p QoS with four priority queues for deterministic traffic handling. - **Event and Alarm Management:** Fault relay output, alarm LED, e‑mail and SNMP trap notifications, and system log (SYSLOG) for proactive fault detection. - **Flexible Configuration and Diagnostics:** Web‑based configuration, firmware upgrade via TFTP, backup/restore, port mirroring, rate limiting, and extensive diagnostic tools. - **High Immunity and Reliability:** ESD protection 4 kV DC on Ethernet ports, surge protection 2 kV DC on power inputs, and compliance with IEC 60068 shock/vibration standards.
Manufacturer: Oring
Category: 100Mb Switches
IES-3062FX-SS-SC
- **High‑Performance Industrial Ethernet:** Supports 6×10/100Base‑T(X) RJ‑45 ports and 2×100Base‑FX single‑mode SC fiber ports for long‑distance transmission up to 30 km. - **Ultra‑Fast Redundant Ethernet Ring:** ORing’s proprietary **O‑Ring** technology provides network recovery times of **
Manufacturer: Oring
Category: 100Mb Switches

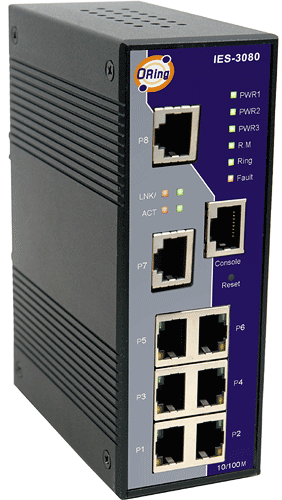

IES-3080
- **High‑Speed Redundant Ethernet Ring:** Supports ORing’s proprietary O‑Ring technology with recovery time
Manufacturer: Oring
Category: 100Mb Switches

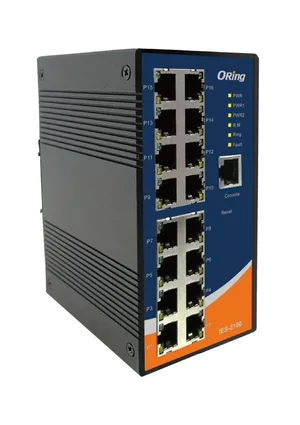

IES-3160
- **High‑speed Redundant Ethernet Ring:** Implements ORing’s proprietary O‑Ring technology with recovery time
Manufacturer: Oring
Category: 100Mb Switches

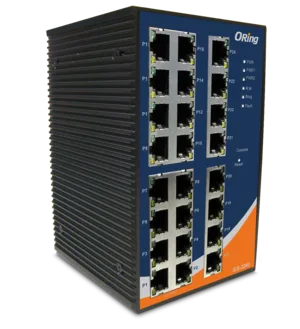

IES-3240
- **High Port Density:** 24 × 10/100Base-T(X) RJ-45 ports with auto MDI/MDIX support. - **Ultra-Fast Redundancy:** ORing’s O-Ring technology provides recovery times under 10 ms across up to 250 connected devices. - **Open-Ring Compatibility:** Interoperates with other vendors’ ring technologies in open architectures. - **O-RSTP Support:** Proprietary rapid spanning tree protocol for complex topologies with sub-10 ms recovery. - **Standard Redundancy Protocols:** STP, RSTP, and MSTP (IEEE 802.1D/w/s) supported. - **Precision Time Synchronization:** IEEE 1588 PTP Client support for nanosecond-level clock accuracy. - **Comprehensive Management:** Web-based GUI, Telnet, CLI, RS-232 console, and centralized Windows utility (Open-Vision). - **Advanced Security:** 802.1x authentication, MAC-based port security, RADIUS centralized management, SNMPv3 encryption. - **Traffic Optimization:** QoS (IEEE 802.1p), TOS/DiffServ, port trunking, and IGMP snooping for multicast control. - **Event Notification:** Syslog, SNMP trap, email alerts, and relay output for fault events. - **Industrial Design:** IP-30 metal enclosure, DIN-rail and wall-mount options, dual redundant 12–48 VDC power inputs. - **Wide Temperature Range:** Operates from -40°C to +70°C for extreme industrial environments. - **Reliability:** 5-year warranty and compliance with industrial EMC and safety standards.
Manufacturer: Oring
Category: 100Mb Switches
