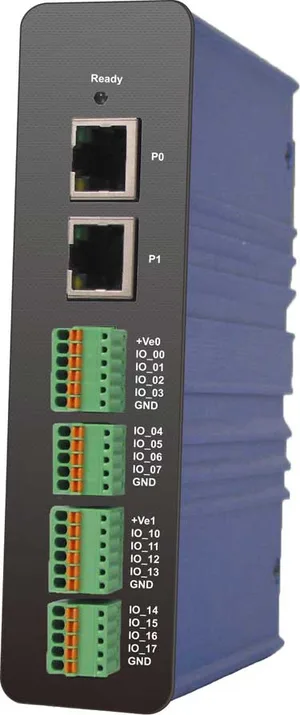

- **16 Configurable Digital I/O Channels:** Each channel can be independently configured as input or output via software. - **Dual Ethernet Ports (2×LAN):** 10/100 Mbps auto‑negotiation ports supporting daisy‑chain topology for simplified network wiring. - **Standalone Web Server:** Built‑in web interface for configuration, monitoring, and control without external software. - **Watchdog Timer (WDT):** Programmable 1–65,535 ms watchdog for communication discontinuity detection and system safety. - **Software Counter Function:** Any TTL input can function as a counter up to 200 Hz for event counting or frequency measurement. - **Over‑Voltage and Over‑Current Protection:** - Input protection up to 60 V DC (max) - Output current protection up to 50 mA (max) - **Flexible Power Supply:** Operates from 12 V DC to 24 V DC. - **DIN‑Rail Mountable:** Compact metal enclosure designed for industrial control cabinets. - **Standalone Control Mode:** Can execute pre‑programmed I/O logic sequences without continuous Ethernet connection, functioning like a small PLC. - **Software Development Support:** Includes Windows DLL library (EMD8216.dll) and API for C/C++ and Visual Basic, enabling custom application development. - **Wide Environmental Tolerance:** Operates from 0 °C to +70 °C, humidity 5–95 % RH non‑condensing. - **High Reliability:** Industrial‑grade design with metal housing, hardware watchdog, and robust communication protocol.

Manufacturer: JS Automation

Category: Digital Modules

- **Ethernet Connectivity:** Supports 10/100 Mbps auto-switching Ethernet interface for reliable network communication and remote control. - **Digital I/O Configuration:** - 4 TTL digital inputs with over-voltage and over-current protection. - 4 relay outputs capable of switching AC or DC loads. - **High-Speed Counter Function:** Each digital input can function as a low-speed counter up to **200 pulses per second (200 Hz)**, suitable for event counting and signal monitoring. - **Protection and Reliability:** - Input over-voltage protection up to **60 VDC**. - Input over-current protection up to **50 mA**. - Relay outputs rated for **3A @ 250 VAC** or **3A @ 30 VDC**. - **Software Integration:** - Supplied with **Windows DLL library (EMD7201.dll)** for easy integration with C/C++, Visual Basic, and other Windows-based development environments. - Supports **API functions** for initialization, I/O control, counter management, IP configuration, and security. - **Security and Access Control:** - Built-in password protection and software key functions to prevent unauthorized configuration changes. - Default password: “12345678”. - **Flexible IP Configuration:** - IP address and communication port can be reassigned via software commands. - Supports remote reboot and configuration validation. - **Compact Industrial Design:** - DIN rail mountable enclosure. - Rugged design for industrial environments with wide operating temperature and humidity ranges. - **Cross-Platform Support:** - Compatible with Windows 2000, XP, Vista, and later. - API and DLL support for integration into custom applications.

Manufacturer: JS Automation

Category: Digital Modules

- **Ethernet Connectivity:** Supports 10/100 Mbps auto‑switching Ethernet interface for reliable network communication. - **Digital I/O Configuration:** - 8 TTL digital inputs with over‑voltage and over‑current protection. - 8 relay outputs rated at 3 A @ 250 VAC or 3 A @ 30 VDC. - **High‑Speed Counter Function:** Each digital input can function as a low‑speed counter up to **200 Hz (200 pps)** maximum. - **Protection and Reliability:** - Input over‑voltage protection up to **60 V DC (max)**. - Input over‑current protection up to **50 mA (max)**. - Relay isolation for safe switching of AC/DC loads. - **Flexible Software Integration:** - Supplied with **Windows DLL (EMD7201.dll)** and API libraries for C/C++, Visual Basic, and Borland environments. - Supports direct socket communication and IP mapping functions. - Compatible with Windows 2000/XP/Vista and later. - **Security and Access Control:** - Built‑in password protection and software key functions. - Supports password change, reset to factory default, and lock/unlock operations. - **Remote Configuration and Control:** - IP address and communication port can be reassigned via software. - Supports remote reboot and configuration validation. - **DIN‑Rail Mountable:** Compact industrial housing suitable for control cabinets and automation panels. - **Wide Operating Range:** - Power supply: 24 V DC nominal (22–26 V DC). - Operating temperature: 0 °C – +70 °C. - Humidity: 5 – 95 % RH, non‑condensing. - **Compact Dimensions:** 89 mm (D) × 110 mm (W) × 34 mm (H).

Manufacturer: JS Automation

Category: Digital Modules

- **Ethernet Connectivity:** 10/100 Mbps auto‑switching Ethernet interface for reliable, high‑speed communication. - **8 TTL Digital Inputs:** Logic‑level inputs with over‑voltage protection up to 60 V DC and over‑current protection up to 50 mA. - **8 Transistor Outputs:** Open‑collector transistor outputs rated at 500 mA (peak) / 45 V DC (max). - **Counter Functionality:** Each input can function as a low‑speed counter (≤ 200 pulses per second). - **Web‑Based Control:** Integrated web interface for direct configuration and I/O monitoring without additional software. - **Software Integration:** Comprehensive Windows DLL library (EMD7201.dll) supporting C/C++, Visual Basic, and Borland C++ Builder. - **Security Management:** Password‑protected access with unlock, change, and reset‑to‑default functions. - **Flexible IP Configuration:** Supports IP reassignment and remote port configuration via software commands. - **DIN‑Rail Mounting:** Compact industrial housing suitable for control cabinets and automation panels. - **Wide Power Range:** Operates from 12 V DC to 26 V DC (for ‑T model). - **High Reliability:** Designed for continuous industrial operation with wide temperature and humidity tolerance.

Manufacturer: JS Automation

Category: Digital Modules

- **16 Configurable Digital I/O Channels:** Each channel can be independently configured as input or output, providing flexibility for diverse control and monitoring tasks. - **TTL-Level Interface:** Supports TTL logic levels with over-voltage and over-current protection. - **High Drive Output Capability:** Each output channel can drive up to 500 mA (peak) at 45 VDC maximum. - **Over-Voltage and Over-Current Protection:** Input channels protected up to 60 VDC and 50 mA maximum. - **Ethernet Connectivity:** 10/100 Mbps auto-switching Ethernet interface for remote monitoring and control. - **Web-Based and DLL Control:** Supports web-based configuration and control via provided Windows/Linux DLL libraries. - **Counter Functionality:** Each input channel can function as a low-frequency counter (up to 200 Hz). - **Watchdog Timer (WDT):** Built-in hardware watchdog timer for system reliability and fail-safe operation. - **Security Features:** Password protection, lock/unlock functions, and configurable access control. - **Flexible Power Supply:** Operates from 12–24 VDC, suitable for industrial environments. - **Compact DIN Rail Mount Design:** Dimensions 89 × 110 × 34 mm for easy integration into control panels. - **Wide Operating Range:** Operates from 0°C to +70°C, humidity 5–95% RH non-condensing. - **Software Development Support:** Compatible with Borland C/C++, Microsoft Visual C/C++, and Visual Basic. - **Remote Configuration:** IP address and port can be reassigned via software commands.

Manufacturer: JS Automation

Category: Digital Modules

- **Dual Ethernet Ports (RJ‑45):** Two 10/100 Base‑T ports with built‑in Ethernet switch for daisy‑chain networking. Supports IEEE 802.3 and 802.3u standards. - **Auto‑Bypass Protection:** Maintains network connectivity within 1 second of power failure on intermediate modules. - **High‑Density Mixed I/O:** 10 × Digital Inputs (Dry/Wet contact selectable) 6 × Digital Outputs (Open‑collector NPN type) - **Optical Isolation:** 3750 Vrms isolation between I/O channels and logic circuitry for enhanced noise immunity. - **Industrial Protocol Support:** Native **Modbus/TCP** server and **UDP/IP** communication for open connectivity. - **Advanced I/O Functions:** - DIO Synchronization (mirror DI to local or remote DO) - DO Auto‑Off Time (monostable output) - High/Low Delay Output Mode - Power‑On and Safe Value configuration - Watchdog timer with host supervision - **Software Integration:** Compatible with Inlog’s **TCPDAQ ActiveX** and **DLL API** libraries for custom application development in Visual Basic, C++, Delphi, and other environments. - **Web Server Functionality:** Built‑in HTTP server for remote monitoring and control via standard web browsers. - **Compact Industrial Design:** DIN‑rail or wall‑mountable aluminum housing with LED indicators for power, link, and I/O status.

Manufacturer: inLog

Category: Digital Modules

- **Dual Ethernet Ports (RJ‑45):** Two 10/100 Base‑T interfaces with integrated switch enable daisy‑chain networking, simplifying wiring and reducing the need for external switches. - **Auto‑Bypass Protection:** Maintains network communication within 1 second of power loss on a module, ensuring uninterrupted data flow in chained configurations. - **Mixed I/O Configuration:** Combines 10 digital inputs, 4 digital outputs, and 2 hardware counters in a single compact unit, minimizing system footprint. - **High Isolation:** 3750 Vrms optical isolation between I/O channels and logic circuitry for robust protection against electrical noise and surges. - **Modbus/TCP and UDP Support:** Fully compliant with Modbus/TCP protocol for open connectivity with PLCs, HMIs, and SCADA software. UDP mode allows broadcast of I/O data streams to up to 8 hosts simultaneously. - **Watchdog and Safe Value Functions:** Dual watchdog system (module and host) ensures fail‑safe operation. Outputs revert to predefined safe states upon communication loss or watchdog timeout. - **Power‑On Value Configuration:** User‑definable output states at startup or after reset, ensuring predictable system behavior. - **DIO Synchronization (Mirror Mode):** Enables automatic mirroring of digital input states to local or remote digital outputs, supporting both “match” and “mismatch” latch modes. - **Pulse and Delay Output Modes:** Each DO channel supports pulse generation, high/low delay timing, and auto‑off monostable operation for flexible control logic. - **Web Server Interface:** Built‑in HTTP server allows remote monitoring and control of I/O channels via standard web browsers. - **Software Integration:** Supported by Inlog’s **EDAM Ethernet I/O Utility**, **TCPDAQ ActiveX controls**, and **DLL API** for integration with Visual Basic, C++, Delphi, and SCADA systems.

Manufacturer: inLog

Category: Digital Modules

- **Dual Ethernet Ports with Daisy‑Chain and Auto‑Bypass:** Two RJ‑45 10/100 Base‑T ports allow cascading multiple modules without external switches. The auto‑bypass circuit maintains network continuity within ~1 s even if a module loses power. - **Mixed I/O Configuration:** Combines digital inputs, digital outputs, and counter channels in one compact device, reducing system cost and wiring complexity. - **Industrial Modbus/TCP and UDP Support:** Fully compatible with standard Modbus/TCP controllers and SCADA/HMI software. UDP mode allows broadcast of I/O data streams to up to eight hosts simultaneously. - **High Isolation and Protection:** 3750 Vrms optical isolation between I/O channels and logic circuits ensures robust operation in noisy industrial environments. - **Programmable Power‑On and Safe Values:** User‑defined output states at power‑up or after watchdog timeout enhance system safety. - **Dual Watchdog System:** Hardware watchdog for module self‑recovery and host watchdog for communication supervision. - **Advanced Output Modes:** Supports pulse output, auto‑off (monostable) operation, high/low delay switching, and DIO synchronization (mirroring DI to local or remote DO). - **Counter and Latch Functions:** Each DI channel can act as a 300 Hz software counter; two dedicated hardware counters support up to 4.5 kHz. - **Compact Industrial Design:** DIN‑rail or wall‑mountable aluminum enclosure with LED indicators for power, communication, and channel status.

Manufacturer: inLog

Category: Digital Modules

- **Dual Ethernet Ports (RJ‑45):** Two 10/100 Base‑T ports with built‑in Ethernet switch for daisy‑chain networking. Auto‑bypass protection ensures network continuity during power loss. - **Mixed I/O Configuration:** 5 differential digital input channels (sink/source type) and 8 digital output channels (P‑MOSFET open‑drain type). - **High Isolation Protection:** 3750 Vrms optical isolation between I/O channels and logic circuitry for industrial noise immunity. - **Industrial Modbus/TCP Protocol:** Fully compatible with Modbus/TCP over TCP/IP and UDP for integration with standard industrial controllers and SCADA systems. - **Advanced Output Control Modes:** - Pulse output (up to 300 Hz) - High/Low delay output - Auto‑Off Time (monostable) mode - DIO Synchronization (mirror DI to local or remote DO) - **Power‑On and Safe Value Configuration:** User‑definable output states at power‑up or after watchdog timeout for fail‑safe operation. - **Watchdog and Auto‑Recovery:** Dual watchdog (module and host) ensures continuous operation and automatic recovery after communication loss. - **Compact Industrial Design:** DIN‑rail or wall‑mountable aluminum enclosure, suitable for harsh environments. - **Software and Web Support:** Built‑in web server for remote monitoring and configuration; Windows utility and ActiveX/DLL API for custom integration.

Manufacturer: inLog

Category: Digital Modules

- **Dual Ethernet Ports:** Two 10/100Base‑T (RJ‑45) ports with integrated switch for daisy‑chain connectivity. - **Auto‑Bypass Protection:** Maintains network continuity within ~1 s after power loss on a module. - **8 × Digital Inputs (DI):** Isolated single‑ended channels supporting both dry and wet contact modes. - **8 × Digital Outputs (DO):** Isolated open‑drain (P‑MOSFET) outputs, 10–30 V DC, 750 mA max per channel. - **High Isolation:** 3750 Vrms optical isolation between channels and logic circuitry. - **Industrial Protocols:** Full Modbus/TCP and UDP/IP support for open connectivity. - **Advanced Output Control:** Supports pulse output, high/low delay, and Auto‑Off (monostable) modes. - **DIO Synchronization:** Mirrors local DI states to local or remote DO channels for distributed control. - **Watchdog & Safe Values:** Dual watchdog (module + host) with programmable safe and power‑on values. - **Power Flexibility:** Operates from unregulated +10 V DC to +30 V DC industrial supplies. - **Compact Form Factor:** 130 × 96 × 26 mm DIN‑rail or wall‑mountable housing. - **Software Integration:** Supported by Inlog’s EDAM Utility, Modbus OPC Server, DLL, and ActiveX controls. - **Web Server:** Built‑in HTTP interface for remote monitoring and control via standard browsers.

Manufacturer: inLog

Category: Digital Modules

- **Dual Ethernet Ports (RJ‑45):** Two 10/100 Mbps ports with integrated switch for daisy‑chain networking, reducing cabling and simplifying installation. - **Auto‑Bypass Protection:** Maintains network continuity within ~1 second during power loss of intermediate modules, ensuring minimal downtime. - **Mixed I/O Configuration:** Combines **7 isolated digital inputs** and **4 relay outputs** in one compact module, ideal for distributed control systems. - **Industrial Protocol Support:** Fully compatible with **Modbus/TCP** over TCP/IP and **UDP** for real‑time data streaming to up to 8 Ethernet nodes. - **High Isolation Protection:** 3750 Vrms optical isolation between I/O channels and logic circuitry for robust noise immunity. - **Relay Outputs:** Four relays (RL0–RL3) rated at **0.6 A @ 125 VAC** or **2 A @ 30 VDC**, with Form C (SPDT) and Form A (SPST NO) contact configurations. - **Digital Inputs:** Seven single‑ended isolated inputs supporting both **dry** and **wet contact** modes, with software‑selectable logic inversion. - **Watchdog and Safe Value Functions:** Dual watchdog system (module + host) ensures automatic recovery or transition to safe output states on communication failure. - **Power‑On and Safe Value Settings:** User‑definable output states at startup or after watchdog timeout for fail‑safe operation. - **DIO Synchronization:** Mirrors local digital inputs to local or remote digital outputs for event‑driven control without host intervention. - **Auto‑Off Time and Delay Modes:** Supports monostable (auto‑off) and programmable high/low delay output modes for timing‑based control. - **Compact Industrial Design:** DIN‑rail or wall‑mountable aluminum enclosure, 130 × 96 × 26 mm, optimized for panel integration.

Manufacturer: inLog

Category: Digital Modules

- **Dual Ethernet Ports (RJ‑45):** Two 10/100 Mbps ports with built‑in Ethernet switch for daisy‑chain connection, reducing cabling and simplifying network expansion. - **Auto‑Bypass Protection:** Maintains network continuity within ~1 s even if a module in the chain loses power, ensuring uninterrupted communication. - **4 Differential Digital Inputs (DI):** Isolated sink/source type inputs with 3750 Vrms optical isolation, supporting latch and counter functions up to 300 Hz. - **4 Relay Outputs (DO):** Four independent relay channels (RL0–RL3) rated at **0.6 A @ 125 VAC** or **2 A @ 30 VDC**, with Form C (SPDT) and Form A (SPST NO) contact configurations. - **Industrial Modbus/TCP Protocol:** Fully compatible with Modbus/TCP and UDP/IP for open connectivity with third‑party controllers and SCADA systems. - **Watchdog & Safe Value Functions:** Dual watchdog (module + host) ensures system reliability. Safe output states are automatically applied on communication failure. - **Power‑On Value Configuration:** User‑definable output states at startup or after watchdog reset. - **DIO Synchronization (Mirror Mode):** Allows mapping of local DI states to local or remote DO channels for real‑time event mirroring. - **DO Auto‑Off Time & Delay Modes:** Supports monostable (auto‑off) and programmable high/low delay output modes for timing‑based control. - **Compact Industrial Design:** DIN‑rail or wall‑mountable aluminum enclosure, 130 × 96 × 26 mm, optimized for panel integration.

Manufacturer: inLog

Category: Digital Modules
