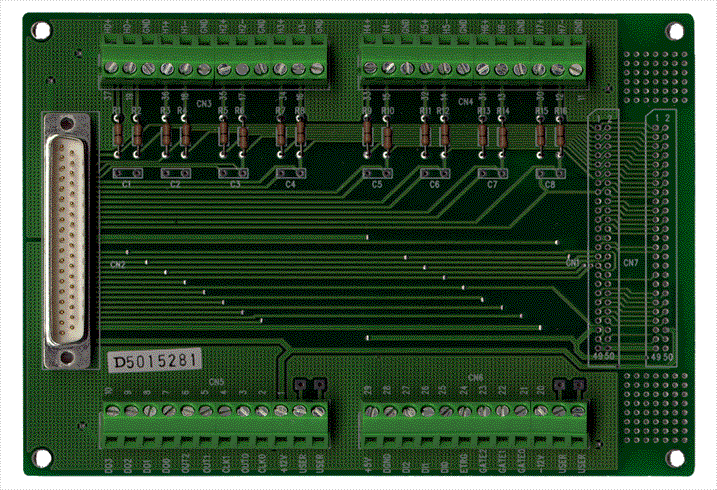

- **Universal Interface Platform:** Provides a standardized interface for connecting various signal types and devices during development and testing. - **4×12 Screw Terminal Blocks:** Offers 48 individual screw terminals arranged in four rows of twelve, allowing secure and reliable wire connections for signal routing, power distribution, and sensor interfacing. - **Dual 50-Pin Flat Cable Connectors (2×50):** Supports two 50-pin flat cable connectors for high-density signal interfacing, ideal for connecting to microcontroller or FPGA development boards, I/O modules, or backplane systems. - **37-Pin D-Sub Male Connector:** Includes one 37-pin D-sub male connector for compatibility with standard industrial and instrumentation interfaces, enabling easy connection to external devices, test equipment, or legacy systems. - **Compact and Robust Design:** The board measures 220 mm × 132 mm, providing a compact footprint suitable for benchtop use or integration into test setups. - **Included 1-Meter Cable:** Supplied with a 1-meter flat cable for immediate use, ensuring quick setup and reliable connectivity. - **High-Quality Construction:** Built with durable materials and precision screw terminals to ensure long-term reliability and consistent electrical performance. - **Flexible Application Range:** Suitable for prototyping, signal distribution, testing, and educational use in electronics laboratories, R&D environments, and industrial automation setups.

Manufacturer: Axiom

Category: General Purpose Panels

- **Universal Interface Design:** Supports a wide range of signal types and applications, including analog, digital, and mixed‑signal connections. - **Dual 25‑Position Screw Terminals:** Two rows of 25 screw clamp terminals (2 × 25 configuration) provide secure and reusable wire terminations for up to 50 individual conductors. - **50‑Pin Flat Cable Connector:** Equipped with a standard 50‑pin IDC (Insulation Displacement Connector) interface for direct connection to compatible devices or backplanes. - **1‑Meter Flat Ribbon Cable Included:** Pre‑assembled 50‑pin flat cable (1 m length) ensures quick and reliable connectivity between the terminal panel and host equipment. - **Versatile Application Pads:** Blank PCB pads are provided to accommodate custom circuit elements such as break detection circuits, low‑pass filters, current shunts, or voltage attenuators. - **Compact and Durable Construction:** Measuring 132 mm × 110 mm, the panel is designed for easy integration into control cabinets, test benches, or instrumentation racks. - **Ease of Maintenance:** Screw terminals allow for quick wire replacement or reconfiguration without specialized tools. - **Universal Compatibility:** Suitable for use with a variety of Axiom and third‑party data acquisition boards, PLCs, and signal conditioning modules.

Manufacturer: Axiom

Category: General Purpose Panels

- **Universal Interface Design:** Supports a wide range of signal and control applications through its 2×25 screw terminal configuration. - **SCSI II Cable Connector Integration:** Equipped with a standard SCSI II connector for direct interfacing with compatible data acquisition, control, or communication systems. - **Dual 25-Position Screw Terminals:** Provides 50 individual screw clamp terminals for secure and repeatable wire connections. - **Custom Circuit Accommodation:** Includes blank pad areas for implementing additional circuitry such as break detection, low-pass filters, current shunts, or voltage attenuators. - **Compact Form Factor:** Optimized layout with a footprint of 132 mm × 110 mm, suitable for panel mounting or bench use. - **High Reliability Construction:** Designed for stable electrical performance and mechanical durability in demanding environments. - **Ease of Maintenance:** Screw terminals allow quick connection and disconnection without specialized tools. - **Versatile Application Range:** Ideal for signal breakout, testing, prototyping, and integration with SCSI-based systems.

Manufacturer: Axiom

Category: General Purpose Panels

- **Universal Screw Terminal Interface:** Equipped with 2 × 22 large screw terminals (total 44 points) for secure connection of analog, digital, or control signals. - **Integrated Cable Assembly:** Supplied with a pre‑attached 3 m shielded cable terminated with a 37‑pin D‑Sub female connector for direct connection to compatible CONTEC boards. - **High‑Reliability Construction:** Industrial‑grade terminal blocks and durable housing ensure long‑term stability in measurement and control applications. - **Compatibility with CONTEC Boards:** Designed for use with E‑Series, F‑Series, and L‑Series analog I/O boards such as AD12‑16(PCI)E, AD16‑16U(PCI)EH, ADI16‑4C(PCI), DAI16‑4C(PCI), and other 37‑pin D‑Sub models. - **DIN‑Rail Mountable (via optional adapter):** Can be mounted using CONTEC’s DIN‑ADP1 adapter for panel or rack installations. - **Ease of Maintenance:** Large screw terminals allow easy wiring changes and inspection without specialized tools. - **Noise‑Resistant Design:** Shielded cable and solid grounding minimize electrical noise and ensure signal integrity in industrial environments. - **Standardized Pin Assignment:** Pin configuration corresponds directly to CONTEC’s 37‑pin D‑Sub analog I/O pinout, simplifying system integration.

Manufacturer: Contec

Category: General Purpose Panels

- **Universal Screw Terminal Interface:** Four 10‑point screw‑clamp terminal blocks (M3 type) allow direct connection of analog or digital signal lines without soldering. Each terminal accommodates standard industrial wire gauges for secure, vibration‑resistant connections. - **Integrated 3 m Connection Cable:** Factory‑attached shielded cable (length = 3 m) terminated with a 37‑pin D‑SUB female connector ensures immediate compatibility with CONTEC E‑series analog I/O boards and other 37‑pin D‑SUB equipped devices. - **Compact Panel Format:** Dimensions of 160 mm (W) × 82 mm (H) provide a small footprint suitable for control panels, DIN‑rail adapters, or benchtop setups. - **High Reliability and Maintainability:** Screw‑clamp terminals provide long‑term mechanical stability and easy field maintenance. The detachable cable simplifies replacement or reconfiguration. - **Compatibility with CONTEC Measurement Systems:** Designed as an accessory for CONTEC’s E‑series analog I/O boards (e.g., AD12‑16(PCI)E, AD16‑16U(PCI)EH, ADI12‑16(PCI), ADI16‑4C(PCI), ADI16‑4L(PCI), DA12‑4(PCI), DAI16‑4C(PCI), etc.). Fully compatible with the 37‑pin D‑SUB analog I/O connector standard used across CONTEC’s PCI, PC Card, and USB measurement products. - **Industrial‑Grade Construction:** Rugged terminal blocks and shielded cable minimize noise pickup and ensure stable signal transmission in electrically noisy environments. - **Ease of Integration:** Can be DIN‑rail mounted using optional adapter DIN‑ADP1 or panel‑mounted using standard hardware. Ideal for prototyping, test benches, or permanent installations.

Manufacturer: Contec

Category: General Purpose Panels

- **General‑Purpose Terminal Panel:** Designed for broad compatibility with CONTEC analog and digital I/O boards, including E‑series, F‑series, and L‑series PCI, USB, and PC‑Card products. - **4 × 10 Screw‑Clamp Terminal Blocks:** Provides 40 individual screw terminals arranged in four groups of ten, allowing secure connection of signal lines, sensors, and actuators. - **37‑Pin D‑SUB Female Connector:** Standard interface for direct connection to CONTEC I/O boards via shielded or flat cables (e.g., PCA37P, PCB37PS). - **Compact Form Factor:** 160 mm × 82 mm panel size suitable for desktop, panel, or DIN‑rail mounting (with optional DIN‑ADP1 adapter). - **Industrial‑Grade Construction:** Rugged terminal blocks and PCB‑mounted connector ensure long‑term reliability in industrial environments. - **Ease of Wiring:** Screw‑clamp terminals accept bare or ferruled wires, simplifying field wiring and maintenance. - **Compatibility with Multiple Bus Standards:** Supports PCI, Low‑Profile PCI, USB 2.0, CardBus, and PCMCIA interface boards through appropriate cables. - **Flexible Application:** Suitable for analog input/output, digital I/O, and counter signal wiring. - **Accessory Integration:** Works seamlessly with CONTEC’s range of cables (PCA37P, PCB37PS, PCA37PS) and terminal accessories (EPD‑37, ATP‑16, FTP‑15). - **High‑Quality Manufacturing:** Produced by CONTEC, a global supplier of industrial measurement and control hardware.

Manufacturer: Contec

Category: General Purpose Panels

- **General‑Purpose Terminal Panel:** Designed for versatile use with a wide range of CONTEC analog and digital I/O boards. - **Screw‑Type Terminals:** Equipped with M2.5 screw clamp terminals for secure and reliable wire connections. - **High‑Density Layout:** Features 4 blocks of 10 screw terminals (total 40 terminals) arranged for efficient wiring and clear signal identification. - **Standardized Connector Interface:** Integrates a 37‑pin female D‑SUB connector (D‑SUB 37F) for direct connection to CONTEC I/O boards or extension cables. - **Compact Form Factor:** Compact 160 mm × 82 mm panel size suitable for control panels, DIN‑rail mounting (with optional adapter), or bench setups. - **Compatibility:** Fully compatible with CONTEC’s E‑Series, F‑Series, and L‑Series analog/digital I/O boards that use 37‑pin D‑SUB connectors. - **Ease of Maintenance:** Screw terminals allow easy re‑termination and inspection without special tools. - **Industrial‑Grade Construction:** Built for durability and long‑term stability in industrial measurement and control environments. - **Signal Integrity:** Provides short, shielded connection paths between the I/O board and external sensors or actuators, minimizing noise pickup. - **Accessory Integration:** Designed to work seamlessly with CONTEC cables such as PCA37P, PCA37PS, PCB37P, and PCB37PS.

Manufacturer: Contec

Category: General Purpose Panels

- **Universal Connectivity:** Supports both input and output configurations through opto‑isolated or relay‑driven channels. - **Opto‑22 Compatibility:** 50‑pin connectors conform to the Opto‑22 standard, ensuring direct interfacing with ADLINK DAQ cards such as ACL‑7122, ACL‑7124, PET‑48DIO, PCI‑7248, and PCI‑7296. - **Multiple Configurations:** Available in several variants: - **TB‑24P:** 24 opto‑isolated digital inputs. - **TB‑24R:** 24 relay outputs. - **TB‑16P8R:** 16 opto‑isolated inputs + 8 relay outputs. - **DIN‑24P:** 24 opto‑isolated inputs with DIN‑rail mounting. - **DIN‑24R:** 24 relay outputs with DIN‑rail mounting. - **DIN‑24G:** 24‑position I/O module rack for modular expansion. - **LED Status Indicators:** 24 channel‑mapped LEDs provide real‑time visual feedback of input or output states. - **High Isolation:** Up to **2500 V DC** (TB‑24P) or **5000 Vrms** (DIN‑24P) isolation between field and logic sides. - **Relay Switching Capability:** SPDT relays rated up to **250 V AC / 220 V DC**, 2 A switching current, 3 A carrying current. - **Flexible Power Options:** 12 V DC or 24 V DC coil voltage versions available. - **Breadboard Area:** Integrated prototyping section for custom circuitry or signal conditioning. - **Compact and Modular Design:** 125 mm × 73 mm PCB with detachable terminal blocks for easy wiring. - **DIN‑Rail Mounting (DIN Series):** Industrial‑grade mechanical design for control cabinets. - **Comprehensive LED Color Coding:** Green, yellow, and red LEDs distinguish channel groups (A, B, C). - **Jumper‑Selectable Input Modes:** Configurable for dry contact or photo‑coupler input operation. - **Full Compatibility with ADLINK NuDAQ and NuDAM Systems.**

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **Universal Compatibility:** Designed for direct interfacing with the ADLINK PCI-9221 DAQ card, ensuring full signal compatibility and straightforward integration. - **Dual DB37 Female Connectors:** Equipped with two DB37 (37-pin) female connectors that correspond to the I/O channels of the PCI-9221, allowing easy connection via standard 37-pin cables. - **Screw Terminal Interface:** Features two sets of 2×25 screw clamp terminals, providing secure and reusable connections for signal wiring. Each terminal is clearly labeled for easy identification of signal lines. - **Integrated Breadboard Area:** Includes a dedicated breadboard or prototyping area that allows users to implement custom circuits, signal conditioning, or additional components directly on the board. - **Compact Form Factor:** With dimensions of 125 mm × 73 mm, the TB-9221-01 offers a compact footprint suitable for benchtop use or integration within control panels and test setups. - **Cable-Free Configuration:** The panel is supplied without cables, giving users flexibility to select appropriate cable lengths and types for their specific application. - **Robust Construction:** Built with durable materials and high-quality connectors to ensure long-term reliability in laboratory, industrial, and educational environments. - **Ease of Use:** Simplifies wiring and reduces setup time for data acquisition systems by providing a clear, organized interface between the PCI-9221 and external devices.

Manufacturer: Adlink Technology Inc.

Category: General Purpose Panels

- **62-Pin D-sub Connectivity:** Equipped with a **62-pin D-sub male connector** on one end and a **62-pin D-sub female connector** on the other, ensuring full pin-to-pin continuity for high-density signal interfacing. - **High Signal Integrity:** Designed with **shielded twisted-pair wiring** and **grounded metal shells** to minimize electromagnetic interference (EMI) and crosstalk, ensuring accurate analog and digital signal transmission. - **Durable Construction:** Features **molded strain reliefs** at both connector ends to prevent cable fatigue and mechanical stress during repeated connection cycles. - **Optimized Length (1 Meter):** Provides sufficient reach for typical rack-mounted or benchtop setups while minimizing signal degradation and clutter. - **Compatibility with ADLINK DAQ Products:** Fully compatible with ADLINK’s PCI, PXI, and USB DAQ cards and terminal boards that utilize 62-pin D-sub connectors, such as the **ACL-6128**, **ACL-6126**, and **ACL-6125** series. - **Plug-and-Play Design:** No additional configuration required; supports direct connection between DAQ hardware and breakout or terminal boards. - **Industrial-Grade Reliability:** Built to withstand continuous operation in laboratory and industrial environments, with robust connector housings and high-quality conductors.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **96 Isolated Digital Input Channels:** Provides a total of 96 optically isolated input channels for high-density signal interfacing. - **Optical Isolation:** Each input channel is isolated up to **2500 V RMS**, protecting the host system from voltage transients, surges, and ground loops. - **Polarity-Free Input Design:** Supports both AC and DC input signals without polarity constraints, simplifying wiring and installation. - **Wide Input Voltage Range:** Compatible with multiple input thresholds depending on external voltage levels: - 20V/24V input threshold: 8.8V - 12V input threshold: 1.8V - 5V input threshold: 1.8V - **External Input Voltage Threshold Configuration:** Allows flexible adaptation to various industrial signal levels. - **Screw Terminal Interface:** Provides secure and easy field wiring for industrial environments. - **100-pin SCSI-II Connector:** Standardized high-density connector for interfacing with ADLINK data acquisition cards such as the **PCI-7396**. - **DIN-Rail Mounting:** Compact and rugged design suitable for control cabinets and industrial enclosures. - **Low Power Consumption:** Operates at +5 V with a maximum current draw of 48 mA. - **Wide Operating Temperature Range:** Designed for industrial environments with an operating range of **0°C to +60°C**. - **High Reliability:** Built with industrial-grade components for long-term stability and performance.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **96 Isolated Digital Output Channels:** Provides a total of 96 optically isolated digital output channels for flexible and scalable control applications. - **Optical Isolation:** Each channel is optically isolated up to **2500 V RMS**, ensuring electrical separation between field signals and control logic, protecting both the host system and connected devices from voltage transients and ground loops. - **High Current Sinking Capability:** Each output channel can sink up to **500 mA**, allowing direct control of relays, solenoids, lamps, and other inductive or resistive loads. - **Open-Collector Darlington Transistor Outputs:** Utilizes Darlington transistor arrays for high current gain and efficient switching performance. - **Flexible Power Supply Range:** Supports external supply voltages from **+5 V DC to +35 V DC**, accommodating a wide range of industrial power systems. - **DIN-Rail Mounting:** Compact and rugged design suitable for DIN-rail installation, simplifying integration into control cabinets and industrial enclosures. - **Screw Terminal Connections:** Equipped with screw terminals for secure and convenient field wiring, minimizing installation time and ensuring reliable electrical contact. - **Standard 100-pin SCSI-II Connector:** Provides a high-density interface for connection to compatible data acquisition or control cards such as the **ADLINK PCI-7396**. - **Compatibility:** Designed for use with ADLINK’s PCI-7396 digital I/O card, ensuring seamless integration and reliable communication between the terminal board and host system. - **Industrial-Grade Design:** Wide operating temperature range (0°C to +60°C) and high humidity tolerance (up to 95% non-condensing) for dependable performance in industrial environments. - **Low Power Consumption:** Consumes only **102 mA at +5 V**, optimizing energy efficiency and reducing system power load.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **Universal Screw Terminal Interface:** The DTP-64A allows direct connection of signal lines from external devices using screw terminals, eliminating the need for soldering or crimping. - **High-Density 96-Pin Connector:** Equipped with a 96-pin half-pitch high-density female connector (HD D-sub 96F), compatible with CONTEC’s PIO64 series boards. - **One-to-One Pin Correspondence:** Each pin on the 96-pin connector corresponds directly to a terminal on the screw terminal strip, ensuring straightforward signal mapping and simplified troubleshooting. - **Ease of Integration:** Optional cables can be used to connect the DTP-64A easily to interface boards or cards, providing flexible installation options. - **Compact and Organized Layout:** The terminal board features four groups of 24 small screw terminals (total 96), arranged for efficient wiring and clear labeling. - **Enhanced Electrical Capacity:** Supports up to 60V and 1A per terminal, suitable for low-voltage signal and control applications. - **Improved Design Over Previous Model:** Compared to the DTP-64(PC), the DTP-64A features larger M3 screws, green terminal color, and increased rubber foot height for improved stability and handling. - **Durable Construction:** Built with high-quality terminal components (JITE JTB611-00-2-03-3 equivalent) and a robust connector (HONDA TSUSHIN KOGYO PCR-E96MD+ equivalent). - **Simple Maintenance:** Screw-type terminals allow easy reconfiguration or replacement of connected wires without specialized tools. - **Compatibility:** Designed for use with CONTEC interface boards featuring 96-pin half-pitch connectors, ensuring seamless integration with existing systems.

Manufacturer: Contec

Category: High Density Panels

- **DIN-Rail Mountable Termination Panel:** Designed for 35 mm DIN rail installation, enabling compact and organized wiring in control panels or test systems. - **High-Density 96-Pin Half-Pitch Connector:** Equipped with a 96-pin half-pitch (HD D-sub 96f) female connector, compatible with CONTEC’s 96-pin I/O boards and cables. - **Universal Compatibility:** Supports a wide range of CONTEC analog and digital I/O boards, including F, L, and E series multifunction boards, as well as dedicated digital I/O and counter boards. - **Industrial-Grade Construction:** Built for durability and reliability in industrial environments, ensuring stable signal termination and minimal noise interference. - **Ease of Integration:** Simplifies connection between PC-based measurement/control boards and external sensors, actuators, or test equipment. - **Supports Multiple Signal Types:** Suitable for analog input/output, digital input/output, and counter signal termination. - **Cable Compatibility:** Designed for use with CONTEC shielded or flat cables such as PCB96PS, PCB96P, PCA96PS, and PCA96P series. - **Standardized Interface:** Uses the 96-pin half-pitch connector standard (PCR-E96LMD or equivalent), ensuring compatibility with a wide range of CONTEC boards. - **Compact Form Factor:** Space-efficient design (226 × 64 × 36 mm) allows installation in dense control cabinets. - **DIN-ADP1 Adapter Support:** Can be mounted using the optional DIN-ADP1 adapter for flexible installation.

Manufacturer: Contec

Category: High Density Panels

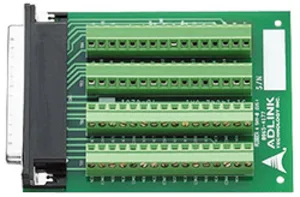

**TB‑6201‑01 Terminal Board** - 62‑pin D‑Sub female connector for direct interface with PXI‑7901. - Screw‑terminal design for secure and flexible signal wiring. - Supports all relay channels, auxiliary I/O, and trigger lines from the PXI‑7901. - No cable included (optional ACL‑10262 cable available). - Compact, durable construction for bench or rack‑mount use. **PXI‑7901 Relay Module** - 16 independent SPDT (Single‑Pole Double‑Throw, 1 Form C) non‑latching relays. - PXI Specification Rev. 2.2 compliant; CompactPCI (PICMG 2.0 R3.0) and Hot‑Swap (PICMG 2.1 R2.0) compliant. - 3 A switching and carrying capacity at up to 220 V DC or 250 V AC. - 125 operations per second with full contact settling. - Onboard 1 k‑sample scan list for deterministic auto‑scanning. - Programmable handshaking signals for synchronization with external instruments. - Safety‑critical design with hardware emergency shutdown and watchdog timer. - 8 auxiliary 3.3 V/TTL digital I/O channels (5 V tolerant). - Software‑programmable operation modes and PXI trigger synchronization. - Fully supported by ADLINK’s ADL‑SWITCH driver for Windows.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **Purpose‑built for PXI‑7921:** Provides direct connection to the PXI‑7921’s 62‑pin D‑Sub male I/O connector. - **Multiple Multiplexer Configurations:** Supports 48×1 1‑wire, 24×1 2‑wire, 12×1 4‑wire, two 12×1 2‑wire, or four 6×1 2‑wire configurations. - **High‑Density Connectivity:** Accommodates up to 24 DPDT (2 Form C) relay channels through a single 62‑pin interface. - **Screw‑Terminal Interface:** Simplifies field wiring and reconfiguration for laboratory and industrial applications. - **Software‑Selectable Switching:** All channel configurations are controlled via software through the PXI‑7921 module. - **Safety and Reliability:** Designed for safety‑critical applications with support for emergency shutdown and watchdog timer functions through the PXI‑7921. - **PXI System Integration:** Fully compatible with PXI specifications Rev. 2.2 and CompactPCI (PICMG 2.0 R3.0). - **Hot‑Swap Support:** When used with PXI‑7921, supports CompactPCI Hot‑Swap (PICMG 2.1 R2.0). - **Deterministic Scanning:** Enables deterministic relay sequencing through the PXI‑7921’s onboard 1 k‑sample scan list. - **Synchronization:** Supports PXI trigger bus and star trigger synchronization for multi‑module systems.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **PXI Specification Compliance:** Fully compliant with PXI Specifications Rev. 2.2 and CompactPCI standards (PICMG 2.0 R3.0 and PICMG 2.1 R2.0 Hot‑Swap). - **Flexible Matrix Configuration:** Supports multiple matrix topologies selectable via the TB‑6231‑01 terminal board: - One 4×8 matrix - Two 4×4 matrices - One 2×16 matrix - Two 2×8 matrices - Four 2×4 matrices - **High‑Performance Relay Array:** Up to 32 cross‑point DPDT (2 Form C) non‑latching relays for 2‑wire switching. - **Electrical Ratings:** - 2 A switching and 2 A carrying current - 220 V DC / 125 V AC maximum switching voltage - 60 W maximum switching power - **Deterministic Scanning:** Onboard 1 k‑sample scan list for deterministic relay sequencing. - **Synchronization:** Handshaking signals and PXI trigger bus/star trigger support for multi‑module synchronization. - **Safety Functions:** Hardware emergency shutdown and programmable watchdog timer (1 ms – 420 s). - **Auxiliary Digital I/O:** Eight 3.3 V/TTL I/O channels (5 V tolerant) for general‑purpose control. - **Software Programmability:** Fully software‑controlled relay configuration and scan sequencing. - **Operating System Support:** Windows Vista/XP/2000/2003. - **Software Tools:** Compatible with VB, VC++, BCB, Delphi, and DAQBench; driver support via ADL‑SWITCH for Windows. - **Safety‑Critical Design:** Includes programmable relay safety states and watchdog protection for industrial reliability.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **High Channel Density:** 96 optically isolated digital input channels, enabling compact and efficient signal termination for large-scale control systems. - **Optical Isolation:** Each input channel is optically isolated to protect the host system from voltage transients, ground loops, and electrical noise. - **Polarity-Free Input:** Supports both AC and DC input signals without polarity constraints, simplifying wiring and installation. - **Flexible Input Voltage Thresholds:** Configurable threshold levels based on external input voltage ranges: - 20V/24V input → threshold 8.8V - 12V input → threshold 1.8V - 5V input → threshold 1.8V - **Screw Terminal Connectivity:** Each channel is accessible via screw terminals, allowing secure and convenient field wiring. - **100-pin SCSI Connector Interface:** Standard 100-pin SCSI connector for direct connection to compatible ADLINK digital I/O cards. - **Cable-Free Configuration:** Supplied without the ACL-102100 cable, allowing users to select or customize cable lengths and configurations as needed. - **Industrial-Grade Design:** Built for reliability in demanding industrial environments, with robust isolation and durable terminal construction.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **96 Optically Isolated Digital Output Channels:** Provides complete electrical isolation between the control system and field devices, enhancing system reliability and protecting against voltage transients and ground loops. - **Integrated Relay Driver Circuitry:** Each channel includes a relay driver stage capable of sinking current loads ranging from 60 mA up to 350 mA, depending on the number of active channels and duty cycle. - **High-Density Termination Design:** Accommodates 96 channels on a compact board footprint (113 mm × 225 mm), optimizing space utilization in control cabinets or test setups. - **Screw Terminal Connectivity:** Each output channel is accessible via screw terminals, allowing secure and convenient wiring for field connections. - **100-Pin SCSI Connector Interface:** Provides a standardized, high-density connection to compatible ADLINK digital I/O cards, ensuring reliable signal transmission and simplified integration. - **Opto-Isolation for Signal Protection:** Optical isolation prevents electrical noise and surges from damaging sensitive control electronics, improving system durability and safety. - **Flexible Load Driving Capability:** Supports a wide range of output loads, including relays, solenoids, and indicator lamps, suitable for industrial automation and process control. - **Cable-Free Configuration:** Delivered without the ACL-102100 cable, allowing users to select appropriate cable lengths or configurations for their specific installation requirements. - **Compact and Durable Construction:** Designed for industrial-grade reliability, with robust PCB materials and high-quality terminal components.

Manufacturer: Adlink Technology Inc.

Category: High Density Panels

- **Integrated Cold Junction Compensation (CJC):** Built-in temperature sensor circuit for thermocouple measurement accuracy. The CJC circuit compensates for ambient temperature variations at the connection point, ensuring precise thermal readings. - **Signal Conditioning for Each Channel:** Each analog input channel includes onboard signal conditioning circuitry, allowing for stable and noise-free signal transmission to the data acquisition card. - **Dual Wiring Configurations:** Supports both **single-ended** and **differential** input wiring modes, providing flexibility for various measurement setups. - **High-Quality Connectivity:** Equipped with a **37-pin D-sub female connector** for direct interface with ADLINK DAQ cards and **screw terminals** for secure field wiring. - **Compatibility:** Designed for use with multiple ADLINK analog input and multifunction DAQ cards, including: - PCI-9112 - PCI-9111 Series - ACL-8312/8316 - ACL-8112 Series - ACL-8216 - ACL-8126 - **Compact and Durable Design:** PCB dimensions of 168 mm × 114 mm, suitable for tabletop or panel mounting using included nylon standoffs. - **Included Accessories:** Supplied with an **ACL-10137-1 cable** for direct connection to compatible DAQ cards. - **Ease of Installation:** Plug-and-play connection via DB-37 interface and screw terminals simplifies setup and maintenance.

Manufacturer: Adlink Technology Inc.

Category: Analog Panels

- **Eight Isolated Differential Input Channels:** Each channel is independently isolated, preventing ground loops and cross‑channel interference. - **Wide Input Range:** ±10 V nominal input range suitable for general‑purpose analog measurement. - **Selectable Gain Settings:** Jumper‑selectable gain factors of ×1, ×25, or ×200 allow flexible scaling of input signals for low‑level or high‑level voltage sources. - **High Isolation Voltage:** 500 V DC isolation between input and output, and between channels, ensuring safe operation in noisy or high‑potential environments. - **Integrated Cold Junction Compensation (CJC):** One built‑in CJC circuit supports thermocouple measurement applications. - **Cascadable Design:** Two ATII‑8A boards can be cascaded to expand the number of isolated channels to 16. - **High Bandwidth:** 60 kHz (–3 dB) analog bandwidth supports dynamic signal measurement and fast‑changing analog inputs. - **Standardized Connectors:** Equipped with two D‑sub female connectors for easy connection to CONTEC analog input boards and external wiring. - **Compact Form Factor:** 230 mm × 105 mm panel size suitable for installation in measurement racks or control panels. - **Compatibility:** Designed for CONTEC E‑series analog input boards such as AD12‑16E, AD12‑16U(PCI), and AD12‑16U(ISA). - **Industrial‑Grade Isolation Amplifiers:** Utilizes precision isolation amplifiers to maintain signal integrity across isolated domains. - **Noise Immunity:** Ideal for environments with high electrical noise, preventing interference between measurement channels and the host PC.

Manufacturer: Contec

Category: Analog Panels

- **Eight Independent Analog Input Channels:** Each channel supports differential input configuration for precise signal measurement and conditioning. - **Wide Input Range:** ±10 V input range, compatible with standard industrial analog signal levels. - **Selectable Gain:** Jumper-selectable gain settings from 1× up to 500×, allowing flexible amplification of low-level sensor signals. - **Integrated Low-Pass Filtering:** Fourth-order Butterworth low-pass filters per channel, selectable between 20 Hz and 10 kHz cutoff frequencies, providing effective noise suppression and anti-aliasing. - **High Bandwidth:** 0–100 kHz (-3 dB) bandwidth ensures accurate reproduction of dynamic analog signals. - **Cold Junction Compensation (CJC):** One built-in semiconductor temperature sensor for thermocouple reference compensation. - **Cascadable Design:** Two ATLF-8 boards can be cascaded to expand the number of conditioned channels to 16. - **Standard Connectors:** Equipped with two D-sub female connectors for easy interfacing with CONTEC analog input boards and terminal units. - **Compact Form Factor:** 230 mm × 105 mm board size, suitable for panel or DIN-rail mounting (with optional adapter). - **Compatibility:** Fully compatible with CONTEC’s AD12-16E, AD12-16U(PCI), and AD12-16U(ISA) analog input boards. - **Industrial Reliability:** Designed for stable operation in industrial environments with high electrical noise immunity.

Manufacturer: Contec

Category: Analog Panels

- **Sixteen BNC Channels:** Provides 16 single‑ended analog input or output channels for direct coaxial connection of sensors, transducers, or signal sources. - **D‑sub 37‑Pin Female Interface:** Rear connector mates directly with CONTEC analog I/O boards such as AD12‑16(PCI)E, AD16‑16(PCI)E, ADI12‑16(PCI), ADI16‑4C(PCI), and other E‑series models. - **Compact Panel Design:** 190 × 105 mm aluminum panel suitable for desktop, rack, or DIN‑rail mounting (with optional DIN‑ADP1 adapter). - **High‑Integrity Signal Path:** BNC connectors maintain coaxial shielding continuity, minimizing noise pickup and crosstalk in high‑precision analog measurement environments. - **Industrial‑Grade Construction:** Rugged metal panel and gold‑plated contacts ensure long‑term reliability in laboratory and factory automation systems. - **Plug‑and‑Play Compatibility:** Designed for use with CONTEC’s standard shielded cables (e.g., PCB37PS‑0.5P/1.5P or PCA37PS‑0.5P/1.5P) for immediate connection to host boards. - **Ease of Maintenance:** Clearly labeled channel numbering and ground reference points simplify wiring, troubleshooting, and calibration. - **Part of Modular System:** Integrates seamlessly with CONTEC’s ecosystem of analog I/O boards, signal‑conditioning modules (ATII‑8A, ATLF‑8, ATSS‑16), and terminal units (EPD‑37, FTP‑15).

Manufacturer: Contec

Category: Analog Panels

- **16‑Channel BNC Interface:** Provides sixteen BNC connectors for single‑ended analog signal input or output, enabling quick connection of coaxial‑terminated sensors, signal generators, or measurement instruments. - **D‑sub 37‑Pin Female Connector:** Rear‑mounted 37‑pin D‑sub (female) connector ensures compatibility with CONTEC’s E‑series analog I/O boards such as AD12‑16(PCI)E, AD16‑16(PCI)E, AD12‑16U(PCI)EH, and AD16‑16U(PCI)EH. - **Compact Panel Design:** Dimensions of 190 mm × 105 mm provide a compact footprint suitable for desktop or rack‑mount laboratory setups. - **High‑Quality Shielded BNC Jacks:** Each channel uses a standard BNC coaxial connector to maintain signal integrity and minimize noise pickup in analog measurement environments. - **Single‑Ended Configuration:** Designed for single‑ended analog signal wiring, simplifying connection to instruments with grounded signal references. - **Industrial‑Grade Construction:** Rugged metal panel construction ensures durability and stable grounding for precision analog measurements. - **Plug‑and‑Play Compatibility:** Fully compatible with CONTEC’s analog I/O ecosystem, including E‑series PCI boards, cables (PCB37PS, PCA37PS), and terminal accessories (EPD‑37, DTP‑3(PC), DTP‑4(PC)). - **DIN‑Rail Mounting Option:** Can be mounted using the optional DIN‑ADP1 adapter for integration into control panels or industrial enclosures. - **Optimized for E‑Series Boards:** Matches the pin assignment and electrical characteristics of E‑series analog boards, ensuring reliable signal routing without custom wiring.

Manufacturer: Contec

Category: Analog Panels

- **High-Density 32-Channel BNC Interface:** Provides 32 BNC connectors for analog signal input/output, enabling direct connection of coaxial cables from sensors, transducers, or other measurement devices. - **Optimized for CONTEC F Series Boards:** Specifically designed for ADA16-32/2(PCI)F and ADA16-32/2(CB)F analog I/O boards, ensuring full pin compatibility and signal integrity. - **Simplified External Wiring:** The terminal box eliminates the need for complex wiring harnesses by offering direct BNC connectivity, reducing setup time and minimizing wiring errors. - **Shielded Signal Path:** Each BNC connector provides a shielded coaxial interface, minimizing noise pickup and ensuring stable analog signal transmission in electrically noisy industrial environments. - **Rugged Industrial Design:** Built for durability and long-term reliability in measurement and control applications, with robust mechanical construction and high-quality connectors. - **Ease of Integration:** Compatible with CONTEC’s shielded cables (e.g., PCB96PS, ADC-68M/96F) for seamless connection to PCI or CardBus analog I/O boards. - **Supports High-Speed Sampling:** Designed to handle the full analog bandwidth and sampling rates of the ADA16-32/2 series boards (up to 2 µsec/channel A/D conversion speed). - **Compact and Organized Layout:** The 32 BNC connectors are arranged for easy access and labeling, facilitating quick channel identification and maintenance.

Manufacturer: Contec

Category: Analog Panels
