A3032 - Rayon
PCIe 32-port 32*RS232/422/485 solution
PC Add-On Cards are devices used to expand the capabilities of a computer system. They are available in various forms such as Communication Cards, RS232, RS485, IEEE, PCIe/PCI max 128 Serial and PCIe max 128 Serial. These cards allow for a wide range of communication and data transfer options, making them ideal for a variety of applications. They are also highly reliable and cost-effective, making them a great choice for expanding the capabilities of any PC..
342,00 €
incl. VAT 406,98 €
incl. VAT 406,98 €
Description

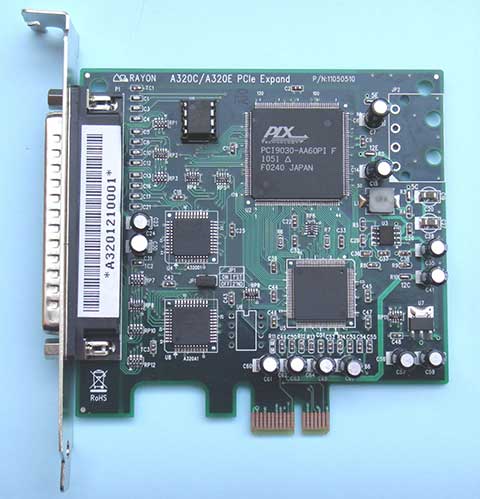

- PCIe 3,3V intelligent prozessor for 8..64-port serial card
- 2*4kByte memory map or 256Byte and 64Byte I/O assigned by PCI BIOS
- 3,3V and 5V 33MHz PCI slot
- max 2 cards/system
- DB37 male connector
- comes with A640 cable 0,7m
- supports DOS/Win95/98/NT/2K/XP/Win7/Linux/SCO
- 122*86mm
- Rayon
Details
- Width: 122 mm
- Height: 86 mm
- Form factor: half
- Manufacturer: Rayon
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
Data Sheets
Manuals
Downloads
- drv_wxp: p640nu.zip
- drv_wxp: nwin411.exe
- drv_wxp: nwin408.exe
- drv_labview_w95: p640nu.zip
- drv_labview_w95: nwin411.exe
- drv_labview_w95: nwin408.exe
- drv_w2k: p640nu.zip
- drv_w2k: nwin411.exe
- drv_w2k: nwin408.exe
- drv_wnt: p640nu.zip
- drv_wnt: nwin411.exe
- drv_wnt: nwin408.exe
- drv_w98: p640nu.zip
- drv_w98: nwin411.exe
- drv_w98: nwin408.exe
