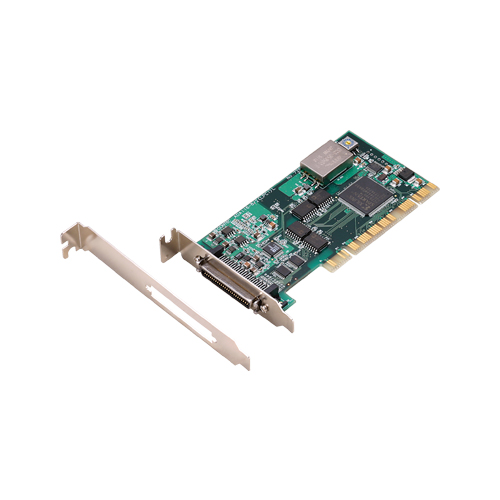

Comprehensive Product Summary – ADA16‑8/2(LPCI)L Low‑Profile PCI Multifunction Analog I/O Board

---

### 1. Product Overview

Product Name: ADA16‑8/2(LPCI)L
Model / Series: ADA16 Series – Low‑Profile PCI Multifunction Analog I/O Boards
Article Number: ADA16‑8/2(LPCI)L
Manufacturer: CONTEC Co., Ltd. (Japan)
Version: Ver.1.12

Product Description:
The CONTEC ADA16‑8/2(LPCI)L is a low‑profile PCI‑bus multifunction data acquisition (DAQ) board integrating high‑precision analog input and output channels, digital I/O, and a counter/timer function. Designed for compact industrial and laboratory PCs, it provides 16‑bit resolution analog I/O with 100 kS/s throughput, TTL‑level digital I/O, and a 32‑bit counter. The board supports both standard and low‑profile PCI slots and includes comprehensive driver and software support for Windows and Linux environments, as well as MATLAB and LabVIEW integration.

---

### 2. Key Features

- High‑Precision Analog I/O:
- 8‑channel single‑ended analog inputs, 16‑bit resolution, ±10 V range.
- 2‑channel analog outputs, 16‑bit resolution, ±10 V range.
- 100 kS/s maximum sampling rate per channel.

- Digital I/O and Counter:
- 4 digital inputs and 4 digital outputs (TTL‑level, positive logic).
- 1 × 32‑bit counter channel, up to 10 MHz input frequency.

- Compact, Low‑Profile PCI Design:
- Fits both low‑profile and standard PCI slots (interchangeable brackets included).
- Ideal for space‑constrained embedded or industrial PCs.

- Software‑Based Calibration:
- Full analog input/output calibration via software; user‑defined calibration data can be stored in addition to factory calibration.

- Buffered Data Transfer:
- Independent 1 k‑word FIFO buffers for both analog input and output enable background operation independent of CPU load.

- Flexible Triggering and Clocking:
- Supports software, external trigger, and external clock modes.
- Rising/falling edge selection and 1 µs digital filter configurable by software.

- Comprehensive Software Support:
- Windows driver library (API‑AIO(WDM)) and Linux driver (API‑AIO(LNX)).
- Data logger software (C‑LOGGER) for non‑programmatic data acquisition.
- MATLAB (ML‑DAQ) and LabVIEW (VI‑DAQ) libraries available free of charge.

- Robust Control and Filtering:
- Digital filters on external control signals prevent chattering.
- Supports time‑based or externally synchronized analog I/O operation.

- Cost‑Effective Non‑Isolated Design:
- High precision and performance at low cost for general‑purpose measurement and control.

---

### 3. Technical Specifications

Analog Input
- Type: Unisolated, single‑ended.
- Channels: 8.
- Input Range: Bipolar ±10 V.
- Absolute Maximum Input Voltage: ±20 V.
- Input Impedance: ≥ 1 MΩ.
- Resolution: 16 bit (1 LSB ≈ 0.305 mV at ±10 V).
- Non‑linearity Error: ±5 LSB (≈ 0.1 % FS).
- Conversion Speed: 10 µs/channel (100 kS/s).
- Buffer Memory: 1 k word FIFO.
- Trigger: Software or external (TTL, rising/falling edge selectable).
- External Clock: TTL‑level, edge selectable.
- Digital Filter: 1 µs (software‑selectable).

Analog Output
- Type: Unisolated.
- Channels: 2.
- Output Range: Bipolar ±10 V.
- Maximum Output Current: ±3 mA.
- Output Impedance: ≤ 1 Ω.
- Resolution: 16 bit.
- Non‑linearity Error: ±5 LSB.
- Conversion Speed: 10 µs (100 kS/s).
- Buffer Memory: 1 k word FIFO.
- Trigger: Software or external (TTL, edge selectable).
- External Clock: TTL‑level, edge selectable.
- Digital Filter: 1 µs (software‑selectable).

Digital I/O
- Inputs: 4 × TTL‑level, positive logic.
- Outputs: 4 × TTL‑level, positive logic.
- Input/Output Type: Unisolated.
- Output Drive: 24 mA sink capability typical.

Counter
- Channels: 1.
- Type: 32‑bit up counter.
- Maximum Count: 0xFFFFFFFF (4,294,967,295).
- External Inputs: 2 × TTL (Gate, Up).
- External Outputs: 1 × TTL (Count match output, positive logic pulse).
- Response Frequency: 10 MHz maximum.
- Gate Logic: High = enable, Low = disable.

Common Section
- I/O Address Space: 64 ports.
- Interrupt: Single INTA line, supports error and event interrupts.
- Connector: 50‑pin mini‑ribbon (3M 10250‑52A2JL).
- Power Consumption: +5 V DC ± 5 %, 380 mA max.
- PCI Bus: 32‑bit, 33 MHz, universal key (3.3 V/5 V compatible).
- Dimensions: 121.69 mm (L) × 63.41 mm (H).
- Weight: Approx. 60 g.
- Operating Temperature: 0 – 50 °C.
- Operating Humidity: 10 – 90 % RH (non‑condensing).
- Storage: Room temperature, dry, dust‑free environment.

---

### 4. Functionality and Applications

Functional Overview:
The ADA16‑8/2(LPCI)L performs high‑resolution analog‑to‑digital and digital‑to‑analog conversions, digital signal interfacing, and event counting. It is suitable for laboratory measurement, process monitoring, control systems, and educational or research instrumentation.

Typical Use Cases:
- Data acquisition and logging of voltage signals.
- Closed‑loop control systems requiring analog feedback.
- Signal generation and waveform output.
- Digital monitoring and control of external devices.
- Frequency or pulse counting applications up to 10 MHz.

Compatibility:
- PCI‑bus PCs supporting 32‑bit, 33 MHz operation.
- Compatible with both 3.3 V and 5 V PCI slots.
- Supported operating systems: Windows (32/64‑bit) and Linux.
- Software integration with MATLAB, LabVIEW, and Excel via C‑LOGGER.

Operation Modes:
- Analog Input: Continuous, triggered, or externally clocked sampling.
- Analog Output: Continuous or triggered waveform generation.
- Digital I/O: Bit‑ or byte‑level control and monitoring.
- Counter: Up‑counting with gate and compare match output.

---

### 5. Components & Accessories

Included in Package:
- ADA16‑8/2(LPCI)L board × 1.
- Standard‑size PCI bracket × 1.
- First‑Step Guide × 1.
- Driver/Utility Disk (API‑PAC(W32)) × 1.
- Warranty Certificate × 1.
- Serial Number Label × 1.

Optional Cables:
- PCB50PS‑0.5P (0.5 m, 50‑pin mini‑ribbon both ends).
- PCB50PS‑1.5P (1.5 m, 50‑pin mini‑ribbon both ends).
- PCA50PS‑0.5P (0.5 m, one end connector).
- PCA50PS‑1.5P (1.5 m, one end connector).

Optional Accessories:
- EPD‑50A – 50‑pin screw terminal unit (M3 terminals).
- ATBA‑8L – 8‑channel buffer amplifier box (for analog input).
- ATBA‑16L – 16‑channel buffer amplifier box (for analog input).
- ATP‑8L – 8‑channel BNC terminal unit (for AI/AO).
- Optional AC adapter POA200‑20 (for ATBA units).

All accessories require optional shielded cables (PCB50PS or PCA50PS).

---

### 6. Installation & Setup

Hardware Installation Steps:
1. Power off the PC and remove the cover.
2. Replace the bracket if necessary (low‑profile or standard).
3. Insert the board into an available PCI slot (3.3 V or 5 V).
4. Secure the bracket with screws.
5. Reassemble and power on the PC.

Software Installation:
- Install the driver library API‑PAC(W32) before inserting the board.
- Windows: Use API‑AIO(WDM) driver (Win32 DLL).
- Linux: Use API‑AIO(LNX) driver (kernel module).
- Diagnostic and calibration utilities are included on the disk.

Configuration:
- Board ID selectable (0–Fh) via rotary switch SW1 for multi‑board systems.
- Device name assigned in Windows Device Manager.
- Calibration and diagnostic tools accessible via property page.

Connector Interface (CN1):
- 50‑pin mini‑ribbon connector (3M 10250‑52A2JL).
- Provides analog I/O, digital I/O, counter, and trigger signals.
- Separate analog and digital grounds to minimize noise coupling.
- Reserved pins must remain unconnected.

Mounting Requirements:
- PCI slot with +5 V supply.
- Ensure adequate airflow and grounding.
- Use shielded cables for long or noise‑sensitive connections.

---

### 7. Performance & Capabilities

Analog Input Performance:
- Sampling Rate: 100 kS/s max.
- Resolution: 16 bit (0.0015 % FS per LSB).
- Accuracy: ±0.1 % FS typical.
- Input Impedance: ≥ 1 MΩ.
- Crosstalk: Minimized by single‑ended design and digital filtering.
- Buffer: 1 k word FIFO for continuous acquisition.

Analog Output Performance:
- Update Rate: 100 kS/s max.
- Resolution: 16 bit.
- Output Drive: ±3 mA max.
- Output Impedance: ≤ 1 Ω.
- Buffer: 1 k word FIFO for continuous waveform generation.

Digital I/O Performance:
- TTL logic levels (0–5 V).
- Input threshold: 0.8 V (LOW), 2.0 V (HIGH).
- Output drive: 24 mA sink typical.
- Software control for bit/byte operations.

Counter Performance:
- Frequency range: DC to 10 MHz.
- 32‑bit resolution (4.29 × 10⁹ counts).
- Gate and Up inputs TTL‑compatible.
- Count match output pulse TTL positive logic.

Limitations:
- Non‑isolated design – requires proper ground management.
- ±10 V input/output range fixed.
- ±3 mA output current limit – not for high‑load driving.
- Requires +5 V PCI power (not compatible with 3.3 V‑only systems).

---

### 8. Standards & Compliance

- Bus Interface: PCI 2.2 compliant, 32‑bit, 33 MHz.
- Electrical Safety: Designed for low‑voltage DC operation.
- EMC Compliance: Meets CE EMC Directive when used with shielded cables.
- Environmental: RoHS compliant materials.
- Operating Conditions: 0–50 °C, 10–90 % RH (non‑condensing).
- Quality Assurance: Factory‑calibrated and tested prior to shipment.

---

### 9. Additional Information

Software Tools and Libraries:

- API‑AIO(WDM) (Windows):
Provides Win32 API functions (DLL) for analog I/O operations.
Includes sample programs for Visual Basic, Visual C++, and diagnostic utilities.

- API‑AIO(LNX) (Linux):
Kernel module and shared library for gcc development.
Includes sample source code and documentation.

- C‑LOGGER:
GUI‑based data logger for signal recording, graph display, file saving, and Excel export.
Enables data collection without programming.

- ML‑DAQ (MATLAB):
MATLAB Data Acquisition Toolbox interface library for CONTEC devices.
Free download from CONTEC website.

- VI‑DAQ (LabVIEW):
LabVIEW VI library for analog I/O integration with NI Data Acquisition VIs.
Free download from CONTEC website.

Calibration and Maintenance:
- Factory‑calibrated for ±10 V range.
- User software calibration supported for AI and AO channels.
- Recommended annual verification using precision voltage source and DMM.
- Calibration data stored in non‑volatile memory.

Warranty and Support:
- Warranty: 3 years from date of purchase against defects in materials and workmanship.
- Service: Return Merchandise Authorization (RMA) required for repairs.
- Exclusions: Damage from misuse, modification, or environmental stress not covered.
- Technical Support: Available via CONTEC website and authorized distributors.
- Documentation: Comprehensive User’s Guide and API reference included (PDF).
- Updates: Driver and library updates available for free download at https://www.contec.com/.

Safety and Handling Precautions:
- Do not install or remove the board while the PC is powered on.
- Avoid touching edge connectors with bare hands.
- Use shielded cables to meet EMC requirements.
- Keep analog and digital grounds separate to minimize noise.
- Operate only within specified temperature and humidity ranges.

---

### Summary

The CONTEC ADA16‑8/2(LPCI)L is a compact, high‑precision, low‑profile PCI data acquisition board that combines 8 × 16‑bit analog inputs, 2 × 16‑bit analog outputs, 4 × digital inputs, 4 × digital outputs, and a 32‑bit 10 MHz counter in a single cost‑effective module. Its dual‑buffered architecture, software‑based calibration, and flexible triggering make it suitable for a wide range of measurement, control, and automation applications. With robust driver support for Windows and Linux, and integration libraries for MATLAB and LabVIEW, it provides a complete, developer‑friendly platform for analog and digital signal processing in industrial, research, and educational environments.
