Comprehensive Product Summary – ADP-1154T-RS232 Industrial LCD Monitor

---

### 1. Product Overview

Product Name: ADP-1154T-RS232
Model Number: ADP-1154T-RS232
Series: ADP Industrial Display Series
Article Number: ADP-1154T-RS232
Manufacturer: Aplex Technology Inc.

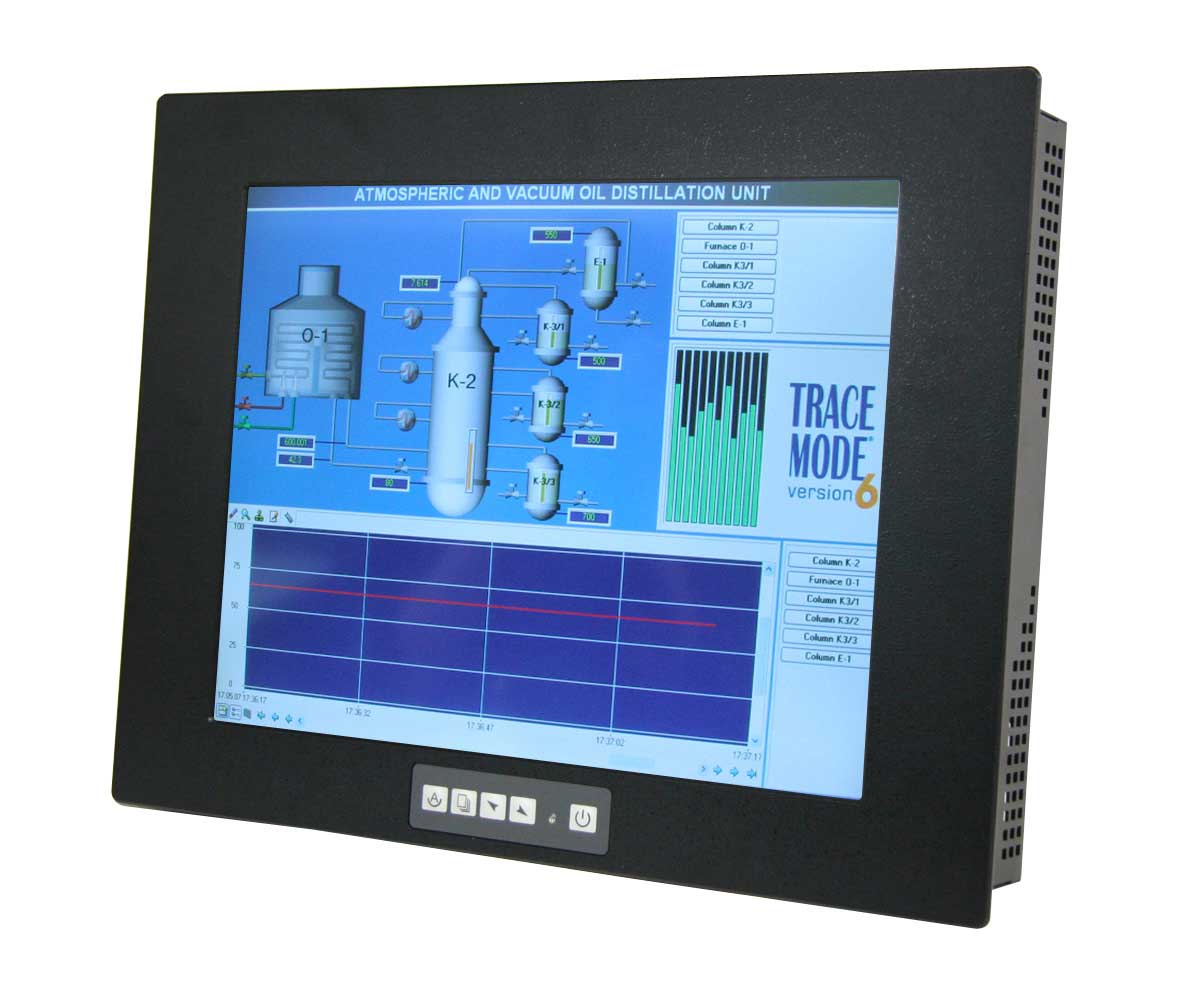

The Aplex ADP-1154T-RS232 is a 15-inch industrial-grade LCD monitor designed for demanding environments that require robust construction, reliable performance, and flexible connectivity. It features a 15-inch color TFT XGA display with a native resolution of 1024 × 768 pixels, integrated RS232 touch control, and a front-mounted on-screen display (OSD) interface for easy configuration. The monitor is engineered for industrial automation, control systems, and embedded applications where durability, precision, and long-term availability are critical.

---

### 2. Key Features

- 15-inch Color TFT XGA Display: Provides a crisp 1024 × 768 resolution for clear visualization of industrial data, graphics, and control interfaces.
- RS232 Touch Interface: Integrated RS232 touch screen for direct, reliable communication with industrial controllers and systems.
- Front OSD Controls: Convenient front-panel OSD (On-Screen Display) buttons for brightness, contrast, and display adjustments without accessing rear panels.
- Multiple Video Inputs: Standard VGA input, with optional DVI, Video, and S-Video interfaces for flexible connectivity to various industrial PCs and video sources.
- Rugged Construction: Built with a steel chassis and steel front bezel for mechanical strength and resistance to vibration and shock.
- IP65 / NEMA 4 Front Protection: The front panel is sealed against dust and water ingress, suitable for harsh industrial environments.
- Flexible Power Input: Supports AC 100–240V universal input, with an optional DC 11–28V power configuration for embedded or mobile applications.
- Mounting Compatibility: Supports VESA 75 mm and panel mounting, allowing integration into control panels, kiosks, or machinery.
- Wide Environmental Tolerance: Operates in temperatures from 0°C to 50°C, with storage capability from –20°C to 60°C.
- Compliance and Certification: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.

---

### 3. Technical Specifications

Display Characteristics:
- Display Type: 15-inch Color TFT LCD
- Resolution: 1024 × 768 (XGA)
- Aspect Ratio: 4:3
- Display Area: Approx. 304.1 × 228.1 mm (typical for 15" XGA panels)
- Brightness: (Not specified, typically 250–350 cd/m² for this class)
- Contrast Ratio: (Not specified, typically 500:1 to 700:1)
- Viewing Angle: (Not specified, typically 140°/120° H/V)
- Backlight Type: CCFL or LED (depending on configuration)

Touch Screen:
- Type: RS232 resistive touch screen (USB touch optional)
- Interface: RS232 serial communication
- Optional Interface: USB touch controller

Mechanical Specifications:
- Construction: Steel front bezel and steel chassis (optional aluminum front bezel available)
- Dimensions (W × H × D): 409 × 309 × 64.7 mm
- Panel Cutout: 392 × 292 mm
- Weight: ~5.32 kg
- Mounting Options: Panel mount and VESA 75 mm mount

Power Requirements:
- Standard Input: AC 100–240V
- Optional Input: DC 11–28V
- Power Consumption: (Not specified, typically 25–40 W for 15" industrial LCDs)

Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: –20°C to 60°C (–4°F to 140°F)
- Relative Humidity: 10–90% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 5–500 Hz (random)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Front Panel Rating: NEMA 4 / IP65 compliant

Certifications:
- CE Certified
- FCC Class A Compliant

---

### 4. Functionality

The ADP-1154T-RS232 functions as a high-reliability industrial display interface for control systems, automation panels, and embedded computing platforms. Its RS232 touch interface allows direct serial communication with industrial PCs, PLCs, or embedded controllers, ensuring stable and interference-resistant operation in electrically noisy environments.

The front OSD controls enable users to adjust display parameters such as brightness, contrast, and input source selection without opening enclosures or accessing rear panels—ideal for panel-mounted installations. The VGA input provides standard analog video connectivity, while optional DVI, Video, and S-Video inputs expand compatibility with a wide range of video sources.

Typical Use Cases:
- Industrial automation and process control panels
- Human-Machine Interface (HMI) terminals
- Embedded system displays
- Factory monitoring and data visualization
- Kiosk and information terminals
- Machine control consoles
- Transportation and logistics control systems

Compatibility:
The monitor is compatible with standard VGA output devices, industrial PCs, embedded controllers, and video systems supporting RS232 or USB touch interfaces. It integrates seamlessly with Aplex industrial computers and other third-party embedded platforms.

---

### 5. Components & Accessories

Included Components:
- ADP-1154T-RS232 15" Industrial LCD Monitor
- RS232 touch interface cable
- AC power cable (for 100–240V input models)
- Mounting brackets or panel clamps (for panel mount installation)
- User manual and installation guide

Optional Accessories:
- USB touch interface kit (for USB touch control option)
- DC power cable (for 11–28V DC input models)
- DVI, Video, or S-Video input modules (optional video input expansion)
- Aluminum front bezel (optional aesthetic and weight-reduction variant)
- VESA 75 mounting arm or bracket

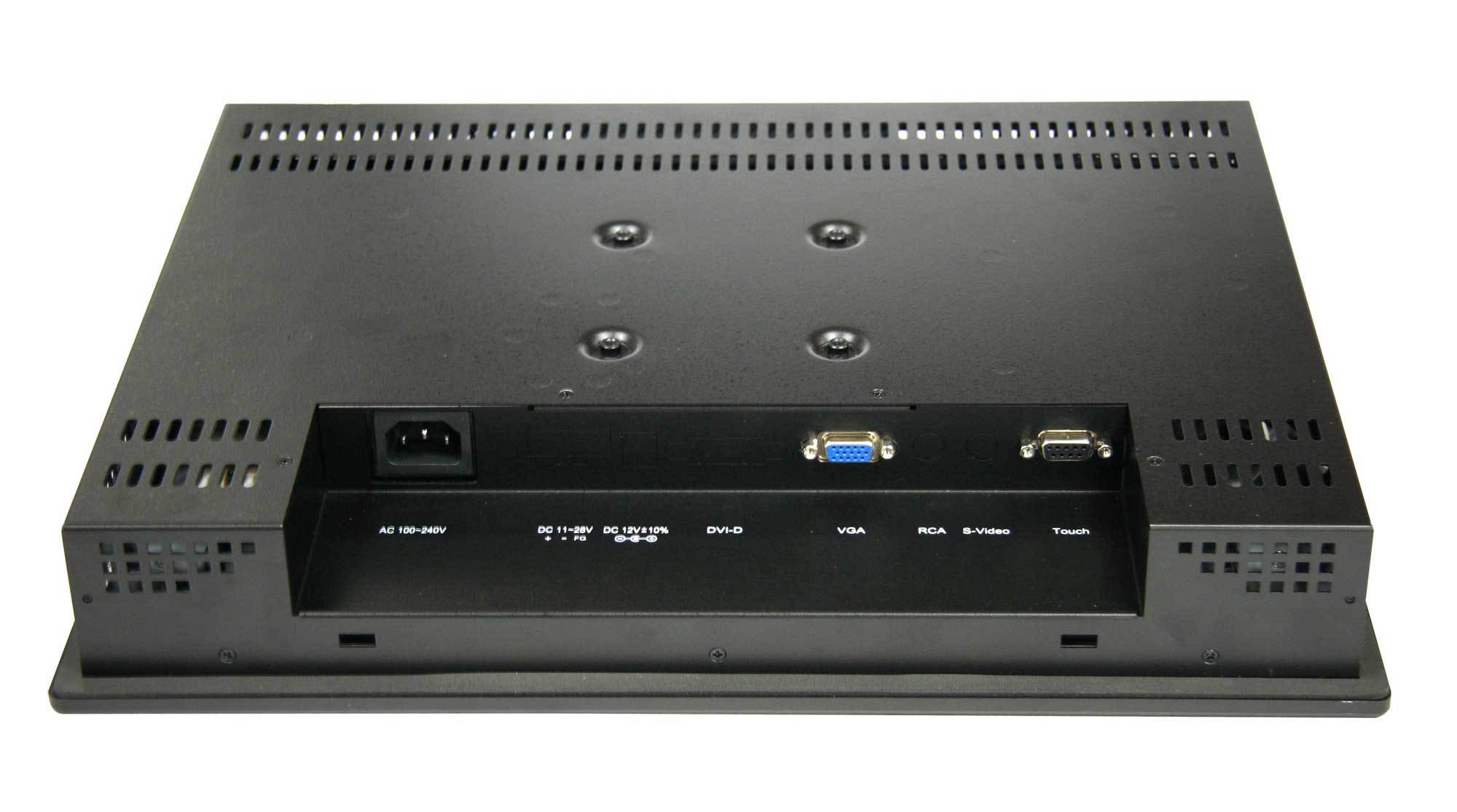

Connectors:
- VGA input connector (standard 15-pin D-Sub)
- RS232 touch interface port (DB9 or equivalent)
- Power input connector (AC or DC depending on configuration)
- Optional DVI/Video/S-Video connectors

---

### 6. Installation & Setup

Installation Requirements:
- Suitable panel cutout: 392 × 292 mm
- Mounting depth clearance: Minimum 65 mm behind panel
- Power source: AC 100–240V or DC 11–28V (depending on model)
- Operating environment: 0–50°C, non-condensing humidity

Mounting Options:
- Panel Mount: The monitor can be flush-mounted into control panels or enclosures using the provided clamps or brackets.
- VESA 75 Mount: Compatible with standard VESA 75 × 75 mm mounting patterns for arm or wall installations.

Setup Procedure:
1. Prepare the panel cutout according to the specified dimensions.
2. Insert the monitor into the cutout and secure it using the provided mounting hardware.
3. Connect the VGA cable to the host system.
4. Connect the RS232 (or optional USB) touch interface cable.
5. Connect the power input (AC or DC as applicable).
6. Power on the system and configure display settings using the front OSD controls.
7. Calibrate the touch screen via the host system’s touch driver utility.

Configuration:
- OSD menu accessible from the front panel for brightness, contrast, color temperature, and input source selection.
- Touch calibration software provided for RS232 or USB interface configuration.

---

### 7. Performance & Capabilities

The ADP-1154T-RS232 is engineered for consistent performance in industrial environments. Its TFT XGA panel delivers sharp image quality suitable for detailed graphical interfaces and real-time data visualization. The RS232 touch interface ensures reliable input recognition even in electrically noisy conditions, making it ideal for factory floors and control rooms.

Performance Highlights:
- Display Resolution: 1024 × 768 pixels ensures clear and detailed visualization.
- Touch Responsiveness: RS232 interface provides stable, low-latency touch input.
- Environmental Durability: IP65 front protection and steel construction resist dust, moisture, and mechanical stress.
- Operational Stability: Designed to withstand vibration (1G) and shock (15G) typical of industrial environments.
- Power Flexibility: Dual power options (AC and DC) support both stationary and mobile installations.

Limitations:
- The display resolution is limited to XGA (1024 × 768), which may not be sufficient for high-definition applications.
- Brightness and contrast specifications are not explicitly stated; performance may vary depending on configuration.
- Touch technology is resistive, which may not support multi-touch gestures.

---

### 8. Standards & Compliance

The ADP-1154T-RS232 adheres to multiple international standards ensuring safety, reliability, and electromagnetic compatibility:

- Ingress Protection: IP65 (front panel) / NEMA 4 compliant – dust-tight and protected against water jets.
- Electromagnetic Compatibility: Meets CE and FCC Class A requirements for industrial environments.
- Mechanical Standards: Complies with VESA 75 mm mounting standard.
- Environmental Standards: Designed for operation within industrial temperature and humidity ranges.

These certifications confirm that the monitor is suitable for use in regulated industrial and commercial environments where compliance with EMC and safety standards is mandatory.

---

### 9. Additional Information

Warranty:
Typically supplied with a 1-year limited manufacturer’s warranty (may vary by region or distributor). The warranty covers defects in materials and workmanship under normal operating conditions.

Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support channels. Technical assistance is available for integration, calibration, and troubleshooting.

Maintenance:
- Regularly clean the front panel with a soft, dry cloth; avoid solvents or abrasive materials.
- Ensure ventilation openings are unobstructed to maintain optimal thermal performance.
- Periodically check mounting hardware for secure attachment in high-vibration environments.
- Touch screen calibration may be required periodically for optimal accuracy.

Firmware & Software Updates:
Firmware and touch driver updates are available from Aplex’s support portal. Updates may include improved touch accuracy, enhanced OSD functionality, and compatibility with new operating systems.

Lifecycle & Availability:
As part of Aplex’s industrial product line, the ADP-1154T-RS232 is designed for long-term availability and stable component sourcing, ensuring continuity for OEM and system integrator projects.

---

### Summary

The Aplex ADP-1154T-RS232 is a robust, 15-inch industrial LCD monitor engineered for reliability, flexibility, and ease of integration in industrial and embedded applications. With its RS232 touch interface, front OSD controls, IP65-rated front panel, and steel construction, it delivers dependable performance in harsh environments. Its universal power input, multiple mounting options, and optional video interfaces make it adaptable to a wide range of industrial systems, from factory automation to embedded control panels.

This model exemplifies Aplex’s commitment to industrial-grade design—combining mechanical durability, electrical stability, and user-friendly operation in a compact, versatile display solution.

---

End of Product Summary – ADP-1154T-RS232 Industrial LCD Monitor
