Comprehensive Product Summary – ADP-1194-06 Industrial Display Monitor

---

### 1. Product Overview

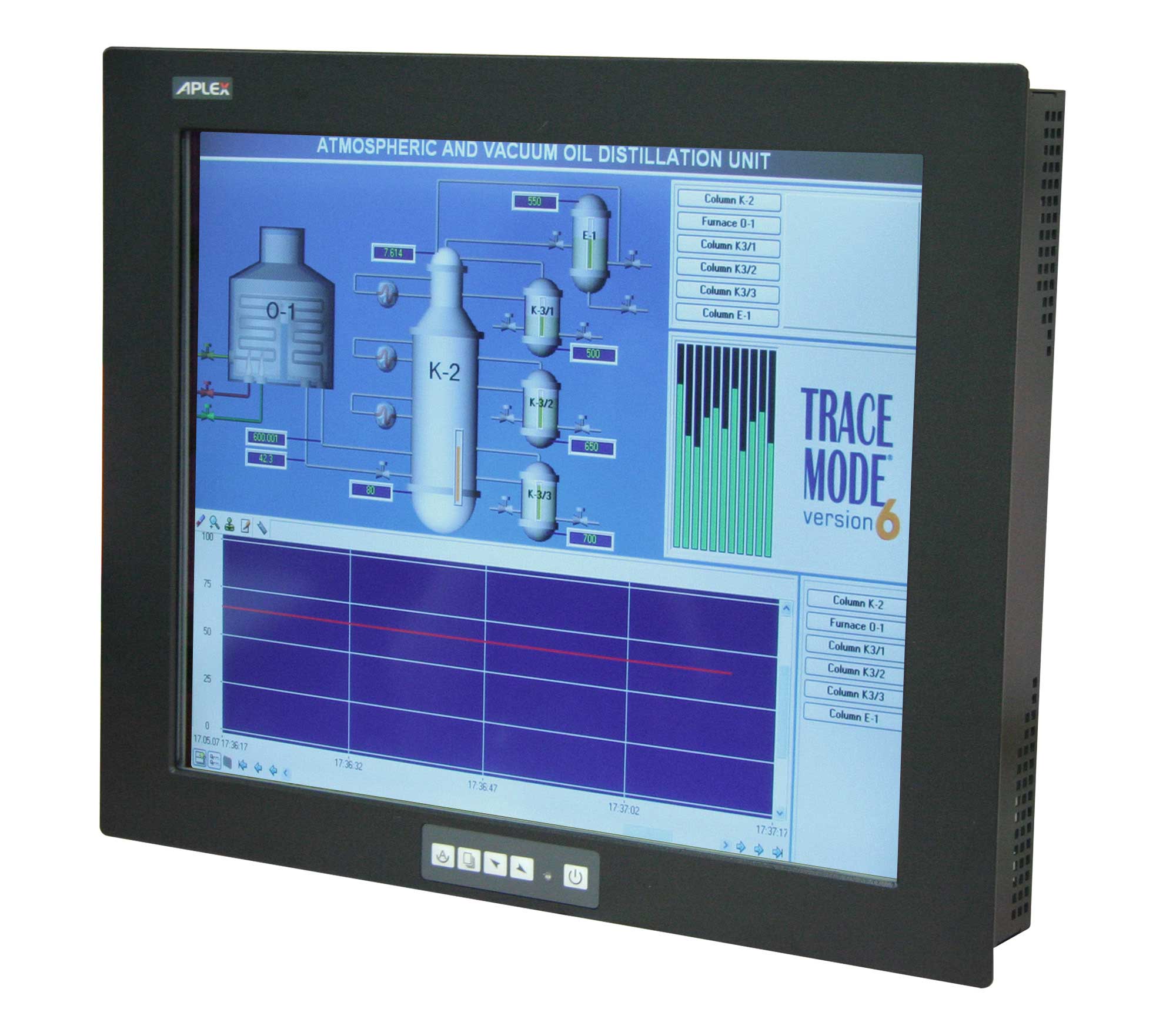

Product Name: 19" SXGA TFT Industrial Display Monitor
Model Number: ADP-1194-06
Series: ADP Industrial Display Series
Article Number: ADP-1194-06
Manufacturer: Aplex Technology Inc.

The Aplex ADP-1194-06 is a rugged, high-performance 19-inch SXGA TFT industrial display monitor designed for demanding industrial and commercial environments. It combines robust mechanical construction, wide environmental tolerance, and versatile mounting options to deliver reliable visual performance in factory automation, control systems, and industrial HMI (Human-Machine Interface) applications. The unit features a front-side OSD (On-Screen Display) for convenient configuration and supports both AC and optional DC power inputs, ensuring flexibility in diverse installation scenarios.

---

### 2. Key Features

- Display Type: 19-inch SXGA (1280 × 1024) TFT LCD panel
- Industrial-Grade Design: Built with a steel chassis and either steel or aluminum front bezel for enhanced durability and resistance to mechanical stress.
- Front OSD Controls: Integrated front-side On-Screen Display (OSD) for easy brightness, contrast, and display parameter adjustments.
- Flexible Power Input: Standard AC 100–240V input with an optional DC 11–28V input configuration for industrial power systems.
- Mounting Options: Supports panel mount and VESA 75 mm mounting standards for versatile installation in control panels or on mounting arms.
- Environmental Resilience: Designed to operate in a wide temperature range and withstand vibration and shock typical of industrial environments.
- Ingress Protection: NEMA 4 / IP65 compliant front bezel, providing protection against dust and water ingress on the front surface.
- Regulatory Compliance: Meets CE and FCC Class A standards for electromagnetic compatibility and safety.
- Optional Configurations: Choice of aluminum front bezel for enhanced corrosion resistance or steel front bezel for maximum structural rigidity.

---

### 3. Technical Specifications

Display Characteristics:
- Display Size: 19 inches (diagonal)
- Display Type: TFT LCD
- Resolution: SXGA (1280 × 1024 pixels)
- Aspect Ratio: 5:4
- Display Surface: Industrial-grade anti-glare finish (typical for industrial TFT panels)
- Viewing Angle: Wide viewing angles suitable for industrial monitoring (specific values not provided but typically 160°/160° for SXGA TFTs)
- Brightness and Contrast: Optimized for indoor and semi-outdoor industrial environments (exact values not specified)

Mechanical Specifications:
- Front Bezel Options:
- Steel front bezel & steel chassis (standard configuration)
- Aluminum front bezel & steel chassis (optional configuration)
- Overall Dimensions: 467 mm (W) × 379 mm (H) × 64.7 mm (D)
- Mounting Options:
- Panel mount for flush integration into control panels or enclosures
- VESA 75 mm mount for arm or bracket installation
- Construction: Heavy-duty metal chassis for vibration resistance and long-term durability

Power Input:
- Standard Input: AC 100–240V
- Optional Input: DC 11–28V (for direct connection to industrial DC power systems)

Environmental Specifications:
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Relative Humidity: 10% to 95% @ 40°C, non-condensing (without touch screen)
- Vibration Resistance: 1G peak, 10–150 Hz (random vibration)
- Shock Resistance: 15G peak acceleration, 11 ms duration
- Ingress Protection: NEMA 4 / IP65 compliant front bezel

Certifications:
- CE Certified
- FCC Class A Compliant

---

### 4. Functionality

The Aplex ADP-1194-06 functions as a standalone industrial display monitor designed to interface with a variety of industrial computers, embedded systems, and control units. It provides a clear, high-resolution SXGA display suitable for monitoring, visualization, and control applications.

Operation and Interface:
- The front OSD (On-Screen Display) allows users to adjust brightness, contrast, color temperature, and other display parameters directly from the front panel, simplifying configuration and maintenance.
- The monitor connects to host systems via standard video interfaces (typically VGA, DVI, or HDMI depending on configuration; not explicitly listed but standard for Aplex ADP series).
- The wide power input range supports both AC mains and DC industrial power sources, enabling deployment in control cabinets, production lines, and mobile equipment.

Use Cases and Applications:
- Factory Automation: Real-time process visualization and control interface.
- Industrial Control Panels: Integration into operator panels or machine interfaces.
- Transportation Systems: Display for vehicle-mounted or station-based control systems.
- Energy and Utilities: Monitoring systems for power plants, substations, and renewable energy installations.
- Marine and Outdoor Equipment: Suitable for protected environments requiring IP65 front protection.
- Embedded Systems: As a display terminal for embedded controllers or industrial PCs.

Compatibility:
- Compatible with a wide range of industrial PCs, embedded controllers, and automation systems supporting standard video outputs.
- Mounting and power options ensure compatibility with existing industrial infrastructure.

---

### 5. Components & Accessories

Included Components:
- ADP-1194-06 Display Unit (main monitor assembly)
- Front OSD control interface integrated into the bezel
- Power cable (for AC input configuration)
- Mounting brackets for panel or VESA installation (depending on configuration)
- User manual and installation guide

Optional Accessories:
- DC power input module (11–28V DC)
- Aluminum front bezel option for enhanced corrosion resistance
- Touch screen module (not included in base specification; optional in some configurations)
- VESA mounting arms or brackets for flexible installation
- Protective front cover or sealing gasket for additional environmental protection

Connectors:
- Power connector: AC input socket or DC terminal block (depending on configuration)
- Video input connectors: Typically VGA/DVI (exact type depends on model variant)
- OSD control buttons: Integrated on the front panel

---

### 6. Installation & Setup

Installation Requirements:
- Power Source: AC 100–240V or DC 11–28V (optional)
- Mounting Surface: Flat, stable surface or control panel capable of supporting the monitor’s weight and dimensions
- Environmental Conditions: Must be within specified operating temperature and humidity ranges

Mounting Options:
- Panel Mount: The monitor can be flush-mounted into a control cabinet or console using the provided mounting brackets. This configuration provides a clean, integrated appearance and maintains the IP65 front protection rating.
- VESA 75 mm Mount: Allows attachment to standard VESA-compatible arms, brackets, or stands for flexible positioning and ergonomic adjustment.

Configuration:
- The front OSD enables quick setup of display parameters without requiring rear access.

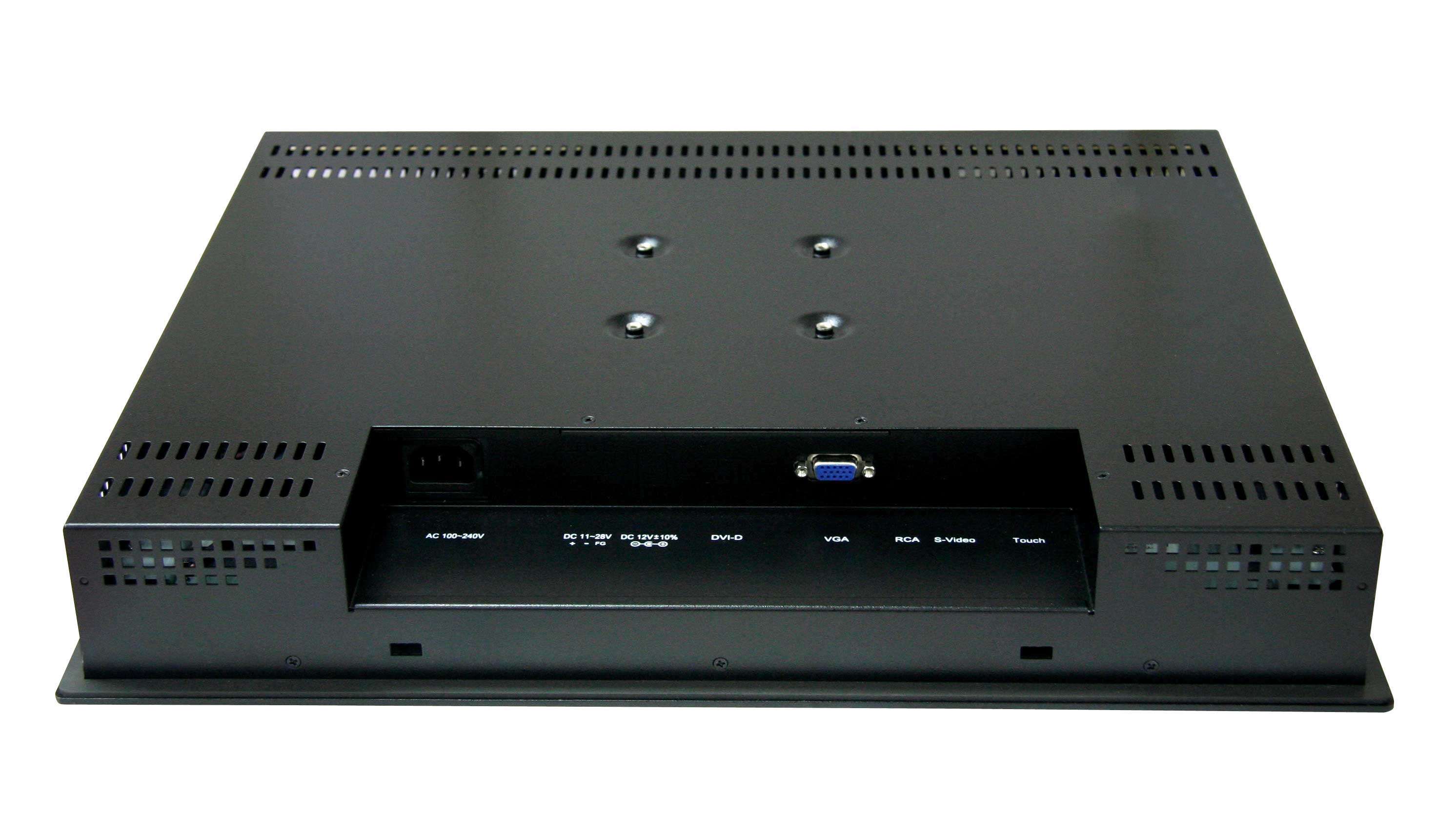

- Power and video connections are made at the rear of the unit, with secure connectors designed for industrial environments.
- Optional DC power configuration requires proper polarity and voltage verification before connection.

Setup Procedure:
1. Mount the display using the chosen method (panel or VESA).
2. Connect the power input (AC or DC).
3. Connect the video signal cable from the host system.
4. Power on the display and adjust settings via the OSD menu.
5. Verify image quality, brightness, and alignment.

---

### 7. Performance & Capabilities

Display Performance:
- The SXGA resolution (1280 × 1024) provides sharp, detailed images suitable for industrial visualization and data monitoring.
- The TFT LCD technology ensures consistent color reproduction and wide viewing angles, critical for multi-operator environments.
- The front OSD allows fine-tuning of display parameters for optimal performance under varying lighting conditions.

Power Efficiency:
- Designed for continuous operation with efficient power consumption typical of industrial TFT displays.
- The optional DC input supports direct connection to industrial power buses, reducing conversion losses.

Environmental Performance:
- Operates reliably in ambient temperatures from 0°C to 50°C, with storage capability down to -20°C and up to 60°C.
- Withstands vibration up to 1G and shock up to 15G, ensuring stable performance in high-vibration environments such as manufacturing floors or mobile platforms.
- The IP65/NEMA 4 front bezel protects against dust and water spray, allowing use in semi-outdoor or washdown environments.

Limitations:
- The specified humidity tolerance applies without a touch screen; configurations with touch input may have different environmental ratings.
- The display is not designed for full outdoor exposure or direct sunlight readability unless installed in a protected enclosure.

---

### 8. Standards & Compliance

Ingress Protection:
- NEMA 4 / IP65 compliant front bezel ensures protection against dust ingress and low-pressure water jets from any direction, suitable for industrial and light outdoor use.

Electromagnetic Compatibility (EMC):
- CE Certified: Conforms to European safety and EMC directives.
- FCC Class A: Meets U.S. Federal Communications Commission standards for industrial and commercial equipment, ensuring minimal electromagnetic interference.

Safety and Reliability Standards:
- Designed and tested to meet industrial-grade mechanical and environmental standards for vibration, shock, and temperature endurance.
- Complies with international norms for industrial display equipment, ensuring long-term reliability and safety in mission-critical applications.

---

### 9. Additional Information

Warranty:
- Typically covered by Aplex standard industrial product warranty (duration varies by region and distributor; commonly 1–2 years).
- Warranty covers manufacturing defects and hardware failures under normal operating conditions.

Support:
- Technical support available through Aplex’s global service network.
- Documentation and drivers (if applicable) available from the manufacturer’s website.
- Firmware updates and configuration utilities provided for compatible systems.

Maintenance:
- Front panel cleaning: Use a soft, dry or slightly damp cloth; avoid solvents or abrasive materials.
- Periodic inspection: Check mounting integrity, cable connections, and ventilation.
- Environmental checks: Ensure the installation environment remains within specified temperature and humidity limits.

Product Lifecycle and Updates:
- The ADP-1194-06 is part of Aplex’s long-term support product line, ensuring availability of replacement units and parts for extended industrial deployments.
- Future revisions may include updated display panels or interface options while maintaining mechanical and electrical compatibility.

---

### Summary

The Aplex ADP-1194-06 19" SXGA TFT Industrial Display Monitor is a robust, versatile, and high-performance display solution engineered for industrial environments requiring durability, reliability, and clear visual output. With its steel or aluminum front bezel, IP65-rated front protection, wide power input range, and flexible mounting options, it is ideally suited for factory automation, control systems, and embedded industrial applications. The combination of rugged mechanical design, environmental resilience, and regulatory compliance ensures dependable operation in demanding conditions, making the ADP-1194-06 a trusted choice for industrial display integration.
