Comprehensive Product Summary – AHM-6195 Fanless Panel PC

---

### 1. Product Overview

Product Name: AHM-6195
Model Number: AHM-6195
Series: AHM Industrial Panel PC Series
Article Number: AHM-6195
Manufacturer: Aplex Technology Inc.

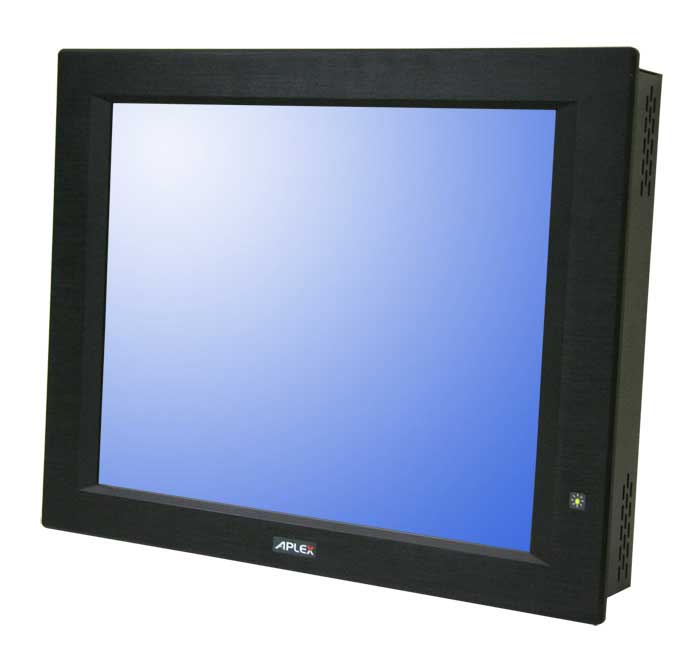

The AHM-6195 is a 19-inch industrial-grade fanless panel PC designed for demanding automation, control, and monitoring applications. It integrates a high-resolution SXGA (1280 × 1024) display with a resistive touch interface and a compact, ruggedized chassis suitable for harsh industrial environments. The system is powered by a low-power Celeron 1 GHz processor, with optional support for Pentium 4-M CPUs up to 1.8 GHz, providing a balance between performance, reliability, and energy efficiency. The AHM-6195 is part of Aplex’s AHM series of fanless panel PCs, known for their robust construction, flexible I/O configuration, and wide DC power input range.

---

### 2. Key Features

- 19-inch SXGA Display: High-resolution 1280 × 1024 TFT LCD panel for clear, detailed visualization of industrial processes and data.
- Fanless Architecture: Passive cooling design eliminates moving parts, reducing maintenance and improving reliability in dusty or vibration-prone environments.
- Touchscreen Interface: Sealed 5-wire resistive touch panel for intuitive operation, suitable for gloved or industrial use.
- Flexible CPU Options: Standard configuration with Intel Celeron 1 GHz CPU; supports upgrade to Pentium 4-M up to 1.8 GHz for enhanced performance.
- Rugged Construction: Alloy front bezel with IP65-rated protection against dust and water ingress, ensuring durability in industrial settings.
- Comprehensive I/O Connectivity:
- 1 × RS-232 port
- 1 × RS-232/422/485 configurable serial port
- 1 × 10/100 Mbps LAN port
- 2 × USB 2.0 ports
- 1 × Parallel port
- Storage Flexibility: Supports one 2.5" HDD and one CompactFlash (CF) slot for solid-state storage or OS deployment.
- Wide DC Power Input: Operates from 11 to 28 VDC, accommodating various industrial power systems.
- Mounting Compatibility: VESA 75 mm mount and panel cutout dimensions for easy integration into control panels or enclosures.
- Industrial-Grade Design: Designed for continuous operation in manufacturing, automation, and process control environments.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Display Size | 19 inches |
| Display Resolution | SXGA 1280 × 1024 pixels |
| Display Type | TFT LCD |
| Touchscreen Type | 5-wire resistive, sealed front |
| Processor (CPU) | Intel Celeron 1 GHz (standard); up to Pentium 4-M 1.8 GHz (optional) |
| System Memory | Supports standard DDR or DDR2 memory modules (capacity dependent on configuration) |
| Storage Options | 1 × 2.5" HDD bay, 1 × CompactFlash slot |
| I/O Interfaces | 1 × RS-232, 1 × RS-232/422/485, 1 × 10/100 LAN, 2 × USB 2.0, 1 × Parallel port |
| Power Input | 11–28 VDC wide-range input |
| Front Panel Protection | IP65-rated alloy front bezel |
| Mounting Options | VESA 75 mm mount, panel mount |
| Cutout Dimensions | 450 × 362 mm |
| Overall Dimensions (W × H × D) | 467 × 379 × 86 mm |
| Construction Material | Aluminum alloy front panel, steel chassis |
| Cooling System | Fanless passive cooling |
| Operating Temperature | Typically 0°C to 50°C (depending on configuration and environment) |
| Storage Temperature | -20°C to 60°C (typical) |
| Relative Humidity | 10%–90% non-condensing |
| Weight | Approx. 7–9 kg (depending on configuration) |
| Color | Industrial gray/silver finish |

---

### 4. Functionality

The AHM-6195 functions as a fully integrated industrial computer with a built-in display and touch interface. It is designed for use in environments where reliability, compactness, and low maintenance are critical. The fanless design ensures silent operation and prevents dust ingress, making it ideal for factory automation, machine control, and process visualization.

Typical Use Cases:
- Human-Machine Interface (HMI) terminals in production lines
- SCADA (Supervisory Control and Data Acquisition) systems
- Industrial control panels and kiosks
- Building automation and facility management systems
- Data acquisition and monitoring stations
- Embedded control systems in transportation or logistics equipment

Compatibility:
The AHM-6195 supports standard operating systems such as Windows XP Embedded, Windows 7 Embedded, or Linux distributions tailored for industrial PCs. It interfaces easily with PLCs, sensors, and industrial networks via its serial and Ethernet ports.

---

### 5. Components & Accessories

Included Components:
- AHM-6195 main unit (panel PC)
- Integrated 19" SXGA LCD with resistive touchscreen
- Power connector terminal block
- Mounting brackets for panel or VESA installation
- User manual and driver CD (depending on shipment configuration)

Optional Accessories:
- 2.5" HDD or SSD (user-supplied or factory-installed)
- CompactFlash card for OS or data storage
- External power adapter (if not using direct DC input)
- Wall-mount or arm-mount kits (VESA 75 compatible)
- Additional I/O expansion modules (depending on motherboard support)

Connectors:
- DB9 connectors for serial ports
- RJ45 connector for Ethernet LAN
- USB Type-A ports for peripherals
- DB25 connector for parallel interface
- DC power input terminal block

---

### 6. Installation & Setup

Requirements:
- DC power source within 11–28 VDC range
- Proper ventilation or enclosure space for passive heat dissipation
- Mounting surface compatible with 450 × 362 mm cutout dimensions

Mounting Options:
- Panel Mount: The unit can be flush-mounted into a control cabinet or console using the provided brackets.
- VESA Mount: Compatible with VESA 75 mm standard for arm or wall mounting.

Configuration Steps:
1. Prepare the panel cutout (450 × 362 mm) and ensure clearance for the 86 mm depth.
2. Secure the unit using the supplied mounting brackets or VESA mount.
3. Connect DC power input (11–28 VDC) to the terminal block.
4. Attach required peripherals (keyboard, mouse, network cable, serial devices).
5. Install or configure the operating system via HDD or CF card.
6. Calibrate the resistive touchscreen using the provided software utility.

Environmental Considerations:
Ensure the installation site is free from excessive vibration, moisture, and direct sunlight. The IP65 front panel allows for occasional cleaning or exposure to splashes, but the rear chassis should remain protected from liquids.

---

### 7. Performance & Capabilities

Processing Performance:
The Intel Celeron 1 GHz CPU provides sufficient computing power for typical HMI and control applications. For more demanding tasks, the optional Pentium 4-M 1.8 GHz processor offers enhanced performance while maintaining low thermal output.

Graphics Performance:
Integrated graphics controller supports SXGA resolution (1280 × 1024) with 16-bit or 24-bit color depth, suitable for detailed graphical interfaces and real-time data visualization.

Storage & Memory:
The combination of a 2.5" HDD bay and CF slot allows flexible storage configurations—solid-state CF for OS and HDD for data logging or vice versa. This dual-storage design enhances reliability and simplifies maintenance.

Network & Communication:
The 10/100 LAN interface ensures stable network connectivity for SCADA or remote monitoring systems. Dual serial ports (RS-232 and RS-232/422/485) provide compatibility with a wide range of industrial devices and legacy equipment.

USB & Peripheral Support:
Two USB 2.0 ports allow connection of external devices such as barcode scanners, printers, or USB drives for data transfer and system updates.

Power Efficiency:
The wide 11–28 VDC input range supports direct connection to industrial power supplies, minimizing the need for external adapters. The fanless design reduces power consumption and eliminates mechanical wear.

Limitations:
While robust and reliable, the AHM-6195 is not intended for high-performance computing or graphics-intensive applications. It is optimized for control, monitoring, and interface tasks rather than heavy data processing.

---

### 8. Standards & Compliance

Ingress Protection:
- Front panel rated IP65, ensuring protection against dust and low-pressure water jets.

Mounting Standard:
- VESA 75 mm compliant for universal mounting compatibility.

Electrical & Safety Compliance:
- Designed to meet CE and FCC Class A industrial standards (typical for Aplex products).
- Complies with RoHS directives for environmental safety and material restrictions.

Industrial Standards:
- Meets general industrial computing standards for EMC (Electromagnetic Compatibility) and ESD (Electrostatic Discharge) protection.
- Suitable for use in industrial automation, process control, and embedded system environments.

---

### 9. Additional Information

Warranty:
Typically supplied with a 1-year limited manufacturer’s warranty covering defects in materials and workmanship. Extended warranty options may be available through Aplex or authorized distributors.

Technical Support:
Aplex provides technical documentation, driver downloads, and firmware updates through its official support portal. Engineering assistance and customization services are available for OEM and system integrator clients.

Maintenance:
- The fanless design minimizes maintenance requirements.
- Periodic cleaning of the front panel and inspection of connectors is recommended.
- Storage devices (HDD/CF) can be replaced or upgraded as needed.

Software & Updates:
Compatible with major industrial operating systems. BIOS and driver updates are periodically released to ensure compatibility with new hardware and OS versions.

Serviceability:
The modular internal design allows easy access to storage and memory components for upgrades or replacements. The sealed front panel ensures long-term durability even in challenging environments.

---

### Summary

The Aplex AHM-6195 is a 19-inch fanless industrial panel PC engineered for reliability, flexibility, and ease of integration. With its SXGA 1280 × 1024 display, resistive touchscreen, and rugged IP65-rated front panel, it is ideally suited for industrial automation, HMI, and control applications. The system’s wide DC input range (11–28 VDC), comprehensive I/O options, and fanless design make it a dependable solution for continuous operation in harsh environments. Its modular storage options, VESA/panel mounting flexibility, and support for standard operating systems further enhance its adaptability across diverse industrial sectors.

---

In summary, the AHM-6195 combines industrial durability, flexible connectivity, and efficient performance in a compact, fanless design—making it a reliable choice for modern automation and embedded control systems.
