AI-1204Z-PE - Contec

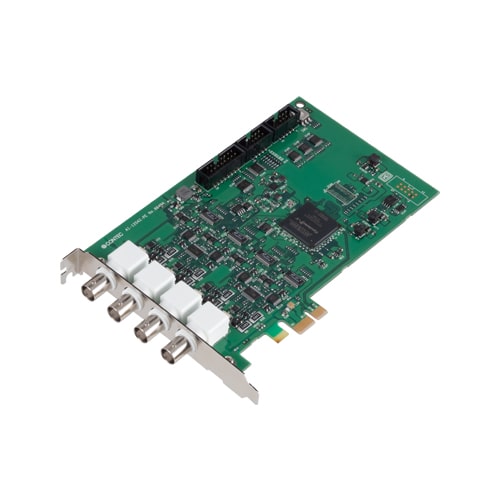

PCIe AD card 10MS/s 12 Bit 4 simult.chan, 4*DI, 4*DO
A/D High Speed PCI cards are PC Add-On Cards designed to provide high speed analog-to-digital conversion for computer systems. They provide fast, accurate data acquisition and are ideal for applications such as medical imaging, industrial automation, and scientific research. The cards support a wide range of input ranges and sample rates, making them a great choice for any application requiring high speed A/D conversion..
770,00 €
incl. VAT 916,30 €
incl. VAT 916,30 €
Description
- PCIe bus AD card
- 10MS/s 12bit 4 simultaneous channels
- analog non-isolated inputs bipolar ±5/±10V or unipolar 0-5/0-10V
- 16M data FIFO or RING
- LVTTL digital I/O 4* DI + 4*DO
- counter with internal 4MHz clock or external signal
- connector D-SUB 37pin female and 16pin pin-header
- Windows and Linux driver software
- C-LOGGER and LabView supported
- operating condition 0-50°C 10-90%RH
- 169,33mm'110,18mm
- ~150gr
- Contec
Details
- Features: 16MWord FIFO/Ring Buffer
- Width: 176 mm
- Height: 106 mm
- Weight: 0.8kg
- Manufacturer: Contec
- Country of Origin: Japan
- Customs code: 8473 3020 000
Accessories
-
ATUH-16(PCI)
Extra inputs 32SE/16DI for AD12-16U(PCI)-series -
ATII-8A
Isolated 8 differential inputs panel -
ATSS-16
Sample & hold panel for 16 single ended inputs -
ATLF-8
8 channel signal conditioning panel -
ATP-16
16 BNC channel single ended, D-sub 37f -
DTP-3C
General purpose screw terminal panel, 2*22 large screw -
DTP-4C
General purpose M2.5 screw terminal panel, 4*10 screw blocks -
EPD-37A
DIN-rail mountable unit with DB-37f
