1. Product Overview
Product Name: Panel for J3A Mitsubishi Servo Amplifier
Model: DIN-814M-J3A0
Series: DIN-814M Series
Article Number: DIN-814M-J3A0
Manufacturer: Adlink Technology Inc.

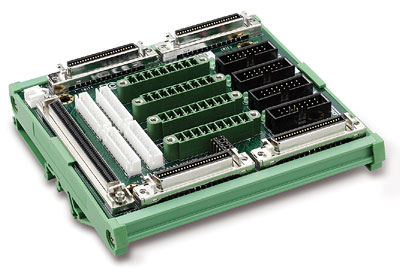

The Adlink DIN-814M-J3A0 is a specialized 100-pin SCSI-II termination panel designed for integration with Mitsubishi MR-J3-A series servo amplifiers. Engineered for DIN rail mounting, this panel provides a reliable and organized interface between the servo amplifier and peripheral control systems. It serves as a termination and connection interface, simplifying wiring, improving signal integrity, and ensuring stable communication between the servo drive and external control hardware. The product is designed for industrial automation environments where precision, reliability, and compact installation are critical.

---

2. Key Features
- Dedicated Interface for Mitsubishi MR-J3-A Servo Amplifiers: Specifically designed to match the electrical and mechanical interface requirements of the Mitsubishi MR-J3-A servo amplifier series.
- 100-pin SCSI-II Termination Board: Provides a standardized, high-density connection interface for servo control signals, feedback, and I/O communication.
- DIN Rail Mounting Design: Enables quick and secure installation within industrial control cabinets, optimizing space utilization and simplifying maintenance.
- Compact Form Factor: With dimensions of 123 × 107 × 44 mm, the panel offers a space-efficient solution suitable for dense automation setups.
- High Signal Integrity: The SCSI-II interface ensures reliable high-speed data transmission with minimal signal degradation, suitable for precision servo control applications.
- Cable-Free Configuration (w/o ACL-102100-1): The unit is supplied without the ACL-102100-1 cable, allowing users to select or customize cabling according to system requirements.
- Industrial-Grade Construction: Built to withstand the mechanical and electrical demands of industrial automation environments, ensuring long-term durability and consistent performance.
- Plug-and-Play Compatibility: Designed for seamless integration with Mitsubishi servo systems, minimizing setup time and reducing wiring complexity.
- Adlink Quality Assurance: Manufactured by Adlink, a recognized provider of industrial connectivity and automation solutions, ensuring compliance with quality and performance standards.

---

3. Technical Specifications
- Model: DIN-814M-J3A0
- Article Number: DIN-814M-J3A0
- Manufacturer: Adlink Technology Inc.
- Interface Type: 100-pin SCSI-II termination board
- Compatible Servo Amplifier: Mitsubishi MR-J3-A series
- Mounting Type: DIN rail mount
- Cable: Not included (without ACL-102100-1 cable)
- Dimensions: 123 mm (W) × 107 mm (H) × 44 mm (D)
- Weight: Approx. 0.3–0.5 kg (typical for this form factor; actual weight may vary slightly depending on configuration)
- Material: Industrial-grade PCB with protective housing suitable for DIN rail mounting
- Color: Standard industrial finish (typically green PCB with metallic or plastic DIN rail housing)
- Connector Type: 100-pin SCSI-II male/female connectors (depending on configuration)
- Operating Environment: Designed for industrial control cabinets; suitable for ambient temperatures typical of automation environments (0–55°C recommended)
- Storage Temperature: -20°C to +70°C (typical for industrial electronic components)
- Humidity: 10–90% non-condensing
- Mounting Orientation: Horizontal or vertical DIN rail installation supported
- Compliance: Conforms to SCSI-II electrical and mechanical interface standards

---

4. Functionality
The DIN-814M-J3A0 functions as a termination and interface panel between a Mitsubishi MR-J3-A servo amplifier and external control or monitoring systems. It provides a 100-pin SCSI-II connection that consolidates multiple signal lines—such as encoder feedback, control signals, and I/O channels—into a single, organized interface.

How It Works:
- The panel is mounted on a DIN rail within a control cabinet.
- The 100-pin SCSI-II connector interfaces directly with the servo amplifier’s communication port.
- The termination board routes signals to terminal blocks or connectors that link to PLCs, motion controllers, or other automation devices.
- The termination ensures proper impedance matching and signal integrity, reducing noise and improving communication reliability.

Use Cases and Applications:
- Industrial automation systems using Mitsubishi MR-J3-A servo amplifiers
- Motion control panels and servo drive cabinets
- Machine tools, robotics, and automated assembly lines
- Packaging, printing, and material handling equipment
- Test and measurement setups requiring precise servo control integration

Compatibility:
- Fully compatible with Mitsubishi MR-J3-A servo amplifier series
- Supports standard SCSI-II cabling and connectors
- Integrates with Adlink and third-party industrial control systems that utilize SCSI-II or equivalent servo communication interfaces

---

5. Components & Accessories
Included Items:
- DIN-814M-J3A0 termination panel
- Integrated 100-pin SCSI-II connector interface
- DIN rail mounting clips or brackets (factory-installed or included)
- User documentation or installation guide (depending on shipment configuration)

Optional Accessories:
- ACL-102100-1 Cable: 100-pin SCSI-II cable (not included) for connecting the panel to the servo amplifier or controller.
- Additional mounting hardware or protective covers (optional, depending on installation environment).
- Cable management accessories for routing and securing signal lines.

Connectors and Interfaces:
- 1 × 100-pin SCSI-II connector (primary interface)
- Terminal blocks or pin headers for signal breakout (depending on configuration)
- Grounding terminal for chassis or cabinet grounding

---

6. Installation & Setup
Requirements:
- Compatible Mitsubishi MR-J3-A servo amplifier
- Available DIN rail section within the control cabinet
- Appropriate SCSI-II cable (ACL-102100-1 or equivalent)
- Power-off condition during installation to prevent electrical damage

Mounting Options:
- Standard 35 mm DIN rail mounting (EN 60715 compliant)
- Snap-on installation with integrated DIN clips
- Can be mounted horizontally or vertically depending on cabinet layout

Configuration Steps:
1. Ensure the control cabinet is powered down.
2. Mount the DIN-814M-J3A0 securely onto the DIN rail.
3. Connect the 100-pin SCSI-II cable from the Mitsubishi MR-J3-A servo amplifier to the panel’s connector.
4. Route and secure signal cables to the corresponding terminal blocks or connectors.
5. Verify all connections for proper seating and polarity.
6. Power on the system and perform a communication test to confirm proper operation.

Safety Considerations:
- Follow Mitsubishi and Adlink installation guidelines.
- Ensure proper grounding to prevent electrical interference.
- Avoid excessive bending or tension on the SCSI-II cable.

---

7. Performance & Capabilities
- Signal Transmission: High-speed, low-noise communication via SCSI-II interface ensures accurate servo control and feedback.
- Capacity: Supports full 100-pin signal routing for complex servo systems with multiple I/O channels.
- Efficiency: Simplifies wiring and reduces installation time by consolidating multiple connections into a single interface.
- Reliability: Industrial-grade components ensure stable operation under continuous use.
- Limitations:
- Cable (ACL-102100-1) not included; must be sourced separately.
- Designed specifically for Mitsubishi MR-J3-A series; not compatible with other servo amplifier models without modification.
- Requires proper termination and grounding for optimal performance.

Operational Benefits:
- Reduces wiring errors and maintenance time.
- Enhances signal integrity and reduces electromagnetic interference (EMI).
- Facilitates quick replacement or maintenance of servo amplifiers without rewiring.

---

8. Standards & Compliance
- Interface Standard: SCSI-II (Small Computer System Interface, Revision 2)
- Mounting Standard: DIN rail (EN 60715)
- Electrical Compliance: Designed to meet industrial control equipment standards for insulation, grounding, and signal integrity.
- Environmental Compliance: RoHS-compliant materials (lead-free solder and components).
- Quality Assurance: Manufactured under ISO 9001-certified processes by Adlink Technology.
- Compatibility Certification: Verified for use with Mitsubishi MR-J3-A servo amplifier series.
- Safety Standards: Conforms to general industrial electronic safety guidelines (IEC/EN 61010-1).

---

9. Additional Information
Warranty:
- Standard manufacturer’s warranty (typically 1 year, depending on region and distributor).
- Covers defects in materials and workmanship under normal operating conditions.

Support:
- Technical documentation and installation guides available from Adlink.
- Customer support via Adlink’s global service network.
- Online resources for product updates, compatibility notes, and configuration examples.

Maintenance:
- Minimal maintenance required; periodic inspection recommended to ensure secure connections and clean contact surfaces.
- Avoid exposure to excessive dust, moisture, or vibration.
- Replace cables or connectors showing signs of wear or damage.

Updates and Revisions:
- Product revisions may include updated connector layouts or improved materials.
- Firmware or software updates are not applicable, as the panel is a passive termination device.

Lifecycle and Availability:
- Long-term availability supported for industrial customers.
- Designed for integration into OEM and system integrator solutions requiring stable supply and consistent specifications.

---

### Summary
The Adlink DIN-814M-J3A0 is a 100-pin SCSI-II termination panel engineered for Mitsubishi MR-J3-A servo amplifiers, offering a compact, DIN rail–mountable interface solution for industrial automation systems. With its robust design, precise signal routing, and compatibility with Mitsubishi servo technology, it simplifies installation, enhances reliability, and supports efficient system integration. Measuring 123 × 107 × 44 mm, it provides a space-saving, high-performance connection platform ideal for motion control, robotics, and machine automation applications.

By adhering to industrial standards and leveraging Adlink’s expertise in connectivity solutions, the DIN-814M-J3A0 ensures dependable operation, easy maintenance, and long-term support for demanding automation environments.
