1. Product Overview
Product Name: DIN-814M0
Model Number: DIN-814M0
Series: DIN-814 Series Termination Panels
Article Number: DIN-814M0
Manufacturer: Adlink Technology Inc.

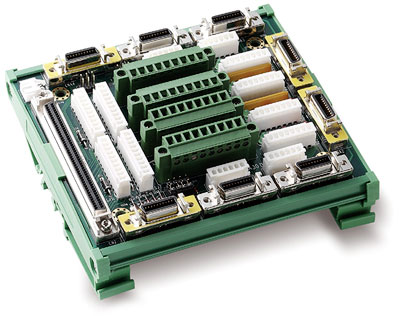

The Adlink DIN-814M0 is a 100-pin SCSI-II termination panel designed specifically for Mitsubishi MR-J2S-A servo amplifiers. It serves as an interface and termination board that facilitates reliable signal transmission between the servo amplifier and control systems. Engineered for DIN rail mounting, the DIN-814M0 provides a compact, robust, and efficient solution for industrial automation environments where Mitsubishi J2S-A servo systems are deployed.

This panel is optimized for use in motion control and automation setups requiring high signal integrity, easy installation, and compatibility with Mitsubishi’s J2S-A servo amplifier series. It is supplied without the ACL-102100-1 cable, allowing users to select or customize cabling according to their system requirements.

---

2. Key Features
- Dedicated Interface for Mitsubishi MR-J2S-A Servo Amplifiers: Designed to provide seamless connectivity and termination for Mitsubishi’s J2S-A servo amplifier series.
- 100-pin SCSI-II Termination Board: Supports high-density signal connections using a standard 100-pin SCSI-II interface, ensuring reliable data and control signal transmission.
- DIN Rail Mounting: Compact form factor (123 × 107 × 44 mm) optimized for standard DIN rail installations in control cabinets and automation panels.
- Industrial-Grade Construction: Built with durable materials suitable for industrial environments, ensuring long-term reliability and mechanical stability.
- Cable-Free Configuration: Delivered without the ACL-102100-1 cable, providing flexibility for users to select appropriate cable lengths or configurations.
- Simplified Wiring and Maintenance: Terminal labeling and structured layout facilitate quick installation, easy maintenance, and reduced wiring errors.
- Adlink Quality Assurance: Manufactured by Adlink, a trusted provider of industrial I/O and motion control hardware, ensuring compatibility, performance, and support.

---

3. Technical Specifications
- Product Type: SCSI-II termination panel for servo amplifier interface
- Model: DIN-814M0
- Manufacturer: Adlink Technology Inc.
- Compatible Device: Mitsubishi MR-J2S-A servo amplifier
- Connector Type: 100-pin SCSI-II
- Mounting Type: DIN rail mount
- Dimensions: 123 mm (W) × 107 mm (H) × 44 mm (D)
- Weight: Approximately 0.3–0.5 kg (typical for this size and configuration; actual weight may vary slightly)
- Material: Industrial-grade PCB with protective housing suitable for control cabinet environments
- Cable Compatibility: ACL-102100-1 (not included)
- Operating Environment: Designed for industrial control panels; suitable for standard ambient temperature and humidity ranges typical of automation enclosures
- Color/Finish: Standard industrial green PCB with protective casing (typical Adlink design)

---

4. Functionality
The DIN-814M0 functions as a termination and interface board between the Mitsubishi MR-J2S-A servo amplifier and the control system or motion controller. It provides a structured connection point for the amplifier’s 100-pin SCSI-II interface, ensuring that all control, feedback, and signal lines are properly terminated and accessible for wiring.

How It Works:
- The servo amplifier’s 100-pin SCSI-II connector is interfaced through the DIN-814M0 panel.
- The board routes signals to terminal blocks or connectors that can be easily wired to the control system.
- Proper termination ensures signal integrity, reduces electrical noise, and prevents communication errors between the servo amplifier and the controller.
- The DIN rail mounting allows the panel to be securely installed within a control cabinet, maintaining organized wiring and accessibility.

Use Cases & Applications:
- Industrial automation systems using Mitsubishi MR-J2S-A servo amplifiers
- Motion control systems in manufacturing, robotics, and CNC machinery
- Servo drive integration in packaging, assembly, and material handling equipment
- Retrofit or maintenance projects requiring reliable servo amplifier interfacing
- Control cabinet installations where space efficiency and wiring organization are critical

Compatibility:
- Fully compatible with Mitsubishi MR-J2S-A servo amplifier models
- Designed to interface with Adlink’s ACL-102100-1 cable (optional)
- Suitable for integration with Adlink motion control cards and other industrial I/O systems supporting SCSI-II connections

---

5. Components & Accessories
Included Items:
- DIN-814M0 termination panel (main unit)
- Integrated 100-pin SCSI-II connector
- DIN rail mounting clips or brackets (factory-installed or included)
- Terminal labeling and identification markings

Optional Accessories:
- ACL-102100-1 Cable: 100-pin SCSI-II cable for connecting the DIN-814M0 to the Mitsubishi MR-J2S-A servo amplifier (not included by default)
- Additional Mounting Hardware: Optional DIN rail adapters or end stops for secure installation in control cabinets
- Protective Covers or Enclosures: Optional accessories for enhanced environmental protection in harsh industrial settings

Connectors:
- 1 × 100-pin SCSI-II connector (male/female depending on configuration)
- Terminal blocks or pin headers for signal breakout (depending on model variant)

---

6. Installation & Setup
Requirements:
- Standard 35 mm DIN rail for mounting
- Compatible Mitsubishi MR-J2S-A servo amplifier
- Appropriate SCSI-II cable (ACL-102100-1 or equivalent)
- Control cabinet or panel with sufficient space (minimum 123 × 107 × 44 mm clearance)

Mounting Options:
- Snap-on DIN rail installation for quick and secure mounting
- Optional screw-mounting brackets for fixed installations
- Vertical or horizontal orientation depending on cabinet layout

Configuration Steps:
1. Mount the DIN-814M0 securely onto the DIN rail.
2. Connect the 100-pin SCSI-II cable (ACL-102100-1 or equivalent) between the Mitsubishi MR-J2S-A servo amplifier and the DIN-814M0 panel.
3. Wire the terminal outputs to the control system or motion controller according to the wiring diagram.
4. Verify signal continuity and proper termination.
5. Power up the system and perform functional testing to ensure correct communication between the servo amplifier and controller.

Installation Notes:
- Ensure proper grounding and shielding to minimize electrical noise.
- Maintain adequate spacing between high-voltage and signal wiring.
- Follow Mitsubishi and Adlink installation guidelines for servo amplifier connections.

---

7. Performance & Capabilities
- Signal Integrity: High-quality SCSI-II interface ensures stable and noise-resistant communication between servo amplifier and controller.
- Speed: Supports high-speed data transfer rates typical of SCSI-II interfaces, suitable for real-time motion control applications.
- Capacity: Handles full 100-pin signal routing, accommodating all control, feedback, and I/O lines required by the MR-J2S-A servo amplifier.
- Efficiency: Compact design minimizes wiring complexity and reduces installation time.
- Reliability: Industrial-grade components ensure long operational life and consistent performance under continuous operation.
- Limitations:
- Designed exclusively for Mitsubishi MR-J2S-A servo amplifiers; not compatible with other servo amplifier models without modification.
- Cable (ACL-102100-1) must be sourced separately.
- Not intended for outdoor or high-vibration environments without additional protection.

---

8. Standards & Compliance
- Electrical Interface Standard: SCSI-II (Small Computer System Interface, second generation, 100-pin configuration)
- Mounting Standard: DIN rail (EN 60715 compatible)
- Compliance:
- Designed in accordance with industrial automation and control equipment standards
- RoHS compliant (lead-free manufacturing)
- CE marking (where applicable, depending on region)
- Meets Adlink internal quality and reliability standards for industrial components
- Safety:
- Conforms to standard electrical safety practices for low-voltage control systems
- Insulation and spacing designed for safe operation within control cabinets

---

9. Additional Information
Warranty:
- Standard Adlink limited warranty (typically 1 year from date of purchase, covering manufacturing defects and workmanship)

Support:
- Technical documentation, wiring diagrams, and installation guides available from Adlink’s official support portal
- Customer service and technical assistance provided through Adlink’s global support network

Maintenance:
- Minimal maintenance required; periodic inspection recommended to ensure secure connections and clean contact surfaces
- Avoid exposure to dust, moisture, or corrosive environments
- Replace cables or connectors if signs of wear or damage are observed

Updates & Compatibility:
- Compatible with existing Mitsubishi MR-J2S-A servo amplifier systems
- Future firmware or hardware updates from Adlink may enhance compatibility with newer servo amplifier models or control systems
- Recommended to verify compatibility with the latest Mitsubishi and Adlink documentation before installation

---

Summary
The Adlink DIN-814M0 is a dedicated 100-pin SCSI-II termination panel engineered for Mitsubishi MR-J2S-A servo amplifiers, providing a reliable, organized, and efficient interface solution for industrial automation systems. With its DIN rail mounting, compact 123 × 107 × 44 mm design, and industrial-grade construction, it ensures robust performance and simplified wiring in control cabinets.

Ideal for motion control, robotics, and manufacturing automation, the DIN-814M0 enhances system reliability by maintaining signal integrity and reducing wiring complexity. Its compatibility with the ACL-102100-1 cable and adherence to SCSI-II and DIN rail standards make it a versatile and dependable component in any Mitsubishi servo control setup.

Backed by Adlink’s quality assurance, technical support, and warranty coverage, the DIN-814M0 offers a professional-grade solution for engineers and system integrators seeking a high-performance termination interface for Mitsubishi servo amplifier systems.
