1. Product Overview
Product Name: Panel for Sigma II Yaskawa Servo Amplifier
Model: DIN-814Y0
Series: DIN-814 Series
Article Number: DIN-814Y0
Manufacturer: Adlink Technology Inc.

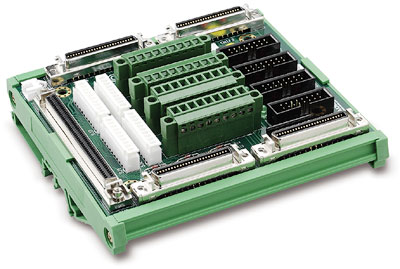

The Adlink DIN-814Y0 is a specialized 100-pin SCSI-II termination board designed for DIN rail mounting, engineered to interface with Yaskawa Sigma II servo amplifiers. It serves as a robust and compact panel solution that facilitates reliable electrical termination and signal distribution between servo amplifiers and control systems. The product is optimized for industrial automation environments where precision, durability, and ease of integration are critical.

---

2. Key Features
- Dedicated Interface for Yaskawa Sigma II Servo Amplifiers: Specifically designed to provide a seamless connection and termination interface for the Sigma II series, ensuring compatibility and stable communication.
- 100-Pin SCSI-II Termination Board: Utilizes a high-density 100-pin SCSI-II connector standard, supporting multiple signal lines for servo control, feedback, and I/O communication.
- DIN Rail Mounting Design: Compact form factor with integrated DIN rail mounting capability (standard 35 mm rail), allowing quick installation within industrial control cabinets.
- High-Quality Construction: Built with industrial-grade materials to ensure mechanical stability, electrical reliability, and long-term performance in demanding environments.
- Compact Dimensions: Measuring 123 mm (L) × 107 mm (W) × 44 mm (H), the panel offers a space-efficient design suitable for dense control panel layouts.
- Cable-Free Configuration: Delivered without cable (ACL-102100-1), allowing users to select or fabricate custom cable assemblies according to system requirements.
- Optimized Signal Integrity: The termination board design minimizes signal noise and crosstalk, ensuring accurate servo feedback and control signal transmission.
- Ease of Integration: Designed for plug-and-play compatibility with Yaskawa Sigma II servo amplifiers, reducing wiring complexity and installation time.
- Industrial Reliability: Engineered for continuous operation in industrial automation systems, motion control setups, and machine tool environments.

---

3. Technical Specifications
- Product Type: SCSI-II termination board / interface panel
- Model Number: DIN-814Y0
- Article Number: DIN-814Y0
- Manufacturer: Adlink Technology Inc.
- Intended Device: Yaskawa Sigma II Servo Amplifier
- Connector Type: 100-pin SCSI-II (high-density)
- Mounting Type: DIN rail (standard 35 mm)
- Dimensions: 123 mm (length) × 107 mm (width) × 44 mm (height)
- Weight: Approx. 0.3–0.5 kg (typical, depending on configuration)
- Material: Industrial-grade PCB with reinforced mounting frame; metal or polymer DIN rail clip assembly
- Color: Standard industrial green PCB with metallic mounting hardware
- Cable Compatibility: ACL-102100-1 (not included)
- Operating Temperature Range: Typically 0°C to +55°C (industrial environment)
- Storage Temperature Range: -20°C to +70°C
- Humidity Tolerance: 10%–90% RH (non-condensing)
- Electrical Interface: SCSI-II compliant signal routing for servo amplifier control and feedback lines
- Insulation Resistance: ≥100 MΩ at 500 VDC (typical for industrial interface boards)
- Dielectric Strength: 500 VAC for 1 minute between isolated circuits (typical)

---

4. Functionality
The DIN-814Y0 functions as an interface and termination panel between a Yaskawa Sigma II servo amplifier and the control system or motion controller. It provides a structured termination point for the amplifier’s 100-pin SCSI-II connector, simplifying wiring and ensuring consistent electrical performance.

How It Works:
- The servo amplifier’s 100-pin SCSI-II connector plugs into the DIN-814Y0 termination board.
- The board routes control, feedback, and I/O signals to terminal points or secondary connectors for integration with PLCs, motion controllers, or other automation components.
- The DIN rail mounting allows the board to be securely installed within a control cabinet, maintaining organized wiring and easy access for maintenance.

Use Cases & Applications:
- Industrial automation systems requiring precise servo control
- Machine tools and CNC systems using Yaskawa Sigma II servo drives
- Robotics and motion control platforms
- Packaging, assembly, and material handling equipment
- Test and measurement setups involving servo motion feedback loops

Compatibility:
- Fully compatible with Yaskawa Sigma II servo amplifiers
- Supports standard SCSI-II 100-pin interface cables (e.g., ACL-102100-1)
- Integrates with Adlink and third-party motion control systems supporting SCSI-II servo interfaces

---

5. Components & Accessories
Included Items:
- DIN-814Y0 termination board (main unit)
- Integrated DIN rail mounting clip or bracket
- Terminal labeling and identification markings

Not Included / Optional Accessories:
- Cable ACL-102100-1: 100-pin SCSI-II cable for connection between the servo amplifier and the termination board (sold separately)
- Mounting Hardware: Additional DIN rail sections or panel screws (optional, depending on installation environment)
- Protective Cover or Enclosure: Optional accessory for enhanced environmental protection in harsh conditions

Connectors & Interfaces:
- Primary Connector: 100-pin SCSI-II female connector (for servo amplifier interface)
- Secondary Terminals: Screw or spring terminals for signal distribution (depending on configuration)
- Grounding Point: Dedicated grounding terminal for electrical safety and noise suppression

---

6. Installation & Setup
Requirements:
- Standard 35 mm DIN rail within a control cabinet or electrical enclosure
- Compatible Yaskawa Sigma II servo amplifier with 100-pin SCSI-II interface
- Appropriate cable (ACL-102100-1 or equivalent)

Mounting Options:
- Snap-on DIN rail installation for quick and secure mounting
- Optional screw mounting for additional mechanical stability in high-vibration environments

Configuration Steps:
1. Mount the DIN-814Y0 securely onto the DIN rail.
2. Connect the 100-pin SCSI-II cable from the Yaskawa Sigma II servo amplifier to the board’s main connector.
3. Route and terminate control and feedback lines to the corresponding terminal blocks or connectors.
4. Verify grounding and shielding connections to minimize electrical noise.
5. Power up the system and perform signal integrity checks before operational use.

Safety Considerations:
- Ensure all power sources are disconnected before installation.
- Follow Yaskawa and Adlink installation guidelines for servo amplifier connections.
- Maintain proper cable shielding and grounding to prevent EMI interference.

---

7. Performance & Capabilities
Signal Handling:
- Supports high-speed servo control signals with minimal latency.
- Maintains signal integrity across all 100 channels of the SCSI-II interface.
- Provides stable termination impedance to prevent signal reflection and data errors.

Capacity:
- Accommodates full 100-pin signal routing for complex servo control systems.
- Suitable for multi-axis servo configurations when used in conjunction with multiple boards.

Efficiency:
- Reduces wiring complexity and installation time by consolidating multiple signal lines into a single termination point.
- Enhances maintenance efficiency through organized wiring and labeled terminals.

Limitations:
- Designed exclusively for Yaskawa Sigma II servo amplifiers; not compatible with other servo series without adapter modifications.
- Cable ACL-102100-1 required for full functionality but not included.
- Not intended for outdoor or high-moisture environments without additional protection.

---

8. Standards & Compliance
Electrical & Mechanical Standards:
- SCSI-II Interface Standard: Complies with ANSI X3.131-1994 for 100-pin SCSI-II connectors.
- DIN Rail Mounting Standard: Conforms to EN 60715 (IEC 60715) for 35 mm DIN rail compatibility.
- RoHS Compliance: Manufactured in accordance with RoHS Directive 2011/65/EU, ensuring restriction of hazardous substances.
- CE Marking: Meets applicable European safety and EMC requirements for industrial electronic components.
- UL/CSA Compliance: Components and PCB materials typically conform to UL94-V0 flammability standards.

Environmental & Safety Compliance:
- Designed for industrial environments with standard EMC protection.
- Grounding and shielding provisions meet typical industrial noise immunity standards.

---

9. Additional Information
Warranty:
- Standard manufacturer’s warranty (typically 1 year) covering defects in materials and workmanship under normal operating conditions.

Support:
- Technical documentation, wiring diagrams, and installation guides available from Adlink.
- Customer support provided through Adlink’s global service network and authorized distributors.

Maintenance:
- Minimal maintenance required; periodic inspection recommended to ensure secure connections and clean contact surfaces.
- Avoid exposure to excessive dust, moisture, or vibration beyond rated limits.

Updates & Revisions:
- Product specifications subject to change based on manufacturer updates or compatibility improvements.
- Firmware or configuration updates are not applicable, as the DIN-814Y0 is a passive termination board.

Summary:
The Adlink DIN-814Y0 is a purpose-built 100-pin SCSI-II termination panel engineered for Yaskawa Sigma II servo amplifiers, offering a compact, reliable, and easy-to-install interface solution for industrial automation systems. With its DIN rail mounting design, robust construction, and adherence to international standards, it provides a dependable platform for precise servo control integration. Its modular design simplifies wiring, enhances system organization, and ensures long-term operational stability in demanding industrial environments.

---
