- Processor Support: 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile CPUs (up to 3.30 GHz, 6 MB cache).
- Chipset: Intel® QM77 Express, supporting Intel® AMT 8.0 and vPro™ technology.
- Memory: Dual‑channel DDR3/DDR3L SO‑DIMM, up to 16 GB (2 × 204‑pin slots).
- Fanless Design: Completely fanless thermal solution for silent, maintenance‑free operation in harsh environments.
- Extended Temperature Range: ‑25 °C ~ +70 °C operating, ‑40 °C ~ +85 °C storage.
- Networking: Six independent Gigabit Ethernet ports (5 × Intel® 82574L + 1 × Intel® 82579LM) with Wake‑on‑LAN and PXE boot support.
- Storage Flexibility:
- Two front‑accessible 2.5" SATA III (6 Gb/s) HDD/SSD bays with key locks.
- One SATA II (3 Gb/s) port for horizontal SATA DOM.
- Two mSATA II (3 Gb/s) sockets.
- External CFast slot with push‑in/out ejector.
- Display & Graphics: Intel® HD Graphics 4000 with support for up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS.
- Expansion: Two Mini‑PCI Express slots (one with SIM card socket) for wireless, I/O, or fieldbus modules.
- I/O Interfaces:
- 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485).
- 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0.
- 16 × GPIO (TTL 5 V).
- Audio: Realtek ALC892 5.1‑channel HD audio (Line‑in, Line‑out, Mic‑in, front header).
- Power Input: 6 ~ 36 V DC wide‑range input with on‑board LT4356 surge protection (up to 80 V DC).
- Optional Security: Infineon SLB9635 TPM (LPC interface).
- Mechanical Design: Rugged aluminum housing, wall‑mountable, compact footprint.
- Certifications: CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliance.
- Chipset: Intel® QM77 Express, supporting Intel® AMT 8.0 and vPro™ technology.
- Memory: Dual‑channel DDR3/DDR3L SO‑DIMM, up to 16 GB (2 × 204‑pin slots).
- Fanless Design: Completely fanless thermal solution for silent, maintenance‑free operation in harsh environments.
- Extended Temperature Range: ‑25 °C ~ +70 °C operating, ‑40 °C ~ +85 °C storage.
- Networking: Six independent Gigabit Ethernet ports (5 × Intel® 82574L + 1 × Intel® 82579LM) with Wake‑on‑LAN and PXE boot support.
- Storage Flexibility:
- Two front‑accessible 2.5" SATA III (6 Gb/s) HDD/SSD bays with key locks.
- One SATA II (3 Gb/s) port for horizontal SATA DOM.
- Two mSATA II (3 Gb/s) sockets.
- External CFast slot with push‑in/out ejector.
- Display & Graphics: Intel® HD Graphics 4000 with support for up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS.
- Expansion: Two Mini‑PCI Express slots (one with SIM card socket) for wireless, I/O, or fieldbus modules.
- I/O Interfaces:
- 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485).
- 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0.
- 16 × GPIO (TTL 5 V).
- Audio: Realtek ALC892 5.1‑channel HD audio (Line‑in, Line‑out, Mic‑in, front header).
- Power Input: 6 ~ 36 V DC wide‑range input with on‑board LT4356 surge protection (up to 80 V DC).
- Optional Security: Infineon SLB9635 TPM (LPC interface).
- Mechanical Design: Rugged aluminum housing, wall‑mountable, compact footprint.
- Certifications: CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliance.

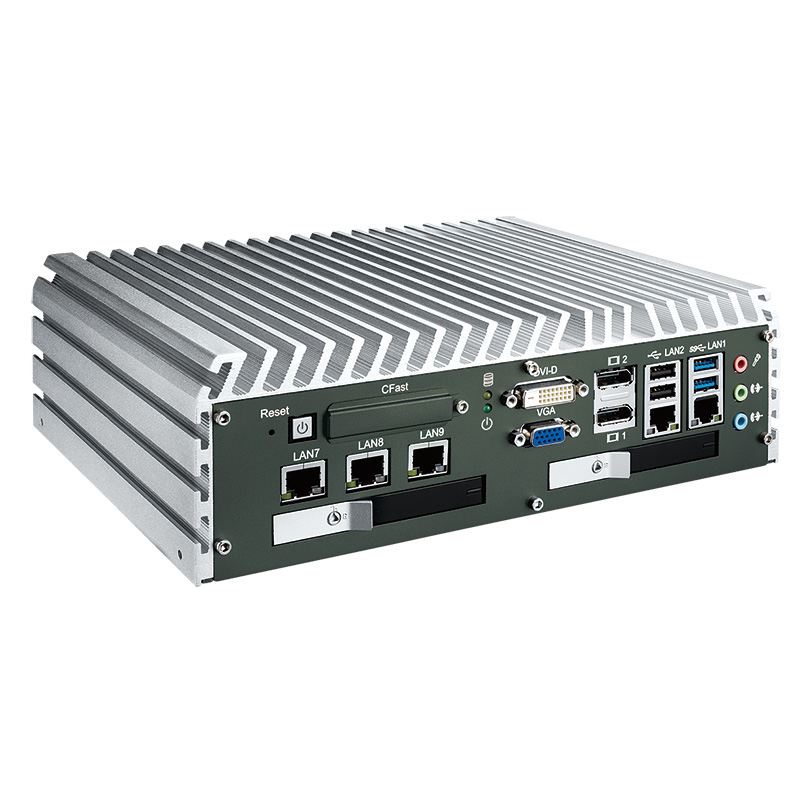

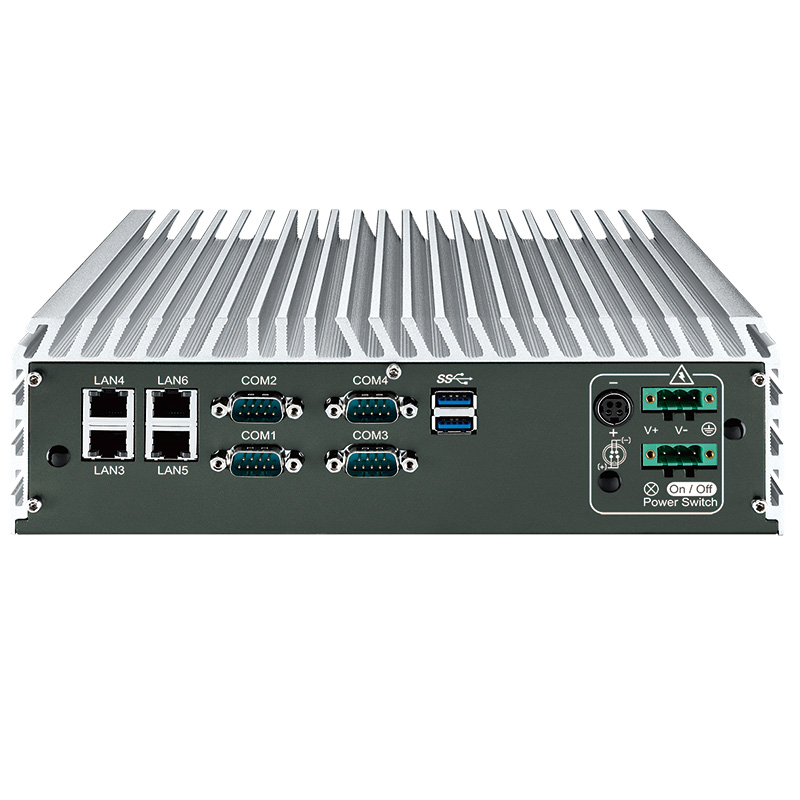

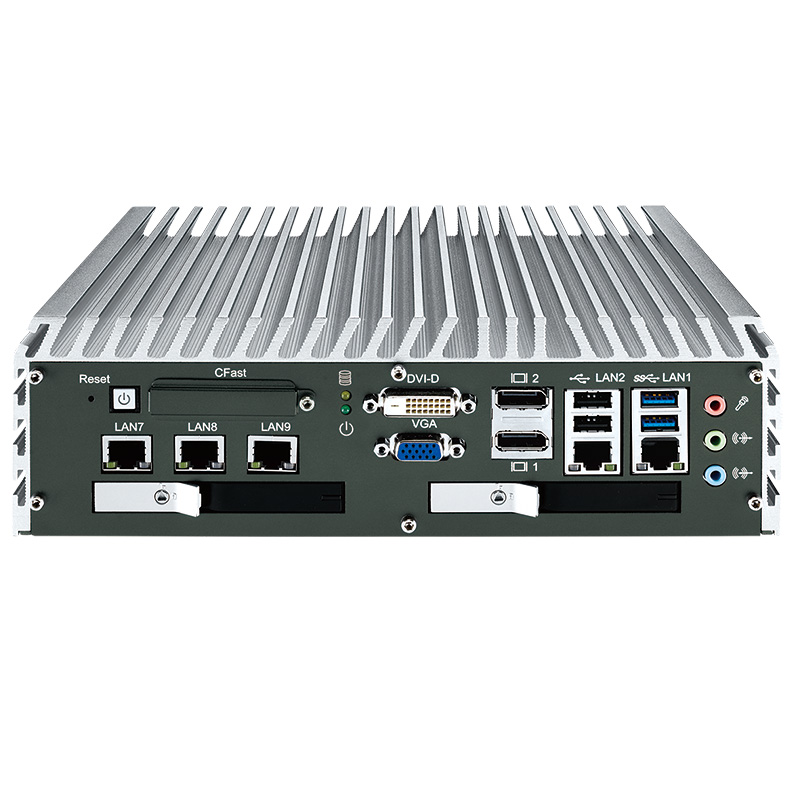

Comprehensive Product Summary – Vecow ECS‑7000‑6R Fanless Embedded System
### 1. Product Overview
Product Name: Vecow ECS‑7000‑6R
Model: ECS‑7000‑6R
Series: ECS‑7000 Series – High‑Performance Fanless Embedded Systems
Article Number: ECS‑7000‑6R
Manufacturer: Vecow Co., Ltd.
Manufacturer Website: [www.vecow.com](https://www.vecow.com)
Product Type: Ruggedized, fanless, extended‑temperature embedded barebone system
Processor Platform: Intel® 3rd Generation Core™ i7/i5/i3 (Ivy Bridge) Mobile Processors
Chipset: Intel® QM77 Express
The Vecow ECS‑7000‑6R is a high‑performance, industrial‑grade fanless embedded controller designed for mission‑critical applications requiring reliability, extended temperature operation, and multiple high‑speed network interfaces. It belongs to Vecow’s ECS‑7000 series, which integrates Intel’s 3rd Generation Ivy Bridge mobile processors with the QM77 chipset to deliver advanced computing, graphics, and connectivity in a compact, rugged aluminum chassis.
### 2. Key Features
- Processor Support: 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile CPUs (up to 3.30 GHz, 6 MB cache).
- Chipset: Intel® QM77 Express, supporting Intel® AMT 8.0 and vPro™ technology.
- Memory: Dual‑channel DDR3/DDR3L SO‑DIMM, up to 16 GB (2 × 204‑pin slots).
- Fanless Design: Completely fanless thermal solution for silent, maintenance‑free operation in harsh environments.
- Extended Temperature Range: ‑25 °C ~ +70 °C operating, ‑40 °C ~ +85 °C storage.
- Networking: Six independent Gigabit Ethernet ports (5 × Intel® 82574L + 1 × Intel® 82579LM) with Wake‑on‑LAN and PXE boot support.
- Storage Flexibility:
- Two front‑accessible 2.5" SATA III (6 Gb/s) HDD/SSD bays with key locks.
- One SATA II (3 Gb/s) port for horizontal SATA DOM.
- Two mSATA II (3 Gb/s) sockets.
- External CFast slot with push‑in/out ejector.
- Display & Graphics: Intel® HD Graphics 4000 with support for up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS.
- Expansion: Two Mini‑PCI Express slots (one with SIM card socket) for wireless, I/O, or fieldbus modules.
- I/O Interfaces:
- 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485).
- 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0.
- 16 × GPIO (TTL 5 V).
- Audio: Realtek ALC892 5.1‑channel HD audio (Line‑in, Line‑out, Mic‑in, front header).
- Power Input: 6 ~ 36 V DC wide‑range input with on‑board LT4356 surge protection (up to 80 V DC).
- Optional Security: Infineon SLB9635 TPM (LPC interface).
- Mechanical Design: Rugged aluminum housing, wall‑mountable, compact footprint.
- Certifications: CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliance.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor | Intel® 3rd Gen Core™ i7/i5/i3 (Ivy Bridge) Mobile Processors (6 MB Cache, up to 3.30 GHz) |
| Chipset | Intel® QM77 Express |
| BIOS | AMI UEFI BIOS |
| Super I/O | ITE IT8783F |
| Memory | DDR3 1066/1333/1600 MHz or DDR3L 1066/1333 MHz, max 16 GB (2 × 204‑pin SO‑DIMM) |
| Graphics | Intel® GMA HD 4000, shared memory up to 1.7 GB |
| Display Interfaces | VGA (DB‑15) 1920×1200 max; DVI‑D 1920×1200 max; DP1 2560×1600 max; DP2 1920×1200 max; LVDS dual‑channel 24‑bit 1920×1200 max |
| Storage | 2 × SATA III 6 Gb/s (2.5" HDD/SSD bays), 1 × SATA II 3 Gb/s (SATA DOM), 2 × mSATA II 3 Gb/s, 1 × CFast slot |
| Audio | Realtek ALC892 HD Audio Codec, 5.1 channels |
| Audio I/O | Line‑in, Line‑out, Mic‑in, front audio header |
| Ethernet | 1 × Intel® 82579LM GbE + 5 × Intel® 82574L GbE (6 total), Wake‑on‑LAN, PXE support |
| Serial Ports | 3 × RS‑232, 1 × RS‑232/422/485 (selectable in BIOS) |
| USB Ports | 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0 |
| GPIO | 16 × programmable GPIO (5 V tolerant) |
| Expansion Slots | 2 × Mini‑PCIe (1 with SIM socket), 1 × internal 6‑pin USB header |
| Power Input | 6 ~ 36 V DC via Mini‑DIN or 3‑pin terminal block (V+, V‑, FG) |
| Power Adapter (Optional) | 120 W AC/DC adapter (24 V / 5 A, 90–264 VAC input) |
| Protection | LT4356 on‑board high‑voltage surge protection (up to 80 V DC) |
| Watchdog Timer | 1 ~ 255 sec/min programmable interval |
| Hardware Monitor | Temperature and voltage auto‑throttling control on overheat |
| Chassis Material | Aluminum housing |
| Dimensions (W × D × H) | 260 × 175 × 79 mm (10.2 × 6.9 × 3.1 in) |
| Weight | 2.8 kg (6 lb) |
| Mounting | Wall‑mount bracket included |
| Operating Temperature | ‑25 °C ~ +70 °C (‑13 °F ~ 157 °F) |
| Storage Temperature | ‑40 °C ~ +85 °C (‑40 °F ~ 185 °F) |
| Humidity | 10 % ~ 95 % non‑condensing (95 % @ 70 °C) |
| Vibration | 0.5 Grms @ 5–500 Hz (IEC 68‑2‑64) |
| Shock | 20 Grms half‑sine 11 ms (IEC 60068‑2‑27, SSD configuration) |
| EMC Compliance | CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 |
### 4. Functionality
The ECS‑7000‑6R functions as a compact, high‑reliability embedded controller for industrial automation, machine vision, intelligent transportation, and surveillance systems. It integrates computing, networking, and storage in a sealed, fanless chassis optimized for continuous 24/7 operation.
Operation Principle:
The system uses Intel’s Ivy Bridge mobile processors with integrated HD 4000 graphics and QM77 chipset to deliver high‑efficiency computing and multi‑display output. Passive cooling through the aluminum enclosure ensures silent operation and resistance to dust and vibration.
Use Cases & Applications:
- Machine vision and GigE imaging systems.
- Industrial automation and process control.
- Intelligent transportation and surveillance NVR.
- Medical and healthcare instrumentation.
- Embedded control in harsh or mobile environments.
Compatibility:
Supports Windows XP/7/8/Server 2008 R2/2012 and Linux kernel 2.6.33 or later (Ubuntu 10.04 LTS+, Fedora 13+). Drivers provided for chipset, graphics, LAN, audio, USB 3.0, and Intel AMT functions.
### 5. Components & Accessories
Included Items:
- ECS‑7000‑6R main unit.
- Wall‑mount brackets and M4 screws.
- 4‑pin pluggable terminal block for DC input.
- Vecow Drivers & Utilities DVD.
Optional Accessories:
- PWA‑120WM4P: 120 W AC/DC power adapter (24 V / 5 A, 90–264 VAC).
- M340S‑W28M1: Vecow DDR3 4 GB 1333/1066 MHz RAM (‑40 °C ~ +85 °C).
- KVR1333D3S9/4G / 8G: Kingston® DDR3 RAM modules.
- SCSI‑20P‑100: 20‑pin SCSI cable (1 m).
- TMB‑SCSI‑20P: Terminal board with 20‑pin SCSI connector and DIN‑rail mount.
- Wi‑Fi Module: Intel® Mini‑PCIe wireless module with antenna.
### 6. Installation & Setup
Power Requirements:
6 ~ 36 V DC input via Mini‑DIN or 3‑pin terminal block. Ground must be connected to frame ground for EMI protection. Optional 120 W adapter available.
Mounting Options:
Wall‑mount brackets included; DIN‑rail mount optional via terminal board accessory. Ensure adequate air circulation for passive cooling.
Configuration Steps:
1. Install DDR3/DDR3L SO‑DIMM modules (up to 16 GB).
2. Insert HDD/SSD into front removable bays and lock with key.
3. Connect power and I/O cables (USB, LAN, COM, Display).
4. Configure BIOS settings for SATA mode (AHCI/RAID), serial port mode (RS‑232/422/485), and boot device.
5. Install OS and drivers in recommended sequence (chipset → graphics → LAN → audio → USB → storage → AMT).
Expansion Installation:
Mini‑PCIe cards and mSATA drives can be installed internally. One slot includes a SIM socket for 3G/4G modules. CFast card installation requires power off before insertion/removal.
### 7. Performance & Capabilities
- Processing Power: Up to Intel® Core™ i7‑3610QE (quad‑core, 3.30 GHz, 6 MB cache, 45 W TDP).
- Graphics Performance: Intel® HD 4000 GPU supports DirectX 11, OpenGL 3.1, and three independent displays.
- Memory Bandwidth: Dual‑channel DDR3/DDR3L up to 1600 MHz.
- Network Throughput: Six Gigabit Ethernet ports for multi‑camera or multi‑node communication.
- Storage Speed: SATA III 6 Gb/s interfaces for high‑speed SSD data access.
- Reliability: Fanless design with low TDP (35 W CPU) ensures stable operation in vibration‑prone environments.
- Power Efficiency: Supports Intel® Enhanced SpeedStep and C‑states for dynamic power management.
- Limitations: No hot‑swap for CFast; limited to 16 GB RAM due to chipset constraints.
### 8. Standards & Compliance
- Electrical Safety & EMC: CE and FCC Class A certified.
- Environmental Compliance: RoHS Directive compliant.
- Railway Standards: EN50155 and EN50121‑3‑2 for shock, vibration, and EMC resilience.
- Operating Reliability: Validated for ‑25 °C ~ +70 °C continuous operation.
- Intel® AMT 8.0: Supports remote management and diagnostics over network.
- TPM Security: Optional Infineon SLB9635 Trusted Platform Module for hardware‑based encryption and secure boot.
### 9. Additional Information
Warranty & Support:
Vecow provides standard limited warranty coverage and global technical support through its headquarters in New Taipei City, Taiwan. Firmware and driver updates are available via the Vecow support portal.
Maintenance:
Fanless design minimizes maintenance. Periodic inspection of connectors and dust removal from vents is recommended. Battery replacement (Panasonic BR2032 RTC cell) should be performed by authorized service personnel.
Software Updates:
BIOS and driver updates are distributed through Vecow’s official website. System supports UEFI BIOS configuration and Intel AMT firmware updates.
Corporate Information:
Vecow Co., Ltd.
12F, No. 111 Zhongcheng Rd, Tucheng Dist, New Taipei City 23674, Taiwan R.O.C.
Tel: +886‑2‑2268‑5658 | Fax: +886‑2‑2268‑1658
Email: info@vecow.com
### Summary
The Vecow ECS‑7000‑6R is a robust, high‑performance fanless embedded system engineered for industrial and mission‑critical deployments. Combining Intel’s Ivy Bridge mobile processors, six Gigabit Ethernet ports, and versatile I/O in a compact rugged chassis, it delivers exceptional reliability and connectivity for automation, vision, and surveillance applications. Its wide DC input range, ‑25 °C ~ +70 °C operation, and compliance with industrial standards make it ideal for demanding environments where uptime and stability are paramount.
### 1. Product Overview
Product Name: Vecow ECS‑7000‑6R
Model: ECS‑7000‑6R
Series: ECS‑7000 Series – High‑Performance Fanless Embedded Systems
Article Number: ECS‑7000‑6R
Manufacturer: Vecow Co., Ltd.
Manufacturer Website: [www.vecow.com](https://www.vecow.com)
Product Type: Ruggedized, fanless, extended‑temperature embedded barebone system
Processor Platform: Intel® 3rd Generation Core™ i7/i5/i3 (Ivy Bridge) Mobile Processors
Chipset: Intel® QM77 Express
The Vecow ECS‑7000‑6R is a high‑performance, industrial‑grade fanless embedded controller designed for mission‑critical applications requiring reliability, extended temperature operation, and multiple high‑speed network interfaces. It belongs to Vecow’s ECS‑7000 series, which integrates Intel’s 3rd Generation Ivy Bridge mobile processors with the QM77 chipset to deliver advanced computing, graphics, and connectivity in a compact, rugged aluminum chassis.
### 2. Key Features
- Processor Support: 3rd Generation Intel® Core™ i7/i5/i3 Ivy Bridge mobile CPUs (up to 3.30 GHz, 6 MB cache).
- Chipset: Intel® QM77 Express, supporting Intel® AMT 8.0 and vPro™ technology.
- Memory: Dual‑channel DDR3/DDR3L SO‑DIMM, up to 16 GB (2 × 204‑pin slots).
- Fanless Design: Completely fanless thermal solution for silent, maintenance‑free operation in harsh environments.
- Extended Temperature Range: ‑25 °C ~ +70 °C operating, ‑40 °C ~ +85 °C storage.
- Networking: Six independent Gigabit Ethernet ports (5 × Intel® 82574L + 1 × Intel® 82579LM) with Wake‑on‑LAN and PXE boot support.
- Storage Flexibility:
- Two front‑accessible 2.5" SATA III (6 Gb/s) HDD/SSD bays with key locks.
- One SATA II (3 Gb/s) port for horizontal SATA DOM.
- Two mSATA II (3 Gb/s) sockets.
- External CFast slot with push‑in/out ejector.
- Display & Graphics: Intel® HD Graphics 4000 with support for up to three independent displays via VGA, DVI‑D, dual DisplayPort, and LVDS.
- Expansion: Two Mini‑PCI Express slots (one with SIM card socket) for wireless, I/O, or fieldbus modules.
- I/O Interfaces:
- 4 × COM ports (3 × RS‑232, 1 × RS‑232/422/485).
- 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0.
- 16 × GPIO (TTL 5 V).
- Audio: Realtek ALC892 5.1‑channel HD audio (Line‑in, Line‑out, Mic‑in, front header).
- Power Input: 6 ~ 36 V DC wide‑range input with on‑board LT4356 surge protection (up to 80 V DC).
- Optional Security: Infineon SLB9635 TPM (LPC interface).
- Mechanical Design: Rugged aluminum housing, wall‑mountable, compact footprint.
- Certifications: CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 compliance.
### 3. Technical Specifications
| Category | Specification |
|---------------|------------------|
| Processor | Intel® 3rd Gen Core™ i7/i5/i3 (Ivy Bridge) Mobile Processors (6 MB Cache, up to 3.30 GHz) |
| Chipset | Intel® QM77 Express |
| BIOS | AMI UEFI BIOS |
| Super I/O | ITE IT8783F |
| Memory | DDR3 1066/1333/1600 MHz or DDR3L 1066/1333 MHz, max 16 GB (2 × 204‑pin SO‑DIMM) |
| Graphics | Intel® GMA HD 4000, shared memory up to 1.7 GB |
| Display Interfaces | VGA (DB‑15) 1920×1200 max; DVI‑D 1920×1200 max; DP1 2560×1600 max; DP2 1920×1200 max; LVDS dual‑channel 24‑bit 1920×1200 max |
| Storage | 2 × SATA III 6 Gb/s (2.5" HDD/SSD bays), 1 × SATA II 3 Gb/s (SATA DOM), 2 × mSATA II 3 Gb/s, 1 × CFast slot |
| Audio | Realtek ALC892 HD Audio Codec, 5.1 channels |
| Audio I/O | Line‑in, Line‑out, Mic‑in, front audio header |
| Ethernet | 1 × Intel® 82579LM GbE + 5 × Intel® 82574L GbE (6 total), Wake‑on‑LAN, PXE support |
| Serial Ports | 3 × RS‑232, 1 × RS‑232/422/485 (selectable in BIOS) |
| USB Ports | 4 × USB 3.0, 2 × USB 2.0, 2 × internal USB 2.0 |
| GPIO | 16 × programmable GPIO (5 V tolerant) |
| Expansion Slots | 2 × Mini‑PCIe (1 with SIM socket), 1 × internal 6‑pin USB header |
| Power Input | 6 ~ 36 V DC via Mini‑DIN or 3‑pin terminal block (V+, V‑, FG) |
| Power Adapter (Optional) | 120 W AC/DC adapter (24 V / 5 A, 90–264 VAC input) |
| Protection | LT4356 on‑board high‑voltage surge protection (up to 80 V DC) |
| Watchdog Timer | 1 ~ 255 sec/min programmable interval |
| Hardware Monitor | Temperature and voltage auto‑throttling control on overheat |
| Chassis Material | Aluminum housing |
| Dimensions (W × D × H) | 260 × 175 × 79 mm (10.2 × 6.9 × 3.1 in) |
| Weight | 2.8 kg (6 lb) |
| Mounting | Wall‑mount bracket included |
| Operating Temperature | ‑25 °C ~ +70 °C (‑13 °F ~ 157 °F) |
| Storage Temperature | ‑40 °C ~ +85 °C (‑40 °F ~ 185 °F) |
| Humidity | 10 % ~ 95 % non‑condensing (95 % @ 70 °C) |
| Vibration | 0.5 Grms @ 5–500 Hz (IEC 68‑2‑64) |
| Shock | 20 Grms half‑sine 11 ms (IEC 60068‑2‑27, SSD configuration) |
| EMC Compliance | CE, FCC Class A, RoHS, EN50155, EN50121‑3‑2 |
### 4. Functionality
The ECS‑7000‑6R functions as a compact, high‑reliability embedded controller for industrial automation, machine vision, intelligent transportation, and surveillance systems. It integrates computing, networking, and storage in a sealed, fanless chassis optimized for continuous 24/7 operation.
Operation Principle:
The system uses Intel’s Ivy Bridge mobile processors with integrated HD 4000 graphics and QM77 chipset to deliver high‑efficiency computing and multi‑display output. Passive cooling through the aluminum enclosure ensures silent operation and resistance to dust and vibration.
Use Cases & Applications:
- Machine vision and GigE imaging systems.
- Industrial automation and process control.
- Intelligent transportation and surveillance NVR.
- Medical and healthcare instrumentation.
- Embedded control in harsh or mobile environments.
Compatibility:
Supports Windows XP/7/8/Server 2008 R2/2012 and Linux kernel 2.6.33 or later (Ubuntu 10.04 LTS+, Fedora 13+). Drivers provided for chipset, graphics, LAN, audio, USB 3.0, and Intel AMT functions.
### 5. Components & Accessories
Included Items:
- ECS‑7000‑6R main unit.
- Wall‑mount brackets and M4 screws.
- 4‑pin pluggable terminal block for DC input.
- Vecow Drivers & Utilities DVD.
Optional Accessories:
- PWA‑120WM4P: 120 W AC/DC power adapter (24 V / 5 A, 90–264 VAC).
- M340S‑W28M1: Vecow DDR3 4 GB 1333/1066 MHz RAM (‑40 °C ~ +85 °C).
- KVR1333D3S9/4G / 8G: Kingston® DDR3 RAM modules.
- SCSI‑20P‑100: 20‑pin SCSI cable (1 m).
- TMB‑SCSI‑20P: Terminal board with 20‑pin SCSI connector and DIN‑rail mount.
- Wi‑Fi Module: Intel® Mini‑PCIe wireless module with antenna.
### 6. Installation & Setup
Power Requirements:
6 ~ 36 V DC input via Mini‑DIN or 3‑pin terminal block. Ground must be connected to frame ground for EMI protection. Optional 120 W adapter available.
Mounting Options:
Wall‑mount brackets included; DIN‑rail mount optional via terminal board accessory. Ensure adequate air circulation for passive cooling.
Configuration Steps:
1. Install DDR3/DDR3L SO‑DIMM modules (up to 16 GB).

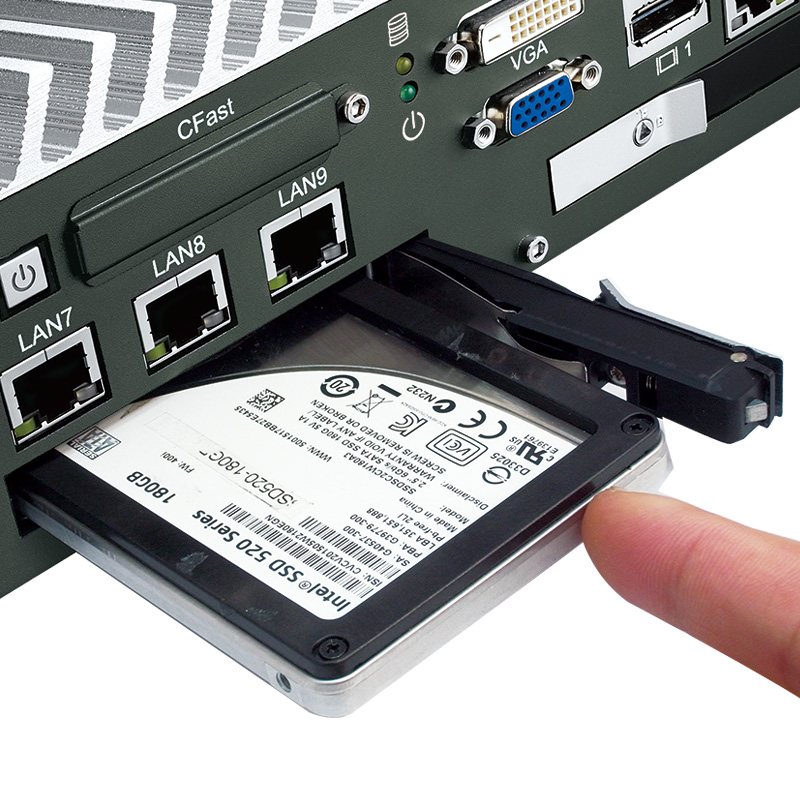

2. Insert HDD/SSD into front removable bays and lock with key.
3. Connect power and I/O cables (USB, LAN, COM, Display).
4. Configure BIOS settings for SATA mode (AHCI/RAID), serial port mode (RS‑232/422/485), and boot device.
5. Install OS and drivers in recommended sequence (chipset → graphics → LAN → audio → USB → storage → AMT).
Expansion Installation:
Mini‑PCIe cards and mSATA drives can be installed internally. One slot includes a SIM socket for 3G/4G modules. CFast card installation requires power off before insertion/removal.
### 7. Performance & Capabilities
- Processing Power: Up to Intel® Core™ i7‑3610QE (quad‑core, 3.30 GHz, 6 MB cache, 45 W TDP).
- Graphics Performance: Intel® HD 4000 GPU supports DirectX 11, OpenGL 3.1, and three independent displays.
- Memory Bandwidth: Dual‑channel DDR3/DDR3L up to 1600 MHz.
- Network Throughput: Six Gigabit Ethernet ports for multi‑camera or multi‑node communication.
- Storage Speed: SATA III 6 Gb/s interfaces for high‑speed SSD data access.
- Reliability: Fanless design with low TDP (35 W CPU) ensures stable operation in vibration‑prone environments.
- Power Efficiency: Supports Intel® Enhanced SpeedStep and C‑states for dynamic power management.
- Limitations: No hot‑swap for CFast; limited to 16 GB RAM due to chipset constraints.
### 8. Standards & Compliance
- Electrical Safety & EMC: CE and FCC Class A certified.
- Environmental Compliance: RoHS Directive compliant.
- Railway Standards: EN50155 and EN50121‑3‑2 for shock, vibration, and EMC resilience.
- Operating Reliability: Validated for ‑25 °C ~ +70 °C continuous operation.
- Intel® AMT 8.0: Supports remote management and diagnostics over network.
- TPM Security: Optional Infineon SLB9635 Trusted Platform Module for hardware‑based encryption and secure boot.
### 9. Additional Information
Warranty & Support:
Vecow provides standard limited warranty coverage and global technical support through its headquarters in New Taipei City, Taiwan. Firmware and driver updates are available via the Vecow support portal.
Maintenance:
Fanless design minimizes maintenance. Periodic inspection of connectors and dust removal from vents is recommended. Battery replacement (Panasonic BR2032 RTC cell) should be performed by authorized service personnel.
Software Updates:
BIOS and driver updates are distributed through Vecow’s official website. System supports UEFI BIOS configuration and Intel AMT firmware updates.
Corporate Information:
Vecow Co., Ltd.
12F, No. 111 Zhongcheng Rd, Tucheng Dist, New Taipei City 23674, Taiwan R.O.C.
Tel: +886‑2‑2268‑5658 | Fax: +886‑2‑2268‑1658
Email: info@vecow.com
### Summary
The Vecow ECS‑7000‑6R is a robust, high‑performance fanless embedded system engineered for industrial and mission‑critical deployments. Combining Intel’s Ivy Bridge mobile processors, six Gigabit Ethernet ports, and versatile I/O in a compact rugged chassis, it delivers exceptional reliability and connectivity for automation, vision, and surveillance applications. Its wide DC input range, ‑25 °C ~ +70 °C operation, and compliance with industrial standards make it ideal for demanding environments where uptime and stability are paramount.
-
ECS-7000-DM_V10320130218.pdf
PDF Catalog
-
ECS-7000_UserManual.pdf
Manual
- ECS-PWA-120WMP4 - 120W AC/DC power adapter for ECS-7000 series
