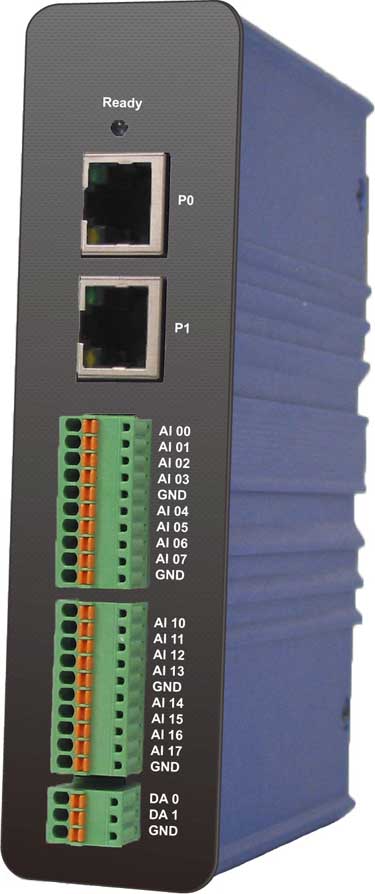

EMA-8308DA - JS Automation
Ethernet 8DI/16SE In 24bit 2 DA Out 16 bit 2*LAN Module
This network is designed to connect remote IO devices such as Ethernet modules, analog modules, and other industrial automation components. It allows for secure and reliable communication between devices, and provides a range of features for remote monitoring and control. It is easy to set up and configure, making it ideal for a wide range of applications..
Description
- Ethernet 8DI/16SE 24bit 10 samples/s in 2*LAN module
- 0..5/10VDC or 0/4..20mA in
- common mode voltage up to 10V
- 2 DA 16bit out module/±10VDC output with overload protection 50mA (peak)
- over voltage protection 20VDC (max)
- DIN Rail mount
- supply 12..24VDC in
- 89*110*34mm
- metal case
- JS Automation
Details
- Width: 107.6 mm
- Height: 135.8 mm
- Depth: 34 mm
- Weight: 0.6kg
- Manufacturer: JS Automation
- Country of Origin: Taiwan R.O.C.
