1. Product Overview

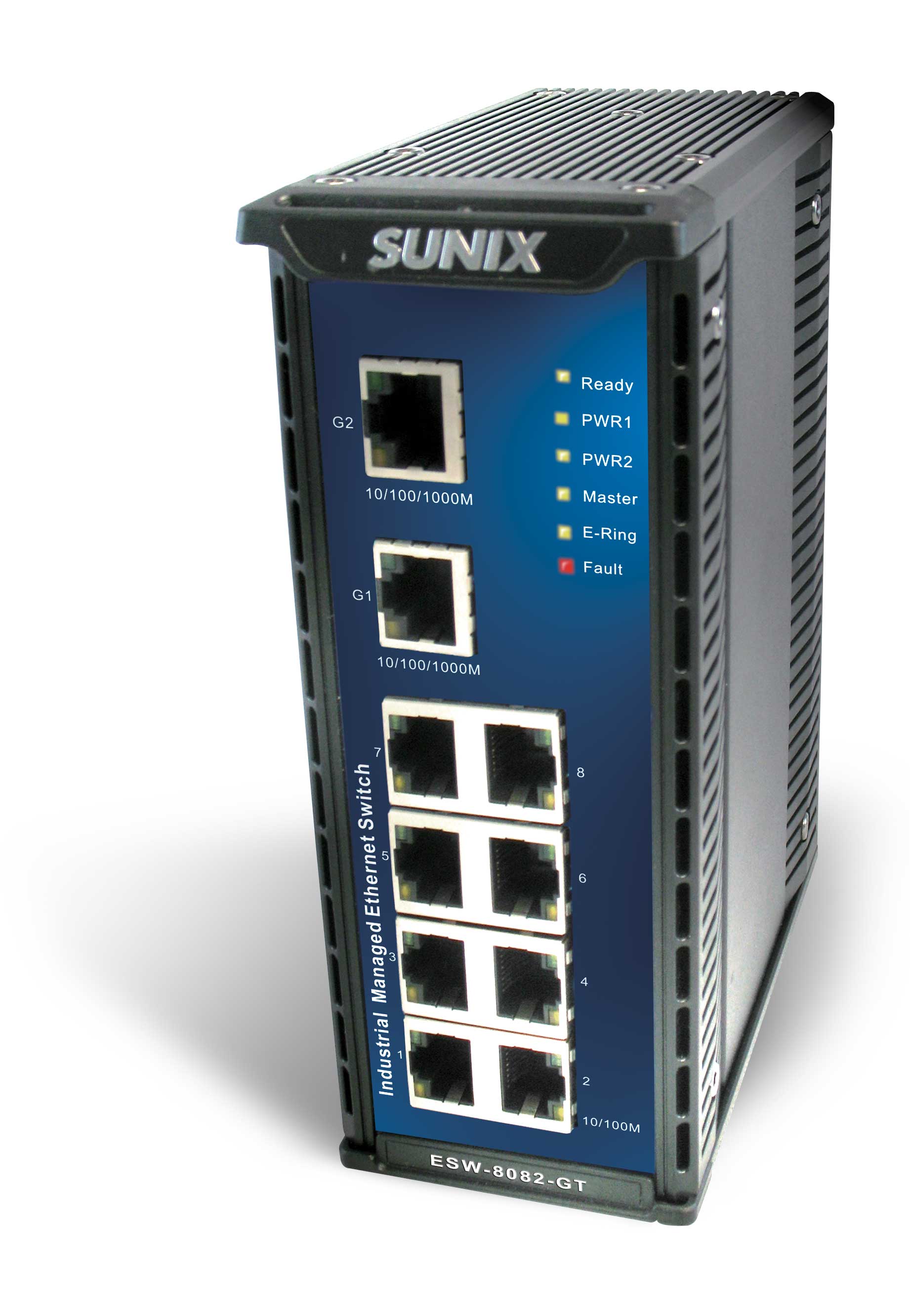

Product Name: Managed Industrial Ethernet Switch
Model: ESW‑8062‑GT‑E
Series: ESW‑8062‑xx Series (Managed Redundant Industrial Ethernet Switches)
Article Number: ESW‑8062‑GT‑E
Manufacturer: SUNIX Co., Ltd.
The SUNIX ESW‑8062‑GT‑E is an industrial‑grade managed Ethernet switch designed for mission‑critical automation and control networks. It belongs to the ESW‑8062‑xx family of managed redundant switches, offering six 10/100Base‑T(X) copper ports and two 10/100/1000Base‑T(X) Gigabit uplink ports. The unit supports SUNIX’s proprietary ELITE‑Ring™ redundancy technology, providing sub‑10 ms recovery time across up to 50 interconnected switches. Engineered for harsh industrial environments, it features a rugged IP30 aluminum enclosure, dual redundant 12–48 VDC power inputs, extended operating temperature range (‑40 °C to +85 °C), and comprehensive network management via web, CLI, SNMP, and the Windows‑based SUNIX Commander Pro utility.
2. Key Features
- High‑Performance Managed Switching:
6 × 10/100 Mbps RJ‑45 ports plus 2 × 10/100/1000 Mbps RJ‑45 uplinks for flexible network segmentation and high‑speed backbone connectivity.
- Ultra‑Fast Redundancy:
SUNIX ELITE‑Ring™ self‑healing ring technology ensures network recovery in < 10 ms over 50 nodes. Supports RSTP (IEEE 802.1W) and STP (IEEE 802.1D) for interoperability.
- Comprehensive Management:
Configuration via Web GUI (HTTP/HTTPS), Telnet, RS‑232 CLI, SNMP v1/v2c/v3, and SUNIX Commander Pro Windows utility with auto‑topology mapping, group firmware update, and configuration backup/restore.
- Advanced Security:
IEEE 802.1X port‑based authentication, RADIUS server integration, HTTPS/SSH secure management, IP/MAC binding, and port security to prevent unauthorized access.
- Traffic Optimization:
IEEE 802.1p/1Q QoS, ToS/DiffServ prioritization, port‑based and VLAN‑based QoS, rate limiting, and port trunking (IEEE 802.3ad LACP) for bandwidth aggregation.
- Multicast Efficiency:
IGMP Snooping v1/v2/v3 and GMRP/GVRP for intelligent multicast filtering and VLAN propagation.
- Diagnostics & Alerts:
SNMP traps, relay output alarm (1 A @ 24 VDC), email/Syslog notifications, port mirroring, and event logging for proactive maintenance.
- Industrial Design:
IP30 aluminum housing, DIN‑rail or wall mounting, ESD 4 kV protection on Ethernet ports, 2 kV surge protection on power input, and reverse‑polarity protection.
- Environmental Robustness:
Extended temperature operation from ‑40 °C to +85 °C, 5–95 % RH humidity tolerance, and compliance with IEC 60068‑2‑27/‑32/‑6 for shock, free‑fall, and vibration.
3. Technical Specifications
| Parameter | Specification |
|----------------|------------------|
| Ports | 6 × 10/100Base‑T(X) RJ‑45 + 2 × 10/100/1000Base‑T(X) RJ‑45 |
| Switching Method | Store‑and‑Forward |
| Forwarding Rate | 148,800 pps per port |
| MAC Address Table | 8 K entries |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Protocols Supported | IGMP v1/v2/v3, GVRP, GMRP, SNMP v1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP |
| MIB Support | MIB‑II, Ethernet‑Like MIB, Bridge MIB, RSTP MIB, P‑BRIDGE MIB, Q‑BRIDGE MIB, RMON Groups 1, 2, 3, 9 |
| Flow Control | IEEE 802.3x full‑duplex, back‑pressure half‑duplex |
| Alarm Relay Output | 1 × configurable relay, 1 A @ 24 VDC |
| Power Input | Dual 12–48 VDC (24 V nominal) via 7‑pin removable terminal block + DC jack |
| Power Consumption | ≤ 9 W max |
| Protection | ESD 4 kV (Ethernet), Surge 2 kV (Power), Reverse polarity protection |
| Dimensions (D × W × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 1.0 kg |
| Enclosure | IP30 aluminum housing |
| Mounting | DIN‑rail and wall‑mount brackets included |
| Operating Temperature | Standard 0 – 60 °C / Extended ‑40 – 80 °C |
| Storage Temperature | ‑40 – 85 °C |
| Humidity | 5 – 95 % RH (non‑condensing) |
| MTBF | 830,000 hours |
| Warranty | 5 years |
4. Functionality
The ESW‑8062‑GT‑E operates as a fully managed Layer 2 industrial Ethernet switch. It provides deterministic, redundant, and secure communication for automation networks.
- Operation Principle:
Each port supports auto‑negotiation and auto MDI/MDI‑X. The switch forwards frames using store‑and‑forward logic with wire‑speed performance. ELITE‑Ring™ redundancy continuously monitors link integrity and automatically reroutes traffic within 10 ms upon link failure.
- Use Cases:
Ideal for factory automation, process control, transportation systems, building management, and utility SCADA networks requiring continuous uptime and deterministic Ethernet behavior.
- Applications:
PLC interconnection, distributed I/O, IP‑based sensors, industrial HMIs, and redundant backbone links between control cabinets.
- Compatibility:
Interoperable with standard Ethernet devices and compliant with IEEE 802.3/802.1 protocols. Supports copper and fiber ring topologies and integrates with third‑party SNMP management platforms.
5. Components & Accessories
Included Items:
- ESW‑8062‑GT‑E managed switch unit
- DIN‑rail mounting kit
- Wall‑mount bracket set
- Fiber port protective lids (for G‑series models)
- Quick installation guide and CD (drivers, manuals, SUNIX Commander Pro utility)
Optional Accessories:
- RJ‑45 to DB‑9 console cable for RS‑232 management
- External 24 VDC power supply (if required)
- ST/SC fiber connectors and transceivers for long‑haul variants (consult SUNIX sales)
Connectors:
- 7‑pin removable terminal block for dual DC inputs
- DC jack for auxiliary power
- RJ‑45 console port (RS‑232)
- RJ‑45 Ethernet ports with integrated LEDs (LNK/ACT, Speed)
6. Installation & Setup
- Mounting:
Supports DIN‑rail and wall‑mount installation. The IP30 aluminum enclosure ensures mechanical stability and EMI shielding.
- Power Requirements:
Dual 12–48 VDC inputs provide redundancy; reverse‑polarity and overload protection are built‑in.
- Configuration Interfaces:
- Web GUI: Accessible via HTTP/HTTPS (default IP 192.168.1.1, user admin/admin).
- Telnet Console: Remote text‑based configuration.
- RS‑232 Console: Local serial management (9600 bps, 8‑N‑1).
- SUNIX Commander Pro: Windows utility for multi‑device discovery, group configuration, firmware upgrade, and topology visualization.
- Initial Setup:
Connect a PC to any RJ‑45 port, assign a compatible IP, and log in via web browser. Configure IP address, VLANs, redundancy, and security parameters. Save configuration to flash to retain settings after power cycle.
7. Performance & Capabilities
- Switching Capacity:
Non‑blocking architecture with wire‑speed forwarding on all 8 ports.
- Redundancy Performance:
ELITE‑Ring™ recovery < 10 ms (50 nodes); RSTP recovery ≈ 5 s; STP ≈ 30 s.
- Bandwidth Aggregation:
IEEE 802.3ad LACP port trunking (4 groups max) for increased throughput and link backup.
- Traffic Management:
QoS (8:4:2:1 weighted fair queue or strict priority), VLAN tagging (IEEE 802.1Q up to 4094 VIDs), rate limiting (100 kbps – 102 Mbps per port).
- Multicast Control:
IGMP Snooping v1/v2/v3 with query mode (auto/forced) to limit multicast flooding.
- Security & Access Control:
- Port security (MAC binding)
- IP security (whitelist for Web/Telnet/SNMP)
- IEEE 802.1X authentication with RADIUS server support
- HTTPS and SSH encrypted management
- Diagnostics:
Port mirroring (TX/RX/both), MAC address table inspection, event logs, SNMP traps, and email/Syslog alerts for power failure or link loss.
- Limitations:
Layer 2 switching only (no Layer 3 routing); fiber distance limited to 2 km (MM) or 30 km (SM) depending on transceiver.
8. Standards & Compliance
| Category | Compliance / Certification |
|---------------|--------------------------------|
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ad, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X |
| Safety | UL 60950, UL 508, CAN/CSA‑C22.2 No. 60950 |
| Hazardous Location | UL/cUL Class I Division 2 Groups A–D |
| EMC / EMI | FCC Part 15 Class A, CISPR (EN 55022) Class A, CE Mark |
| Environmental Tests | IEC 60068‑2‑27 (Shock), ‑32 (Free‑fall), ‑6 (Vibration) |
| ESD / Surge Immunity | EN 61000‑4‑2 (ESD Level 3), ‑4‑5 (Surge Level 3), ‑4‑4 (EFT Level 2), ‑4‑6 (CS Level 3) |
| Quality Management | Manufactured under ISO 9001‑certified processes |
| Warranty | 5 Years limited hardware warranty |
9. Additional Information
- Warranty & Support:
5‑year limited warranty covering manufacturing defects. SUNIX provides firmware updates, technical documentation, and configuration utilities via [www.sunix‑ncci.com.tw](http://www.sunix-ncci.com.tw). Technical support is available through info@sunix‑ncci.com.tw.
- Maintenance:
Configuration can be backed up/restored via TFTP or SUNIX Commander. Firmware upgrades are performed through TFTP or group update wizard. Periodic inspection of power connections and environmental conditions is recommended.
- Software Updates:
Firmware images and MIB files are downloadable from the SUNIX support portal. The switch supports remote firmware upgrade and SNMP MIB extensions for custom monitoring.
- Service & Returns:
For repair or replacement, customers must obtain a Product Return Agreement (PRA) and submit a Problem Report Form with serial number and fault description. Products should be returned in anti‑static packaging with prepaid shipping.
### Summary
The SUNIX ESW‑8062‑GT‑E is a compact, high‑reliability managed industrial Ethernet switch engineered for deterministic, secure, and redundant networking in automation environments. With six Fast Ethernet ports, two Gigabit uplinks, and sub‑10 ms ring recovery, it ensures uninterrupted data flow in mission‑critical systems. Its comprehensive management suite—spanning SNMP v3, HTTPS/SSH, RADIUS, and Windows‑based tools—simplifies deployment and maintenance. The rugged IP30 aluminum enclosure, ‑40 °C to +85 °C operation, and dual redundant power inputs make it suitable for factory automation, transportation, and utility applications where network resilience and uptime are paramount.
