1. Product Overview
Product Name: Managed Industrial Ethernet Switch
Model: ESW‑8062‑SS
Series: ESW‑8062‑xx Series (Managed Redundant Industrial Ethernet Switches)
Article Number: ESW‑8062‑SS
Manufacturer: SUNIX Co., Ltd.

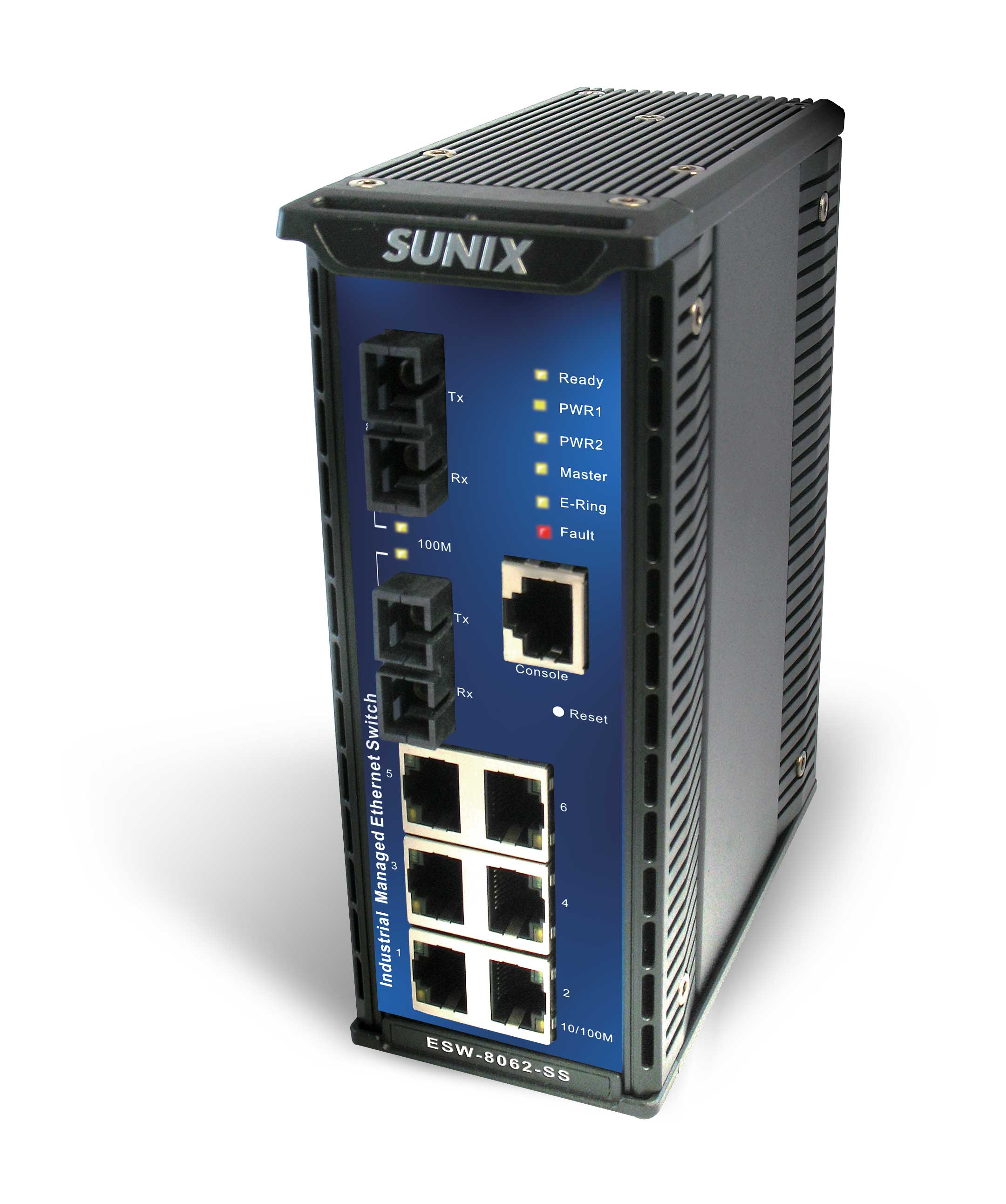

The SUNIX ESW‑8062‑SS is a managed industrial Ethernet switch designed for mission‑critical automation and control networks. It provides six 10/100Base‑T(X) copper ports and two 100Base‑FX single‑mode fiber ports, supporting deterministic, redundant Ethernet communication with recovery times under 10 ms. The unit is part of the ESW‑8062‑xx family, which includes multi‑mode, single‑mode, and copper‑only variants. It is engineered for harsh industrial environments, offering redundant power inputs, extended temperature operation, and comprehensive management capabilities through web, CLI, SNMP, and the SUNIX Commander Windows utility.
2. Key Features
- High‑speed Redundant Networking:
Incorporates SUNIX ELITE‑Ring™ technology with sub‑10 ms recovery across up to 300 switches, ensuring uninterrupted data flow in ring topologies. Supports RSTP (IEEE 802.1W) and STP (IEEE 802.1D) for additional redundancy options.
- Comprehensive Management:
Managed via web browser (HTTP/HTTPS), Telnet, RS‑232 console, SNMP v1/v2c/v3, or SUNIX Commander Pro utility. Supports group configuration, firmware upgrades, and topology visualization.
- Industrial‑grade Design:
Rugged IP30 aluminum enclosure, DIN‑rail or wall‑mount installation, ESD protection (4 kV DC on Ethernet ports), surge protection (2 kV DC on power), and reverse polarity protection. Designed for 24/7 operation in environments from 0 °C to 60 °C (‑40 °C to 80 °C for E models).
- Advanced Network Control:
Supports VLAN (IEEE 802.1Q/GVRP), QoS/ToS prioritization, port trunking (IEEE 802.3ad LACP), IGMP snooping v1/v2/v3, RMON groups 1, 2, 3, 9, and broadcast storm protection.
- Enhanced Security:
Features IEEE 802.1X authentication, HTTPS/SSH secure management, RADIUS server integration, IP/MAC‑based access control, and port security with MAC binding.
- Diagnostics and Alerts:
Provides relay output alarm (1 A @ 24 V DC), email and SNMP trap notifications, system log (Syslog) support, and LED indicators for power, fault, link/activity, and ring status.
- Flexible Power and Mounting:
Dual 12–48 V DC redundant inputs via 7‑pin removable terminal block and DC jack. Compact 56.5 × 110 × 150 mm form factor for DIN‑rail or wall mounting.
3. Technical Specifications
| Category | Specification |
|---------------|-------------------|
| Ports | 6 × 10/100Base‑T(X) RJ45 + 2 × 100Base‑FX (Single‑Mode SC/ST) |
| Transmission Distance | RJ45 up to 100 m; Single‑mode fiber up to 30 km (9/125 µm) |
| Standards Compliance | IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1W, 802.1Q, 802.1p, 802.1X, 802.3ad |
| Protocols Supported | IGMP v1/v2/v3, GVRP, SNMP v1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP |
| MIB Support | MIB‑II, Ethernet‑Like MIB, Bridge MIB, RSTP MIB, P‑BRIDGE MIB, Q‑BRIDGE MIB, RMON Groups 1, 2, 3, 9 |
| Switching Method | Store‑and‑Forward |
| Forwarding Rate | 148,800 pps per port |
| MAC Address Table | 8 K entries |
| Flow Control | IEEE 802.3x (full‑duplex), back‑pressure (half‑duplex) |
| Alarm Output | 1 × configurable relay output (1 A @ 24 V DC) |
| Power Input | Dual 12–48 V DC (24 V nominal) via 7‑pin terminal block + DC jack |
| Power Consumption | ≤ 9 W max |
| Protection | Overload current protection (1.6 A), reverse polarity protection, ESD 4 kV DC (Ethernet), surge 2 kV DC (power) |
| Enclosure | IP30 aluminum housing |
| Dimensions (W × D × H) | 56.5 × 110 × 150 mm |
| Weight | Approx. 0.9 kg |
| Mounting | DIN‑rail and wall‑mount brackets included |
| Operating Temperature | 0 °C to 60 °C (standard); ‑40 °C to 80 °C (extended E models) |
| Storage Temperature | ‑40 °C to 85 °C |
| Humidity | 5 % to 95 % (non‑condensing) |
| MTBF | 830,000 hours |
| Warranty | 5 years |
4. Functionality
The ESW‑8062‑SS functions as a managed Fast Ethernet switch optimized for deterministic industrial networks. It supports both copper and fiber connectivity, enabling flexible network topologies such as star, ring, or mixed configurations. The ELITE‑Ring™ redundancy mechanism ensures automatic failover within 10 ms, maintaining continuous communication even if a link or node fails.
Use Cases & Applications:
- Factory automation and process control networks
- Transportation and traffic management systems
- Building automation and security infrastructure
- Power utility and substation communication
- Oil and gas monitoring and pipeline control
Compatibility:
Interoperable with standard Ethernet devices and compliant with IEEE 802.3/802.1 protocols. Supports integration with third‑party SNMP management systems and industrial PLCs.
5. Components & Accessories
Included Items:
- ESW‑8062‑SS switch unit
- DIN‑rail mounting kit
- Wall‑mount bracket set
- Quick installation guide and CD with manual and drivers
Optional Accessories:
- RJ45‑to‑DB9 console cable (for RS‑232 management)
- Fiber connectors (ST or SC types available on request)
- External 24 V DC power adapter
- SUNIX Commander Pro Windows utility software
Connectors:
- 7‑pin removable terminal block for dual DC inputs
- DC jack for external adapter
- RJ45 Ethernet ports with auto MDI/MDI‑X
- SC/ST fiber connectors (single‑mode 9/125 µm)
- RS‑232 console port (RJ45 type)
6. Installation & Setup
Requirements:
- 12–48 V DC power supply (24 V recommended)
- Standard Ethernet cabling (Cat 5e or better)
- Fiber optic cables (9/125 µm single‑mode) for FX ports
Mounting Options:
- DIN‑Rail: Attach the included clip to the rear panel and snap onto a standard 35 mm DIN rail.
- Wall Mount: Use the supplied brackets and screws for panel installation.
Configuration Methods:
1. Web Interface: Access via browser (default IP 192.168.1.1, user admin/admin).
2. Telnet Console: Remote text‑based configuration over LAN.
3. RS‑232 Serial Console: 9600 bps, 8‑N‑1 for direct local setup.
4. SUNIX Commander Pro: Windows utility for multi‑device management, group firmware updates, and topology mapping.
Initial Setup Steps:
- Connect power inputs and verify PWR1/PWR2 LEDs.
- Connect Ethernet and/or fiber links.
- Access management interface to set IP address, VLANs, and redundancy parameters.
- Save configuration to flash memory to retain settings after reboot.
7. Performance & Capabilities
- Switching Capacity: 1.6 Gbps non‑blocking throughput.
- Latency: < 10 µs for 100 Mbps frames.
- Redundancy Recovery: < 10 ms (ELITE‑Ring™ over 50 units).
- Bandwidth Aggregation: Port trunking (IEEE 802.3ad LACP) supports up to 4 ports per group.
- QoS / Traffic Prioritization: Supports IEEE 802.1p (4 queues), ToS/DiffServ, and weighted fair queuing (8:4:2:1 ratio).
- VLAN Support: IEEE 802.1Q tagged and port‑based VLANs (up to 4094 VIDs).
- Multicast Control: IGMP snooping v1/v2/v3 for efficient multicast distribution.
- Security Mechanisms: 802.1X port authentication, RADIUS integration, MAC/IP filtering, HTTPS and SSH management.
- Diagnostics: Port mirroring, SNMP traps, Syslog, email alerts, and relay output for power or link failures.
- Limitations: Fast Ethernet (100 Mbps) uplinks only; for Gigabit applications, use ESW‑8062‑GT/GS models.
8. Standards & Compliance
| Category | Compliance / Certification |
|---------------|--------------------------------|
| Safety | UL 60950‑1, UL 508, CSA C22.2 No. 60950‑1 |
| Hazardous Location | UL/cUL Class I Div 2 Groups A–D (Pending ATEX Zone 2 EEx nC IIC) |
| EMC / EMI | FCC Part 15 Class A, CISPR (EN55022) Class A, CE Mark |
| EMS Immunity | EN61000‑4‑2 (ESD Level 3), ‑4‑3 (RS Level 3), ‑4‑4 (EFT Level 2), ‑4‑5 (Surge Level 3), ‑4‑6 (CS Level 3), ‑4‑8, ‑4‑11, ‑4‑12 |
| Shock / Vibration / Free‑fall | IEC 60068‑2‑27 (Shock), IEC 60068‑2‑6 (Vibration), IEC 60068‑2‑32 (Free‑fall) |
| Environmental Protection | IP30 enclosure rating |
| RoHS / WEEE | Compliant with EU directives for hazardous substances and recycling |
9. Additional Information
Warranty & Support:
SUNIX provides a 5‑year limited hardware warranty covering manufacturing defects and performance failures under normal operation. Technical support is available via email (info@sunix‑ncci.com.tw) and the official website (http://www.sunix‑ncci.com.tw). Firmware updates and manuals are available for download.
Maintenance:
The switch requires minimal maintenance. Periodic inspection of fiber connectors and terminal blocks is recommended. Firmware can be updated via TFTP or SUNIX Commander Pro. Configuration backups should be stored on a remote server for disaster recovery.
Software Updates & Utilities:
- SUNIX Commander Pro: Windows utility for device discovery, group configuration, firmware upgrade, and topology mapping.
- SNMP MIB Support: Includes private SUNIX MIB for advanced monitoring and integration with network management systems.
- Firmware Upgrade: Supported via TFTP server or local upload; system reboot required after update.
Service & Returns:
For repairs or replacement, customers must obtain a Product Return Agreement (PRA) and submit a Problem Report Form with detailed symptom description. Products should be returned in anti‑static packaging with the PRA visible on the outer carton.
### Summary
The SUNIX ESW‑8062‑SS is a robust, managed industrial Ethernet switch offering six 10/100Base‑T(X) ports and two 100Base‑FX single‑mode fiber ports. It delivers deterministic network performance with < 10 ms recovery through ELITE‑Ring™ redundancy, making it ideal for automation, transportation, and utility applications where uptime and data integrity are critical. With comprehensive management interfaces, advanced security features, and industrial‑grade mechanical design, the ESW‑8062‑SS provides a reliable foundation for modern industrial Ethernet infrastructure.
