EX9050-MTCP - TOPSCCC
ASIX CPU Modbus TCP to 12*DI 6* DO Isolated
Network Ethernet - Serial Over IP is an industrial device server that enables users to connect Modbus Modules and Modbus AD In. With this device, users can easily integrate Modbus Modules and Modbus AD In into their existing network, allowing for efficient communication and data exchange..
242,00 €
incl. VAT 287,98 €
incl. VAT 287,98 €
Description

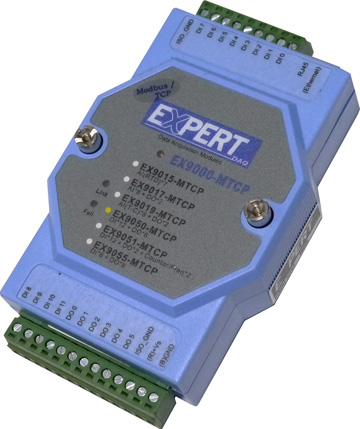

- The EX9050-MTCP is a high-density I/O module built-in a 10/100 based-T interface for seamless Ethernet connectivity
- It provides 12 digital input and 6 digital output channels with 2500Vrms Isolating protection
- All of the Digital Input channels support input latch function for signal handling
- Meanwhile
- these DI channels allow to be used as 1 KHz counter
- Opposite to the intelligent DI functions
- the Digital Output channels also support pulse output function
- features: 12 digital In single ended
- 6 digital Out open collector (max
- 500mA)
- 16 bit
- Ethernet 10 / 100 Mbit
- Protocol over Modbus TCP
- wide temperature range
- Power supply 10-30 VDC
- Din Rail Mounting Kit
Details
- Width: 151 mm
- Height: 75 mm
- Depth: 26 mm
- Weight: 0.6kg
- Form factor: DIN-Rail
- Manufacturer: TOPSCCC
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
