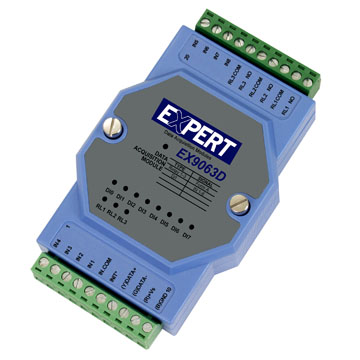

EX9063AD - TOPSCCC
8*DI 3*AC-SSR Relay output LED
Network Ethernet Serial Over IP Industrial Device Server is a module that allows you to connect and control industrial devices such as RS485, RS422, Module Relay, and DIO. It provides secure, reliable, and fast data transmission for various industrial applications. With this device, you can easily monitor and control your industrial devices remotely..
148,00 €
incl. VAT 176,12 €
incl. VAT 176,12 €
Description
- ExpertDAQ Relay modules communicate via RS485 and are available with Modbus RTU
- Within one RS485-network up to 256 modules may be controlled
- Without a RS485 Repeater the maximum cable length is 1200m
- The RS485 Relay module are sturdy
- power saving and easy to use
- the EX9063AD has 3 AC-SSR Output which are capable of carrying currents up to 1A at 24 to 265VAC with leak current of only 1,5mA
- The EX9063AD has a LED-display for each channel and was developed for use in a wide temperature range
- features: 3 Relay AC-SSR channels channels
- maximum current 1A at 24 - 265VAC
- leak current below 1,5mA
- Digital Level 0: <+1V - Digital Level 1: 4 - 30V
- lifetime at least 10^5 operating cycles
- LED-display for each channel
- extended temperature range
- In- and Output galvanically isolated
- output as RS485-interface
- manual configuration or with supplied Software
- power supply 10 - 30VDC
- Hard- and Software Watchdog
Details
- Width: 81 mm
- Height: 113 mm
- Depth: 24 mm
- Weight: 0.9kg
- Form factor: Box
- Manufacturer: TOPSCCC
- Country of Origin: Taiwan R.O.C.
- Customs code: 8517 6200 900
