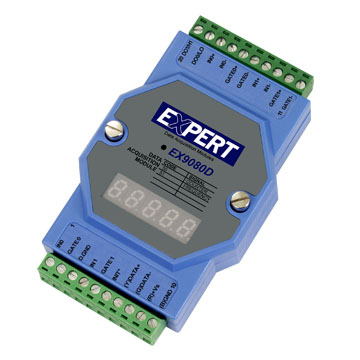

EX9080RD-M
2 counter input,(isolated) 2 DO (open collector) with Alarm/ counter preset value/ gate time 1/0.1 sec programmable w/o Filter & Threshold func. 7 Seg Modbus(w/o 3.5Char &WDT)
198,00 EUR
including VAT 235.62 EUR
ExpertDAQ RS485 Timer / Counter have been developed for professional use in industry, The RS485 Timer / Counter are controllable via RS485 and are available with Modbus RTU, Within one RS485 network up to 256 module can be controlled, the EX9080DR-M has 2 digital input which can measure frequencies between 1Hz and 100kHz, The Counter has 32bit memory, The digital Output can emit currents up to 30mA at 30V, The EX9080DR-M has a programmable Start-Value and alarm function, The EX9080DR-M has a 4,5-digit 7-segment LED-display and can be operated in a wide temperature range, features: 2 digital input channels, measure frequency from 1Hz - 100kHz, maximum current 30mA at 30V, Digital Level 0: <+1V - Digital Level 1: 3,5-30V, overvoltage protection up to 3750V, 32bit counter (4.294.967.295), programmable alarm function, programmable startvalue, 4,5-digit 7-segment LED-display, Output as RS485-interface, Communicate via Modbus-RTU, manual configuration or with supplied software, power supply 10 - 30VDC, Hard- and Software Watchdog
- Output Channels 2 channels
- Output Type Open Collector
- Output Isolation Voltage 3750 Vrms
- Load Voltage Max +30 V
- Maximum Load Current 30 mA
- Power Dissipation 300 mW
- Dual Watch Dog Yes
- 4.5 Digit LED Yes
- Counter/Timer 2 counter/frequency inputs
- Key Features 2 counter/frequency inputs;2 open-collector outputs;4.5-digit LED;32-bit count;isolated or non-isolated input;3750 Vrms isolation;programmable alarm;dual watchdog
- Input Channels 2 channels
- Counter Input Type Non-Isolated or Isolated
- Maximum Count 32 bit
- Alarming Alarm on counter 0 or counter 0 & 1, programmable
- Counter Preset Value Programmable
- Isolated Input Logic Level 0 +1 max V
- Isolated Input Logic Level 1 +3.5 to +30 V
- Isolated Input Isolation Voltage 3750 Vrms
- Non-Isolated Input Logic Level 0 0 to +1 V
- Non-Isolated Input Logic Level 1 +3.5 to +5 V
- Frequency Measurement Range 1 to 100000 Hz
- Programmable Built-In Gate Time 1.0/0.1 sec
- Power Input +10 to +30 VDC
- Power Consumption 2.2 W
- Operating Temperature -25 to 75 °C
- Operating Temperature -25 to 75 °C
- Mounting DIN Rail & Wall Mount
- Form Factor DIN-rail/wall-mount module
- Connector Screw terminal
- Bus Interface Remote I/O
- Digital I/O 2 DI counter/frequency inputs, 2 DO open collector outputs
- Resolution 32-bit counter
- Sampling Rate 1 Hz to 100 kHz frequency input
