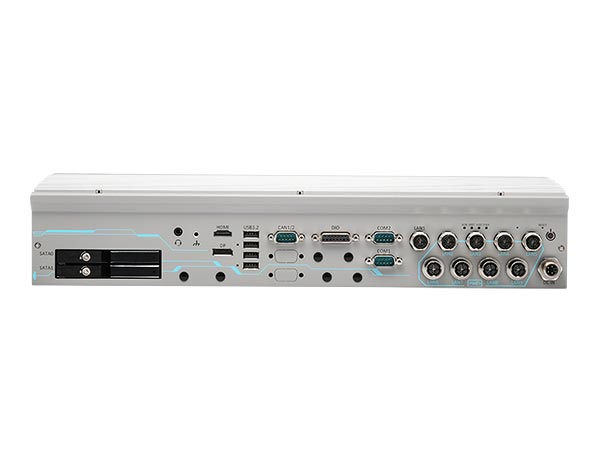

2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core
2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core 2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core

GT-92GC

2U fanless GPU computer with NVIDIA RTX 2000 ADA and Intel 12th–14th Gen Core
Request a quote
  • Manufacturer Neousys Technology
  • Category: Industrial Computer
  • The Neousys GT-92GC is a fanless 2U GPU computer designed for 19-inch racks and industrial edge AI applications. It combines NVIDIA RTX 2000 ADA graphics with 12th, 13th or 14th Gen Intel Core processors and up to 128 GB of DDR5 memory. Eight GbE PoE+ ports, an additional GbE port and four USB 3.2 ports support multi-camera systems. Storage options include one PCIe Gen4x4 NVMe socket and two hot-swappable 2.5-inch SATA bays. Isolated CAN, serial interfaces, isolated DIO, an 8–48 VDC input and wide-temperature operation suit inspection, robotic guidance and autonomous machines.
2U 19-inch rack-mount fanless GPU computer with NVIDIA RTX 2000 ADA and support for 35 W/65 W Intel 12th, 13th and 14th Gen LGA1700 processors. Features up to 128 GB DDR5 ECC/non-ECC memory, eight GbE PoE+ ports, one GbE port, four USB 3.2 Gen2 ports, dual isolated CAN 2.0, isolated serial and digital I/O, one PCIe Gen4x4 M.2 NVMe socket and two hot-swappable 2.5-inch SATA bays. Operates from an 8–48 VDC input and supports temperatures down to -25°C.
  • Processor Generation Intel Core 12th, 13th and 14th Gen
  • Processor Socket LGA1700
  • Supported CPU TDP 35 or 65 W
  • Chipset Intel R680E
  • Acceleration GPU NVIDIA RTX 2000 ADA
  • Integrated Graphics Intel UHD Graphics 770 (32EU)
  • GPU Thermal Design Passive cooling for 70 W GPU card
  • Maximum Memory 128 GB
  • Memory Type ECC/non-ECC DDR5-4800 SDRAM
  • Memory Slots 2 SODIMM slots
  • NVMe Socket 1x M.2 2280 M-key, PCIe Gen4x4
  • NVMe Transfer Speed Up to 7000 MB/s
  • SATA Drive Bays 2x hot-swappable 2.5-inch HDD/SSD trays
  • SATA RAID Support RAID 0/1
  • Mini PCI Express Sockets 2x full-size sockets with internal SIM slots
  • Bus Interface PCIe Gen4x4 M.2; 2x full-size mini PCI Express; isolated CAN 2.0
  • Gigabit Ethernet Ports 9 ports
  • PoE+ Ports 8x IEEE 802.3at PoE+ PSE
  • PoE Power Budget at 12 V Input 70 W
  • PoE Power Budget at 24 V Input 100 W
  • CAN Bus Ports 2x isolated CAN 2.0
  • CAN Software Support SocketCAN on Linux
  • Serial Ports 2x isolated 3-wire RS232/422/485
  • Digital Input Channels 4 isolated channels
  • Digital Output Channels 4 isolated channels
  • Digital I/O 4-channel isolated DI and 4-channel isolated DO
  • USB Ports 4x USB 3.2 Gen2x1 Type-A
  • USB Data Rate 10 Gbps
  • HDMI Output 1x HDMI 1.4, up to 4096 x 2160 pixels
  • DisplayPort Output 1x DisplayPort, up to 4096 x 2304 pixels
  • Audio Interface 1x 3.5 mm mic-in and speaker-out jack
  • DC Input Range 8 to 48 VDC
  • DC Input Connector M12 L-coded
  • Ignition Control Built-in ignition power control
  • Chassis Format 2U 19-inch chassis
  • Dimensions 440 x 250 x 88 mm
  • Weight 7.7 kg
  • Mounting Options Optional rack-mounting and wall-mounting
  • Form Factor 2U 19-inch rack-mount or wall-mount chassis
  • Connector M12 L-coded DC input; 9x M12 X-coded GbE; 4x USB Type-A; HDMI; DisplayPort; DB9 serial/CAN; 3.5 mm audio
  • Dimensions 440 x 250 x 88 mm, excluding rack-mount bracket
  • Operating Temperature with 35 W CPU -25 to 55 without PoE; -25 to 50 with 50 W PoE °C
  • Operating Temperature with 65 W CPU -25 to 35 without PoE °C
  • Storage Temperature -40 to 85 °C
  • Relative Humidity 10 to 90, non-condensing %
  • Vibration Compliance EN 50155:2021 / IEC 61373, Category I, Class B, body-mounted
  • Shock Compliance EN 50155:2021 / IEC 61373, Category I, Class B, body-mounted
  • Operating Temperature -25°C to 55°C with 35 W CPU without PoE; -25°C to 50°C with 35 W CPU and 50 W PoE; -25°C to 35°C with 65 W CPU without PoE
  • EMC Compliance EN 50121; CE/FCC Class A per EN 55032 and EN 55035
  • TPM Support dTPM 2.0
  • Remote Management Intel vPro / AMT 16.0 with 35 W CPU
  • Target Applications AI inspection; robotic guidance; autonomous machines; smart agriculture
  • Key Features NVIDIA RTX 2000 ADA; fanless passive cooling; Intel 12th/13th/14th Gen LGA1700 support; 8x GbE PoE+; dual isolated CAN 2.0; up to 128 GB DDR5; PCIe Gen4x4 NVMe; dual hot-swappable SATA bays; 8–48 VDC input; wide-temperature operation
  • Accessories PA-280W-CW6P-2P, PA-600W-C4PY-4P, Cbl-M12L5F-CordEnd5-180CM, Cbl-M12X8M-RJ45-CAT6A-500CM, Cbl-DB9F-2DB9M-15CM, AccsyBx-SplicingConnector, Rmkit-GT92, Wmkit-GT92, mPCIe-M2B, mPCIe-M2E, mPCIe-M2M
