Comprehensive Product Summary: HSL-DI16DO16-M-NP

---

### 1. Product Overview

Product Name: HSL-DI16DO16-M-NP
Model Number: HSL-DI16DO16-M-NP
Series: HSL (High Speed Link) Industrial Automation I/O System
Article Number: HSL-DI16DO16-M-NP
Manufacturer: ADLINK Technology Inc.
Product Type: 16-Channel Discrete Input and 16-Channel Discrete Output Daughter Board
Product Category: Industrial I/O Expansion Module for HSL System
Trademark: HSL® – High Speed Link for Industry Automation Solutions

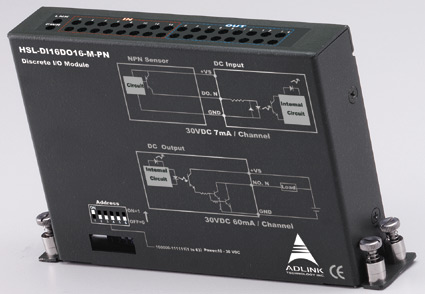

The HSL-DI16DO16-M-NP is a robust, metal-covered daughter board designed for industrial automation environments requiring high-speed, reliable discrete signal interfacing. It provides 16 channels of NPN sinking inputs and 16 channels of PNP sourcing outputs, optimized for integration within ADLINK’s HSL system architecture. The module supports flexible terminal base configurations and is engineered for high durability, fast response, and seamless communication in distributed control systems.

---

### 2. Key Features

- Dual 16-Channel Configuration: Provides 16 discrete NPN sinking input channels and 16 discrete PNP sourcing output channels for versatile digital I/O control.
- High-Speed Link (HSL) Interface: Designed for ADLINK’s HSL system, enabling fast, deterministic communication between controllers and distributed I/O modules.
- Robust Industrial Design: Metal enclosure ensures mechanical protection and electromagnetic shielding, suitable for harsh industrial environments.
- Flexible Terminal Base Options: Compatible with HSL-TB32-DIN, HSL-TB32-U-DIN, and HSL-TB64-DIN terminal bases for scalable installation.
- Wide Power Supply Range: Operates from +10V to +30V DC, accommodating various industrial power systems.
- Low Power Consumption: Typical consumption of 1.8 W, ensuring energy efficiency.
- LED Indicators: Multi-color LEDs for power (red), link (green), input (green), and output (yellow) status monitoring.
- Fast Response Time: Input and output response times of ≤2 ms, supporting high-speed automation processes.
- Address Configuration via DIP Switch: Supports up to 63 address settings for flexible network configuration.
- RS-422 Communication Interface: Differential signaling for noise immunity and reliable data transmission.
- Compact Form Factor: Optimized for DIN-rail mounting and space-efficient control cabinet integration.

---

### 3. Technical Specifications

General Specifications:

| Parameter | Description |
|------------|-------------|
| Model | HSL-DI16DO16-M-NP |
| Input Type | 16-channel NPN sinking or dry contact |
| Output Type | 16-channel PNP sourcing |
| Power Supply | +10V to +30V DC |
| Power Consumption | 1.8 W |
| Weight | 72 g |
| Enclosure | Metal cover for mechanical and EMI protection |

Dimensions:

- Daughter Board (DB): 100 mm × 78.2 mm
- DB with HSL-TB32-DIN: 126 mm × 120.1 mm × 107.3 mm
- DB with HSL-TB64-DIN: 168.7 mm × 120.1 mm × 107.3 mm

Discrete Input Specifications:

| Parameter | Value |
|------------|--------|
| Input Channels | 16 |
| Input Type | NPN sinking or dry contact |
| Input Current | -10 mA typical |
| Input Impedance | 4.7 kΩ |
| ON Voltage | ≥19.0 V DC |
| OFF Voltage | ≤9.6 V DC |
| Input Response Time | ≤2 ms (ON/OFF) |
| Input Operating Voltage | 24 V DC nominal |

Discrete Output Specifications:

| Parameter | Value |
|------------|--------|
| Output Channels | 16 |
| Output Type | PNP sourcing |
| Switching Capacity | +60 mA at 24 V DC |
| Response Time | ≤2 ms (ON/OFF) |
| Output Protection | Internal transistor circuit |
| Load Type | Resistive or inductive loads within rated current |

Environmental:

| Parameter | Value |
|------------|--------|
| Operating Voltage Range | +10V to +30V DC |
| Power Indicator | Red LED |
| Link Indicator | Green LED |
| Input Indicator | Green LED per channel |
| Output Indicator | Yellow LED per channel |

---

### 4. Functionality

The HSL-DI16DO16-M-NP functions as a distributed I/O expansion module within ADLINK’s HSL system. It provides a high-speed, deterministic interface between a host controller and field-level devices such as sensors, switches, relays, and actuators.

Working Principle:

- Inputs (NPN Sinking): Each input channel detects the presence of a low-level signal (sinking current to ground). The input circuit includes a 4.7 kΩ resistor and LED indicator for visual feedback.
- Outputs (PNP Sourcing): Each output channel sources current to connected loads, providing +24V DC when activated. The transistor-based output circuit ensures fast switching and electrical isolation.
- Communication: The board communicates with the HSL master via RS-422 differential lines (TX+/TX−, RX+/RX−), ensuring noise-resistant data transmission.
- Addressing: A 6-bit DIP switch allows configuration of up to 63 unique device addresses, enabling multiple modules on a single HSL network.

Applications:

- Factory automation and process control
- Machine tool control systems
- Packaging and material handling equipment
- Distributed I/O in PLC-based systems
- Sensor and actuator interfacing in industrial networks

Compatibility:

- Fully compatible with ADLINK HSL terminal bases:
- HSL-TB32-DIN
- HSL-TB32-U-DIN
- HSL-TB64-DIN
- Integrates seamlessly with HSL master modules and controllers supporting RS-422 communication.

---

### 5. Components & Accessories

Included Components:

- HSL-DI16DO16-M-NP daughter board with metal cover
- RS-422 communication interface connectors
- DIP switch for address configuration
- LED indicators for power, link, input, and output status

Optional Accessories:

- HSL-TB32-DIN: 32-channel I/O terminal base with DIN socket (for -NN and -PN models)
- HSL-TB32-U-DIN: 32-channel universal terminal base with DIN socket
- HSL-TB64-DIN: 64-channel I/O terminal base with DIN socket (supports dual-slot configuration)

Connectors and Pin Assignments:

- JP3 / JP4 Connectors:
- Power: +VS (+10V~+30V DC), GND
- Communication: RS-422 TX+/TX−, RX+/RX−
- Discrete Inputs: DI0–DI15
- Discrete Outputs: DO0–DO15

LED Indicators:

- Red: DC Power Active
- Green: Link Status / Input Active
- Yellow: Output Active

---

### 6. Installation & Setup

Requirements:

- DC power supply: +10V to +30V DC
- Compatible terminal base (HSL-TB32-DIN, HSL-TB32-U-DIN, or HSL-TB64-DIN)
- RS-422 communication cabling
- Proper grounding and shielding for industrial environments

Mounting Options:

- DIN-rail mounting via compatible terminal base
- Compact design suitable for control cabinets and distributed I/O panels

Configuration Steps:

1. Mount the Terminal Base: Secure the chosen terminal base (TB32 or TB64) onto the DIN rail.
2. Attach the Daughter Board: Connect the HSL-DI16DO16-M-NP module to the terminal base.
3. Set the Address: Configure the 6-bit DIP switch to assign a unique address (1–63).
4. Connect Power: Supply +10V to +30V DC to the +VS and GND terminals.
5. Connect Communication Lines: Wire RS-422 TX+/TX− and RX+/RX− lines to the HSL master.
6. Wire Field Devices: Connect sensors to DI0–DI15 and actuators to DO0–DO15 terminals.
7. Verify LED Indicators: Ensure power (red) and link (green) LEDs are active; input/output LEDs indicate channel activity.

---

### 7. Performance & Capabilities

Speed and Response:

- Input and output response times are both ≤2 ms, ensuring rapid signal processing suitable for high-speed automation.
- RS-422 communication provides robust, low-latency data exchange between distributed modules and the HSL master.

Capacity:

- 16 discrete input channels and 16 discrete output channels per module.
- Expandable system architecture allows multiple modules to be networked for large-scale I/O systems.

Efficiency:

- Low power consumption (1.8 W typical) reduces thermal load and energy costs.
- Efficient transistor-based output design minimizes switching losses.

Limitations:

- Maximum output current per channel: +60 mA at 24V DC.
- Designed for 24V DC logic systems; not suitable for AC or high-voltage applications.
- Requires HSL-compatible master and terminal base for operation.

---

### 8. Standards & Compliance

Certifications and Compliance:

- Designed in accordance with industrial automation standards for discrete I/O modules.
- RS-422 differential signaling ensures compliance with noise immunity and communication reliability standards.
- HSL® is a registered trademark of ADLINK Technology Inc.
- Manufactured under ADLINK’s quality management system, ensuring consistent performance and reliability.

Regulatory Notes:

- Specifications and contents are subject to change without notice.
- All trademarks and registered trademarks are the property of their respective owners.

---

### 9. Additional Information

Warranty & Support:

- Standard ADLINK limited warranty (details available from manufacturer).
- Technical support available via:
- Email: service@adlink.com.tw
- Technical Assistance: NuDAM@adlink.com.tw
- Phone: +886-2-82265877
- Fax: +886-2-82265717
- Website: [http://www.adlink.com.tw](http://www.adlink.com.tw)

Maintenance:

- Periodic inspection of terminal connections and power supply recommended.
- Ensure proper grounding and shielding to maintain signal integrity.
- Clean module exterior with dry, non-abrasive materials; avoid solvents.

Firmware & Updates:

- Firmware updates and configuration tools available through ADLINK’s support portal.
- Compatibility maintained with HSL system updates and new terminal base revisions.

Ordering Information:

| Model | Input Type | Output Type | Description |
|--------|-------------|-------------|-------------|
| HSL-DI16DO16-DB-NN | NPN Sinking | NPN Sinking | 16-CH NPN Input / 16-CH NPN Output |
| HSL-DI16DO16-DB-NP | NPN Sinking | PNP Sourcing | 16-CH NPN Input / 16-CH PNP Output |
| HSL-DI16DO16-DB-PN | PNP Sourcing | NPN Sinking | 16-CH PNP Input / 16-CH NPN Output |
| HSL-DI16DO16-DB-PP | PNP Sourcing | PNP Sourcing | 16-CH PNP Input / 16-CH PNP Output |

Terminal Base Options:

| Model | Description |
|--------|-------------|
| HSL-TB32-DIN | 32-CH I/O Terminal Base for -NN and -PN models |
| HSL-TB32-U-DIN | 32-CH Universal I/O Terminal Base |
| HSL-TB64-DIN | 64-CH I/O Terminal Base for dual-slot configurations |

---

### Summary

The ADLINK HSL-DI16DO16-M-NP is a high-performance, industrial-grade I/O daughter board engineered for distributed automation systems. Combining 16 NPN sinking inputs and 16 PNP sourcing outputs, it delivers fast, reliable digital signal interfacing within ADLINK’s HSL network. Its robust metal construction, flexible terminal base compatibility, and comprehensive LED diagnostics make it ideal for demanding industrial environments. With a wide operating voltage range, low power consumption, and rapid response times, the HSL-DI16DO16-M-NP provides a dependable solution for modern factory automation, machine control, and process monitoring applications.
