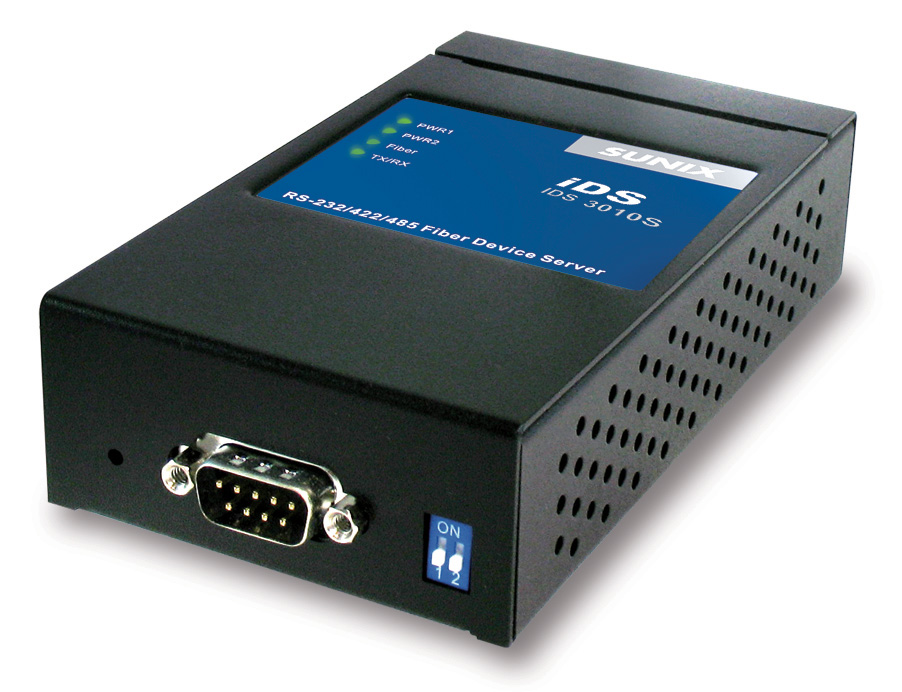

Comprehensive Product Summary – SUNIX IDS‑3010S Industrial Serial‑to‑Fiber Ethernet Device Server

---

### 1. Product Overview

Product Name: Industrial Device Server – Serial to Fiber Ethernet Converter
Model: IDS‑3010S (Single‑Mode Fiber Version)
Series: SUNIX IDS‑3000 Series Industrial Device Servers
Article Number: IDS‑3010S
Manufacturer: SUNIX Co., Ltd.
Product Type: 1‑Port RS‑232/422/485 to 1‑Port 100Base‑FX Fiber Ethernet Device Server (Single‑Mode)
Product Category: Industrial Networking and Communication Equipment

The SUNIX IDS‑3010S is a rugged, single‑port industrial device server designed to connect legacy serial equipment to modern Ethernet networks via a single‑mode fiber interface. It provides a secure, redundant, and high‑performance communication bridge between RS‑232/422/485 serial devices and Ethernet‑based control systems. The IDS‑3010S is part of the SUNIX IDS‑3000 series, engineered for industrial automation, data acquisition, and remote device management in harsh environments.

---

### 2. Key Features

- Multi‑Protocol Serial‑to‑Ethernet Conversion: Supports RS‑232, RS‑422, and RS‑485 (2‑wire/4‑wire) interfaces through a DB9 male connector.
- Fiber Ethernet Connectivity: 1×100Base‑FX port with SC connector; single‑mode fiber supports up to 30 km transmission distance at 1310 nm wavelength.
- High Reliability and Redundancy: Dual 12–48 V DC power inputs (terminal block and DC jack) with reverse polarity protection; Ethernet redundancy recovery time < 10 ms.
- Advanced Security: HTTPS and SSH management, SSL encryption, and authentication via 802.1X, Radius, WEP/WPA/WPA2/TKIP.
- Multiple Operation Modes: Virtual COM, TCP Server, TCP Client, UDP, and Serial Tunnel modes for flexible integration.
- Simultaneous Multi‑Host Access: Up to five concurrent connections in Virtual COM, TCP Server, or TCP Client modes.
- Comprehensive Event Notification: Syslog, SNMP trap, E‑mail, relay output, and beeper alerts for system and port events.
- Cross‑Platform Support: Virtual COM drivers for Windows NT/2000/XP/2003/Vista and fixed TTY drivers for Linux.
- Industrial‑Grade Design: Metal IP30 enclosure, DIN‑rail and wall‑mount options, 15 kV ESD protection, and 1.5 kV magnetic isolation.
- User‑Friendly Configuration: Web‑based HTTPS console, SSH console, and SUNIX IDS‑Tools Windows utility for discovery, configuration, and monitoring.
- Fiber Optic Immunity: Complete resistance to EMI/RFI interference, ground loops, and lightning surges, ensuring stable operation in electrically noisy environments.

---

### 3. Technical Specifications

Network Interface
- Port Type: 1 × 100Base‑FX Fiber Ethernet
- Connector: SC
- Mode: Single‑Mode (IDS‑3010S)
- Transmission Distance: Up to 30 km
- Wavelength: 1310 nm
- Cable Type: 9/125 µm single‑mode fiber
- Protocols Supported: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSL, SSH
- Magnetic Isolation: 1.5 kV

Serial Interface
- Port: 1 × RS‑232/422/485 (configurable)
- Connector: DB9 Male
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Parity: None, Odd, Even, Mark, Space
- Stop Bits: 1, 1.5, 2
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS‑422 Signals: Tx+, Tx–, Rx+, Rx–, GND
- RS‑485 (4‑wire): Tx+, Tx–, Rx+, Rx–, GND
- RS‑485 (2‑wire): Data+, Data–, GND
- ESD Protection: 15 kV

Power Requirements
- Input Voltage: 12 – 48 V DC (dual inputs)
- Connectors: 3‑pin removable terminal block + DC jack
- Reverse Polarity Protection: Yes
- Power Consumption: Max 4 W (typical < 7 W)

Environmental Conditions
- Operating Temperature: –10 °C to +60 °C
- Storage Temperature: –20 °C to +85 °C
- Operating Humidity: 5 % – 95 % RH (non‑condensing)

Mechanical Construction
- Enclosure: Metal, IP30 protection
- Dimensions (W × D × H): 72 × 125 × 31 mm (excluding connectors)
- Mounting Options: DIN‑rail or wall mount
- Weight: Approx. 0.5 kg

Reliability
- MTBF: ≥ 200,000 hours
- Warranty: 5 years

---

### 4. Functionality

The IDS‑3010S functions as a transparent serial‑to‑Ethernet bridge, enabling legacy serial devices to communicate over IP networks through a fiber‑optic link. It converts serial data streams from RS‑232/422/485 interfaces into Ethernet packets and vice versa, maintaining data integrity and timing.

Operating Modes:
- Virtual COM Mode: Maps the serial port to a virtual COM port on a host PC, allowing existing serial applications to operate over Ethernet without modification.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 simultaneous sessions.
- TCP Client Mode: Initiates TCP connections to a designated server upon startup or data activity.
- UDP Mode: Enables unicast or multicast data transmission for low‑latency applications.
- Serial Tunnel Mode: Couples two IDS devices to create a transparent serial link over Ethernet or fiber.

Use Cases and Applications:
- Industrial automation and PLC communication
- Remote monitoring of sensors, meters, and controllers
- SCADA and DCS integration
- Building management systems
- Transportation and energy infrastructure
- Secure data acquisition in EMI‑sensitive environments

Compatibility:
- Compatible with Windows NT/2000/XP/2003/Vista via Virtual COM drivers
- Linux systems supported via fixed TTY driver
- Works with standard TCP/IP networks, routers, and switches
- NAT pass‑through allows management across network boundaries

---

### 5. Components & Accessories

Included Items:
- IDS‑3010S device server unit
- DIN‑rail mounting kit (pre‑installed)
- Wall‑mount bracket and screws
- Quick Installation Guide (QIG)
- Software CD with IDS‑Tools utility and drivers
- Dust cover for unused ports

Optional Accessories:
- External 12–48 V DC power adapter (not included)
- Fiber optic patch cords (SC connector, single‑mode 9/125 µm)
- Replacement DIN‑rail mount kit
- Serial cables (DB9 male to female or terminal block adapters)

Connectors:
- Serial: DB9 Male
- Fiber: SC connector (100Base‑FX)
- Power: 3‑pin terminal block and DC jack
- Reset Button: Factory default restore (press 5 seconds)
- DIP Switch: RS‑422/485 termination control

---

### 6. Installation & Setup

Mounting Options:
- DIN‑Rail Installation: Attach the metal spring clip to the rail and press until it clicks into place.
- Wall Mounting: Remove the DIN clip, attach the wall mount bracket using the provided screws, and secure to a flat surface.

Power Connection:
- Connect 12–48 V DC to either the terminal block (PWR1) or DC jack (PWR2). Both inputs can be used for redundancy.

Fiber Connection:
- Connect TX of IDS‑3010S to RX of the switch and RX to TX of the switch using single‑mode fiber patch cords.

Configuration Methods:
1. IDS‑Tools Utility (Windows): Auto‑discovers devices, assigns IP addresses, and configures serial parameters.
2. Web Interface (HTTPS): Access via https://192.168.1.1 (default IP); supports system, network, and port settings.
3. SSH Console: Secure command‑line configuration using PuTTY or similar client.

Default Settings:
- IP Address: 192.168.1.1
- Username/Password: admin
- DHCP: Disabled by default

LED Indicators:
- PWR1/PWR2: Green = active; Red blinking = IP conflict or DHCP failure
- Fiber LNK/ACT: Green on/blinking = link/activity
- TX/RX: Green = transmit; Red = receive

---

### 7. Performance & Capabilities

- Data Rate: Up to 460.8 kbps serial speed
- Network Speed: 100 Mbps full‑duplex fiber Ethernet
- Redundancy Recovery: < 10 ms failover time
- Simultaneous Connections: Up to 5 hosts (Virtual COM/TCP Server/TCP Client)
- Buffer Size: 4 KB per direction with configurable flush timers (0–65535 s)
- Data Packing: Supports up to 4 user‑defined delimiters for serial and Ethernet streams
- Event Handling: Real‑time notifications for DCD, DSR, RI, CTS changes, port connect/disconnect, and power status
- Security Protocols: HTTPS, SSH, SSL/TLS, 802.1X, Radius, WEP/WPA/WPA2/TKIP
- Reliability: Continuous operation in industrial environments with minimal latency and high throughput

Limitations:
- Single serial port only (one device per unit)
- No PoE support on this model (IDS‑3010S uses DC power inputs)
- Fiber port limited to 100 Mbps (100Base‑FX)

---

### 8. Standards & Compliance

Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge Level 3), EN61000‑4‑6 (CS Level 3)

Environmental and Mechanical Tests:
- Shock: IEC 60068‑2‑27
- Free Fall: IEC 60068‑2‑32
- Vibration: IEC 60068‑2‑6

Safety and Protection:
- IP30 enclosure rating
- 15 kV ESD protection on serial ports
- Reverse polarity protection on power inputs

Industry Standards:
- IEEE 802.3u (100Base‑FX)
- RS‑232/422/485 EIA standards
- SNMP MIB II for network management

---

### 9. Additional Information

Warranty: 5 years limited hardware warranty
MTBF: ≥ 200,000 hours
Support and Maintenance:
- Technical support via email (info@sunix.com.tw)
- Firmware and driver updates available at [www.sunix.com.tw](http://www.sunix.com.tw)
- IDS‑Tools software provides group firmware updates and configuration backup/restore

Maintenance Guidelines:
- Ensure adequate ventilation and avoid exposure to excessive dust or moisture.
- Use only approved fiber and power accessories.
- Periodically check LED status and event logs for network health.
- Firmware updates can be applied via web interface or IDS‑Tools utility.

Product Lifecycle and Upgrades:
The IDS‑3010S is part of the modular IDS family, allowing migration to multi‑port models (IDS‑3042, IDS‑2042P‑I) or wireless variants (IDS‑3011W) without software changes. All models share a common firmware architecture and management interface.

---

### Summary

The SUNIX IDS‑3010S is a compact, industrial‑grade serial‑to‑fiber Ethernet device server engineered for mission‑critical communication in automation, transportation, and energy systems. Its single‑mode fiber interface extends serial communication up to 30 km while providing complete immunity to electrical interference. With redundant power inputs, secure HTTPS/SSH management, and multi‑host connectivity, the IDS‑3010S delivers a robust and scalable solution for modernizing legacy serial infrastructure in industrial networks.
