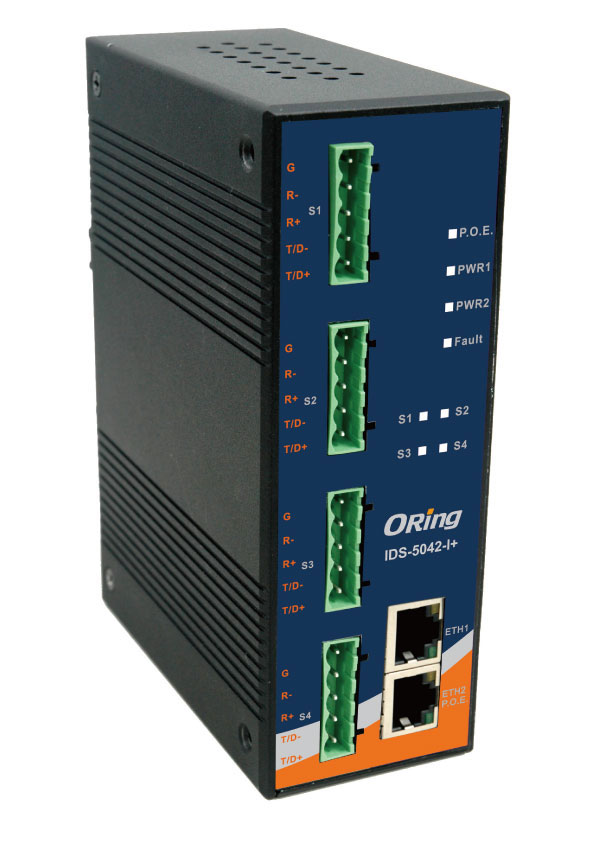

Comprehensive Product Summary – IDS-5042-I+ Industrial Device Server
### 1. Product Overview
Product Name: Industrial Device Server
Model: IDS-5042-I+
Series: IDS-5042 Series
Article Number: IDS-5042-I+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: [support@oring-networking.com](mailto:support@oring-networking.com)
The IDS-5042-I+ is a rugged, industrial-grade Ethernet-to-serial device server designed to connect up to four isolated RS-422/485 serial devices to dual 10/100Base-T(X) Ethernet networks. It provides hardware and software redundancy, PoE PD capability, and advanced management and security features for mission-critical industrial communication systems.
### 2. Key Features
- Dual Redundant Ethernet Ports: Two 10/100Base-T(X) RJ-45 ports support redundant or switch (daisy-chain) mode with automatic recovery time under 10 ms, ensuring continuous network connectivity.
- Four Isolated Serial Ports: 4× RS-422/485 ports with 2 kV DC isolation for reliable communication in electrically noisy environments.
- PoE PD Support: ETH2 port supports IEEE 802.3af Power over Ethernet (PD) with 1 kV isolation and up to 8 W power draw.
- Redundant Power Inputs: Dual 12–48 VDC inputs via terminal block and DC jack for power redundancy.
- Multiple Host Connections: Supports up to 5 simultaneous host connections in Virtual COM, TCP Server, TCP Client, or UDP modes.
- Secure Management: HTTPS and SSH protocols for encrypted configuration and monitoring.
- Event Notification: Alerts via Syslog, Email, SNMP trap, relay output, or beeper for system events and faults.
- NAT Pass-Through: Enables remote management through NAT routers, simplifying access across different IP domains.
- Software Utility (DS-Tool): Windows-based configuration and monitoring utility for device discovery, group management, and firmware updates.
- Industrial Design: IP30-rated metal housing, DIN-rail and wall-mount options, and wide operating temperature range (-10°C to 60°C).
- Comprehensive Protocol Support: TCP/IP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH.
### 3. Technical Specifications
Network Interface:
- 2 × 10/100Base-T(X) Ethernet ports (RJ-45)
- Auto MDI/MDI-X, auto-negotiation
- Built-in 1.5 kV magnetic isolation
- Redundant or switch (daisy-chain) mode
- Recovery time <10 ms
Serial Interface:
- 4 × RS-422/485 isolated ports (2 kV DC isolation)
- Connector: 5-pin terminal block
- Baud Rate: 110 bps to 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- ESD Protection: 15 kV
- Supported Signals:
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (4-wire): Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (2-wire): Data+, Data-, GND
Power Requirements:
- Dual DC inputs: 12–48 VDC via 6-pin terminal block and DC jack
- Reverse polarity protection
- Power consumption: Max. 7 W
- PoE PD (ETH2): IEEE 802.3af compliant, 1 kV isolation, 8 W max
LED Indicators:
- PWR1/PWR2: Green (active), Red (fault/IP conflict)
- Fault: Red (fault condition)
- ETH1/ETH2: Green (100 Mbps), Amber (10 Mbps)
- Serial TX/RX: Green (transmit), Red (receive)
- PoE: Green (active), Red (error)
Environmental:
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5%–95% non-condensing
Mechanical:
- Dimensions (W × D × H): 52 × 106 × 144 mm
- Weight: Approx. 0.9 kg (metal enclosure)
- Casing: IP30-rated aluminum housing
- Mounting: DIN-rail and wall-mount options
### 4. Functionality
The IDS-5042-I+ acts as a bridge between serial devices and Ethernet networks, enabling legacy RS-422/485 equipment to communicate over IP-based infrastructures. It supports multiple operation modes:
- Virtual COM Mode: Maps serial ports to virtual COM ports on host PCs, allowing transparent communication as if directly connected.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 simultaneous connections.
- TCP Client Mode: Initiates TCP connections to remote servers based on startup or data triggers.
- UDP Mode: Enables unicast or multicast data transmission for high-speed, low-latency communication.
- Serial Tunnel Mode: Creates a direct serial-to-serial link over Ethernet between two device servers.
Use Cases:
- Industrial automation and SCADA systems
- Building management and HVAC control
- Energy and utility monitoring
- Transportation and traffic control systems
- Remote serial device management in substations or factories
Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista (32-bit)
- Management Interfaces: Web browser (HTTPS), SSH console, DS-Tool utility
### 5. Components & Accessories
Included Items:
- IDS-5042-I+ main unit
- DIN-rail mounting kit (pre-installed)
- Wall-mount bracket and screws
- Quick installation guide
- Terminal block connector
Optional Accessories:
- External DC power adapter (12–48 VDC)
- Ethernet cables (Cat.5e or higher)
- Serial cables (RS-422/485)
Connectors:
- 2 × RJ-45 (Ethernet)
- 4 × 5-pin terminal blocks (serial ports)
- 6-pin terminal block (power and relay output)
- DC power jack
### 6. Installation & Setup
Mounting Options:
- DIN-Rail Installation:
1. Attach the metal spring clip to the DIN rail.
2. Push the device until it clicks into place.
- Wall Mounting:
1. Remove the DIN-rail kit.
2. Attach the wall-mount bracket using six screws.
3. Secure the device to the wall surface.
Power Connection:
- Connect redundant DC power sources (12–48 VDC) to PWR1 and PWR2 terminals.
- PoE power can be supplied via ETH2 port if available.
Network Configuration:
- Default IP: 192.168.10.2
- Supports Static IP, DHCP, or BOOTP modes.
- NAT pass-through and PPPoE supported for remote access.
Software Setup:
- Install DS-Tool utility on a Windows PC.
- Discover devices via broadcast, assign IP addresses, and configure serial parameters.
- Alternatively, configure via HTTPS web interface or SSH console.
Relay Output:
- 1A @ 24VDC relay output for fault indication or event signaling.
### 7. Performance & Capabilities
- Redundancy: Dual Ethernet ports with <10 ms failover time ensure uninterrupted communication.
- Data Throughput: Optimized modes for throughput or latency; supports baud rates up to 460.8 kbps.
- Multi-Host Connectivity: Up to 5 simultaneous connections per serial port across Virtual COM, TCP, or UDP modes.
- Security: SSL encryption for data transmission; HTTPS and SSH for management; IP access control lists.
- Event Management: Configurable notifications for power failure, Ethernet link loss, login failure, or serial signal changes (DCD, DSR, RI, CTS).
- Reliability: 2 kV isolation on serial ports, 1 kV isolation on PoE port, and 15 kV ESD protection ensure robust operation in harsh environments.
- Power Efficiency: 7 W maximum consumption; supports PoE PD for simplified cabling.
- Recovery: Automatic link recovery and redundant power switching minimize downtime.
Limitations:
- No RS-232 interface (available only on IDS-5042/5042+ models).
- Operating temperature limited to -10°C to 60°C (not suitable for extreme cold environments).
### 8. Standards & Compliance
Electrical & Environmental Standards:
- Shock: IEC 60068-2-27
- Free Fall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
EMI/EMS Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge)
- EN61000-4-6 (Conducted Susceptibility)
Network Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3af Power over Ethernet (PD)
Safety & Isolation:
- 2 kV DC isolation on serial ports
- 1 kV isolation on PoE PD port
- Reverse polarity protection on power input
### 9. Additional Information
Warranty: 5 years limited warranty from ORing Industrial Networking Corp.
Support & Maintenance:
- Technical support via email and online resources.
- Firmware updates available through DS-Tool or web interface.
- Configuration backup and restore functions supported.
- Factory reset via hardware button (press 5 seconds).
Maintenance Recommendations:
- Ensure proper grounding and shielding for serial connections.
- Regularly check firmware updates for security and performance improvements.
- Use redundant power sources for maximum uptime.
Software Tools:
- DS-Tool Utility:
- Device discovery and configuration
- Group management and firmware updates
- Serial port monitoring and logging
- Access control and IP filtering
- Web Interface (HTTPS):
- Full configuration and monitoring
- Event and system log management
- SSH Console:
- Secure command-line configuration
Event Notification Options:
- Email alerts (SMTP configuration)
- SNMP traps (up to 4 destinations)
- Syslog server integration
- Audible beeper and relay output
Firmware Management:
- Upgrade via DS-Tool or web interface
- Backup and restore configuration files
- Reboot and factory reset options
### Summary
The ORing IDS-5042-I+ is a high-performance, industrial-grade device server engineered for reliable serial-to-Ethernet communication in mission-critical environments. With four isolated RS-422/485 ports, dual redundant Ethernet interfaces, and PoE PD capability, it ensures continuous operation even under network or power failures. Its robust metal housing, wide voltage range, and comprehensive software suite make it ideal for automation, transportation, and energy applications requiring secure, redundant, and manageable serial connectivity.
The IDS-5042-I+ combines advanced redundancy, flexible configuration, and industrial durability, making it a cornerstone solution for modernizing legacy serial systems into resilient Ethernet-based infrastructures.
### 1. Product Overview
Product Name: Industrial Device Server
Model: IDS-5042-I+
Series: IDS-5042 Series
Article Number: IDS-5042-I+
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: [support@oring-networking.com](mailto:support@oring-networking.com)
The IDS-5042-I+ is a rugged, industrial-grade Ethernet-to-serial device server designed to connect up to four isolated RS-422/485 serial devices to dual 10/100Base-T(X) Ethernet networks. It provides hardware and software redundancy, PoE PD capability, and advanced management and security features for mission-critical industrial communication systems.
### 2. Key Features
- Dual Redundant Ethernet Ports: Two 10/100Base-T(X) RJ-45 ports support redundant or switch (daisy-chain) mode with automatic recovery time under 10 ms, ensuring continuous network connectivity.
- Four Isolated Serial Ports: 4× RS-422/485 ports with 2 kV DC isolation for reliable communication in electrically noisy environments.
- PoE PD Support: ETH2 port supports IEEE 802.3af Power over Ethernet (PD) with 1 kV isolation and up to 8 W power draw.
- Redundant Power Inputs: Dual 12–48 VDC inputs via terminal block and DC jack for power redundancy.
- Multiple Host Connections: Supports up to 5 simultaneous host connections in Virtual COM, TCP Server, TCP Client, or UDP modes.
- Secure Management: HTTPS and SSH protocols for encrypted configuration and monitoring.
- Event Notification: Alerts via Syslog, Email, SNMP trap, relay output, or beeper for system events and faults.
- NAT Pass-Through: Enables remote management through NAT routers, simplifying access across different IP domains.
- Software Utility (DS-Tool): Windows-based configuration and monitoring utility for device discovery, group management, and firmware updates.
- Industrial Design: IP30-rated metal housing, DIN-rail and wall-mount options, and wide operating temperature range (-10°C to 60°C).
- Comprehensive Protocol Support: TCP/IP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH.
### 3. Technical Specifications
Network Interface:
- 2 × 10/100Base-T(X) Ethernet ports (RJ-45)
- Auto MDI/MDI-X, auto-negotiation
- Built-in 1.5 kV magnetic isolation
- Redundant or switch (daisy-chain) mode
- Recovery time <10 ms
Serial Interface:
- 4 × RS-422/485 isolated ports (2 kV DC isolation)
- Connector: 5-pin terminal block
- Baud Rate: 110 bps to 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- ESD Protection: 15 kV
- Supported Signals:
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (4-wire): Tx+, Tx-, Rx+, Rx-, GND
- RS-485 (2-wire): Data+, Data-, GND
Power Requirements:
- Dual DC inputs: 12–48 VDC via 6-pin terminal block and DC jack
- Reverse polarity protection
- Power consumption: Max. 7 W
- PoE PD (ETH2): IEEE 802.3af compliant, 1 kV isolation, 8 W max
LED Indicators:
- PWR1/PWR2: Green (active), Red (fault/IP conflict)
- Fault: Red (fault condition)
- ETH1/ETH2: Green (100 Mbps), Amber (10 Mbps)
- Serial TX/RX: Green (transmit), Red (receive)
- PoE: Green (active), Red (error)
Environmental:
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5%–95% non-condensing
Mechanical:
- Dimensions (W × D × H): 52 × 106 × 144 mm
- Weight: Approx. 0.9 kg (metal enclosure)
- Casing: IP30-rated aluminum housing
- Mounting: DIN-rail and wall-mount options
### 4. Functionality
The IDS-5042-I+ acts as a bridge between serial devices and Ethernet networks, enabling legacy RS-422/485 equipment to communicate over IP-based infrastructures. It supports multiple operation modes:
- Virtual COM Mode: Maps serial ports to virtual COM ports on host PCs, allowing transparent communication as if directly connected.
- TCP Server Mode: Waits for incoming TCP connections from clients; supports up to 5 simultaneous connections.
- TCP Client Mode: Initiates TCP connections to remote servers based on startup or data triggers.
- UDP Mode: Enables unicast or multicast data transmission for high-speed, low-latency communication.
- Serial Tunnel Mode: Creates a direct serial-to-serial link over Ethernet between two device servers.
Use Cases:
- Industrial automation and SCADA systems
- Building management and HVAC control
- Energy and utility monitoring
- Transportation and traffic control systems
- Remote serial device management in substations or factories
Compatibility:
- Operating Systems: Windows NT/2000/XP/2003/Vista (32-bit)
- Management Interfaces: Web browser (HTTPS), SSH console, DS-Tool utility
### 5. Components & Accessories
Included Items:
- IDS-5042-I+ main unit
- DIN-rail mounting kit (pre-installed)
- Wall-mount bracket and screws
- Quick installation guide
- Terminal block connector
Optional Accessories:
- External DC power adapter (12–48 VDC)
- Ethernet cables (Cat.5e or higher)
- Serial cables (RS-422/485)
Connectors:
- 2 × RJ-45 (Ethernet)
- 4 × 5-pin terminal blocks (serial ports)
- 6-pin terminal block (power and relay output)
- DC power jack
### 6. Installation & Setup
Mounting Options:
- DIN-Rail Installation:
1. Attach the metal spring clip to the DIN rail.
2. Push the device until it clicks into place.
- Wall Mounting:
1. Remove the DIN-rail kit.
2. Attach the wall-mount bracket using six screws.
3. Secure the device to the wall surface.
Power Connection:
- Connect redundant DC power sources (12–48 VDC) to PWR1 and PWR2 terminals.
- PoE power can be supplied via ETH2 port if available.
Network Configuration:
- Default IP: 192.168.10.2
- Supports Static IP, DHCP, or BOOTP modes.
- NAT pass-through and PPPoE supported for remote access.
Software Setup:
- Install DS-Tool utility on a Windows PC.
- Discover devices via broadcast, assign IP addresses, and configure serial parameters.
- Alternatively, configure via HTTPS web interface or SSH console.
Relay Output:
- 1A @ 24VDC relay output for fault indication or event signaling.
### 7. Performance & Capabilities
- Redundancy: Dual Ethernet ports with <10 ms failover time ensure uninterrupted communication.
- Data Throughput: Optimized modes for throughput or latency; supports baud rates up to 460.8 kbps.
- Multi-Host Connectivity: Up to 5 simultaneous connections per serial port across Virtual COM, TCP, or UDP modes.
- Security: SSL encryption for data transmission; HTTPS and SSH for management; IP access control lists.
- Event Management: Configurable notifications for power failure, Ethernet link loss, login failure, or serial signal changes (DCD, DSR, RI, CTS).
- Reliability: 2 kV isolation on serial ports, 1 kV isolation on PoE port, and 15 kV ESD protection ensure robust operation in harsh environments.
- Power Efficiency: 7 W maximum consumption; supports PoE PD for simplified cabling.
- Recovery: Automatic link recovery and redundant power switching minimize downtime.
Limitations:
- No RS-232 interface (available only on IDS-5042/5042+ models).
- Operating temperature limited to -10°C to 60°C (not suitable for extreme cold environments).
### 8. Standards & Compliance
Electrical & Environmental Standards:
- Shock: IEC 60068-2-27
- Free Fall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
EMI/EMS Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge)
- EN61000-4-6 (Conducted Susceptibility)
Network Standards:
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3af Power over Ethernet (PD)
Safety & Isolation:
- 2 kV DC isolation on serial ports
- 1 kV isolation on PoE PD port
- Reverse polarity protection on power input
### 9. Additional Information
Warranty: 5 years limited warranty from ORing Industrial Networking Corp.
Support & Maintenance:
- Technical support via email and online resources.
- Firmware updates available through DS-Tool or web interface.
- Configuration backup and restore functions supported.
- Factory reset via hardware button (press 5 seconds).
Maintenance Recommendations:
- Ensure proper grounding and shielding for serial connections.
- Regularly check firmware updates for security and performance improvements.
- Use redundant power sources for maximum uptime.
Software Tools:
- DS-Tool Utility:
- Device discovery and configuration
- Group management and firmware updates
- Serial port monitoring and logging
- Access control and IP filtering
- Web Interface (HTTPS):
- Full configuration and monitoring
- Event and system log management
- SSH Console:
- Secure command-line configuration
Event Notification Options:
- Email alerts (SMTP configuration)
- SNMP traps (up to 4 destinations)
- Syslog server integration
- Audible beeper and relay output
Firmware Management:
- Upgrade via DS-Tool or web interface
- Backup and restore configuration files
- Reboot and factory reset options
### Summary
The ORing IDS-5042-I+ is a high-performance, industrial-grade device server engineered for reliable serial-to-Ethernet communication in mission-critical environments. With four isolated RS-422/485 ports, dual redundant Ethernet interfaces, and PoE PD capability, it ensures continuous operation even under network or power failures. Its robust metal housing, wide voltage range, and comprehensive software suite make it ideal for automation, transportation, and energy applications requiring secure, redundant, and manageable serial connectivity.
The IDS-5042-I+ combines advanced redundancy, flexible configuration, and industrial durability, making it a cornerstone solution for modernizing legacy serial systems into resilient Ethernet-based infrastructures.
-
Datasheet_IDS-5042-I+_v1.5_HQ.pdf
PDF Catalog
-
IDS-5042_I_.pdf
PDF Catalog
No accessories available.
