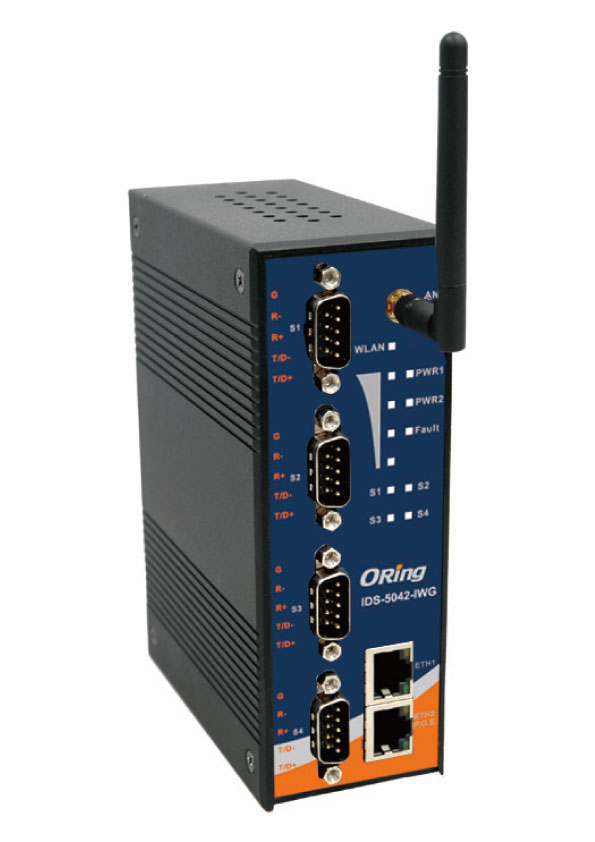

Comprehensive Product Summary: ORing IDS‑5042‑WG Industrial Wireless Device Server
### 1. Product Overview
Product Name: IDS‑5042‑WG
Model: IDS‑5042‑WG
Series: IDS‑5042‑WG / IDS‑5042‑IWG Industrial Device Server Series
Article Number: IDS‑5042‑WG
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
The ORing IDS‑5042‑WG is an industrial‑grade wireless device server designed to connect up to four serial devices (RS‑232/422/485) to Ethernet and WLAN networks. It integrates dual 10/100Base‑T(X) Ethernet ports and an IEEE 802.11b/g wireless interface, providing flexible connectivity, redundancy, and secure remote management for industrial automation and control systems.
### 2. Key Features
- Multi‑Interface Serial Connectivity: Four configurable RS‑232/422/485 ports supporting 2‑wire or 4‑wire RS‑485 operation.
- Wireless LAN Integration: IEEE 802.11b/g WLAN client mode with data rates up to 54 Mbps.
- Dual Redundant Ethernet Ports: Two 10/100Base‑T(X) ports supporting redundant or switch (daisy‑chain) mode with recovery time < 10 ms.
- High Security: Supports WEP (64/128‑bit), WPA, WPA2, TKIP, AES, and 802.1X/RADIUS authentication. HTTPS and SSH secure management interfaces.
- Multiple Operation Modes: Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes for flexible integration.
- Multi‑Host Redundancy: Supports up to five simultaneous host connections in Virtual COM, TCP Server, TCP Client, or UDP mode.
- Event Notification: Syslog, SNMP trap, email, relay output, and beeper alerts for fault and status events.
- NAT Pass‑Through: Enables management through NAT routers for remote access across IP domains.
- Redundant Power Inputs: Dual 12–48 V DC inputs on terminal block with reverse polarity protection.
- Industrial Design: IP30 metal housing, DIN‑rail and wall‑mount options, operating temperature −10 °C to 55 °C.
- Software Utility: DS‑Tool for Windows (NT/2000/XP/2003/Vista) for configuration, monitoring, and firmware updates.
- Fast Recovery and Reliability: Hardware and software redundancy ensure continuous operation with < 10 ms failover.
### 3. Technical Specifications
Network Interface
- 2 × 10/100Base‑T(X) Ethernet ports (RJ‑45)
- Auto‑negotiation, auto‑MDI/MDI‑X
- Built‑in 1.5 kV magnetic isolation
- Supported protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH
Wireless LAN (WLAN)
- Standard: IEEE 802.11b/g, DSSS/OFDM
- Operating Mode: Client mode
- Frequency Bands:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
- Data Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11g: 6/9/12/18/24/36/48/54 Mbps
- Transmit Power: 18 dBm
- Receiver Sensitivity: −81 dBm @ 11 Mbps (PER < 8%), −64 dBm @ 54 Mbps (PER < 10%)
- Antenna Connector: Reverse SMA
- Security: WEP (64/128‑bit), WPA/WPA2 with TKIP/AES, 802.1X and RADIUS authentication, SSID broadcast disable
Serial Interface
- 4 × RS‑232/422/485 ports (DB9 male) configurable via DS‑Tool
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS‑422 Signals: Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (4‑wire): Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (2‑wire): Data+, Data−, GND
- Protection: 15 kV ESD protection; 2 kV DC isolation (for IDS‑5042‑IWG variant)
Power Requirements
- Input: 12–48 V DC dual redundant inputs via 6‑pin terminal block
- Reverse Polarity Protection: Yes
- Power Consumption: 6.5 W typical, 7 W max
Environmental
- Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: −20 °C to 85 °C (−4 °F to 185 °F)
- Humidity: 5 % – 95 % (non‑condensing)
Mechanical
- Dimensions (W × D × H): 52 × 106 × 144 mm
- Weight: 691 g
- Enclosure: IP30 metal case
- Mounting: DIN‑rail and wall‑mount kits included
### 4. Functionality
The IDS‑5042‑WG acts as a bridge between serial devices and Ethernet/WLAN networks. Each serial port can be configured independently for RS‑232, RS‑422, or RS‑485 communication. Data from serial devices is encapsulated into TCP/IP or UDP packets and transmitted over wired or wireless networks.
Operating Modes:
- Virtual COM: Maps serial ports to virtual COM ports on Windows hosts, supporting up to 5 simultaneous connections.
- TCP Server: Listens for incoming TCP connections; supports up to 5 clients simultaneously.
- TCP Client: Initiates TCP connections to remote servers on startup or on data trigger.
- UDP: Supports unicast and multicast data transmission for low‑latency applications.
- Serial Tunnel: Creates transparent serial‑to‑serial links over IP networks.
Use Cases & Applications:
- Industrial automation and control systems
- SCADA and remote monitoring
- Building management systems
- Transportation and traffic control
- Energy and utility monitoring
- Legacy serial device integration into Ethernet/WLAN networks
Compatibility:
- Windows NT/2000/XP/2003/Vista (32‑bit) for DS‑Tool and Virtual COM driver
- Linux systems supported via fixed TTY driver
### 5. Components & Accessories
Included Items:
- IDS‑5042‑WG device server unit
- DIN‑rail mount kit (pre‑installed)
- Wall‑mount panel and screws (6 pcs)
- Quick installation guide and user manual
- DS‑Tool software utility (CD or download)
Connectors:
- 4 × DB9 male serial ports
- 2 × RJ‑45 Ethernet ports
- 1 × Reverse SMA antenna connector
- 6‑pin terminal block for PWR1, PWR2, and relay output (1 A @ 24 V DC)
- Reset button (factory default restore after 5 s press)
Optional Accessories:
- External WLAN antenna (Reverse SMA)
- Power supply (12–48 V DC)
- Serial cables (DB9 to terminal block adapters)
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the rear metal spring clip to a standard DIN rail and press until it clicks into place.
- Wall Mounting: Remove the DIN‑rail kit, attach the wall mount panel using six screws, and secure to a flat surface.
Power Connection:
Connect redundant power inputs (PWR1 and PWR2) to 12–48 V DC sources via the terminal block. Relay output can be used for fault alarms.
Network Configuration:
- Default IP address: 192.168.10.2
- Configuration via DS‑Tool (Windows utility), Web browser (HTTPS), or SSH console.
- Supports Static IP and DHCP/BOOTP modes.
- Wireless setup via SSID, channel, and encryption parameters.
Serial Port Configuration:
- Interface selection (RS‑232/422/485) via DS‑Tool.
- Adjustable baud rate, data bits, parity, stop bits, and flow control.
- Data buffer and delimiter settings for optimized throughput or latency.
Software Utility (DS‑Tool):
- Device discovery and group management
- IP configuration and firmware updates
- Serial port monitoring and logging
- Event notification setup (SNMP, email, syslog)
### 7. Performance & Capabilities
- Ethernet Redundancy: Automatic failover between LAN ports within 10 ms.
- Wireless Throughput: Up to 54 Mbps (802.11g).
- Serial Performance: Up to 460.8 kbps per port.
- Multi‑Host Support: Up to 5 simultaneous connections per serial port.
- Power Efficiency: Typical consumption 6.5 W, max 7 W.
- Reliability: Hardware redundancy for Ethernet and power inputs ensures continuous operation.
- Event Response: Real‑time alerts via relay output, beeper, SNMP trap, email, and syslog.
- Limitations: LAN and WLAN interfaces cannot be active simultaneously (to reduce power consumption).
### 8. Standards & Compliance
EMC and Safety Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS)
- Environmental Tests: IEC 60068‑2‑27 (Shock), IEC 60068‑2‑32 (Free Fall), IEC 60068‑2‑6 (Vibration)
Wireless Standards:
- IEEE 802.11b/g compliant
- WPA/WPA2 security per IEEE 802.11i
Industrial Certifications:
- IP30 protection rating
- CE and FCC compliance
### 9. Additional Information
Warranty: 5 years limited manufacturer warranty.
Support: Technical support via email and online resources from ORing Industrial Networking Corp.
Maintenance:
- Firmware updates available through DS‑Tool or Web interface.
- Configuration backup and restore functions supported.
- Reset button for factory defaults (press 5 seconds).
Firmware Upgrade:
- Performed via Web interface or DS‑Tool.
- Supports group firmware update for multiple devices.
Monitoring & Diagnostics:
- LED indicators for power, fault, Ethernet link/activity, serial TX/RX, WLAN link, and signal strength.
- Syslog and SNMP trap logging for event tracking.
Event Notifications Include:
- Power failure (PWR1/PWR2)
- Ethernet link down (Eth1/Eth2)
- Serial signal changes (DCD, DSR, RI, CTS)
- Port connection/disconnection
- Unauthorized login attempts
- IP or password changes
Software Updates & Drivers:
- DS‑Tool and Virtual COM drivers for Windows available from ORing website.
- Linux support via fixed TTY driver.
### Summary
The ORing IDS‑5042‑WG is a robust, feature‑rich industrial wireless device server engineered for mission‑critical serial‑to‑Ethernet/WLAN communication. Its dual Ethernet redundancy, secure wireless connectivity, and multi‑host support make it ideal for industrial automation, transportation, and remote monitoring applications. With comprehensive management tools, advanced security protocols, and industrial‑grade design, the IDS‑5042‑WG ensures reliable and secure data communication in demanding environments.
### 1. Product Overview
Product Name: IDS‑5042‑WG
Model: IDS‑5042‑WG
Series: IDS‑5042‑WG / IDS‑5042‑IWG Industrial Device Server Series
Article Number: IDS‑5042‑WG
Manufacturer: ORing Industrial Networking Corp.
Manufacturer Address: 4F., No.3, Lane 235, Baociao Rd., Sindian City, Taipei County 23145, Taiwan, R.O.C.
Website: [www.oring-networking.com](http://www.oring-networking.com)
Support Email: support@oring-networking.com
The ORing IDS‑5042‑WG is an industrial‑grade wireless device server designed to connect up to four serial devices (RS‑232/422/485) to Ethernet and WLAN networks. It integrates dual 10/100Base‑T(X) Ethernet ports and an IEEE 802.11b/g wireless interface, providing flexible connectivity, redundancy, and secure remote management for industrial automation and control systems.
### 2. Key Features
- Multi‑Interface Serial Connectivity: Four configurable RS‑232/422/485 ports supporting 2‑wire or 4‑wire RS‑485 operation.
- Wireless LAN Integration: IEEE 802.11b/g WLAN client mode with data rates up to 54 Mbps.
- Dual Redundant Ethernet Ports: Two 10/100Base‑T(X) ports supporting redundant or switch (daisy‑chain) mode with recovery time < 10 ms.
- High Security: Supports WEP (64/128‑bit), WPA, WPA2, TKIP, AES, and 802.1X/RADIUS authentication. HTTPS and SSH secure management interfaces.
- Multiple Operation Modes: Virtual COM, Serial Tunnel, TCP Server, TCP Client, and UDP modes for flexible integration.
- Multi‑Host Redundancy: Supports up to five simultaneous host connections in Virtual COM, TCP Server, TCP Client, or UDP mode.
- Event Notification: Syslog, SNMP trap, email, relay output, and beeper alerts for fault and status events.
- NAT Pass‑Through: Enables management through NAT routers for remote access across IP domains.
- Redundant Power Inputs: Dual 12–48 V DC inputs on terminal block with reverse polarity protection.
- Industrial Design: IP30 metal housing, DIN‑rail and wall‑mount options, operating temperature −10 °C to 55 °C.
- Software Utility: DS‑Tool for Windows (NT/2000/XP/2003/Vista) for configuration, monitoring, and firmware updates.
- Fast Recovery and Reliability: Hardware and software redundancy ensure continuous operation with < 10 ms failover.
### 3. Technical Specifications
Network Interface
- 2 × 10/100Base‑T(X) Ethernet ports (RJ‑45)
- Auto‑negotiation, auto‑MDI/MDI‑X
- Built‑in 1.5 kV magnetic isolation
- Supported protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SSH
Wireless LAN (WLAN)
- Standard: IEEE 802.11b/g, DSSS/OFDM
- Operating Mode: Client mode
- Frequency Bands:
- FCC (US): 2.412–2.462 GHz (11 channels)
- CE/ETSI (EU): 2.412–2.472 GHz (13 channels)
- Data Rates:
- 802.11b: 1/2/5.5/11 Mbps
- 802.11g: 6/9/12/18/24/36/48/54 Mbps
- Transmit Power: 18 dBm
- Receiver Sensitivity: −81 dBm @ 11 Mbps (PER < 8%), −64 dBm @ 54 Mbps (PER < 10%)
- Antenna Connector: Reverse SMA
- Security: WEP (64/128‑bit), WPA/WPA2 with TKIP/AES, 802.1X and RADIUS authentication, SSID broadcast disable
Serial Interface
- 4 × RS‑232/422/485 ports (DB9 male) configurable via DS‑Tool
- Baud Rate: 110 bps – 460.8 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: XON/XOFF, RTS/CTS, DTR/DSR
- RS‑232 Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- RS‑422 Signals: Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (4‑wire): Tx+, Tx−, Rx+, Rx−, GND
- RS‑485 (2‑wire): Data+, Data−, GND
- Protection: 15 kV ESD protection; 2 kV DC isolation (for IDS‑5042‑IWG variant)
Power Requirements
- Input: 12–48 V DC dual redundant inputs via 6‑pin terminal block
- Reverse Polarity Protection: Yes
- Power Consumption: 6.5 W typical, 7 W max
Environmental
- Operating Temperature: −10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: −20 °C to 85 °C (−4 °F to 185 °F)
- Humidity: 5 % – 95 % (non‑condensing)
Mechanical
- Dimensions (W × D × H): 52 × 106 × 144 mm
- Weight: 691 g
- Enclosure: IP30 metal case
- Mounting: DIN‑rail and wall‑mount kits included
### 4. Functionality
The IDS‑5042‑WG acts as a bridge between serial devices and Ethernet/WLAN networks. Each serial port can be configured independently for RS‑232, RS‑422, or RS‑485 communication. Data from serial devices is encapsulated into TCP/IP or UDP packets and transmitted over wired or wireless networks.
Operating Modes:
- Virtual COM: Maps serial ports to virtual COM ports on Windows hosts, supporting up to 5 simultaneous connections.
- TCP Server: Listens for incoming TCP connections; supports up to 5 clients simultaneously.
- TCP Client: Initiates TCP connections to remote servers on startup or on data trigger.
- UDP: Supports unicast and multicast data transmission for low‑latency applications.
- Serial Tunnel: Creates transparent serial‑to‑serial links over IP networks.
Use Cases & Applications:
- Industrial automation and control systems
- SCADA and remote monitoring
- Building management systems
- Transportation and traffic control
- Energy and utility monitoring
- Legacy serial device integration into Ethernet/WLAN networks
Compatibility:
- Windows NT/2000/XP/2003/Vista (32‑bit) for DS‑Tool and Virtual COM driver
- Linux systems supported via fixed TTY driver
### 5. Components & Accessories
Included Items:
- IDS‑5042‑WG device server unit
- DIN‑rail mount kit (pre‑installed)
- Wall‑mount panel and screws (6 pcs)
- Quick installation guide and user manual
- DS‑Tool software utility (CD or download)
Connectors:
- 4 × DB9 male serial ports
- 2 × RJ‑45 Ethernet ports
- 1 × Reverse SMA antenna connector
- 6‑pin terminal block for PWR1, PWR2, and relay output (1 A @ 24 V DC)
- Reset button (factory default restore after 5 s press)
Optional Accessories:
- External WLAN antenna (Reverse SMA)
- Power supply (12–48 V DC)
- Serial cables (DB9 to terminal block adapters)
### 6. Installation & Setup
Mounting Options:
- DIN‑Rail Installation: Attach the rear metal spring clip to a standard DIN rail and press until it clicks into place.
- Wall Mounting: Remove the DIN‑rail kit, attach the wall mount panel using six screws, and secure to a flat surface.
Power Connection:
Connect redundant power inputs (PWR1 and PWR2) to 12–48 V DC sources via the terminal block. Relay output can be used for fault alarms.
Network Configuration:
- Default IP address: 192.168.10.2
- Configuration via DS‑Tool (Windows utility), Web browser (HTTPS), or SSH console.
- Supports Static IP and DHCP/BOOTP modes.
- Wireless setup via SSID, channel, and encryption parameters.
Serial Port Configuration:
- Interface selection (RS‑232/422/485) via DS‑Tool.
- Adjustable baud rate, data bits, parity, stop bits, and flow control.
- Data buffer and delimiter settings for optimized throughput or latency.
Software Utility (DS‑Tool):
- Device discovery and group management
- IP configuration and firmware updates
- Serial port monitoring and logging
- Event notification setup (SNMP, email, syslog)
### 7. Performance & Capabilities
- Ethernet Redundancy: Automatic failover between LAN ports within 10 ms.
- Wireless Throughput: Up to 54 Mbps (802.11g).
- Serial Performance: Up to 460.8 kbps per port.
- Multi‑Host Support: Up to 5 simultaneous connections per serial port.
- Power Efficiency: Typical consumption 6.5 W, max 7 W.
- Reliability: Hardware redundancy for Ethernet and power inputs ensures continuous operation.
- Event Response: Real‑time alerts via relay output, beeper, SNMP trap, email, and syslog.
- Limitations: LAN and WLAN interfaces cannot be active simultaneously (to reduce power consumption).
### 8. Standards & Compliance
EMC and Safety Compliance:
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS: EN61000‑4‑2 (ESD), EN61000‑4‑3 (RS), EN61000‑4‑4 (EFT), EN61000‑4‑5 (Surge), EN61000‑4‑6 (CS)
- Environmental Tests: IEC 60068‑2‑27 (Shock), IEC 60068‑2‑32 (Free Fall), IEC 60068‑2‑6 (Vibration)
Wireless Standards:
- IEEE 802.11b/g compliant
- WPA/WPA2 security per IEEE 802.11i
Industrial Certifications:
- IP30 protection rating
- CE and FCC compliance
### 9. Additional Information
Warranty: 5 years limited manufacturer warranty.
Support: Technical support via email and online resources from ORing Industrial Networking Corp.
Maintenance:
- Firmware updates available through DS‑Tool or Web interface.
- Configuration backup and restore functions supported.
- Reset button for factory defaults (press 5 seconds).
Firmware Upgrade:
- Performed via Web interface or DS‑Tool.
- Supports group firmware update for multiple devices.
Monitoring & Diagnostics:
- LED indicators for power, fault, Ethernet link/activity, serial TX/RX, WLAN link, and signal strength.
- Syslog and SNMP trap logging for event tracking.
Event Notifications Include:
- Power failure (PWR1/PWR2)
- Ethernet link down (Eth1/Eth2)
- Serial signal changes (DCD, DSR, RI, CTS)
- Port connection/disconnection
- Unauthorized login attempts
- IP or password changes
Software Updates & Drivers:
- DS‑Tool and Virtual COM drivers for Windows available from ORing website.
- Linux support via fixed TTY driver.
### Summary
The ORing IDS‑5042‑WG is a robust, feature‑rich industrial wireless device server engineered for mission‑critical serial‑to‑Ethernet/WLAN communication. Its dual Ethernet redundancy, secure wireless connectivity, and multi‑host support make it ideal for industrial automation, transportation, and remote monitoring applications. With comprehensive management tools, advanced security protocols, and industrial‑grade design, the IDS‑5042‑WG ensures reliable and secure data communication in demanding environments.
-
Datasheet_IDS-5042-WG_IDS-5042-IWG_v1.5_HQ.pdf
PDF Catalog
-
IDS-5042-WG.pdf
PDF Catalog
No accessories available.
