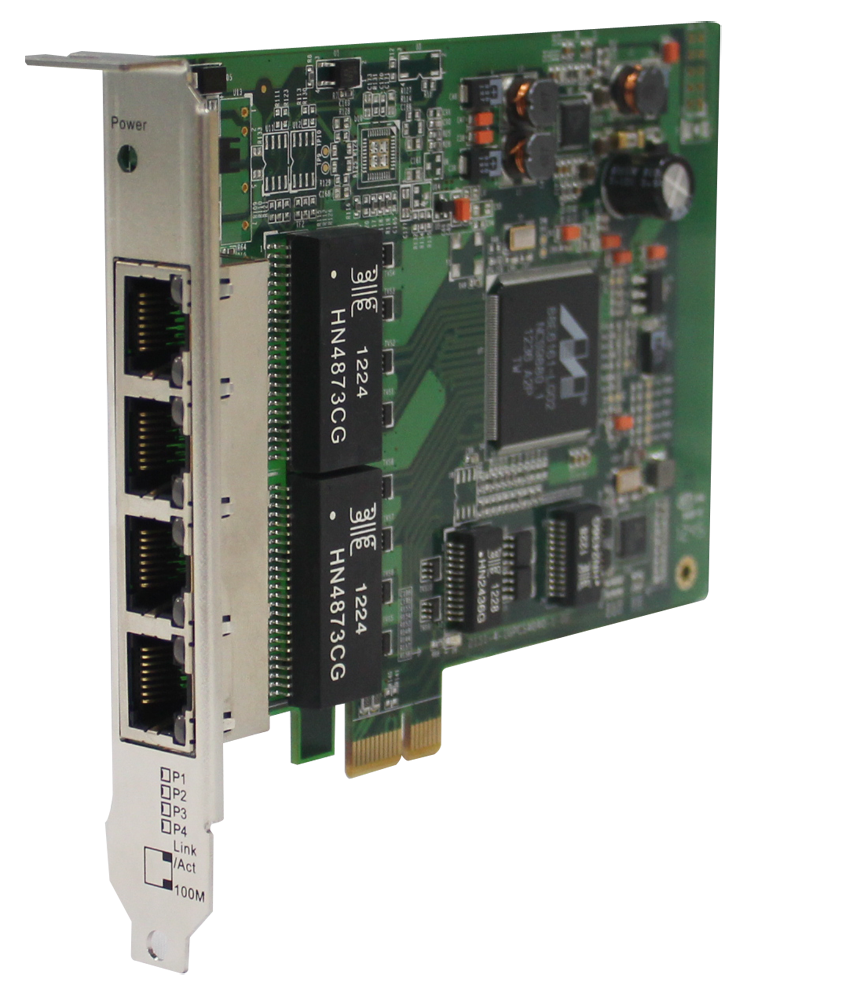

IGCS-E140
PCIe Industrial Lite-Unmanaged 4*1000/100TX Switch Card
180,00 EUR
including VAT 214.20 EUR
- Four Gigabit Ethernet Ports:
Equipped with 4×10/100/1000Base-T(X) RJ45 ports supporting auto MDI/MDI-X and auto-negotiation for flexible network integration.
- PCI Express Interface:
Supports PCIe x1 bus interface and is fully compatible with x4, x8, and x16 PCIe slots, ensuring broad motherboard compatibility.
- High-Speed Data Throughput:
Provides full-duplex 1000 Mbps bandwidth through the PCIe bus architecture, enabling high-performance LAN communication.
- Unmanaged Operation:
Plug-and-play functionality with no configuration required, ideal for systems requiring simple, reliable Ethernet expansion.
- Fast Redundant Ethernet Ring:
Supports redundant Ethernet ring topology with recovery time <10 ms over 250 units, ensuring network reliability and minimal downtime.
- Robust Industrial Design:
Designed for harsh environments with ESD protection (4 kV DC) on Ethernet ports and surge protection (2000 V DC) on power input.
- Wide Power Input Range:
Dual redundant power input 9–30 VDC, ensuring stable operation and protection against power failure.
- Low Power Consumption:
Typical power consumption of approximately 3.5–4 W, optimizing energy efficiency in embedded systems.
- Extended Operating Temperature:
Operates reliably in temperatures from –10°C to +60°C (14°F to 140°F), suitable for industrial and field applications.
- Compact Form Factor:
Small footprint (124 × 100 mm board size; 21.3 × 136 × 121 mm physical dimensions) for easy integration into IPC chassis.
- Comprehensive OS Compatibility:
Supports a wide range of operating systems including Windows, Linux, FreeBSD, SCO, UnixWare, Novell, and MacOS.
- Durability and Reliability:
Complies with industrial vibration, shock, and free-fall standards (IEC60068-2-6, IEC60068-2-27, IEC60068-2-32).
- Long-Term Warranty:
Backed by a 5-year manufacturer warranty from ORing Industrial Networking Corp.
Equipped with 4×10/100/1000Base-T(X) RJ45 ports supporting auto MDI/MDI-X and auto-negotiation for flexible network integration.
- PCI Express Interface:
Supports PCIe x1 bus interface and is fully compatible with x4, x8, and x16 PCIe slots, ensuring broad motherboard compatibility.
- High-Speed Data Throughput:
Provides full-duplex 1000 Mbps bandwidth through the PCIe bus architecture, enabling high-performance LAN communication.
- Unmanaged Operation:
Plug-and-play functionality with no configuration required, ideal for systems requiring simple, reliable Ethernet expansion.
- Fast Redundant Ethernet Ring:
Supports redundant Ethernet ring topology with recovery time <10 ms over 250 units, ensuring network reliability and minimal downtime.
- Robust Industrial Design:
Designed for harsh environments with ESD protection (4 kV DC) on Ethernet ports and surge protection (2000 V DC) on power input.
- Wide Power Input Range:
Dual redundant power input 9–30 VDC, ensuring stable operation and protection against power failure.
- Low Power Consumption:
Typical power consumption of approximately 3.5–4 W, optimizing energy efficiency in embedded systems.
- Extended Operating Temperature:
Operates reliably in temperatures from –10°C to +60°C (14°F to 140°F), suitable for industrial and field applications.
- Compact Form Factor:
Small footprint (124 × 100 mm board size; 21.3 × 136 × 121 mm physical dimensions) for easy integration into IPC chassis.
- Comprehensive OS Compatibility:
Supports a wide range of operating systems including Windows, Linux, FreeBSD, SCO, UnixWare, Novell, and MacOS.
- Durability and Reliability:
Complies with industrial vibration, shock, and free-fall standards (IEC60068-2-6, IEC60068-2-27, IEC60068-2-32).
- Long-Term Warranty:
Backed by a 5-year manufacturer warranty from ORing Industrial Networking Corp.
Comprehensive Product Summary – ORing IGCS-E140 PCIe Industrial Lite-Unmanaged 4×1000/100TX Switch Card
*(Version 1.0 – Based on official ORing Industrial Networking Corp. documentation)*
### 1. Product Overview
Product Name: IGCS-E140
Model Number: IGCS-E140
Series: Industrial Lite-Unmanaged PCIe Switch Card Series
Article Number: IGCS-E140
Manufacturer: ORing Industrial Networking Corp.
Product Type: PCI Express (PCIe) Industrial Unmanaged Gigabit Ethernet Switch Card
Product Description: PCIe Industrial Lite-Unmanaged 4×1000/100TX Switch Card
The ORing IGCS-E140 is a compact, high-performance unmanaged Gigabit Ethernet switch card designed for industrial and embedded computing environments. It integrates directly into an IPC (Industrial PC) or embedded system via a PCI Express interface, providing four independent 10/100/1000Base-T(X) Ethernet ports. The card enables high-speed LAN connectivity, redundancy, and robust data communication for industrial automation, surveillance, and embedded networking applications.
### 2. Key Features
- Four Gigabit Ethernet Ports:
Equipped with 4×10/100/1000Base-T(X) RJ45 ports supporting auto MDI/MDI-X and auto-negotiation for flexible network integration.
- PCI Express Interface:
Supports PCIe x1 bus interface and is fully compatible with x4, x8, and x16 PCIe slots, ensuring broad motherboard compatibility.
- High-Speed Data Throughput:
Provides full-duplex 1000 Mbps bandwidth through the PCIe bus architecture, enabling high-performance LAN communication.
- Unmanaged Operation:
Plug-and-play functionality with no configuration required, ideal for systems requiring simple, reliable Ethernet expansion.
- Fast Redundant Ethernet Ring:
Supports redundant Ethernet ring topology with recovery time <10 ms over 250 units, ensuring network reliability and minimal downtime.
- Robust Industrial Design:
Designed for harsh environments with ESD protection (4 kV DC) on Ethernet ports and surge protection (2000 V DC) on power input.
- Wide Power Input Range:
Dual redundant power input 9–30 VDC, ensuring stable operation and protection against power failure.
- Low Power Consumption:
Typical power consumption of approximately 3.5–4 W, optimizing energy efficiency in embedded systems.
- Extended Operating Temperature:
Operates reliably in temperatures from –10°C to +60°C (14°F to 140°F), suitable for industrial and field applications.
- Compact Form Factor:
Small footprint (124 × 100 mm board size; 21.3 × 136 × 121 mm physical dimensions) for easy integration into IPC chassis.
- Comprehensive OS Compatibility:
Supports a wide range of operating systems including Windows, Linux, FreeBSD, SCO, UnixWare, Novell, and MacOS.
- Durability and Reliability:
Complies with industrial vibration, shock, and free-fall standards (IEC60068-2-6, IEC60068-2-27, IEC60068-2-32).
- Long-Term Warranty:
Backed by a 5-year manufacturer warranty from ORing Industrial Networking Corp.
### 3. Technical Specifications
Physical Ports:
- 4 × 10/100/1000Base-T(X) RJ45 ports (auto MDI/MDI-X)
Technology:
- Switching Method: Store-and-Forward
- MAC Address Table: 1K entries
- Jumbo Frame Support: Up to 10K bytes
- Flow Control: IEEE 802.3x compliant
Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3x (Flow Control)
Performance:
- Switching Capacity: 8 Gbps (theoretical full duplex)
- Packet Forwarding Rate: Wire-speed for all ports
- Latency: <10 µs typical (store-and-forward)
Power:
- Input Power: PCIe bus powered or external 9–30 VDC dual redundant input
- Power Consumption: Typical 3.5–4 W
- Overload Current Protection: Present
- Surge Protection: 2000 VDC
Physical Characteristics:
- Dimensions (W × D × H): 21.3 × 136 × 121 mm
- Weight: 98 g
- PCB Size: 124 × 100 mm
Environmental:
- Operating Temperature: –10°C to +60°C (14°F to 140°F)
- Storage Temperature: –40°C to +85°C (–40°F to 185°F)
- Operating Humidity: 5%–95% (non-condensing)
Protection:
- ESD Protection: 4 kV DC (Ethernet ports)
- Surge Protection: 2000 V DC (power input)
Reliability:
- Vibration: IEC60068-2-6
- Shock: IEC60068-2-27
- Free Fall: IEC60068-2-32
### 4. Functionality
The IGCS-E140 functions as an unmanaged Ethernet switch card that integrates directly into an industrial PC via a PCI Express slot. Once installed, it provides four independent Gigabit Ethernet interfaces that can connect to various network devices such as IP cameras, PLCs, sensors, or other Ethernet-enabled equipment.
Operation Principle:
- The card uses a store-and-forward switching mechanism to ensure error-free packet transmission.
- Each port supports auto-negotiation for speed and duplex mode, automatically adjusting to connected devices.
- Auto MDI/MDI-X eliminates the need for crossover cables.
- The PCIe interface ensures high-speed data transfer between the host system and the network.
Use Cases & Applications:
- Industrial automation and control systems
- Embedded computing platforms
- Machine vision and IP surveillance systems
- Transportation and traffic control networks
- Energy and utility monitoring systems
- Factory floor networking and data acquisition
Compatibility:
- Compatible with standard PCIe x1, x4, x8, and x16 slots.
- Works seamlessly with existing switches, routers, and hubs.
- Supports multiple operating systems for flexible deployment.
### 5. Components & Accessories
Included Items (Standard Package):
1. IGCS-E140 PCIe Switch Card
2. Quick Installation Guide (QIG)
3. 2 × RJ45 Dust Covers
4. Driver/Utility CD
Optional Accessories (Available Separately):
- PCIe slot brackets (low-profile or full-height, depending on chassis)
- Industrial-grade Ethernet cables
- Power adapter for external 9–30 VDC input (if required)
Front Panel Indicators:
- Power LED (Green): Indicates power status.
- Link/Activity LED (Green): Indicates active network connection and data transmission.
- 100 Mbps Indicator (Amber): Illuminates when the port operates at 100 Mbps.
### 6. Installation & Setup
Installation Requirements:
- Available PCIe slot (x1, x4, x8, or x16) on the host IPC or embedded motherboard.
- Operating system with compatible driver support (drivers provided on CD).
- Optional external 9–30 VDC power source for redundant power input.
Installation Steps:
1. Power off the host system and disconnect from power.
2. Insert the IGCS-E140 card into an available PCIe slot.
3. Secure the card using the chassis screw or bracket.
4. Connect Ethernet cables to the RJ45 ports.
5. Optionally connect external DC power for redundancy.
6. Power on the system; the card will be automatically recognized by the OS.
7. Verify LED indicators for link and activity status.
Configuration:
- As an unmanaged switch, no software configuration is required.
- The card automatically handles MAC address learning and packet forwarding.
Mounting Options:
- Standard PCIe slot mounting within IPC chassis.
- Compatible with both full-height and low-profile brackets (depending on system design).
### 7. Performance & Capabilities
Network Performance:
- Full-duplex Gigabit Ethernet on all four ports.
- Supports jumbo frames up to 10K bytes for high-efficiency data transfer.
- Store-and-forward switching ensures reliable packet delivery.
- Flow control prevents packet loss under heavy traffic conditions.
Redundancy & Reliability:
- Fast redundant Ethernet ring with recovery time <10 ms across up to 250 units.
- Dual power input design ensures continuous operation during power source failure.
Efficiency:
- Low power consumption (~3.5–4 W typical).
- Efficient thermal design for stable operation in extended temperature ranges.
Limitations:
- Unmanaged design means no VLAN, QoS, or SNMP management features.
- Limited to 1K MAC address table, suitable for small to medium-sized networks.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3x (Flow Control)
Environmental & Mechanical Standards:
- Vibration: IEC60068-2-6
- Shock: IEC60068-2-27
- Free Fall: IEC60068-2-32
Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge)
- EN61000-4-6 (Conducted Susceptibility)
- EN61000-4-8 (Magnetic Field)
- EN61000-4-11 (Voltage Dips/Interruptions)
Safety & Reliability:
- Designed for industrial-grade operation and compliance with international standards.
### 9. Additional Information
Operating System Support:
- Microsoft: DOS, Windows 98, Me, 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8
- Unix/Linux: Linux Kernel 2.4.x / 2.6.x / 3.x, FreeBSD 7.x / 8.0, SCO OpenServer 6, UnixWare 7.1.x
- Novell: Novell Client for DOS (ODI driver), Novell Server OS 5.x / 6.x
- MacOS: Versions 10.4, 10.5, 10.6, 10.7
Warranty:
- 5-Year Limited Warranty covering manufacturing defects and hardware reliability.
Maintenance & Support:
- Minimal maintenance required due to fanless, solid-state design.
- Technical support available via ORing Industrial Networking Corp.
- Firmware and driver updates available through the official website.
Manufacturer Contact Information:
- Company: ORing Industrial Networking Corp.
- Telephone: +886-2-2218-1066
- Fax: +886-2-2218-1014
- Email: support@oring-networking.com
- Website: [www.oring-networking.com](http://www.oring-networking.com)
Product Documentation:
- Quick Installation Guide (QIG)
- Driver CD with installation utilities and manuals
- Printed on recycled paper (environmentally conscious packaging)
### Summary
The ORing IGCS-E140 is a robust, industrial-grade unmanaged Gigabit Ethernet switch card designed for integration into PCIe-based embedded and industrial computing systems. With four auto-sensing Gigabit Ethernet ports, redundant power input, and compliance with stringent industrial standards, it delivers reliable, high-speed networking in demanding environments. Its plug-and-play design, wide OS compatibility, and extended temperature tolerance make it an ideal solution for industrial automation, surveillance, and embedded networking applications requiring compact, efficient, and durable Ethernet connectivity.
Key Advantages:
- Compact PCIe form factor for embedded integration
- Four Gigabit ports with industrial-grade protection
- Fast redundancy and low latency
- Wide environmental tolerance and power flexibility
- Long-term reliability backed by a 5-year warranty
End of Product Summary – ORing IGCS-E140 PCIe Industrial Lite-Unmanaged 4×1000/100TX Switch Card
*(Version 1.0 – Based on official ORing Industrial Networking Corp. documentation)*
### 1. Product Overview
Product Name: IGCS-E140
Model Number: IGCS-E140
Series: Industrial Lite-Unmanaged PCIe Switch Card Series
Article Number: IGCS-E140
Manufacturer: ORing Industrial Networking Corp.
Product Type: PCI Express (PCIe) Industrial Unmanaged Gigabit Ethernet Switch Card
Product Description: PCIe Industrial Lite-Unmanaged 4×1000/100TX Switch Card
The ORing IGCS-E140 is a compact, high-performance unmanaged Gigabit Ethernet switch card designed for industrial and embedded computing environments. It integrates directly into an IPC (Industrial PC) or embedded system via a PCI Express interface, providing four independent 10/100/1000Base-T(X) Ethernet ports. The card enables high-speed LAN connectivity, redundancy, and robust data communication for industrial automation, surveillance, and embedded networking applications.
### 2. Key Features
- Four Gigabit Ethernet Ports:
Equipped with 4×10/100/1000Base-T(X) RJ45 ports supporting auto MDI/MDI-X and auto-negotiation for flexible network integration.
- PCI Express Interface:
Supports PCIe x1 bus interface and is fully compatible with x4, x8, and x16 PCIe slots, ensuring broad motherboard compatibility.
- High-Speed Data Throughput:
Provides full-duplex 1000 Mbps bandwidth through the PCIe bus architecture, enabling high-performance LAN communication.
- Unmanaged Operation:
Plug-and-play functionality with no configuration required, ideal for systems requiring simple, reliable Ethernet expansion.
- Fast Redundant Ethernet Ring:
Supports redundant Ethernet ring topology with recovery time <10 ms over 250 units, ensuring network reliability and minimal downtime.
- Robust Industrial Design:
Designed for harsh environments with ESD protection (4 kV DC) on Ethernet ports and surge protection (2000 V DC) on power input.
- Wide Power Input Range:
Dual redundant power input 9–30 VDC, ensuring stable operation and protection against power failure.
- Low Power Consumption:
Typical power consumption of approximately 3.5–4 W, optimizing energy efficiency in embedded systems.
- Extended Operating Temperature:
Operates reliably in temperatures from –10°C to +60°C (14°F to 140°F), suitable for industrial and field applications.
- Compact Form Factor:
Small footprint (124 × 100 mm board size; 21.3 × 136 × 121 mm physical dimensions) for easy integration into IPC chassis.
- Comprehensive OS Compatibility:
Supports a wide range of operating systems including Windows, Linux, FreeBSD, SCO, UnixWare, Novell, and MacOS.
- Durability and Reliability:
Complies with industrial vibration, shock, and free-fall standards (IEC60068-2-6, IEC60068-2-27, IEC60068-2-32).
- Long-Term Warranty:
Backed by a 5-year manufacturer warranty from ORing Industrial Networking Corp.
### 3. Technical Specifications
Physical Ports:
- 4 × 10/100/1000Base-T(X) RJ45 ports (auto MDI/MDI-X)
Technology:
- Switching Method: Store-and-Forward
- MAC Address Table: 1K entries
- Jumbo Frame Support: Up to 10K bytes
- Flow Control: IEEE 802.3x compliant
Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3x (Flow Control)
Performance:
- Switching Capacity: 8 Gbps (theoretical full duplex)
- Packet Forwarding Rate: Wire-speed for all ports
- Latency: <10 µs typical (store-and-forward)
Power:
- Input Power: PCIe bus powered or external 9–30 VDC dual redundant input
- Power Consumption: Typical 3.5–4 W
- Overload Current Protection: Present
- Surge Protection: 2000 VDC
Physical Characteristics:
- Dimensions (W × D × H): 21.3 × 136 × 121 mm
- Weight: 98 g
- PCB Size: 124 × 100 mm
Environmental:
- Operating Temperature: –10°C to +60°C (14°F to 140°F)
- Storage Temperature: –40°C to +85°C (–40°F to 185°F)
- Operating Humidity: 5%–95% (non-condensing)
Protection:
- ESD Protection: 4 kV DC (Ethernet ports)
- Surge Protection: 2000 V DC (power input)
Reliability:
- Vibration: IEC60068-2-6
- Shock: IEC60068-2-27
- Free Fall: IEC60068-2-32
### 4. Functionality
The IGCS-E140 functions as an unmanaged Ethernet switch card that integrates directly into an industrial PC via a PCI Express slot. Once installed, it provides four independent Gigabit Ethernet interfaces that can connect to various network devices such as IP cameras, PLCs, sensors, or other Ethernet-enabled equipment.
Operation Principle:
- The card uses a store-and-forward switching mechanism to ensure error-free packet transmission.
- Each port supports auto-negotiation for speed and duplex mode, automatically adjusting to connected devices.
- Auto MDI/MDI-X eliminates the need for crossover cables.
- The PCIe interface ensures high-speed data transfer between the host system and the network.
Use Cases & Applications:
- Industrial automation and control systems
- Embedded computing platforms
- Machine vision and IP surveillance systems
- Transportation and traffic control networks
- Energy and utility monitoring systems
- Factory floor networking and data acquisition
Compatibility:
- Compatible with standard PCIe x1, x4, x8, and x16 slots.
- Works seamlessly with existing switches, routers, and hubs.
- Supports multiple operating systems for flexible deployment.
### 5. Components & Accessories
Included Items (Standard Package):
1. IGCS-E140 PCIe Switch Card
2. Quick Installation Guide (QIG)
3. 2 × RJ45 Dust Covers
4. Driver/Utility CD
Optional Accessories (Available Separately):
- PCIe slot brackets (low-profile or full-height, depending on chassis)
- Industrial-grade Ethernet cables
- Power adapter for external 9–30 VDC input (if required)
Front Panel Indicators:
- Power LED (Green): Indicates power status.
- Link/Activity LED (Green): Indicates active network connection and data transmission.
- 100 Mbps Indicator (Amber): Illuminates when the port operates at 100 Mbps.
### 6. Installation & Setup
Installation Requirements:
- Available PCIe slot (x1, x4, x8, or x16) on the host IPC or embedded motherboard.
- Operating system with compatible driver support (drivers provided on CD).
- Optional external 9–30 VDC power source for redundant power input.
Installation Steps:
1. Power off the host system and disconnect from power.
2. Insert the IGCS-E140 card into an available PCIe slot.
3. Secure the card using the chassis screw or bracket.
4. Connect Ethernet cables to the RJ45 ports.
5. Optionally connect external DC power for redundancy.
6. Power on the system; the card will be automatically recognized by the OS.
7. Verify LED indicators for link and activity status.
Configuration:
- As an unmanaged switch, no software configuration is required.
- The card automatically handles MAC address learning and packet forwarding.
Mounting Options:
- Standard PCIe slot mounting within IPC chassis.
- Compatible with both full-height and low-profile brackets (depending on system design).
### 7. Performance & Capabilities
Network Performance:
- Full-duplex Gigabit Ethernet on all four ports.
- Supports jumbo frames up to 10K bytes for high-efficiency data transfer.
- Store-and-forward switching ensures reliable packet delivery.
- Flow control prevents packet loss under heavy traffic conditions.
Redundancy & Reliability:
- Fast redundant Ethernet ring with recovery time <10 ms across up to 250 units.
- Dual power input design ensures continuous operation during power source failure.
Efficiency:
- Low power consumption (~3.5–4 W typical).
- Efficient thermal design for stable operation in extended temperature ranges.
Limitations:
- Unmanaged design means no VLAN, QoS, or SNMP management features.
- Limited to 1K MAC address table, suitable for small to medium-sized networks.
### 8. Standards & Compliance
Ethernet Standards:
- IEEE 802.3 (10Base-T)
- IEEE 802.3u (100Base-TX)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3x (Flow Control)
Environmental & Mechanical Standards:
- Vibration: IEC60068-2-6
- Shock: IEC60068-2-27
- Free Fall: IEC60068-2-32
Electromagnetic Compatibility (EMC):
- EMI: FCC Part 15, CISPR (EN55022) Class A
- EMS:
- EN61000-4-2 (ESD)
- EN61000-4-3 (Radiated Susceptibility)
- EN61000-4-4 (EFT/Burst)
- EN61000-4-5 (Surge)
- EN61000-4-6 (Conducted Susceptibility)
- EN61000-4-8 (Magnetic Field)
- EN61000-4-11 (Voltage Dips/Interruptions)
Safety & Reliability:
- Designed for industrial-grade operation and compliance with international standards.
### 9. Additional Information
Operating System Support:
- Microsoft: DOS, Windows 98, Me, 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8
- Unix/Linux: Linux Kernel 2.4.x / 2.6.x / 3.x, FreeBSD 7.x / 8.0, SCO OpenServer 6, UnixWare 7.1.x
- Novell: Novell Client for DOS (ODI driver), Novell Server OS 5.x / 6.x
- MacOS: Versions 10.4, 10.5, 10.6, 10.7
Warranty:
- 5-Year Limited Warranty covering manufacturing defects and hardware reliability.
Maintenance & Support:
- Minimal maintenance required due to fanless, solid-state design.
- Technical support available via ORing Industrial Networking Corp.
- Firmware and driver updates available through the official website.
Manufacturer Contact Information:
- Company: ORing Industrial Networking Corp.
- Telephone: +886-2-2218-1066
- Fax: +886-2-2218-1014
- Email: support@oring-networking.com
- Website: [www.oring-networking.com](http://www.oring-networking.com)
Product Documentation:
- Quick Installation Guide (QIG)
- Driver CD with installation utilities and manuals
- Printed on recycled paper (environmentally conscious packaging)
### Summary
The ORing IGCS-E140 is a robust, industrial-grade unmanaged Gigabit Ethernet switch card designed for integration into PCIe-based embedded and industrial computing systems. With four auto-sensing Gigabit Ethernet ports, redundant power input, and compliance with stringent industrial standards, it delivers reliable, high-speed networking in demanding environments. Its plug-and-play design, wide OS compatibility, and extended temperature tolerance make it an ideal solution for industrial automation, surveillance, and embedded networking applications requiring compact, efficient, and durable Ethernet connectivity.
Key Advantages:
- Compact PCIe form factor for embedded integration
- Four Gigabit ports with industrial-grade protection
- Fast redundancy and low latency
- Wide environmental tolerance and power flexibility
- Long-term reliability backed by a 5-year warranty
End of Product Summary – ORing IGCS-E140 PCIe Industrial Lite-Unmanaged 4×1000/100TX Switch Card
-
Datasheet_IGCS-E140_v1.0.pdf
PDF Catalog
-
QIG_IGCS-E140_V1.0.pdf
Manual
No accessories available.
