Comprehensive Product Summary – IPCk19U4 Industrial 19" Rackmount Case

---

### 1. Product Overview

Product Name: IPCk19U4
Model / Series: 19" Industrial Rackmount Enclosure, 4U Form Factor
Article Number: IPCk19U4
Manufacturer: [Manufacturer not explicitly stated; typically associated with industrial PC enclosure manufacturers adhering to DIN 41494 / IEC 60297 19" standards]
Product Type: Industrial 19-inch rackmount chassis, 4U height, designed for electronic and computing equipment integration in industrial, laboratory, and IT environments.

The IPCk19U4 is a robust, precision-engineered 19-inch rackmount enclosure designed for housing industrial computing systems, control electronics, and embedded hardware. It combines mechanical durability, electromagnetic compatibility (EMC/EMV) protection, and environmental sealing (IP54) to ensure reliable operation in demanding industrial and technical environments. The chassis is optimized for 4U rack height (4HE) and provides a balanced combination of accessibility, cooling efficiency, and mechanical protection.

---

### 2. Key Features

- Form Factor: 19-inch rackmount enclosure, 4U height (4HE), compliant with standard rack dimensions (DIN 41494 / IEC 60297).
- Dimensions: 483 × 178 × 430 mm (W × H × D).
- Construction:
- Front Panel: 3 mm thick steel, powder-coated in RAL7035 light grey.
- Chassis Body: 1.5 mm chromated steel for corrosion resistance and electromagnetic shielding.
- Cooling System: Integrated overpressure ventilation system with high-quality Papst fan for efficient airflow and dust protection.
- Air Filtration: Front-accessible, replaceable air filter for easy maintenance and dust control.

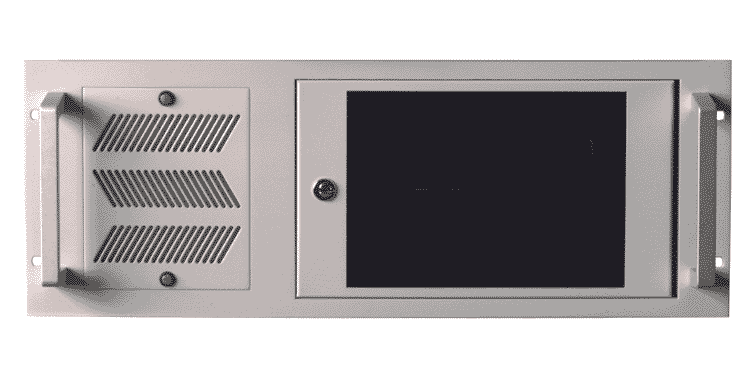

- Front Door: Lockable protective door with Makrolon (polycarbonate) viewing window, providing visibility and security.
- Drive Mounting: Shock-damped drive bays for vibration-sensitive components.
- Ingress Protection: Rated IP54, offering protection against dust ingress and splashing water.
- Expansion Slots: 8 rear slot covers for add-on cards or I/O modules.
- Drive Bay Configuration:
- 1 × 5¼" drive bay (optical drive or front-accessible device)
- 1 × 3½" drive bay (floppy or front-accessible module)
- 1 × internal HDD mounting position
- Power Supply Compatibility: Supports standard PS/2 form factor power supplies.
- Environmental Packaging: Supplied in eco-friendly, reusable packaging (cardboard/PE combination).

These features make the IPCk19U4 a versatile and durable enclosure suitable for industrial PCs, embedded controllers, and rack-based instrumentation systems.

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|-------------------|
| Form Factor | 19" rackmount, 4U (4HE) |
| External Dimensions (W × H × D) | 483 × 178 × 430 mm |
| Front Panel Material | 3 mm steel, powder-coated RAL7035 (light grey) |
| Chassis Material | 1.5 mm chromated steel |
| Cooling System | Overpressure ventilation with Papst fan |
| Air Filter | Front-accessible, replaceable dust filter |
| Front Door | Lockable, with Makrolon (polycarbonate) viewing window |
| Drive Bays | 1 × 5¼", 1 × 3½", 1 × internal HDD |
| Expansion Slots | 8 slot covers |
| Power Supply Type | PS/2 form factor (standard ATX-compatible) |
| Protection Rating | IP54 (dust and splash protection) |
| Color | RAL7035 light grey |
| Surface Treatment | Chromated steel body for corrosion resistance |
| Shock Protection | Shock-damped drive mounts |
| Packaging | Environmentally friendly multi-use packaging (cardboard/PE) |
| Mounting Standard | 19" rackmount per DIN 41494 / IEC 60297 |

---

### 4. Functionality

The IPCk19U4 serves as a protective and functional housing for industrial computing and electronic systems. Its design supports the integration of motherboards, power supplies, drives, and expansion cards in a standardized 19-inch rack environment.

Operational Principle:
- The overpressure ventilation system ensures that filtered air is continuously pushed into the enclosure, maintaining positive internal pressure. This prevents dust ingress through unsealed openings and enhances cooling efficiency.
- The Papst fan, known for reliability and low noise, provides consistent airflow across internal components.
- The front-accessible air filter allows maintenance without disassembling the chassis, ensuring long-term performance in dusty or industrial environments.
- The lockable front door with a transparent Makrolon window allows visual inspection of indicators and displays while preventing unauthorized access.
- Shock-damped drive mounts protect sensitive storage devices from vibration and mechanical shock, extending component lifespan.

Use Cases and Applications:
- Industrial PC systems for automation and control.
- Embedded computing platforms in manufacturing or process control.
- Laboratory instrumentation and measurement systems.
- Network and server applications requiring IP54 protection.
- Test and monitoring equipment in harsh environments.
- Custom-built rackmount systems for OEM or system integrators.

Compatibility:
- Compatible with standard 19" rack systems.
- Supports standard ATX or microATX motherboards (depending on internal layout).
- Accepts PS/2 form factor power supplies.
- Accommodates standard 5¼" and 3½" drives and HDDs.

---

### 5. Components & Accessories

Included Components:
- IPCk19U4 chassis (assembled)
- Front door with lock and Makrolon viewing window
- Pre-installed Papst cooling fan
- Front-accessible air filter unit
- 8 × slot covers for expansion slots
- Shock-damped drive mounting brackets
- Mounting hardware (screws, brackets)
- Grounding and EMC connection points
- Documentation (installation and maintenance instructions)

Optional Accessories (depending on configuration):
- Additional or replacement air filters
- Rackmount slide rails or mounting brackets
- Cable management accessories
- Additional fans or fan control modules
- Power supply (PS/2 type, optional)
- Drive bay adapters (e.g., 5¼" to 3½" converter)
- EMC gaskets or shielding kits for enhanced compliance

Connectors and Interfaces:
- Rear panel cutouts for I/O connectors (customizable)
- Standard ATX I/O shield opening (if motherboard installed)
- Power inlet (depending on PSU configuration)
- Fan power connectors (internal)

---

### 6. Installation & Setup

Requirements:
- Standard 19" rack or cabinet with 4U available height.
- Compatible PS/2 form factor power supply.
- Appropriate motherboard and components (ATX/microATX).
- Adequate ventilation clearance at front and rear.

Mounting Options:
- Rackmount installation using front mounting flanges (standard 19" rack rails).
- Optional slide rails for service access.
- Can be placed on a bench or shelf for standalone operation (non-rack use).

Configuration Steps:
1. Preparation: Unpack the enclosure and verify all components.
2. Power Supply Installation: Mount PS/2 power supply in designated rear compartment.
3. Motherboard Installation: Secure motherboard to internal mounting plate using standard standoffs.
4. Drive Installation: Mount drives in shock-damped bays (1 × 5¼", 1 × 3½", 1 × HDD).
5. Cooling Setup: Ensure Papst fan and air filter are properly seated; connect fan power.
6. Cable Management: Route power and data cables to minimize airflow obstruction.
7. Final Assembly: Close and lock the front door; verify airflow direction and filter integrity.
8. Rack Integration: Mount the enclosure into the rack using M6 screws or cage nuts.

Maintenance:
- Regularly clean or replace the air filter.
- Inspect fan operation and airflow.
- Check door lock and hinges for mechanical integrity.
- Verify grounding and EMC connections.

---

### 7. Performance & Capabilities

Cooling Efficiency:
The overpressure ventilation system with a Papst fan ensures consistent internal temperature control, even under continuous operation. The filtered intake prevents dust accumulation on internal components, maintaining thermal performance over time.

Capacity and Expandability:
- Supports multiple drive configurations (optical, floppy, HDD).
- 8 expansion slots allow installation of full-length PCI/PCIe cards.
- Internal space accommodates standard ATX or microATX boards and PS/2 power supplies.

Mechanical Strength:
- 3 mm steel front panel provides rigidity and protection against impact.
- 1.5 mm chromated steel body ensures structural stability and corrosion resistance.
- Shock-damped drive mounts reduce vibration transmission.

Environmental Protection:
- IP54 rating ensures protection against limited dust ingress and water splashes.
- Chromated surfaces enhance corrosion resistance in humid or industrial atmospheres.

Limitations:
- Designed for moderate industrial environments; not suitable for outdoor or fully waterproof applications (IP54, not IP65).
- Limited internal depth (430 mm) may restrict use of extra-long expansion cards or oversized cooling systems.
- Requires regular filter maintenance for optimal airflow.

---

### 8. Standards & Compliance

Mechanical Standards:
- 19" Rackmount Standard: DIN 41494 / IEC 60297 compliant.
- 4U Height: 4 rack units (4HE), compatible with standard rack systems.

Protection and Safety:
- Ingress Protection: IP54 per IEC 60529 (dust-protected, splash-resistant).
- EMC/EMV Compliance: Constructed with chromated steel and conductive surfaces to minimize electromagnetic interference.

Material and Surface Standards:
- Chromated Steel: Corrosion-resistant per industrial coating standards.
- Powder Coating: RAL7035 light grey, industrial-grade finish.

Cooling and Electrical Safety:
- Fan Quality: Papst brand fan, compliant with CE and VDE safety standards.
- Grounding Points: Provided for EMC and electrical safety compliance.

Environmental Compliance:
- Packaging: Environmentally friendly, reusable materials (cardboard/PE).
- RoHS Compliance: Materials selected to meet Restriction of Hazardous Substances directives (assumed for industrial compliance).

---

### 9. Additional Information

Warranty:
Typically supplied with a standard manufacturer’s warranty (duration dependent on supplier, commonly 12–24 months). Covers manufacturing defects and material faults under normal operating conditions.

Support:
Technical documentation, installation guides, and maintenance instructions are provided. Manufacturer or distributor support available for configuration and integration assistance.

Maintenance:
- Regular cleaning or replacement of the air filter is recommended.
- Periodic inspection of fan operation and airflow.
- Check for corrosion or mechanical wear in industrial environments.

Serviceability:
- Front-accessible filter and lockable door simplify maintenance.
- Modular internal layout allows easy replacement of drives, fans, and power supplies.

Updates and Customization:
- Custom front panels, color options, or branding available upon request.
- Optional configurations for additional drive bays or enhanced EMC shielding.

Environmental Considerations:
- Designed for long service life and reusability.
- Eco-friendly packaging reduces waste and supports sustainable logistics.

---

### Summary

The IPCk19U4 is a high-quality, industrial-grade 19-inch rackmount enclosure designed for reliability, protection, and ease of maintenance. With its 4U form factor, IP54 protection, Papst overpressure ventilation, and shock-damped drive mounts, it provides a secure and efficient housing solution for industrial PCs, control systems, and embedded electronics. Its chromated steel construction, RAL7035 light grey finish, and lockable Makrolon front door combine durability with professional aesthetics.

Engineered for compliance with DIN 41494 / IEC 60297 rack standards, the IPCk19U4 ensures compatibility with standard 19" rack systems and PS/2 power supplies. Its thoughtful design—featuring front-accessible filters, modular drive bays, and robust EMC shielding—makes it ideal for demanding industrial, laboratory, and automation environments where reliability and maintainability are critical.
