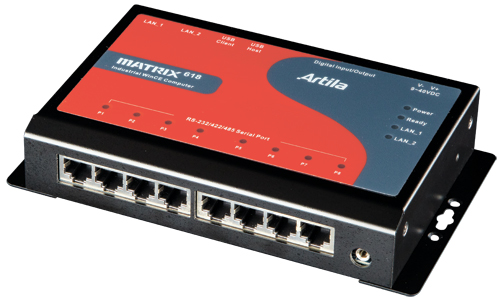

Matrix-618

Matrix-618 - Artila

WinCE ARM-9 400MHz Web Server 2*LAN 8*COM 2*USB 21*GPDIO

Industrial Computers and Embedded Systems from ARM Embedded Systems provide a secure and reliable platform for the Internet of Things (IoT) Gateway. With advanced features and capabilities, our embedded systems are designed to meet the needs of industrial and commercial applications. Our solutions are built to withstand harsh environments, and are easily integrated into existing systems. With our ARM embedded systems, you can connect, control, and monitor your IoT devices with ease..

Description

  • ARM-9 ATMEL AT91SAM9G45
  • 400MHz based Industrial WinCE 6.0 Computer
  • WinCE 6.0 installed
  • RAM 64MB and NAND Flash Memory 256MB
  • data flash 2MB for system backup
  • 8 high speed port RS232/422/485 selectable
  • 2 additional USB 2.0 12Mbps host ports
  • 2*LAN 10/100 Ethernet port
  • 21 programmable GP IO channels
  • SSL and SSH 1.0/2.0 etc.
  • upward compatible to Matrix-500 but without SD memory card socket
  • fanless DIN rail mountable case
  • all flash based architecture 16/32/64MB Linux kernel 2.6.x
  • GNU C/C++ tool chain for Linux/Windows environment
  • WinCE support
  • JAVA accelerator
  • 9..40VDC
  • 190mA@12VDC 2,3W
  • 0°..70°C operation temperature range
  • 160*104*32mm
  • ~440gr
  • Artila

Details

  • Width: 160 mm
  • Height: 104 mm
  • Depth: 32 mm
  • Net weight: 0,44 kg
  • Weight: 1.05kg
  • Manufacturer: Artila
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 5000 000
