Comprehensive Product Summary: ADLINK MVP‑6002/M4G Fanless Embedded Computer

---

### 1. Product Overview

Product Name: MVP‑6002/M4G
Model: MVP‑6002
Series: MVP‑6000 Series (MVP‑6001 / MVP‑6002 / MVP‑6003)
Article Number: MVP‑6002/M4G
Manufacturer: ADLINK Technology Inc.
Part Number: 50‑1Z214‑2020
Manual Revision: 4.0 (May 6, 2019)

The ADLINK MVP‑6002/M4G is a high‑performance, fanless, expandable embedded computer designed for industrial automation, machine vision, motion control, and surveillance applications. It integrates a 6th Generation Intel® Core™ i5‑6500TE Skylake processor with the Intel® H110 chipset, offering robust computing power, versatile I/O, and flexible expansion in a compact, ruggedized chassis.

---

### 2. Key Features

- Processor: Intel® Core™ i5‑6500TE Quad‑Core CPU (2.3 GHz base, 3.3 GHz Turbo, 6 MB cache)
- Chipset: Intel® H110 Mobile Platform Controller Hub
- Memory: Two DDR4 SO‑DIMM sockets supporting up to 32 GB DDR4‑2133 MHz
- Graphics: Integrated Intel® HD Graphics 530 with support for dual independent displays
- Display Interfaces:
- 2 × DisplayPort (up to 4096 × 2304 @ 60 Hz)
- 1 × DVI‑D (up to 4096 × 2160 @ 60 Hz)
- 1 × VGA (up to 1920 × 1200 @ 60 Hz)
- Expansion:
- 1 × PCIe x16 Gen3 slot
- 1 × PCI 32‑bit slot (33 MHz)
- 1 × Mini‑PCIe slot with USIM socket
- Networking: 3 × Intel® I211‑AT Gigabit Ethernet ports with teaming, Wake‑on‑LAN, PXE boot, and IEEE 1588 support
- Storage:
- 1 × internal SATA III (6 Gb/s) port for 2.5″ HDD/SSD
- 1 × rear CFast Type II socket (SATA interface, 3.0 Gb/s)
- I/O Interfaces:
- 4 × USB 3.0 (Type A)
- 2 × USB 2.0 (Type A) + 1 × internal USB 2.0
- 4 × COM ports (2 × RS‑232/422/485 software‑selectable + 2 × RS‑232)
- 8 × Digital Input + 8 × Digital Output channels
- 1 × Mic‑in and 1 × Line‑out audio
- Power Input: 12 – 24 V DC wide‑range input via 3‑pin pluggable connector
- Operating Temperature: 0 °C to 50 °C (fanless, with industrial SSD)
- Mounting: Wall‑mount kit included
- Construction: Fanless aluminum chassis for dust‑resistant, low‑noise operation

---

### 3. Technical Specifications

| Parameter | Specification |
|----------------|------------------|
| Processor | Intel® Core™ i5‑6500TE (4 cores, 2.3 GHz base / 3.3 GHz Turbo, 6 MB cache) |
| Chipset | Intel® H110 PCH |
| Memory | 2 × DDR4 SO‑DIMM slots, up to 32 GB DDR4‑2133 MHz |
| Graphics | Intel® HD Graphics 530 |
| Display Outputs | 2 × DisplayPort, 1 × DVI‑D, 1 × VGA |
| Expansion Slots | 1 × PCIe x16 Gen3, 1 × PCI 32‑bit, 1 × Mini‑PCIe with USIM |
| Ethernet | 3 × Intel® I211‑AT GbE ports (IEEE 802.3az, 1588, QoS, VLAN, PXE, Jumbo Frame) |
| Serial Ports | 2 × RS‑232/422/485 (COM1/2), 2 × RS‑232 (COM3/4) |
| USB Ports | 4 × USB 3.0, 2 × USB 2.0 (external), 1 × USB 2.0 (internal) |
| Digital I/O | 8 × DI (VIH 2–5.25 V, VIL 0–0.8 V), 8 × DO (open‑drain MOSFET, 24 mA sink/source) |
| Audio | 1 × Mic‑in, 1 × Line‑out |
| Storage | 1 × SATA III (6 Gb/s) for 2.5″ HDD/SSD, 1 × CFast Type II socket |
| Power Input | 12 – 24 V DC (3‑pin connector: V+, GND, V–) |
| Power Consumption | Idle 18.26 W, Full Load 52.18 W @ 24 V DC |
| Recommended PSU | 160 W external AC‑DC adapter (optional) |
| Dimensions | 220 (W) × 210 (D) × 170 (H) mm (8.67 × 8.27 × 6.69 in.) |
| Weight | 4.5 kg (9.92 lb) |
| Operating Temperature | 0 °C to 50 °C (fanless with industrial SSD) |
| Storage Temperature | –40 °C to 85 °C (excluding HDD/SSD/CFast) |
| Humidity | 95 % @ 40 °C (non‑condensing) |
| Shock Resistance | 100 G, half‑sine 11 ms (with CFast or SSD) |
| ESD Protection | ±4 kV (contact), ±8 kV (air) |
| EMC Compliance | CE and FCC Class A |

---

### 4. Functionality

The MVP‑6002/M4G operates as a compact, industrial‑grade embedded controller optimized for automation and machine vision. Its fanless design ensures silent, maintenance‑free operation in dusty or vibration‑prone environments.

Typical Applications:
- Machine vision inspection systems
- Industrial motion control and robotics
- Factory automation and process monitoring
- Intelligent transportation and surveillance
- Edge computing and data acquisition

Operation:
The system boots from internal SATA or CFast storage and supports USB boot devices. It can drive two independent displays for visualization or control interfaces. The integrated Intel® HD Graphics 530 supports high‑resolution output for visualization tasks.

Compatibility:
Supports Windows 7/10 (64‑bit), Linux, and real‑time OS environments. Drivers for chipset, graphics, Ethernet, audio, USB 3.0, and Intel Management Engine are available from ADLINK.

---

### 5. Components & Accessories

Included Items:
- MVP‑6002 controller unit
- Wall‑mount bracket kit and screws
- HDD/SSD mounting screws
- Accessory pack and user manual
- ADLINK All‑in‑One DVD (driver and utility disc)

Optional Accessories:
- 160 W external AC‑DC adapter
- Fan module (for PCI/PCIe heat dissipation, Smart Fan Control)
- DisplayPort adapter cables:
- DP → HDMI (P/N 30‑01119‑0010)
- DP → DVI (P/N 30‑01120‑0010 or 30‑01157‑0010 active)
- DP → VGA (P/N 30‑01121‑0010)
- Auxiliary power cable for add‑on cards (P/N 30‑20724‑0000)

Connectors:

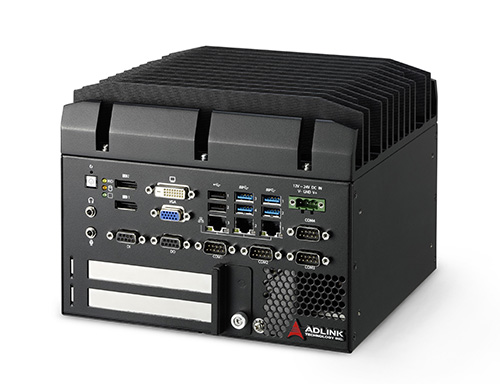

- Front panel: Power button, LED indicators, audio jacks, PCI/PCIe slots, DisplayPorts, DVI‑D, VGA, USB ports, Ethernet ports, COM ports, DC power input, digital I/O.
- Internal: Mini‑PCIe, SATA, USB 2.0, GPS power headers (3.3 V and 5 V), fan connectors (9 V and 12 V), Clear CMOS jumper, USIM slot, extended PWR/RESET header.

---

### 6. Installation & Setup

Power Requirements:
12 – 24 V DC input via 3‑pin connector (V+, GND, V–). Ensure stable, low‑noise DC supply with sufficient current capacity (≥ 100 W recommended).

Mounting Options:
- Wall‑mount brackets included.
- For safety and ventilation, mount with front and rear panels facing sideways — never top or bottom.

Storage Installation:
- 2.5″ HDD/SSD mounted internally via SATA III port.
- CFast card inserted into rear Type II socket (SATA interface).

Driver Installation:
Download and install drivers from [www.adlinktech.com](http://www.adlinktech.com):
- Chipset, Graphics, Ethernet, Audio, USB 3.0, Intel ME, Serial I/O.

BIOS Configuration:
Access BIOS via DEL key at POST. Supports boot priority selection (F7), hardware monitoring, power management, and security settings.

---

### 7. Performance & Capabilities

- CPU Performance: Quad‑core Intel Core i5‑6500TE (35 W TDP) delivers desktop‑class processing in a low‑power envelope.
- Graphics: Intel HD Graphics 530 supports DirectX 12, OpenGL 4.4, and dual 4K displays.
- Memory Bandwidth: DDR4‑2133 MHz up to 32 GB for high‑speed data processing.
- Networking: Triple Intel I211‑AT controllers enable redundant or teamed network configurations for high availability.
- Storage Throughput: SATA III 6 Gb/s and CFast 3 Gb/s interfaces support fast data logging and boot operations.
- Digital I/O: 8 DI + 8 DO channels for machine control and signal interfacing.
- Reliability: Fanless design eliminates moving parts, enhancing MTBF and reducing maintenance.
- Power Efficiency: Typical consumption ≈ 18 W idle, 52 W full load @ 24 V DC.
- Limitations: Operating temperature limited to 50 °C without add‑on cards; additional cooling required for high‑power expansions.

---

### 8. Standards & Compliance

- Environmental: RoHS and WEEE compliant for hazardous substance reduction and recycling.
- EMC: CE and FCC Class A certified.
- Safety: California Proposition 65 warning for chemical exposure compliance.
- ESD Protection: ±4 kV (contact), ±8 kV (air).
- Shock Resistance: 100 G half‑sine 11 ms (with CFast or SSD).
- Quality Assurance: Manufactured under ADLINK’s ISO 9001 certified processes.

---

### 9. Additional Information

Warranty & Support:
ADLINK provides standard limited warranty coverage and global technical support through regional offices. Service and RMA requests can be initiated via [Ask an Expert](http://askanexpert.adlinktech.com).

Maintenance:
- Clean ventilation openings periodically.
- Use industrial SSD for extended temperature operation.
- Replace CMOS battery with correct type only to avoid explosion risk.

Firmware & Updates:
BIOS and driver updates available from ADLINK’s official website. Supports BIOS recovery via Clear CMOS jumper.

Safety Precautions:
- Disconnect power before servicing.
- Avoid liquid exposure and high humidity.
- Operate within specified temperature and voltage limits.
- Only qualified technicians should service the device.

Contact Information:
- ADLINK Technology Inc. – New Taipei City, Taiwan (+886‑2‑8226‑5877)
- ADLINK USA: San Jose, CA (+1‑408‑360‑0200)
- ADLINK China: Shanghai (+86‑21‑5132‑8988)
- ADLINK Europe: Mannheim, Germany (+49‑621‑43214‑0)

---

### Summary

The ADLINK MVP‑6002/M4G is a rugged, fanless embedded controller engineered for industrial automation and edge computing. Combining a 6th Gen Intel® Core™ i5 processor, triple Gigabit Ethernet, dual display support, and extensive I/O in a compact form factor, it delivers reliable performance for demanding applications. Its expandability via PCIe, PCI, and Mini‑PCIe slots enables custom integration of motion control, data acquisition, or communication modules. With wide DC input, robust mechanical design, and compliance with industrial standards, the MVP‑6002/M4G offers a cost‑effective, long‑lifecycle solution for industrial edge computing deployments.
