Comprehensive Product Summary – NuDAM ND‑6060

---

### 1. Product Overview

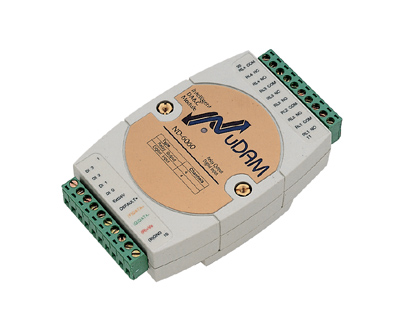

Product Name: NuDAM 4‑Channel Relay Output / 4‑Channel Digital Input Module
Model: ND‑6060
Series: NuDAM‑6000 Series – Digital I/O Modules
Article Number: ND‑6060
Manufacturer: ADLINK Technology Inc. (Taipei, Taiwan)

The ND‑6060 is an industrial‑grade remote I/O module designed for distributed data acquisition and control applications. It integrates four relay output channels and four isolated digital input channels within a compact, RS‑485 network‑addressable enclosure. As part of ADLINK’s NuDAM‑6000 family, the ND‑6060 provides reliable, isolated switching and monitoring capabilities for automation, process control, and remote supervisory systems.

---

### 2. Key Features

- Dual‑function I/O: Four relay outputs (two Form A and two Form C) and four optically isolated digital inputs.
- RS‑485 Communication: Two‑wire, half‑duplex serial interface supporting up to 115.2 kbps for long‑distance, multi‑drop networking.
- High Isolation: 1000 Vrms isolation between relay contacts and coil; 750 Vrms between open contacts.
- Programmable Watchdog: Hardware and host‑programmable watchdog timers ensure safe output states during communication or power failures.
- Industrial Reliability: Designed for harsh environments with noise immunity, surface‑coated PCB, and wide power input range (+10 V DC – +30 V DC).
- Flexible Mounting: DIN‑rail or panel mounting with screw‑terminal connectors for field wiring.
- ASCII Command Protocol: Simple, printable‑character command/response structure for easy integration with PCs, PLCs, or embedded controllers.
- Network Expandability: Up to 256 addressable modules on a single RS‑485 bus; 128 per segment without repeaters.
- Compact, Rugged Design: ABS enclosure with internal EMI shielding and conformal coating for humidity and chemical resistance.

---

### 3. Technical Specifications

Interface:
- Communication: RS‑485, 2‑wire, half‑duplex differential signaling
- Baud Rates: 1200 – 115.2 kbps (default = 9600 bps)
- Protocol: ASCII command/response
- Maximum Distance: 1200 m (4000 ft)

Digital Inputs:
- Channels: 4 isolated inputs
- Common External Voltage: +24 V DC typical
- Isolation: Optical isolation between field and logic circuits
- Input Type: Discrete contact or transistor mode (sink/source configurable)

Relay Outputs:
- Channels: 4 (2 × Form A, 2 × Form C)
- Contact Rating: 0.5 A @ 125 VAC / 1 A @ 30 VDC (resistive load)
- Relay ON/OFF Time: ≤ 3 ms
- Breakdown Voltage: 750 Vrms (open contact), 1000 Vrms (contact‑to‑coil)
- Insulation Resistance: ≥ 1000 MΩ
- Expected Mechanical Life: 10⁸ operations (no load @ 180 cpm)
- Expected Electrical Life: 10⁵ operations (0.5 A @ 125 VAC resistive @ 20 cpm)

Isolation & Protection:
- Channel‑to‑channel and channel‑to‑system isolation via opto‑couplers
- Surge and transient suppression on communication lines
- Watchdog reset and safe‑state output protection

Power Requirements:
- Supply Voltage: +10 V DC to +30 V DC (unregulated)
- Power Consumption: 0.84 W typical
- Reverse polarity protection included

Environmental:
- Operating Temperature: –10 °C to +70 °C
- Storage Temperature: –25 °C to +80 °C
- Humidity: 5 – 95 % RH, non‑condensing
- Enclosure: ABS plastic with internal EMI shield coating

Physical:
- Mounting: DIN‑rail or panel mount
- Connectors: 20‑pin screw terminal block
- Isolation Voltage: 1000 Vrms (relay coil to contact)
- Dimensions / Weight: Compact modular form factor (typical NuDAM housing ≈ 72 × 118 × 42 mm, ~200 g)

---

### 4. Functionality

Operating Principle:
The ND‑6060 acts as a remote digital I/O node on an RS‑485 network. A host computer or controller issues ASCII commands to read input states or set relay outputs. The module’s microprocessor interprets these commands, updates internal registers, and drives the relays or reports input status accordingly.

Use Cases & Applications:
- Industrial automation and process control
- Building management and HVAC systems
- Remote equipment switching and monitoring
- Alarm and safety interlock systems
- Energy management and lighting control
- Laboratory instrumentation and test stands

Compatibility:
- Fully compatible with other NuDAM‑6000 modules (analog, digital, counter/frequency).
- Communicates via standard RS‑485 converters (e.g., ND‑6520, ND‑6530, ND‑6531).
- Supported by ADLINK’s NuDAM Administration Utility and third‑party SCADA or PLC software capable of serial ASCII communication.

---

### 5. Components & Accessories

Included:
- ND‑6060 module
- Detachable screw‑terminal block for field wiring
- Quick‑start and configuration documentation

Optional / Related Accessories:
- ND‑6520 RS‑232 ↔ RS‑485 converter
- ND‑6530 USB ↔ RS‑485 converter
- ND‑6510 RS‑485 repeater (for >128 modules or >1200 m)
- RS‑485 shielded twisted‑pair cable (120 Ω characteristic impedance)
- 120 Ω ± 2 % termination resistors for bus ends
- External 24 V DC power supply

Connectors (Pin Assignments):
1 – DI3  Digital Input 3
2 – DI2  Digital Input 2
3 – DI1  Digital Input 1
4 – DI0  Digital Input 0
5 – Ext24 V External +24 V common for inputs
6 – DEFAULT* Initialization pin (short to GND for default mode)
7 – (Y) DATA+ RS‑485 Data +
8 – (G) DATA– RS‑485 Data –
9 – (R) +Vs Power +10 V to +30 V DC
10 – (B) GND Power Ground
11 – RL1 NO Relay 1 Normally Open
12 – RL1 COM Relay 1 Common
13 – RL2 NO Relay 2 Normally Open
14 – RL2 COM Relay 2 Common
15 – RL3 NO Relay 3 Normally Open
16 – RL3 NC Relay 3 Normally Closed
17 – RL3 COM Relay 3 Common
18 – RL4 NO Relay 4 Normally Open
19 – RL4 NC Relay 4 Normally Closed
20 – RL4 COM Relay 4 Common

---

### 6. Installation & Setup

Requirements:
- Host PC or controller with RS‑232/USB port and NuDAM converter (ND‑6520/6530/6531).
- 10 – 30 V DC regulated power supply.
- Shielded twisted‑pair RS‑485 cabling with 120 Ω termination at both ends.

Mounting Options:
- DIN‑rail clip or panel screw mounting.
- Maintain adequate spacing for ventilation and wiring access.

Configuration Procedure:
1. Initialization:
- Factory defaults: Address = 01 (Hex), Baud = 9600 bps, Checksum = Disabled, Watchdog = Disabled.
- To reconfigure, short the DEFAULT* pin to GND and power ON to enter Default State (Address 00).
2. Address & Baud Setup:
- Use the NuDAM Administration Utility or ASCII command `%` to assign unique address and baud rate.
3. Network Wiring:
- Connect DATA+ and DATA– in daisy‑chain topology.
- Apply 120 Ω termination resistors at both ends of the bus.
- Connect cable shields to protective earth at multiple points.
4. Power Connection:
- +Vs to +10 – +30 V DC, GND to 0 V.
- Avoid sharing power with inductive loads without isolation.
5. Verification:
- Use the Administration Utility “Search” function to detect the module.
- Test I/O channels via “Monitor” or “Terminal” mode.

---

### 7. Performance & Capabilities

Communication Performance:
- Baud Rate Range: 1200 – 115200 bps
- Maximum Bus Length: 1200 m (4000 ft)
- Maximum Modules per Bus: 128 (256 with repeater)
- ASCII command latency: < 10 ms typical

Relay Performance:
- Switching Time: ≤ 3 ms
- Contact Resistance: ≤ 100 mΩ initial
- Dielectric Strength: 1000 Vrms coil‑to‑contact
- Mechanical Endurance: 10⁸ operations (no load)
- Electrical Endurance: 10⁵ operations (rated load)

Input Performance:
- Input Voltage Range: 0 – 30 V DC
- Logic 0 Threshold: ≤ 1 V
- Logic 1 Threshold: ≥ 3.5 V
- Input Impedance: > 3 kΩ typical
- Isolation: Optical, 24 V nominal

System Reliability:
- Internal watchdog (150 ms) resets module on fault.
- Host‑programmable watchdog (100 ms – 25.5 s) sets safe output state if host fails.
- Power‑failure detection threshold: 4.65 V.

Limitations:
- Relay contacts rated for low‑power control; not suitable for high‑current motor loads without external relays.
- RS‑485 bus requires proper termination and shielding to prevent communication errors.

---

### 8. Standards & Compliance

- Electrical Interface: EIA RS‑485 Standard (balanced differential transmission).
- Isolation: Opto‑isolated I/O and communication circuits.
- EMI/ESD Protection: Transient Voltage Suppressors (TVS) and PTC resettable fuses on data lines.
- Safety & EMC: Designed to meet CE Class A industrial emissions and immunity requirements.
- Environmental Protection: Conformal coating for humidity and chemical resistance.
- Quality Assurance: Manufactured under ADLINK’s ISO‑certified quality system.

---

### 9. Additional Information

Warranty:
- One‑year limited warranty from date of purchase against defects in materials and workmanship.
- Excludes damage from misuse, modification, or operation beyond specifications.

Support & Maintenance:
- Technical documentation: NuDAM‑6000 User’s Guide Rev 3.00.
- Software: NuDAM Administration Utility (Windows 95 – Windows 10 compatible).
- Firmware updates available via ADLINK support.
- Calibration and diagnostics accessible through the utility’s “Diagnostic” and “Calibration” menus.

Troubleshooting Guidelines:
- Verify correct RS‑485 wiring polarity (DATA+ ↔ DATA+, DATA– ↔ DATA–).
- Ensure unique address IDs for all modules.
- Confirm proper termination (120 Ω resistors at both ends).
- Check power supply voltage within 10 – 30 V DC range.
- Use shielded twisted‑pair cable and proper grounding to minimize noise.

Maintenance:
- Periodically inspect terminal connections for corrosion or looseness.
- Avoid exposure to strong magnetic fields or high‑voltage transients.
- Keep module away from heat sources; operate within specified temperature range.

Software Integration:
- Supports ASCII command set for configuration, read/write operations, and watchdog control.
- Example commands:
- Read configuration: `$<Addr>2<CR>`
- Read digital input: `$<Addr>6<CR>`
- Set relay outputs: `#<Addr><Channel><Data><CR>`
- Enable watchdog: `~<Addr>2(Flag)(Timeout)(SafeValue)<CR>`

Calibration & Verification:
- No analog calibration required (digital/relay only).
- Functional verification via Administration Utility “Monitor” function.

Service:
- Return‑to‑factory repair policy; customer pays shipping if out of warranty.
- Contact ADLINK regional service centers for RMA authorization.

---

### Summary

The ADLINK NuDAM ND‑6060 is a robust, network‑addressable digital I/O module combining four isolated digital inputs with four relay outputs for remote control and monitoring. Engineered for industrial automation, it offers reliable RS‑485 communication, high isolation, and comprehensive watchdog protection. Its modular design, simple ASCII protocol, and compatibility with the NuDAM‑6000 ecosystem make it ideal for scalable distributed control systems requiring dependable relay switching and digital signal acquisition in harsh environments.
