NF642N - Rayon

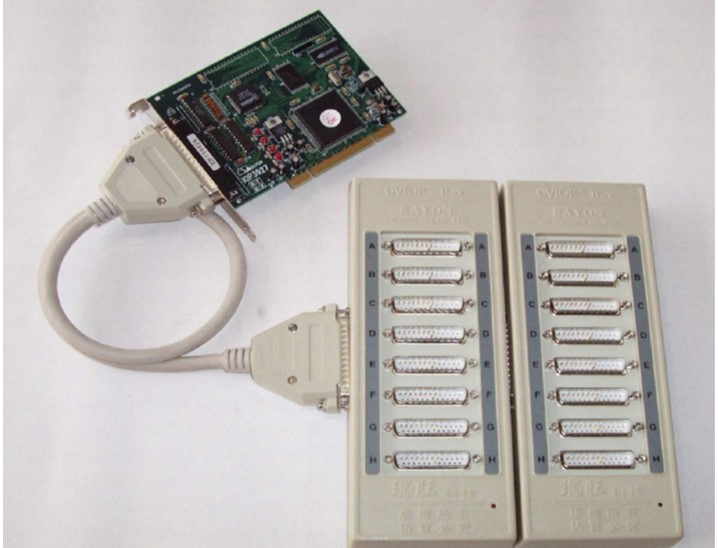

8-port RS422 connector box with 16C554 controller
PC Add-On Cards are used to enhance the capabilities of a PC. These cards are available in different types such as Communication Cards (RS232, RS485, IEEE, PCI max 128 Serial), PCIe / PCI max 128 Serial and more. They provide high-speed data transfer, enhanced communication, and improved performance. These cards are ideal for industrial, commercial, and home applications..
95,00 €
incl. VAT 113,05 €
incl. VAT 113,05 €
Description
- 8-port RS422 connector box with 8 built in FIFO type communication 16C554 controller
- up to 230,4kBd
- daisy chain up to 64 serial ports
- connector DB37F in and DB37M out to next (optional) box
- 5VDC power supply
- can connect to A320 PCIe intelligent multiport card
- 231*89*38mm
- 5~40°C operating temperature
- Rayon
Details
- Width: 121 mm
- Height: 102 mm
- Weight: 1.25kg
- Form factor: extern
- Manufacturer: Rayon
- Country of Origin: Taiwan R.O.C.
- Customs code: 8473 3020 000
