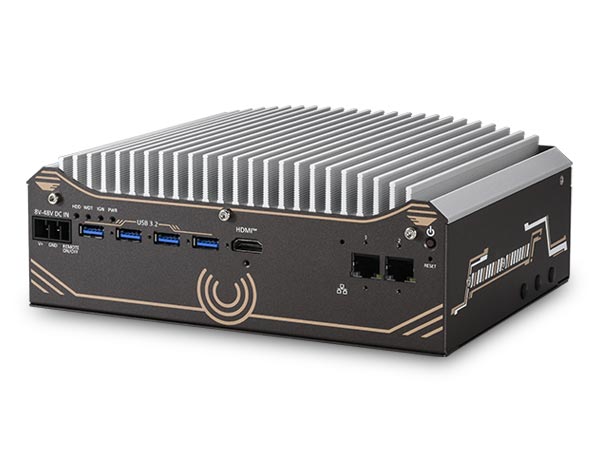

Compact fanless rugged embedded computer supporting Intel Core Ultra 200S series LGA1851 35W/65W CPUs, up to 64GB DDR5-6400 via 1x SODIMM, 2x 2.5GbE, 4x USB 3.2 Gen1, 2x USB 2.0, HDMI and DisplayPort, 1x M.2 2280 PCIe Gen4x4 NVMe, 1x internal SATA for 2.5/3.5-inch HDD/SSD, 2x full-size mini PCIe, 1x M.2 2230 E-Key, and 8V to 48V DC input.
- CPU Support Intel Core Ultra 200S series CPU (LGA 1851 socket), 35W and 65W TDP
- Supported Processors Intel Core Ultra 9 285/285T; Intel Core Ultra 7 265/265T; Intel Core Ultra 5 245/245T
- Chipset Intel H810 platform controller hub
- Bus Interface Intel H810 platform; 2x mini PCIe; 1x M.2 M-Key PCIe Gen4x4; 1x M.2 E-Key
- Graphics Integrated Intel Xe LPG Graphics
- AI Engine Integrated neural processing unit
- Key Features Intel Core Ultra 200S CPU support; fanless operation; up to 64GB DDR5-6400; 8V to 48V DC input; 2x 2.5GbE; 4x USB 3.2 Gen1 with screw-lock; HDMI and DisplayPort; M.2 NVMe and SATA storage; 2x mini PCIe; M.2 E-Key; integrated NPU
- Maximum Memory 64 GB
- Memory Type DDR5-6400
- Memory Slots 1x SODIMM
- TPM fTPM 2.0 standard / dTPM 2.0 optional
- SATA Storage 1x internal SATA port for 1x 3.5-inch HDD or 1x 2.5-inch HDD/SSD
- NVMe Slot 1x M.2 2280 M-Key socket (PCIe Gen4x4) for NVMe SSD
- DC Input Range 8 to 48 VDC
- Power Connector 3-pin pluggable terminal block
- Remote Control Remote on/off control
- Maximum Input Current Per Pin 20 A
- Dimensions 212 x 165 x 80 mm
- Weight 2.5 kg
- Mounting Wall-mount optional; DIN-rail mount optional
- Form Factor Compact fanless embedded computer

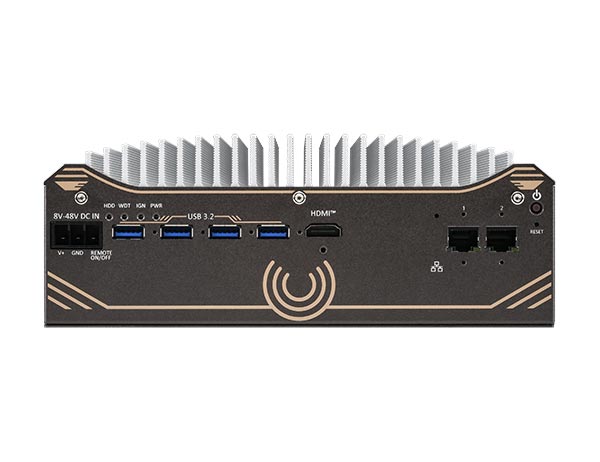

- Connector 3-pin pluggable terminal block; 2x 2.5GbE screw-lock; 4x USB 3.2 screw-lock; HDMI; DisplayPort; serial ports
- Dimensions 212 x 165 x 80 mm
- Ethernet Ports 2x 2.5GBASE-T Ethernet ports with screw-lock
- Ethernet Controller Intel I226-V
- Wake-on-LAN Port 2 supports Wake-on-LAN
- USB 3.2 Ports 4x USB 3.2 Gen1 (5 Gbps) ports with screw-lock
- USB 2.0 Ports 2x USB 2.0 ports
- HDMI Port 1x HDMI, supporting 3840 x 2160 resolution
- DisplayPort 1x DisplayPort, supporting 3840 x 2160 resolution
- DisplayPort Note DisplayPort does not support DP++; active DP-to-HDMI adapter required for HDMI output

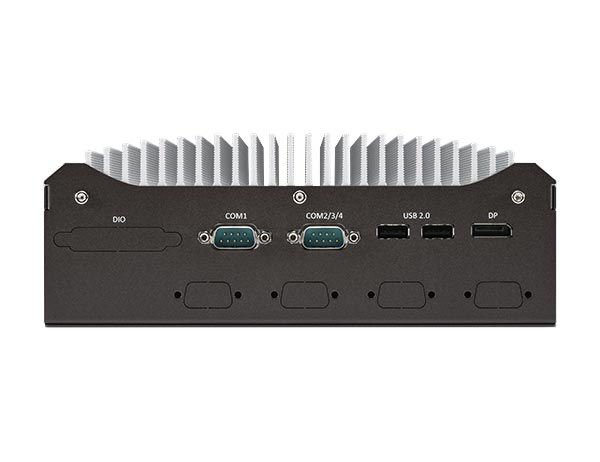

- Programmable Serial Port 1x software-programmable RS-232/422/485 port (COM1)
- Additional Serial Ports 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2)
- Mini PCIe Slots 2x full-size mini PCI Express sockets with internal SIM sockets
- M.2 E-Key Slot 1x M.2 2230 E key socket for WiFi module
- Operating Temperature -10 to 60 °C
- Storage Temperature -40 to 85 °C
- Humidity 10% to 90%, non-condensing
- Vibration MIL-STD-810H, Method 514.8, Category 4
- Shock MIL-STD-810H, Method 516.8, Procedure I
- Sub-zero Storage Note Wide temperature HDD or SSD required for sub-zero operation
- 65W CPU Cooling Note Optional fan kit recommended above 50°C ambient with 65W CPUs
- Operating Temperature -10°C to 60°C
- EMC CE/FCC Class A, according to EN 55032 and EN 55035
