Comprehensive Product Summary – Neousys Nuvo‑1300af‑620M

---

### 1. Product Overview

Product Name: Nuvo‑1300af‑620M
Series: Nuvo‑1300af Series – Intel® Core™ i7/i5 Fanless Embedded Controller with Integrated Gigabit PoE
Model Number: Nuvo‑1300af‑620M
Article Number: Nuvo‑1300af‑620M
Manufacturer: Neousys Technology Inc.
Revision: User’s Manual Rev. A1 (Published February 6, 2012)

The Neousys Nuvo‑1300af‑620M is a rugged, fanless embedded controller designed for industrial and machine‑vision applications. It integrates an Intel® Core™ i7‑620M processor and four IEEE 802.3af‑compliant Gigabit PoE ports, providing both high‑performance computing and direct power delivery to networked devices such as cameras or sensors. The system’s robust design supports extended temperature operation, vibration resistance, and flexible power configurations, making it suitable for harsh industrial environments.

---

### 2. Key Features

- High‑Performance Embedded Computing:
Powered by an Intel® Core™ i7‑620M dual‑core processor (2.66 GHz, 4 MB cache) with Intel® HM55 chipset and integrated Intel® HD Graphics.

- Fanless Architecture:
Completely fanless thermal design ensures silent operation, high reliability, and long‑term durability in environments with dust, vibration, or temperature extremes.

- Integrated Power over Ethernet (PoE):
Four Gigabit Ethernet ports with IEEE 802.3af compliance, each capable of delivering up to 15.4 W to connected PoE devices. Supports both isolated and non‑isolated PoE power modes for enhanced electrical protection.

- Comprehensive I/O Connectivity:
Includes five Gigabit Ethernet ports (4 × PoE + 1 × standard), 8 × USB 2.0, 4 × COM ports (1 × RS‑232/422/485, 3 × RS‑232), VGA + DVI/HDMI dual display, audio I/O, PS/2 keyboard/mouse, CompactFlash slot, and eSATA.

- Isolated Digital I/O:
8‑channel isolated digital input and 8‑channel isolated digital output, 2500 Vrms isolation, designed for industrial control and automation.

- Dual Storage Support:
Two internal 2.5″ SATA III bays for HDD/SSD (one 250 GB HDD pre‑installed) and one external eSATA port for expansion.

- Mini‑PCIe Expansion with SIM Slot:
Supports wireless modules (Wi‑Fi, 3G, GPS) and SIM card integration for mobile communication.

- Wide‑Range DC Power Input:
Built‑in 8–26 V DC input supporting isolated and non‑isolated power configurations.

- Rugged Environmental Design:
Operational temperature range from –25 °C to +70 °C (with airflow), vibration tolerance up to 5 Grms, and shock resistance up to 50 Grms.

- Flexible Mounting and Maintenance:
Wall‑mount brackets included; “Pet‑Door” design allows quick access to memory and storage for easy maintenance.

---

### 3. Technical Specifications

Processor & Chipset
- CPU: Intel® Core™ i7‑620M (2.66 GHz, 4 MB L3 cache)
- Chipset: Intel® HM55 Platform Controller Hub
- Graphics: Integrated Intel® HD Graphics Controller

Memory
- 2 × 204‑pin DDR3 SO‑DIMM sockets
- Supports up to 8 GB DDR3 1066 MHz SDRAM

Storage
- 2 × internal SATA ports for 2.5″ HDD/SSD
- 1 × eSATA port for external storage
- 1 × CompactFlash Type I socket

Networking
- 4 × Gigabit PoE ports (IEEE 802.3af, 15.4 W each) via Intel® 82574L
- 1 × standard Gigabit Ethernet port via Intel® 82574L

Serial Communication
- 1 × software‑selectable RS‑232/422/485 (COM1)
- 3 × RS‑232 (COM2–COM4)

USB & Peripheral Interfaces
- 8 × USB 2.0 ports
- 1 × PS/2 keyboard and 1 × PS/2 mouse
- Audio: 1 × Mic‑in, 1 × Speaker‑out (Realtek ALC262 codec)

Video Outputs
- 1 × VGA (DB‑15) – up to 2560 × 1600 resolution
- 1 × DVI‑I (for DVI/HDMI) – up to 1920 × 1080 resolution

Isolated Digital I/O
- 8 × Isolated DI channels (Logic High 5–24 V, Low 0–1.5 V, 2500 Vrms isolation)
- 8 × Isolated DO channels (100 mA sustained, 250 mA peak per channel, 2500 Vrms isolation)

Expansion
- 1 × Mini PCI Express slot with SIM card socket

Power Supply
- Input Voltage: 8–26 V DC
- Modes: Non‑isolated (single supply for system + PoE) or Isolated (two independent supplies)
- Connectors: 2 × 4‑pin mini‑DIN (Main DC‑IN and Aux DC‑IN)
- Power Consumption: Max 3.1 A @ 20 V (≈ 61.8 W, excluding PoE load)

Mechanical
- Dimensions: 240 mm (W) × 225 mm (D) × 78 mm (H) (9.4″ × 7.7″ × 3.1″)
- Weight: 3.2 kg (including HDD and RAM)
- Mounting: Wall‑mount brackets included

Environmental
- Operating Temperature: –25 °C to +70 °C (with airflow > 0.5 m/s); –25 °C to +60 °C (no airflow)
- Storage Temperature: –40 °C to +85 °C
- Humidity: 10 % – 90 %, non‑condensing
- Vibration: 5 Grms (5–500 Hz, 3 axes, SSD installed)
- Shock: 50 Grms (half‑sine 11 ms, SSD installed)
- EMC: CE/FCC Class A (EN 61000‑6‑3 & EN 61000‑6‑1)

---

### 4. Functionality

The Nuvo‑1300af‑620M functions as a compact, high‑performance embedded controller for industrial automation, machine vision, and surveillance systems. Its integrated PoE ports allow direct connection and powering of network cameras or sensors, simplifying cabling and reducing installation costs. The system’s isolated digital I/O enables safe interfacing with external control equipment, while multiple COM ports support legacy serial devices.

Typical Applications:
- Machine vision inspection systems
- Industrial automation and robotics control
- Intelligent transportation and surveillance
- Network video recording (NVR)
- Edge computing and data acquisition

Compatibility:
Supports Windows XP, Windows 7 (32/64‑bit), and Ubuntu Linux 10.04/10.10. Drivers are provided via Neousys “Drivers & Utilities DVD” with one‑click installation.

---

### 5. Components & Accessories

Included Items:
1. Nuvo‑1300af‑620M controller (1 unit)
2. Accessory box containing:
- Drivers & Utilities DVD
- Second HDD bracket
- Wall‑mount brackets (2 pcs)
- Foot pads (4 pcs)
- HDD thermal pad (1 pc)
- Screw pack
3. Quick Installation Guide

Optional Accessories:
- AC/DC power adapters (160 W for non‑isolated mode or 2 × 90 W for isolated mode)
- Mini‑PCIe modules (Wi‑Fi, 3G, GPS)
- External antenna for wireless modules
- Additional HDD/SSD drives

Connectors:
- Front panel: Audio, PS/2, USB, VGA, DVI/HDMI, eSATA, CF slot, power/reset buttons, status LEDs, remote on/off header

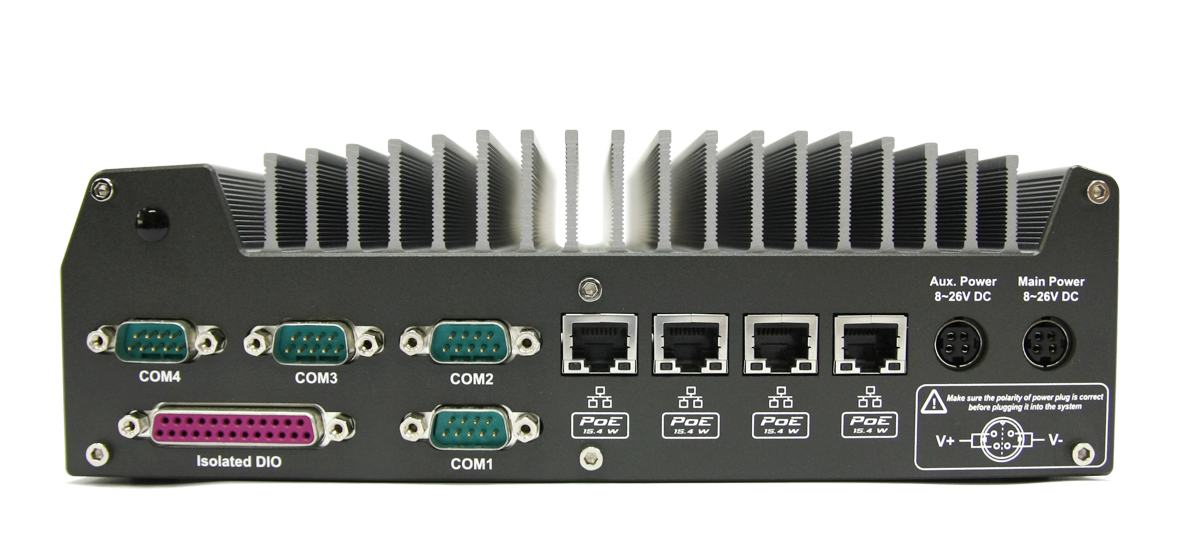

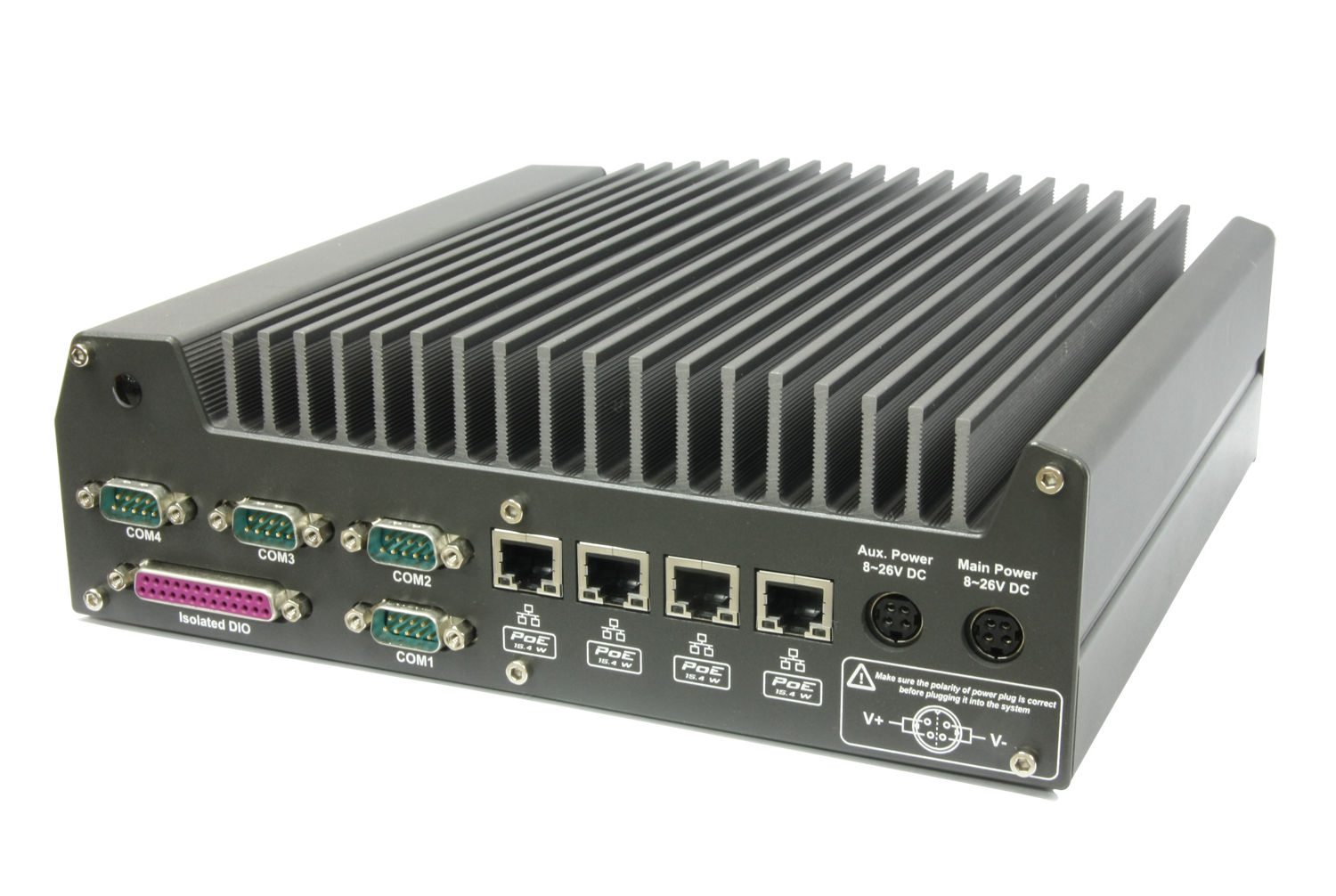

- Rear panel: Main and Aux power inputs, 4 × PoE ports, 4 × COM ports, 25‑pin D‑Sub for isolated DIO

---

### 6. Installation & Setup

Mounting:
Supplied wall‑mount brackets allow secure installation on vertical surfaces. For optimal heat dissipation, mount the unit in the recommended orientation with unobstructed airflow.

Memory & Storage Installation:
The “Pet‑Door” access panel on the chassis bottom enables quick installation of DDR3 SO‑DIMMs and 2.5″ HDD/SSD drives without full disassembly. Two SATA ports support dual‑drive configurations.

Power Configuration:
- Non‑Isolated Mode: Single DC supply (8–26 V) powers both system and PoE ports.
- Isolated Mode: Two independent DC supplies (8–26 V each) separate system and PoE power for surge protection.

Remote Control & Indicators:
A 10‑pin wafer connector provides remote on/off control (AT or ATX mode) and status LED outputs for Power, HDD, CF, and Watchdog Timer.

BIOS Configuration:
Accessible via F2 during boot. Key settings include COM port mode selection, SATA controller mode (IDE/AHCI), thermal limits, power recovery behavior, and Wake‑on‑LAN enablement.

---

### 7. Performance & Capabilities

- Processing Power: Dual‑core Intel® Core™ i7‑620M with Hyper‑Threading and Turbo Boost for arithmetic‑intensive tasks.
- Graphics: Integrated Intel® HD Graphics supports dual display output (VGA + DVI/HDMI).
- Networking: Five independent Intel® 82574L controllers ensure dedicated PCIe lanes for maximum throughput and low latency.
- PoE Capability: Each of the four PoE ports delivers up to 15.4 W (IEEE 802.3af standard), sufficient for most industrial cameras.
- Power Efficiency: Typical system consumption ≈ 61.8 W at full load (excluding PoE devices).
- Reliability: Fanless design eliminates moving parts; industrial‑grade components ensure operation from –25 °C to +70 °C.
- Limitations: USB 2.0 only (no USB 3.0 support); maximum memory capacity 8 GB; limited to IEEE 802.3af PoE (15.4 W per port, not 802.3at).

---

### 8. Standards & Compliance

- Electrical & EMC: CE and FCC Class A compliance (EN 61000‑6‑3 and EN 61000‑6‑1).
- PoE Standard: IEEE 802.3af compliant (PSE mode).
- Safety Isolation: 2500 Vrms isolation for digital I/O channels.
- Environmental Testing: Vibration and shock tested per IEC 60068‑2‑64 and IEC 60068‑2‑27.
- RoHS Compliance: All components meet RoHS environmental standards.

---

### 9. Additional Information

Warranty & Support:
Neousys Technology provides standard manufacturer warranty and technical support through authorized distributors. Firmware and driver updates are available via the Neousys support portal.

Maintenance:
The fanless design minimizes maintenance requirements. Periodic inspection of power connections and dust removal from heat sink surfaces is recommended. Storage devices and memory can be replaced through the Pet‑Door panel.

Software & Drivers:
- “Drivers & Utilities DVD” includes automatic and manual installation packages for Windows XP, Vista, and 7 (32/64‑bit).
- Linux support verified for Ubuntu 10.04 and 10.10.
- WDT & DIO library (WDT_DIO_Setup.exe) provides API for programming watchdog and digital I/O functions.

Watchdog Timer (WDT):
Hardware watchdog implemented via ITE8783 Super I/O chip. Programmable timeout (1–65535 ticks, seconds or minutes), system reset on expiry, and LED status indicator.

Isolated DIO Programming:
Library functions include InitDIO(), DIReadLine(), DIReadPort(), DOWriteLine(), and DOWritePort() for direct control of digital channels.

Wake‑on‑LAN (WOL):
Supported on the front panel Gigabit Ethernet port only. Allows remote power‑on via magic packet or direct packet from standby or power‑off state.

BIOS Features:
- COM port mode selection (RS‑232/422/485)
- SATA mode (IDE/AHCI)
- Thermal shutdown and throttling control
- Power recovery behavior (S0/S5/Last State)
- Watchdog timer for boot process
- Boot device priority and F12 boot menu

Operating System Support:
- Microsoft Windows XP (32‑bit)
- Microsoft Windows 7 (32/64‑bit)
- Ubuntu Linux 10.04 LTS and 10.10 (32/64‑bit)

Maintenance Tools:
- BIOS utility for system configuration
- WDT & DIO library for custom application development
- External status LED outputs for system monitoring

---

### Summary

The Neousys Nuvo‑1300af‑620M is a robust, high‑performance fanless embedded controller engineered for industrial automation, machine vision, and surveillance applications requiring reliable computing and integrated PoE connectivity. Its combination of Intel® Core™ i7 processing power, multiple isolated I/O interfaces, and rugged environmental tolerance makes it ideal for deployment in demanding field environments. The system’s modular design, flexible power modes, and comprehensive BIOS and software support ensure easy integration, long‑term stability, and simplified maintenance across a wide range of industrial and embedded computing scenarios.
