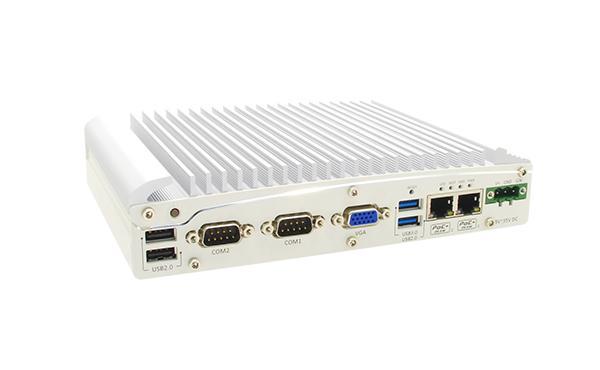

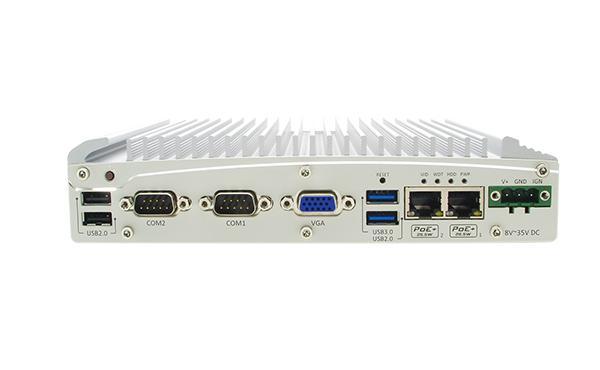

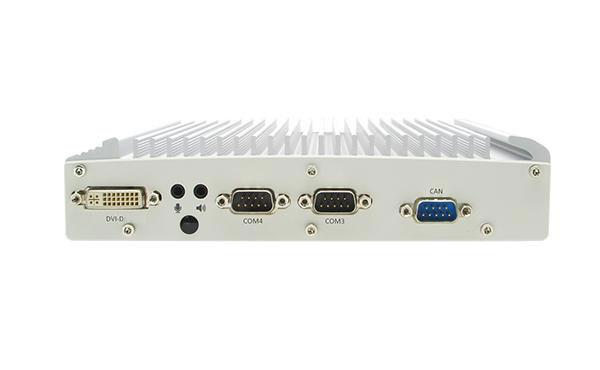

Nuvo-2510VTC - Neousys

Celeron J1900 Fanless In-Vehicle System 1*CAN 2*PoE+

We provide a wide range of industrial computers and embedded systems, from Core i7/i5/i3 Embedded to the Nuvo-2000-Series and others. Our products are designed to meet the needs of the most demanding applications, offering reliable performance and robustness. We also offer a variety of customization options to meet your specific requirements..

Description

  • Intel Atom E3845 1,91GHz Quad-Core Bay Trail fanless system for in-vehicle applications
  • up to 8GB DDR3L-1333 SODIMM RAM (1 slot)
  • 1* 2,5" SATA III HDD/SSD port
  • 1* mSATA half size port
  • 2* Intel I210 GbE ports with PoE P.S.E. functionality compliant to IEEE802.3at
  • Ignition Power Control (provides options to adjust on/off delay to turn on/off system based on ignition signals and system status)
  • Intel HD Graphics with DVI-I (resolution 2560*1600) port
  • 2* Mini-PCIe expansion slot (full size
  • one with internal USIM card socket and PCIe/USB support
  • one with external USIM socket and USB support)
  • 1* USB 3.0 and 3* USB 2.0 ports
  • 2* RS232/422/485 (software-programmable) and 2* RS232 ports
  • 1* CAN bus port via DB9 connector (compliant to CAN 2.0A and CAN 2.0B)
  • 3-pin pluggable terminal block for ignition signal and DC input
  • 1* Mic in and 1* Speaker out
  • operating temperature -25°...+70°C @100% CPU load
  • vibration resistance up to 5Grms (5-500Hz 3 axes with SSD according to IEC60068-2-64)
  • shock resistance up to 50Grms (half-sine 11ms duration with SSD according to IEC60068-2-27)
  • power supply 8..35 VDC built in (60W AC/DC adapter optional)
  • optional DIN-Rail mounting kit
  • shock-absorbing brackets for in-vehicle mounting included
  • 205*145*44mm
  • 1,9kg (including 2.5" HDD and 1* DDR3L SODIMM RAM)
  • Neousys

Details

  • Width: 205 mm
  • Height: 145 mm
  • Depth: 44 mm
  • Net weight: 1.9 kg
  • Weight: 2.3kg
  • Manufacturer: Neousys
  • Country of Origin: Taiwan R.O.C.
  • Customs code: 8471 5000 000

Data Sheets

Manuals

Accessories

  • Nuvo-PA-160W
    160W AC/DC Power Adapter for Nuvo-1300af/3005 PoE models
  • Nuvo-PA-120W
    120W AC/DC Power Adapter for Nuvo-3000 series
